Product Description：

If you're looking to get planted in your seat and actually use the lumbar support, then its time to find that perfect seating position and get comfortable with the seat Spacers.

The Adjustable Seat Spacers will lift the front or rear of your front seats. The  kit is user adjustable in 3/8 inch increments and will lift the front of your Driver or Passenger seat from 0.375 inches to 1.125 inches. These will help you find that reclined seating position that just isn't available in a stock For Toyota.

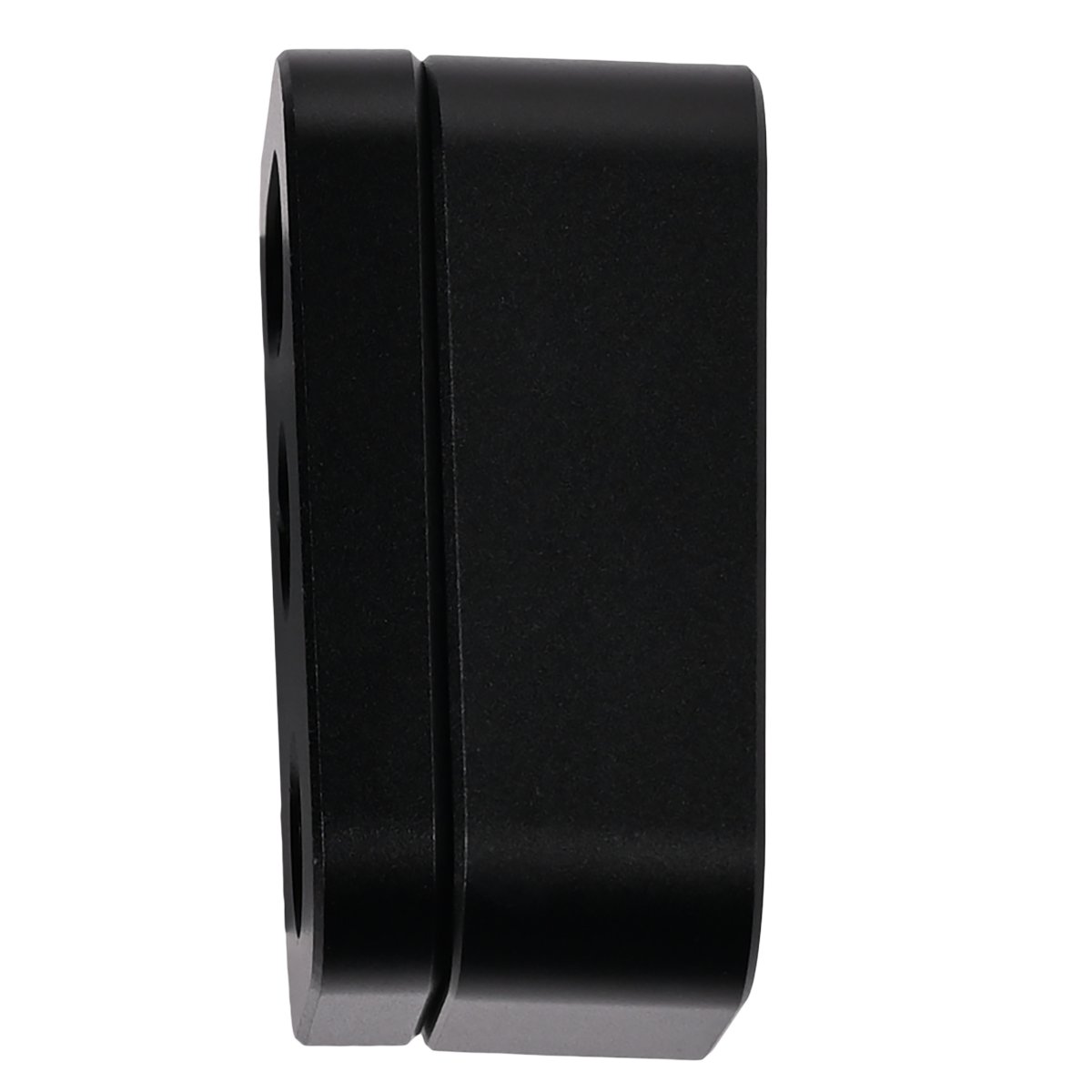

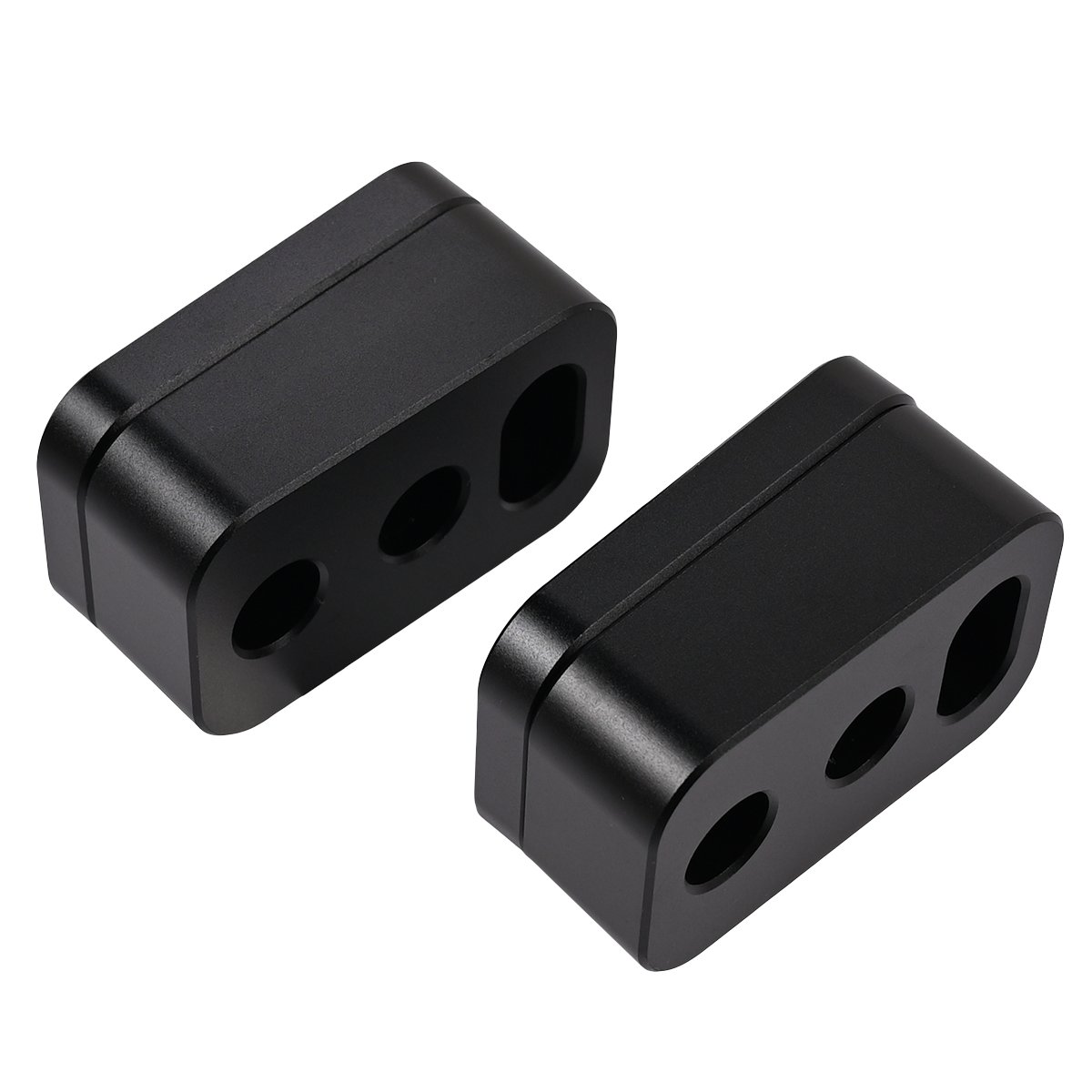

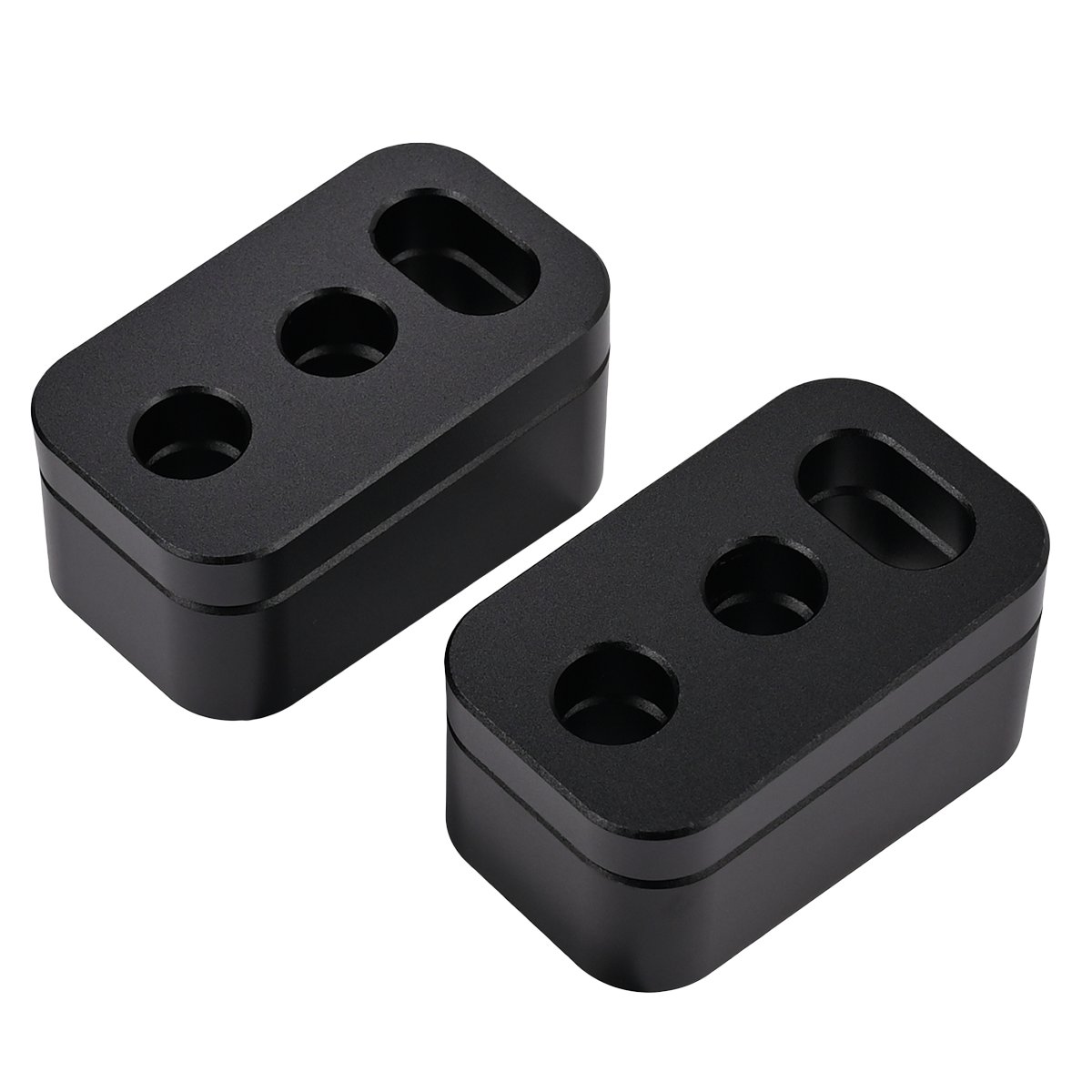

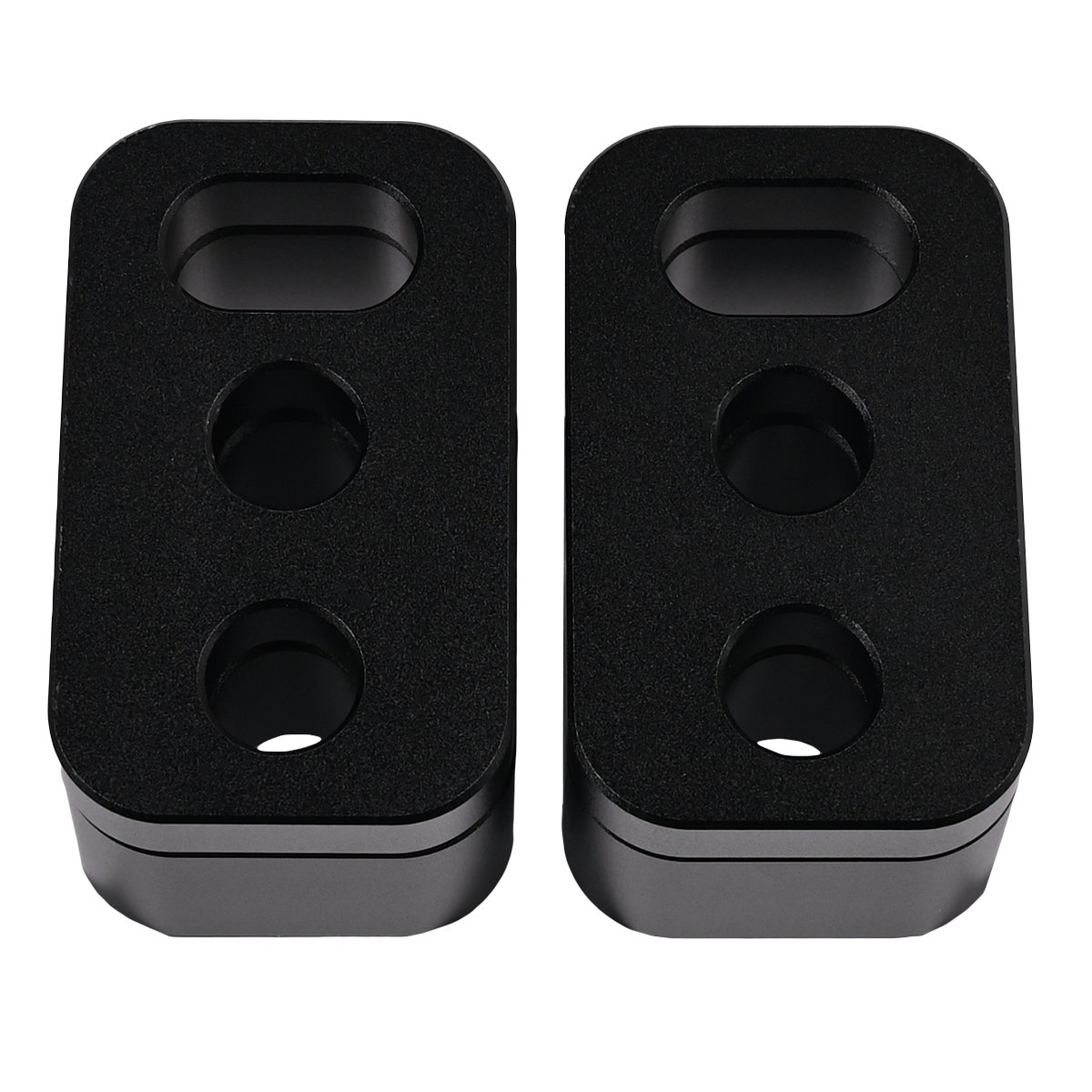

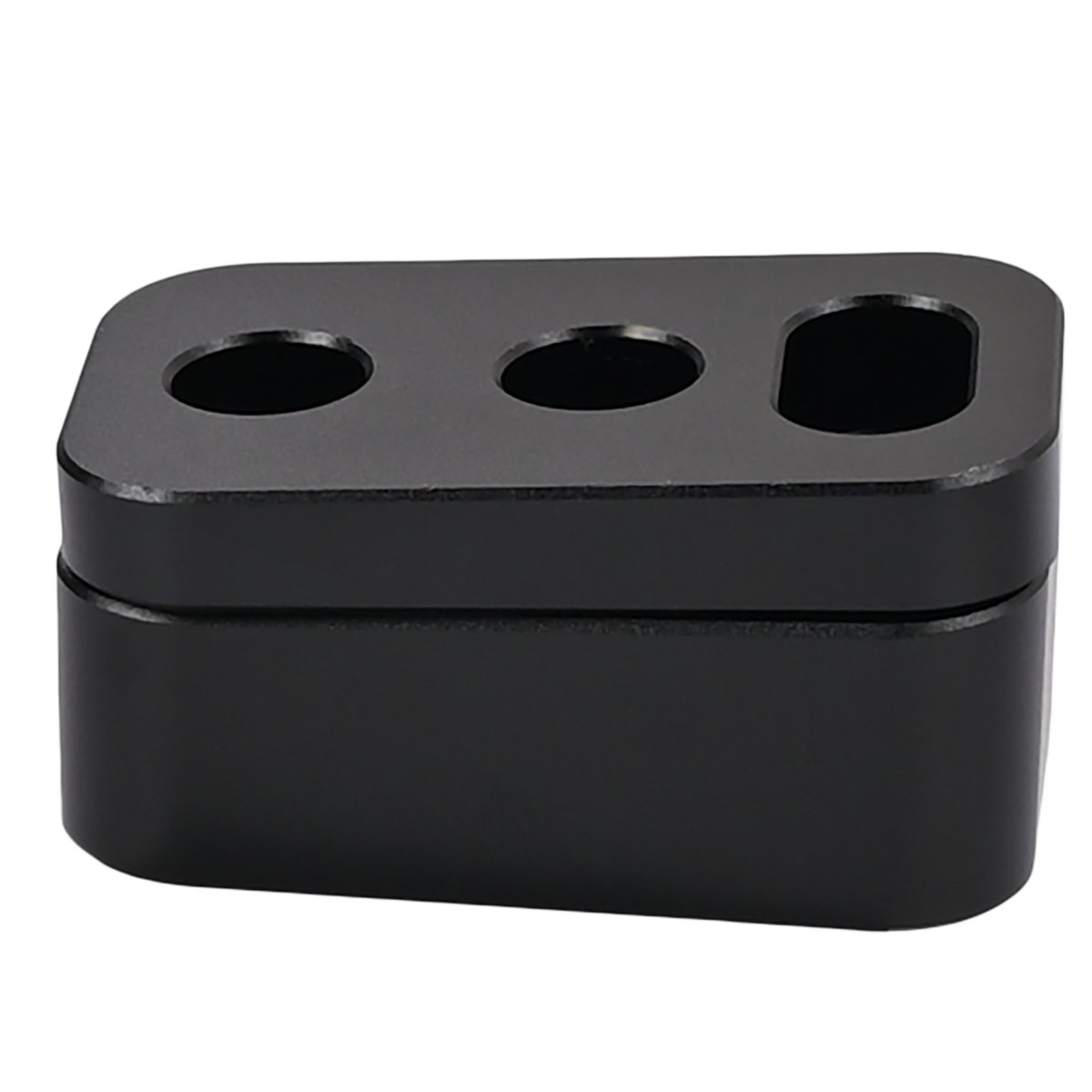

Each Seat Spacer is CNC milled from billet aluminum with a 1.5 degree slope to ensure your seat remains planted and provides the perfect mounting surface.

Whether you have power or manual seats, these will help you find that comfortable seating position that just isn't available in your new vehicle.


Machined by the latest-generation CNC technology that ensures high accuracy for a perfect fit.



Item Specifications:

-- Condition: 100% Brand new

-- Material: Aluminum Alloy

-- Surface: Anodization

-- Processing: CNC-machined

FITMENT：

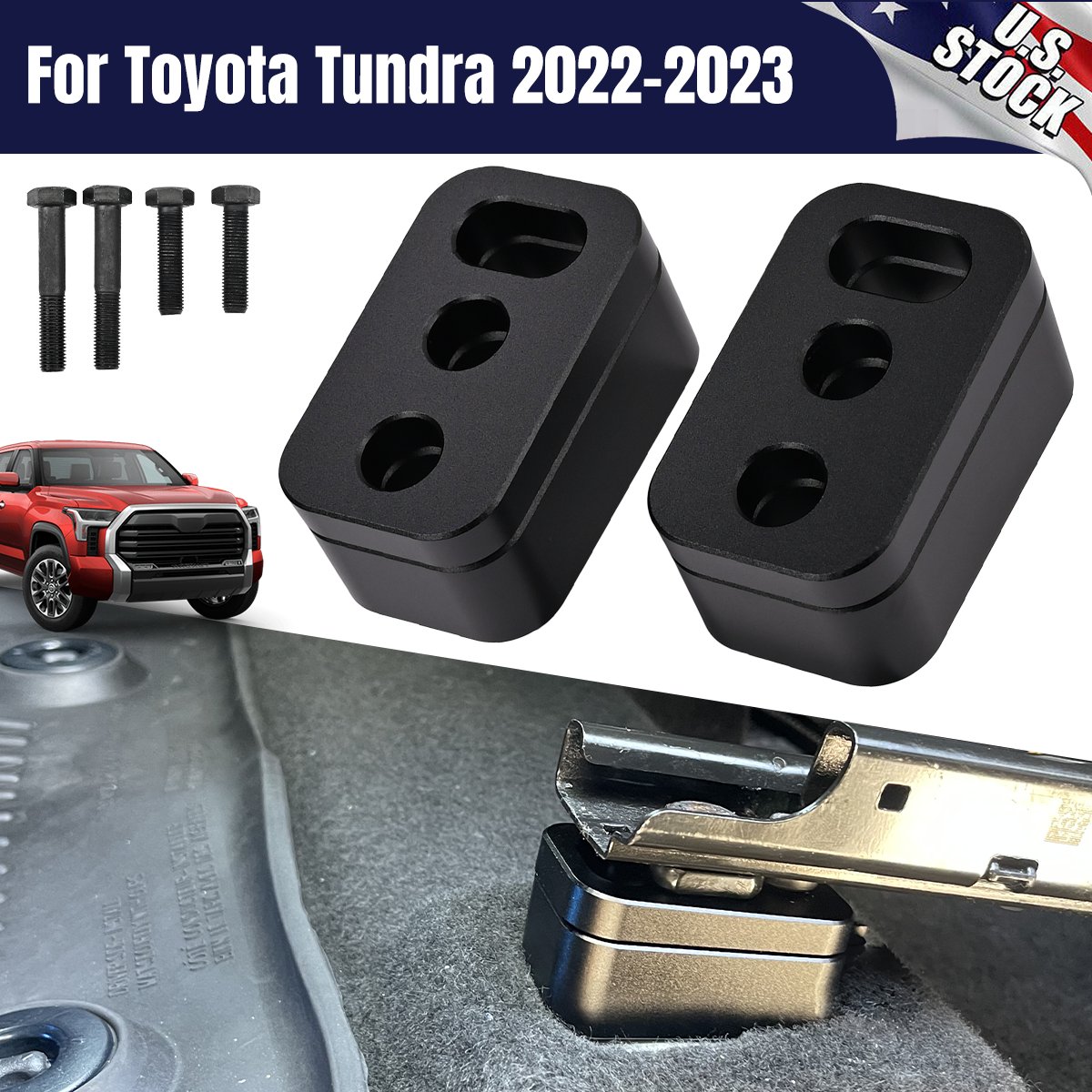

 For Toyota For Tundra 2022-2024

 For Toyota For Sequpia 2023-2024


DETAILS AND FEATURES：

Includes everything needed to install

Lifts FRONT or REAR of your car front seat by 0.375 Inches, 0.75 Inches, or 1.125 Inches

Bolts in with no permanent modifications

Fits Front Driver or Passenger Seat

Compatible with Power or Manual Seats

Made from 6061 Aluminum

Factory Grade M10 Class 10.9 Hardware

Powder Coated in Satin Black for a factory finish

Will work with or without the Rear Seat Spacers

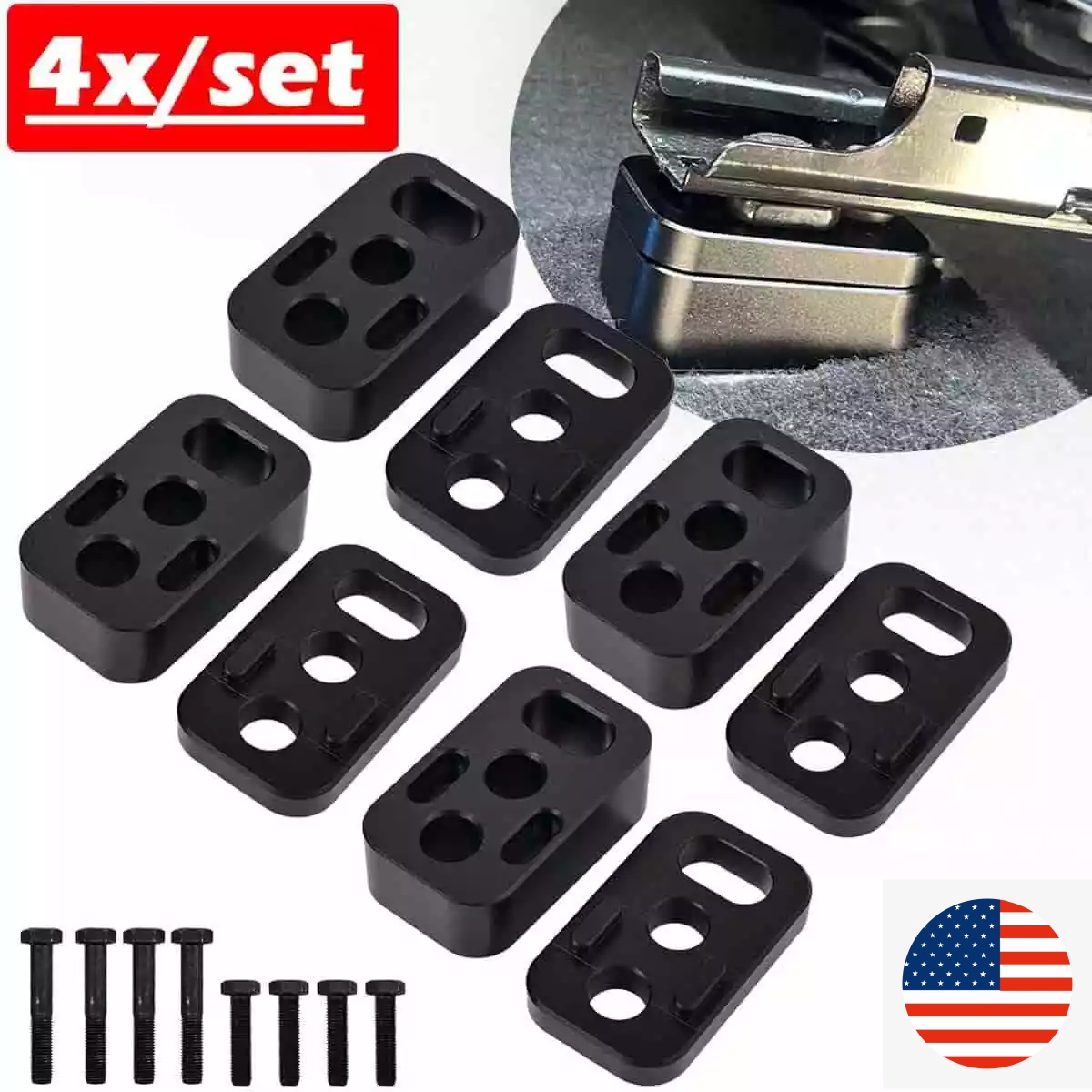

Package include: 2 PAIR seat Spacers


 *Any modifications to your vehicle are done at your own risk.


INSTALLATION INSTRUCTIONS

General Note: To help prevent cross threading during installation, we recommend verifying bolts and threads by taking the applicable bolts and threading them in by hand to the corresponding hole. Seat Spacers are sloped so make sure the larger side is facing forward. Also, if installing both front and rear Seat Spacers make sure the numbers are facing forward. Same steps apply for the rears, just reversed.



  1. Step One: Remove any plastic trim at the feet of your seat. Remove both front factory seat base bolts and loosen the two rear seat bolts but do not remove them.
  2. Step Two: Lift the front seat by pushing back on the headrest or by asking a helper to pull from the back seat.
  3. Step Three:

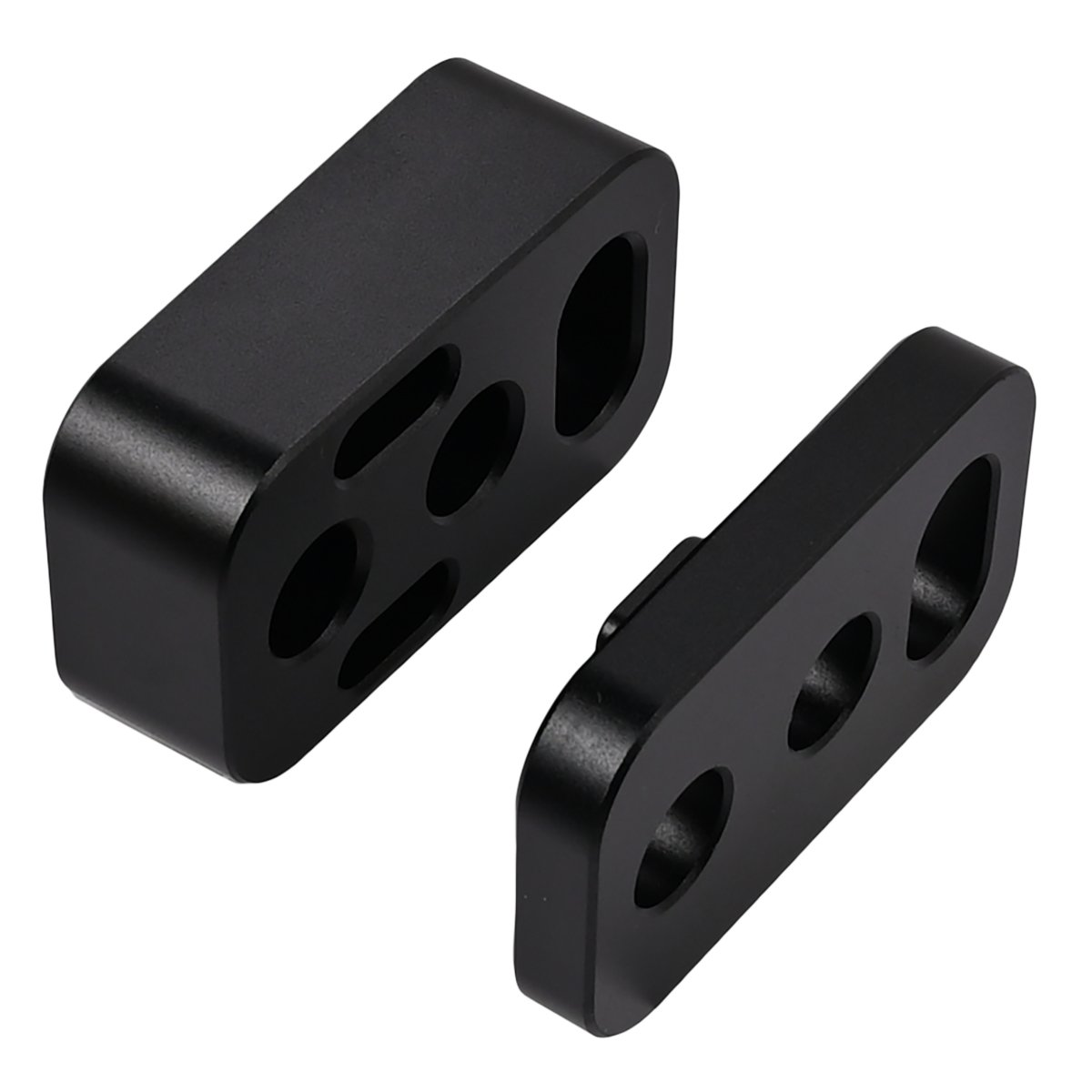

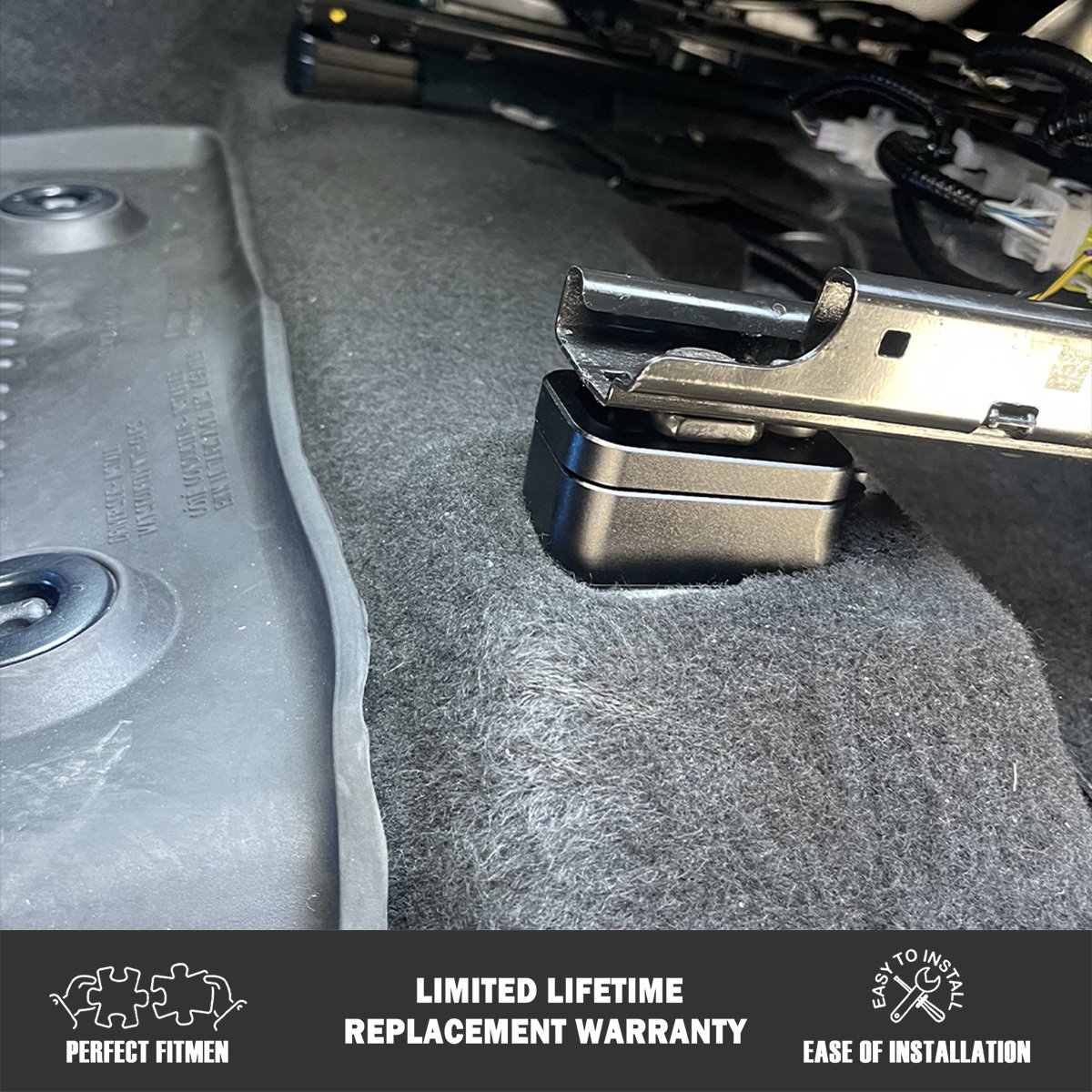

    1. 3/8 Inch Lift/One Seat Spacers Shim - Choose the Long Slotted Seat Spacers and place it under each front seat rail in between the rail and your carpet. The Long Slotted Seat Spacers is for the optional MMP, do not discard.

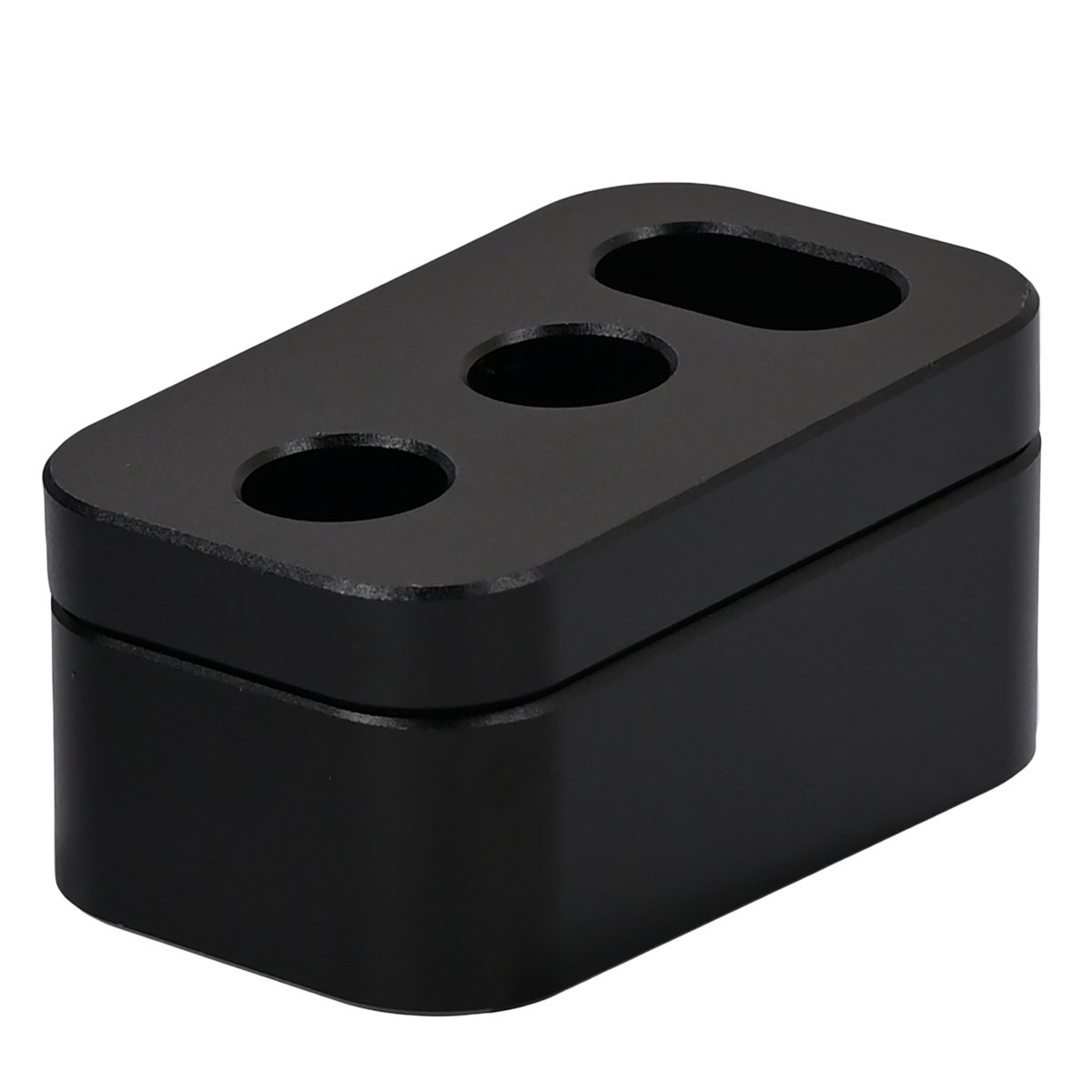

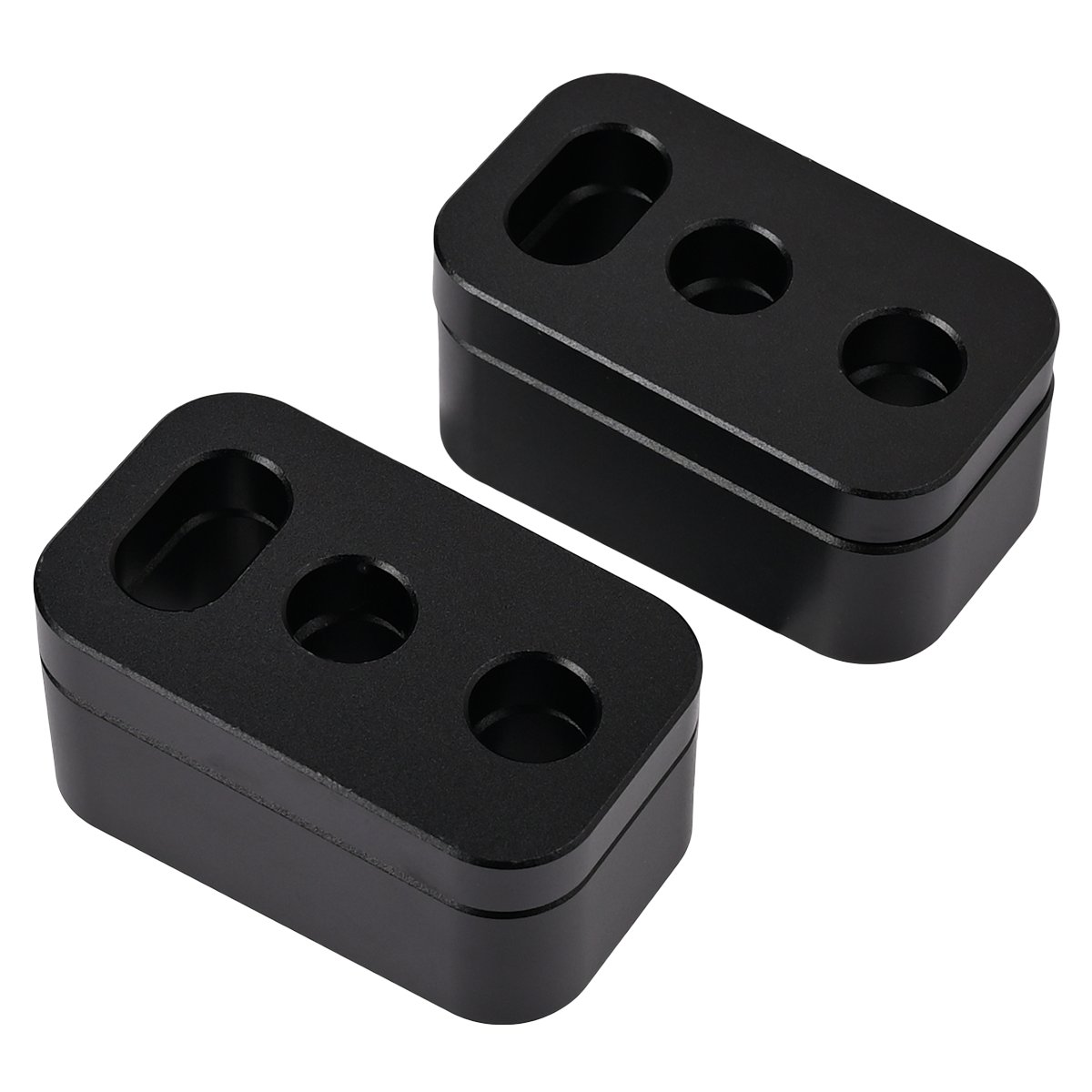

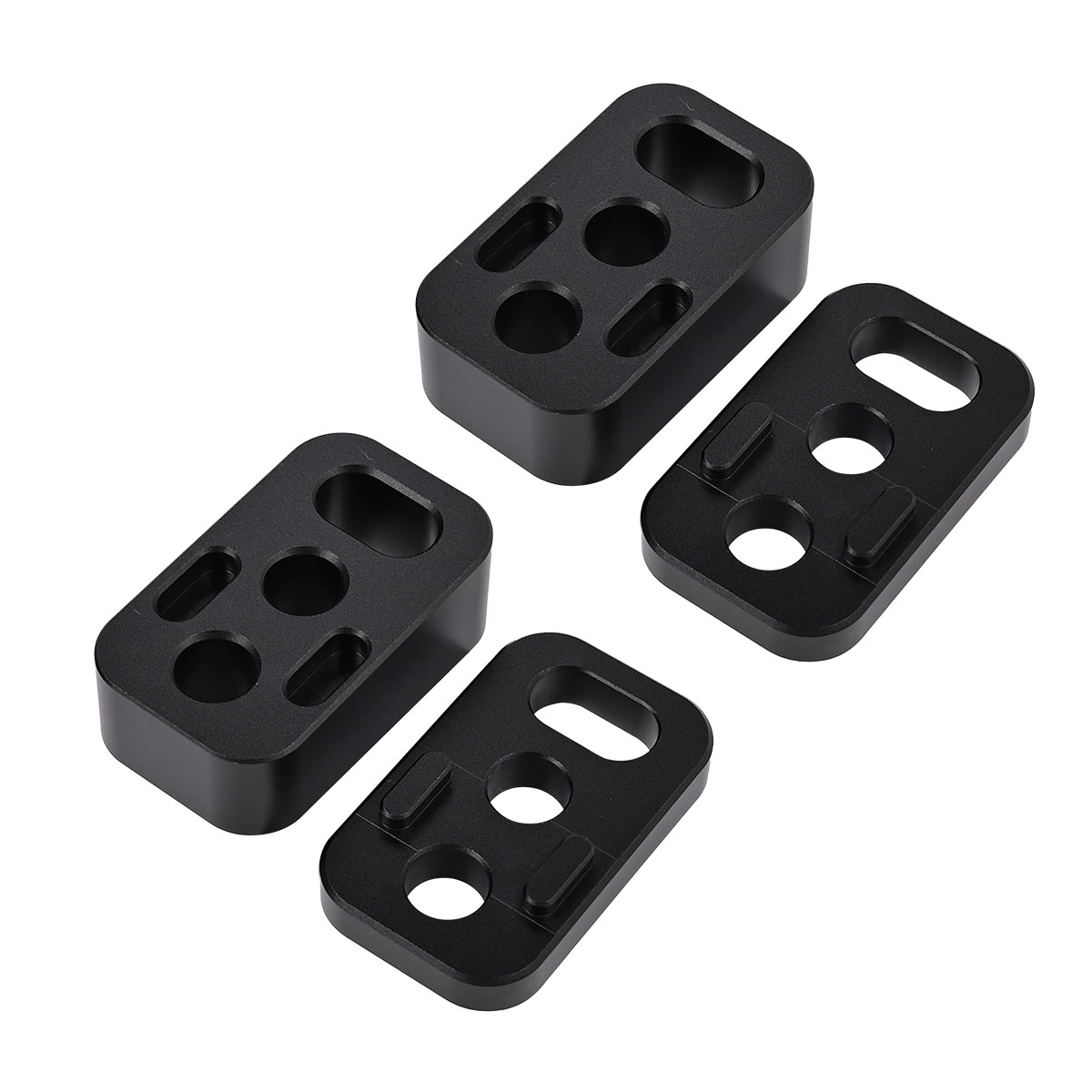

    2. ¾ Inch Lift/ One Seat Spacers Shims - Take the Long Slotted and the Middle Seat Spacers and stack them together. The Shims are notched and will nest together. At the front seat mounting point, place the Seat Spacers stack in between the front seat rail and your carpet. Move to step Four. The Long Slotted Seat Spacers is for the optional MMP, do not discard.
    3. 1 ⅛ Inch Lift/Two Seat Spacers Shims - Take the Top and Middle Seat Spacers and stack them. The Long Slotted Seat Spacers will go on the bottom and can be lined up (front to back) as desired. At the front seat mounting point, place the full Seat Spacers stack in between the front seat rail and your carpet. Move to step Four.

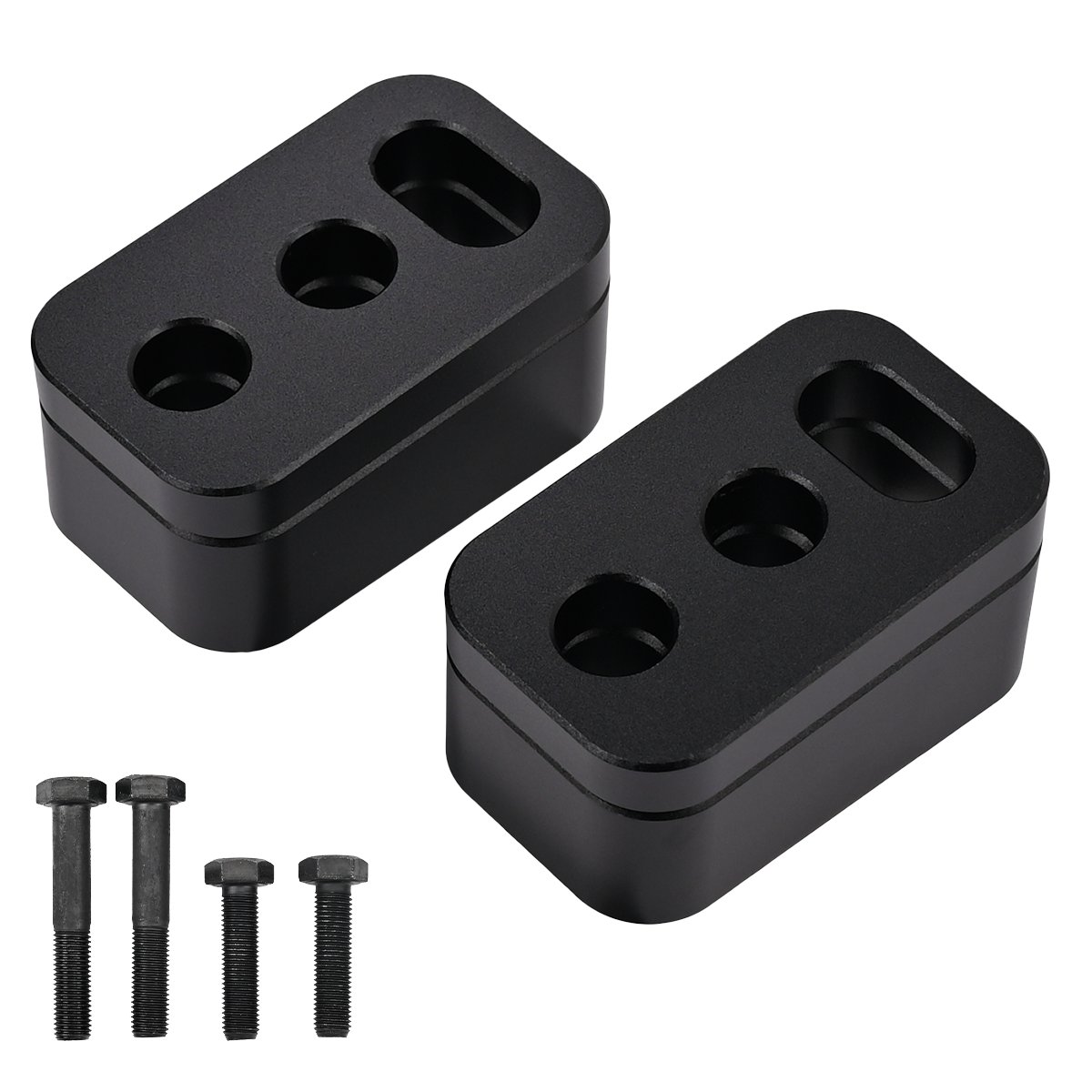

  4. Step Four: If using one or two Seat Spacers, use the provided 40mm hex head bolt. If using all three Seat Spacers, use the provided 60mm hex head bolt. Take the correct hex head bolt and thread it through the seat rail, through the Seat Spacers, and into the floor of the vehicle.
    *IMPORTANT – IF THE SEAT RAIL HOLE DOES NOT LINE UP, LIFT UP THE SEAT RAIL .25 INCHES AND THREAD IN THE BOLT A COUPLE OF THREADS. IF NEEDED ADJUST THE SEAT RAILS ONE AT A TIME TO GET EVERYTHING TO LINE UP AND CONFIRM REAR SEAT BOLTS ARE LOOSE ENOUGH.
  5. Step Five: Torque two front bolts and two rear bolts to 27ft-lbs.

  6. Step Six: Reinstall any plastic trim pieces that were removed in Step One.

TOOLS NEEDED

17mm Socket and Ratchet

T50 Torx Bit

2.5mm Allen Key

Torque Wrench

Blue Loctite

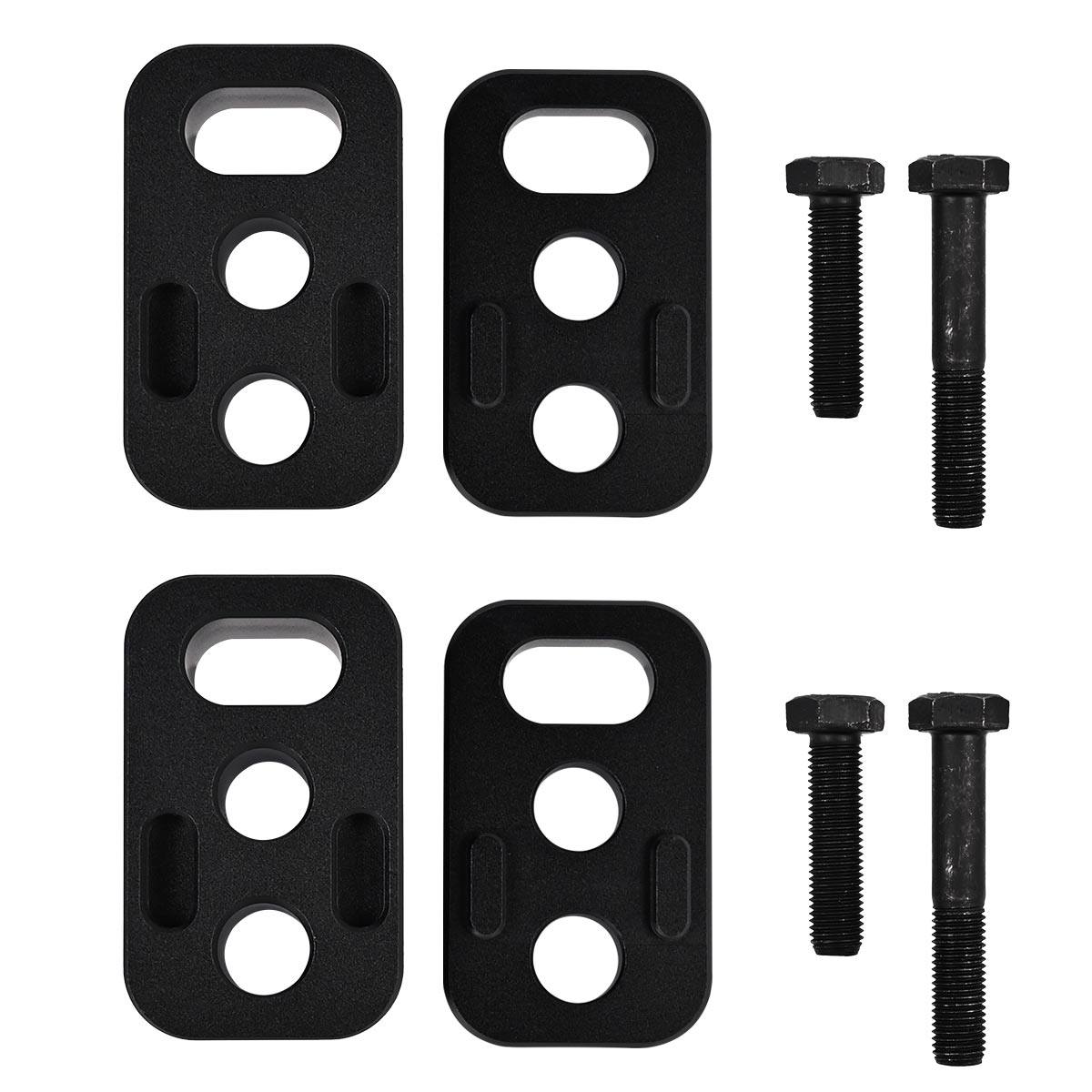

INCLUDED PARTS
