Product Description

Installation:

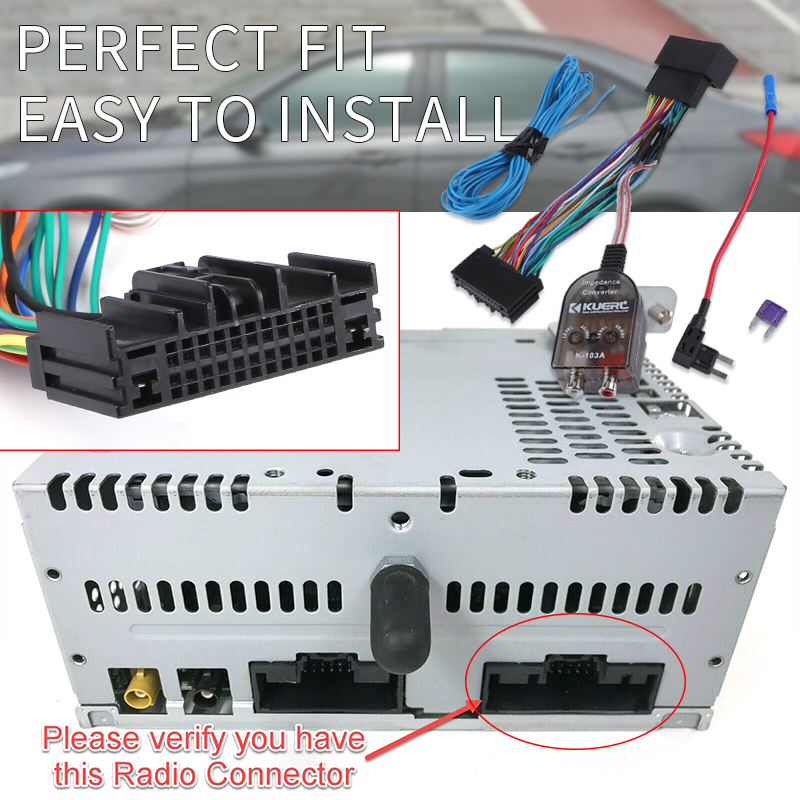

Remove your OEM factory radio

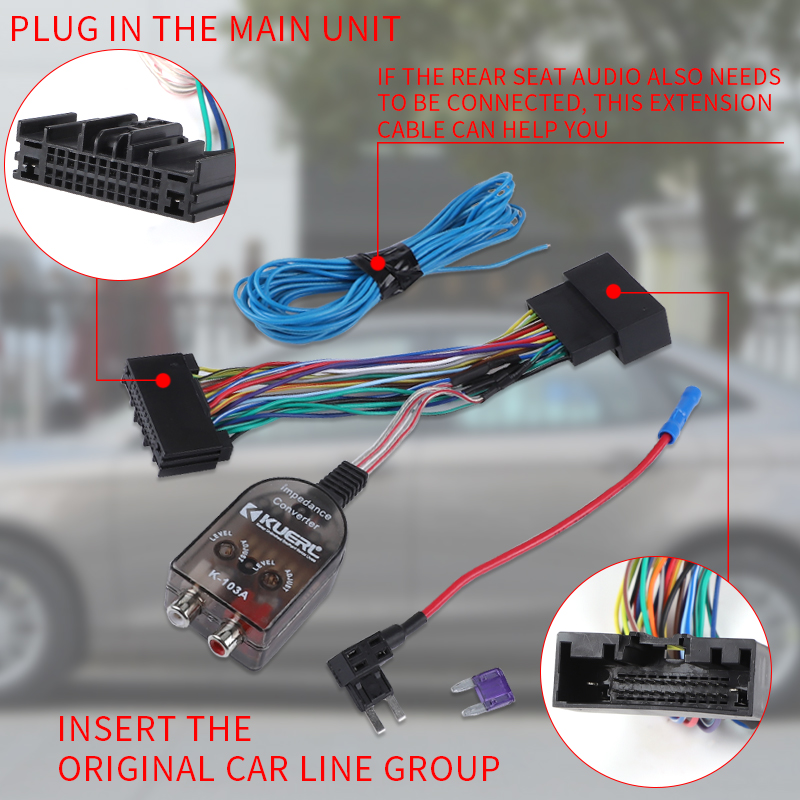

Unplug the OEM factory wiring and plug in this wire harness

Reinstall your OEM factory radio

What is it?

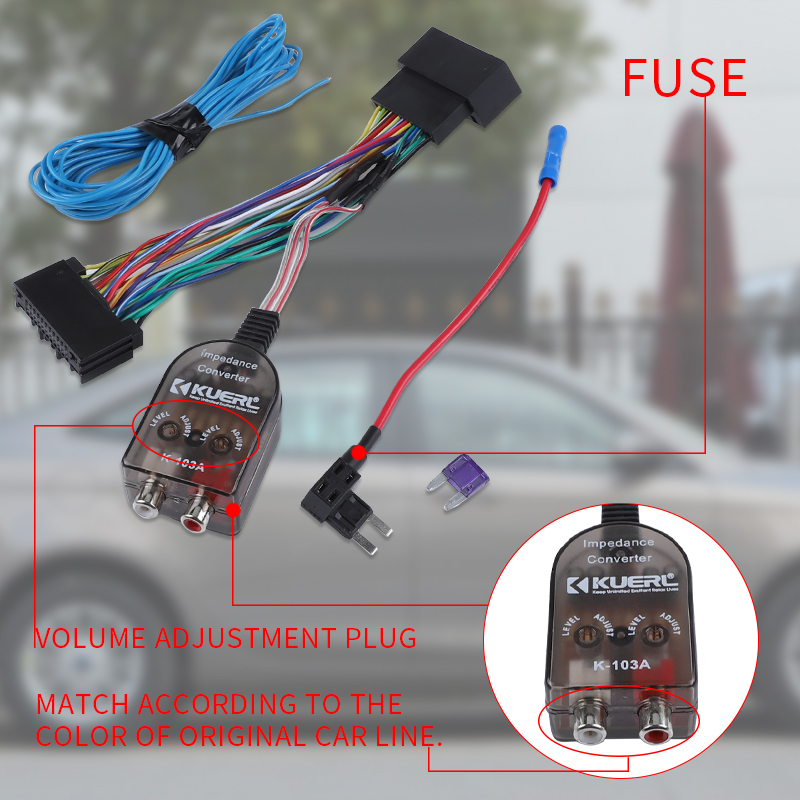

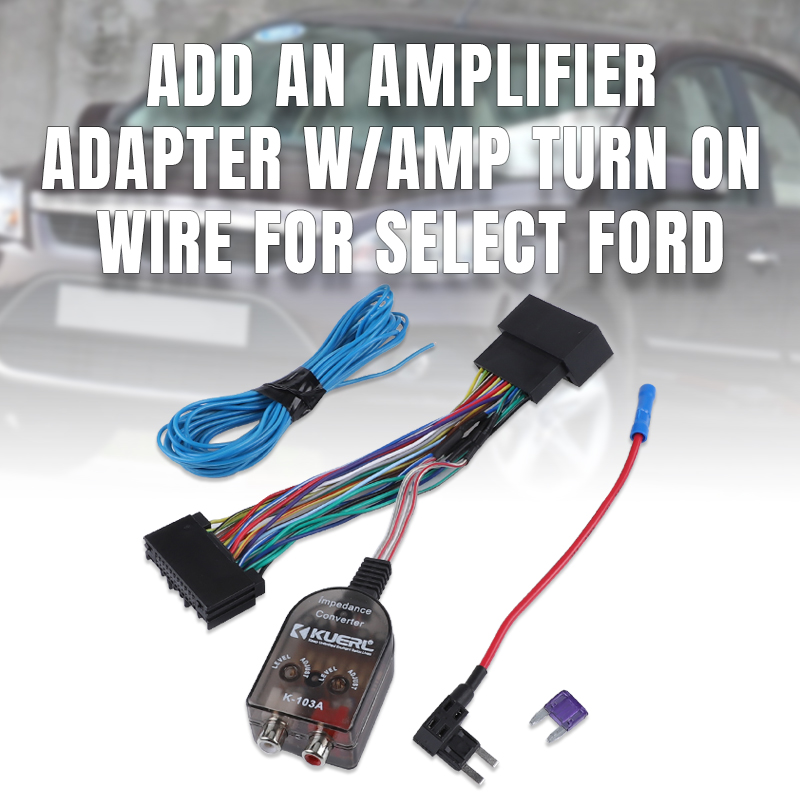

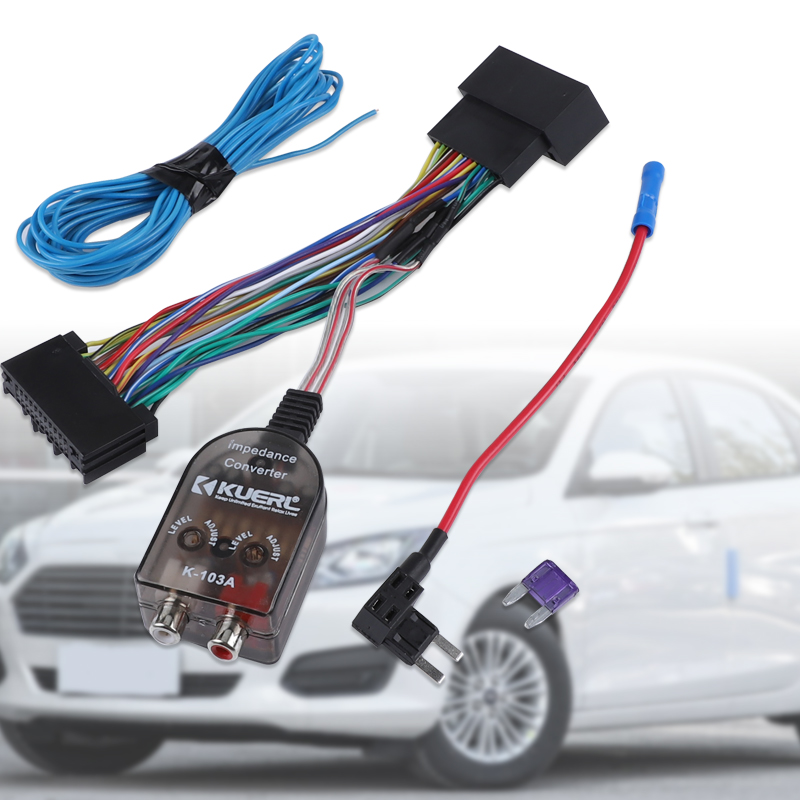

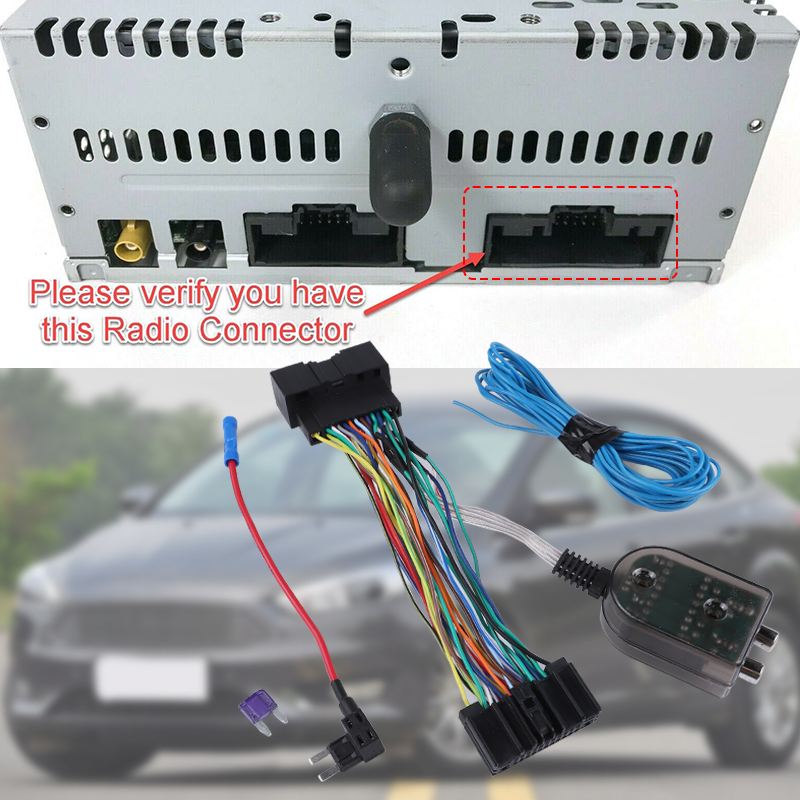

This wire harness provides a connection for one set of RCA cables to provide an audio signal to an external amplifier, as well as an add-a-circuit with remote wire for the remote amplifier turn on wire. This wire, along with a set of RCA cables, is run to your aftermarket amplifier.  All that's left for you to do is connect the main power wire from your battery and ground. (Not included)


Inclues:

One (1) plug and play wire harness

One (1) Add-A-Circuit fuse tap

One (1) 3 amp fuse

Alternate Options:


Need additional parts for your installation?

Check out our other listings where RCA cables, bass knobs, and amps kits are included!


Compatibility Notes:

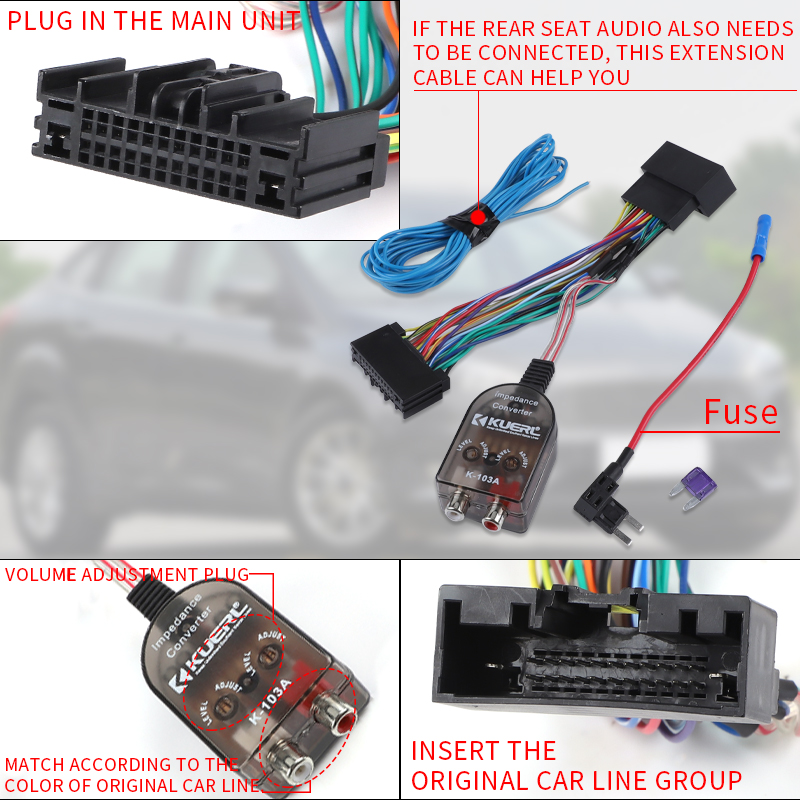

Audio volume to the amplifier can be adjusted by the dials on the harness. For easier access we recommend using an external volume knob. (Not included )

It is up to the installer to select which circuit to use with the Add-A-Circuit. The radio circuit is most common however any that turns on/off with the ignition could be used if deemed appropriate.

A variety of wire colors may be used for the remote wire coming off the harness. Regardless of color, rest assured it is for the remote turn on of an amplifier.

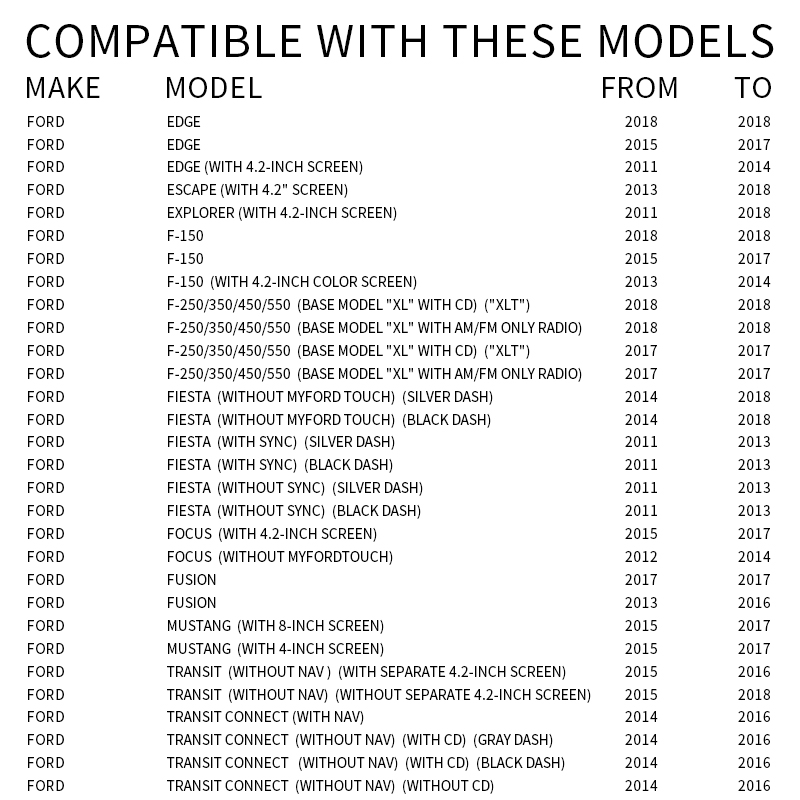

Compatible with these models


Compatible with these models:

MAKEMODELFromTo
FordEdge20182018
FordEdge20152017
FordEdge (with 4.2-inch screen)20112014
FordEscape (with 4.2" screen)20132018
FordExplorer (with 4.2-inch screen)20112018
FordF-15020182018
FordF-15020152017
FordF-150  (with 4.2-inch color screen)20132014
FordF-250/350/450/550  (base model "XL" with CD)  ("XLT")20182018
FordF-250/350/450/550  (base model "XL" with AM/FM only radio)20182018
FordF-250/350/450/550  (base model "XL" with CD)  ("XLT")20172017
FordF-250/350/450/550  (base model "XL" with AM/FM only radio)20172017
FordFiesta  (without MyFord Touch)  (silver dash)20142018
FordFiesta  (without MyFord Touch)  (black dash)20142018
FordFiesta  (with SYNC)  (silver dash)20112013
FordFiesta  (with SYNC)  (black dash)20112013
FordFiesta  (without SYNC)  (silver dash)20112013
FordFiesta  (without SYNC)  (black dash)20112013
FordFocus  (with 4.2-inch screen)20152017
FordFocus  (without MyFordTouch) 20122014
FordFusion20172017
FordFusion20132016
FordMustang  (with 8-inch screen)20152017
FordMustang  (with 4-inch screen)20152017
FordTransit  (without NAV )  (with separate 4.2-inch screen)20152016
FordTransit  (without NAV)  (without separate 4.2-inch screen)20152018
FordTransit Connect (with NAV)20142016
FordTransit Connect  (without NAV)  (with cd)  (gray dash)20142016
FordTransit Connect   (without NAV)  (with cd)  (black dash)20142016
FordTransit Connect  (without NAV)  (without cd)20142016


Converter adjustment instructions:

After completing all of the necessary connections, turn the adjustment pots all of the way down by rotating them completely counter-clockwise.

Turn the stereo system on and adjust the main volume control on the stereo to approximately 3/4 maximum volume.

Select one of the adjustment pots and turn it slowly clockwise until you notice audio distortion and then stop.

Turn the remaining pot to the same position as the previously adjusted pot.
