QXPF

Rear Air Suspension Spring Bag leaf Helper Kit For Nissan Navara D21 D22 4X4 4WD



All modifications must be installed by licensed mechanics and in compliance with your local modification regulations

​​​​​​​

MaXpeedingrods Air suspension kit

Specifications


Condition Brand New
Placement on Vehicle Rear Left and Right
Capacity 5000 LB / 2268 KG
Recommended working range 5psi - 100psi
Design height 165mm
Stroke 205mm
Max. Extended 250mm
Min. Compressed 45mm
Operating Pressure ≤2.0Mpa
Temperature ≤+70° , ≥-40°
Minimum height of whole kit 100 mm
Maximum height of whole kit 305 mm

MaXpeedingrods Air suspension kit

Appliation

For Nissan Navara D21 4x4 4WD 1986-1999

For Nissan Navara D22 4x4 4WD 1997-2015

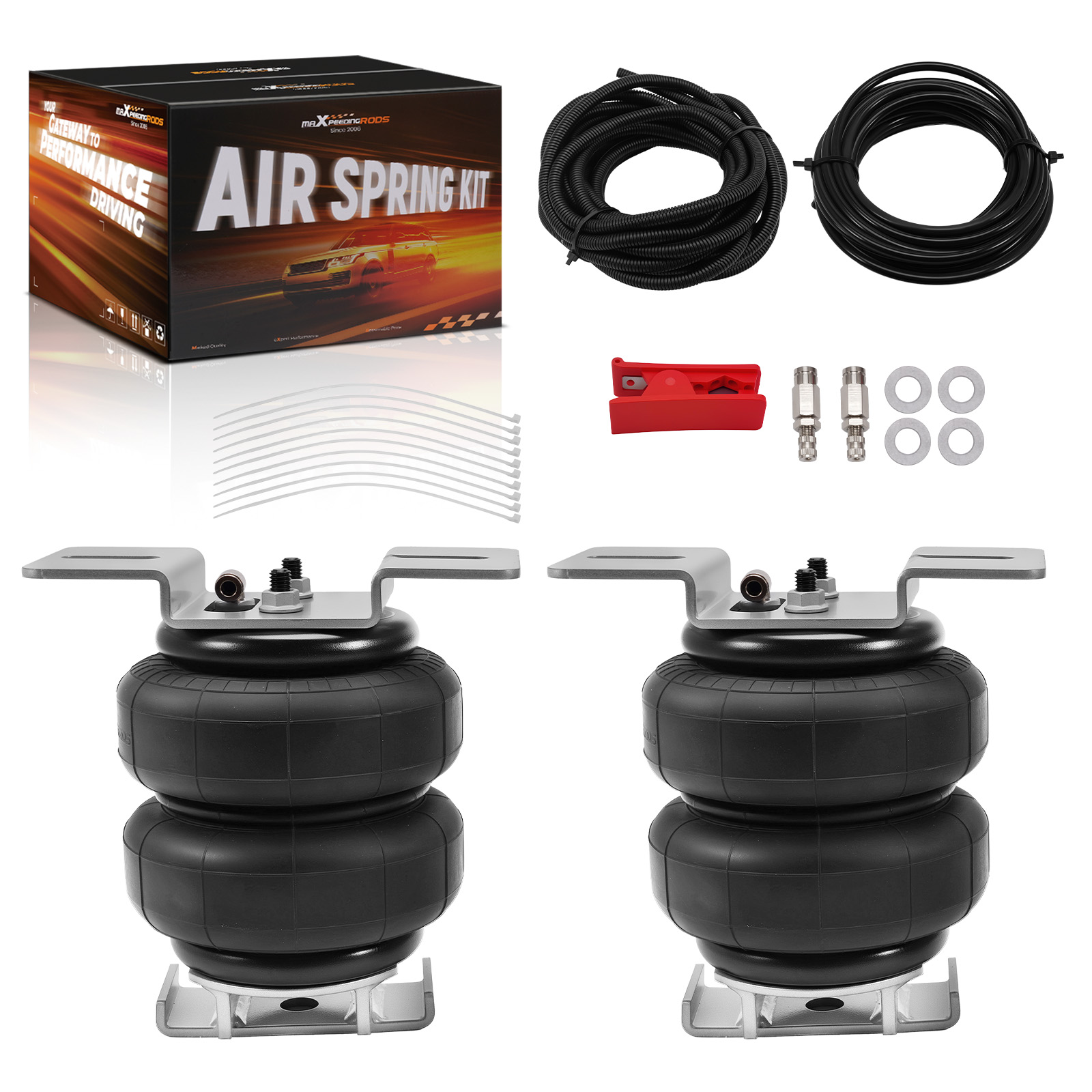

Package Includes:

2x Natural Rubber & Hi-tensile steel Air spring

4x Galvanised Heavy duty Mounting bracket

1x Air line 6m

Includes All Brackets & Hardware Needed to Install

Mounting Hardware


Notice:

- Instruction is not included. Professional installation is recommended

- Contact us please for whatever we can help
