For SALE is

Dwyer RMA-7-SSV Flow Meter, 2" Scale, 5-50 SCFH Air, SS Valve

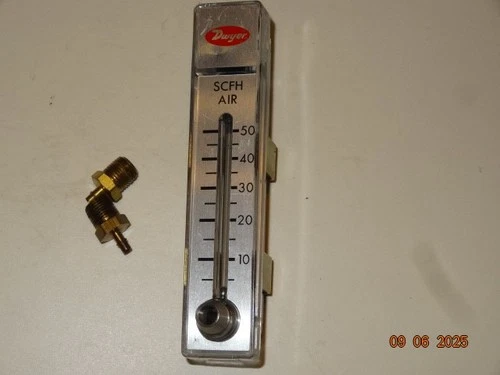

Dwyer RMA-7-SSV Flow Meter, 2" Scale, 5-50 SCFH Air, SS Valve - Picture 1 of 6





PICTURE JUST FOR REPRESENT ITEM

SPECIFICATIONS

 Service Compatible gases and liquids. Wetted Materials Body: Polycarbonate; O-ring: Neoprene and Buna-N; Metal parts: SS; Float: SS, black glass, aluminum, K monel, tungsten carbide depending on range. Temperature Limit 130°F (54°C). Pressure Limit 100 psi (6.9 bar). Accuracy RMA: 4% FS; RMB: 3% FS; RMC: 2% FS. Process Connection RMA: 1/8˝ female NPT; RMB: 1/4˝ female NPT; RMC: 1/2˝ female NPT. Weight RMA: 4 oz (113.4 g); RMB: 13 oz (368.5 g); RMC: 29 oz (1105.6 g). CAUTION: Dwyer® Rate-Master flowmeters are designed to provide satisfactory long term service when used with air, water, or other compatible media. Refer to factory for information on questionable gases or liquids. Caustic solutions, anti-freeze (ethylene glycol) and aromatic solvents should definitely not be used







This item is used, was moved from not used equipment.









Your bid is a contract - Place a bid only if you're serious about buying the item. If you are the winning bidder, you will enter into a legally binding contract to purchase the item.




 No Return policy.
