4G LTE 3G WCDMA Mobile Phone SIM Card To PSTN Landline Wired Phone RJ11 Adapter for Australia, Mexico, New Zealand and South America
4G Voice LTE 3G WCDMA Cellular SIM Card To PSTN
Landline Phone Line RJ11 Adapter For Australia Mexico New Zealand South America

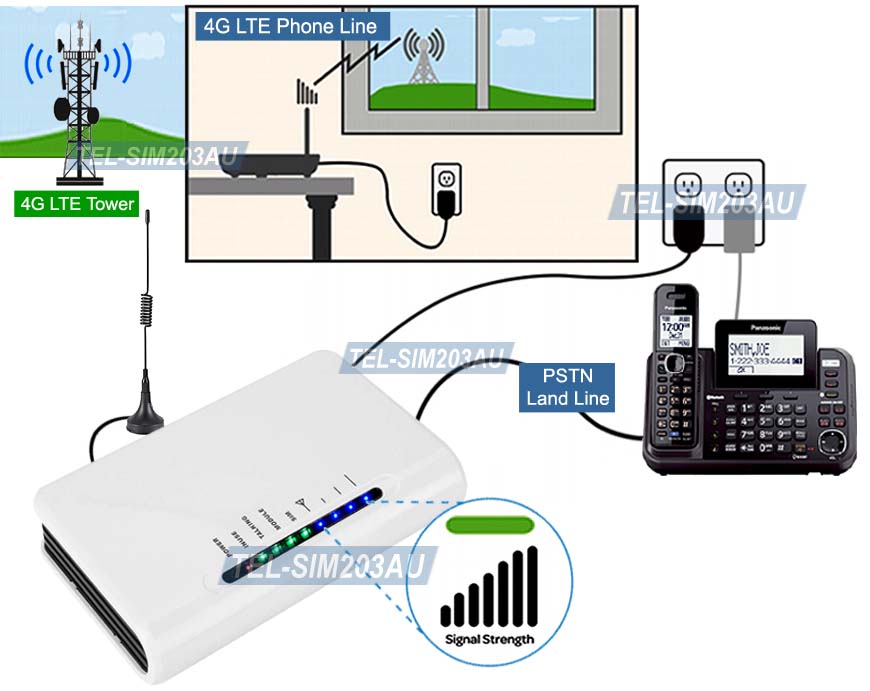

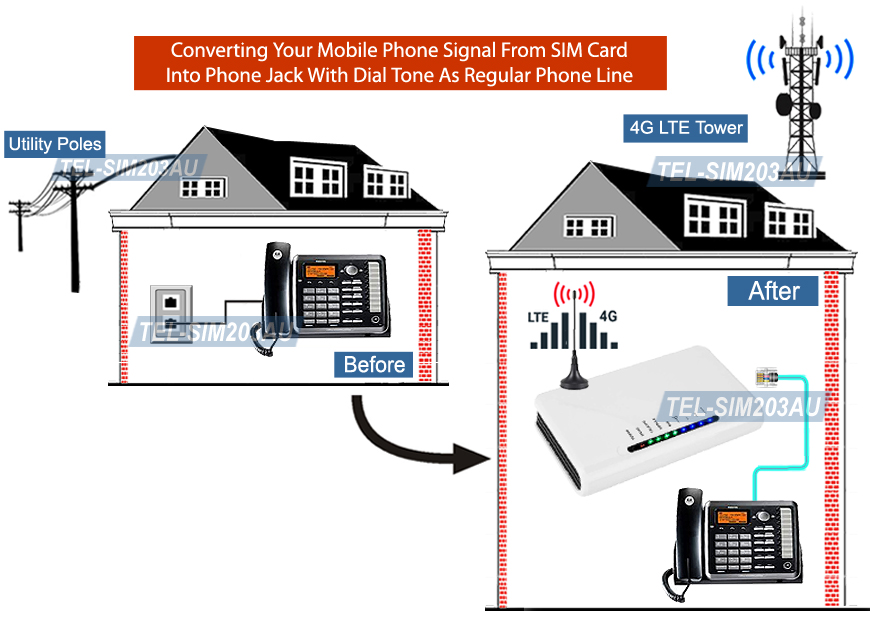

This 4G voice LTE cellular SIM card to RJ-11 phone jack adapter is a great mobile telephony solution for converting the 4G LTE or 3G WCDMA mobile phone signal to PSTN analog dial tone signal.
Users can make phone calls or receive calls through using regular phones but the calls are made or originated from your 4G LTE or 3G mobile phone carrier' system.

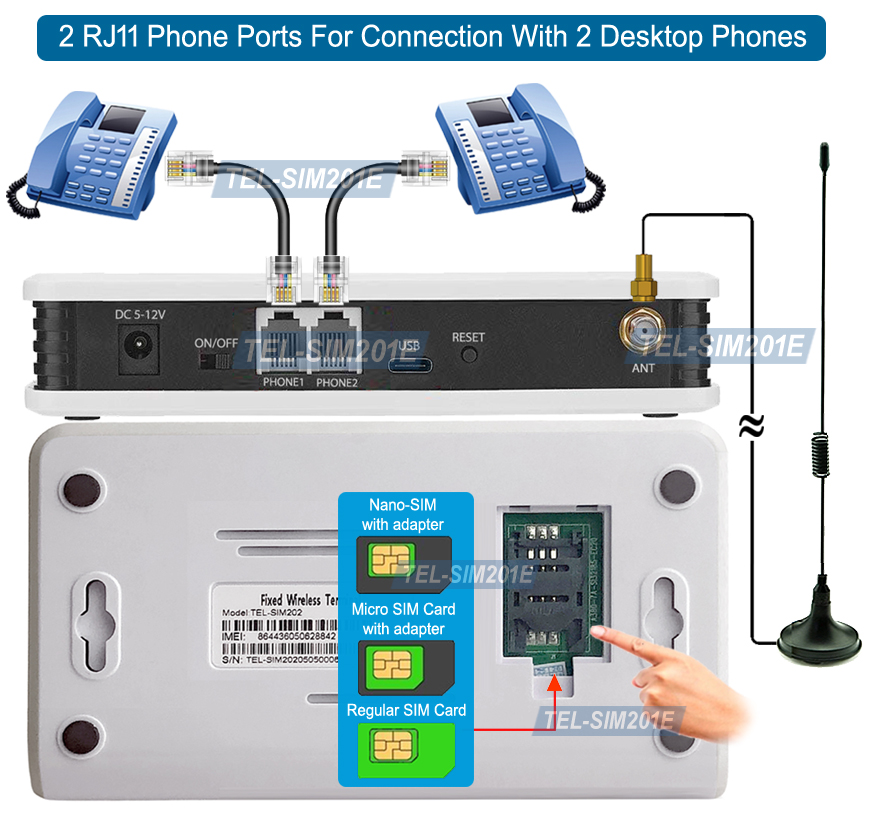

This device is built with 2 of RJ-11 phone jacks for hookup with any desk phone or corded/cordless phone.
Very suitable for remote or rural areas that do not have landline service while mobile phone network is available.
Users can put in pre-paid or regular SIM card into this device and connected with corded/cordless phone so they can make calls or receive calls through 4G LTE, 3G WCDMA and 2G GSM networks.
No need to subscribe to monthly landline service with local phone company.
Save your monthly fee of landline service for phone bill.
This SIM card terminal is specifically designed for regions in
Australia, Mexico, New Zealand and South America.
[Note]: Please consult with your local cellular service carriers for the network system type and band frequency before purchasing this item.
Also a great phone dialer for alarm security system with auto dial function to call out to the monitoring center or home owner when
landline is failing or not available for the location.
The main applications for this product including:
- providing rural or remote areas that do not have landlines with phone jacks through using cellular SIM cards
- providing phone jacks at locations that are difficult to run phone wires
- phone dialer for hookup with phone-controlled devices like our remote power switch, security access control system, etc.
- connecting with security alarm system or motion senor that has call out function for alarm-triggered events
- connecting with PBX system for call extension or office intercom
- hookup with VoIP gateway
[Note]: The 2 phone jacks on this device do not support fax transmission or data modem hookup.
Easy Installation And Operation
This SIM card to PSTN landline module is all plug and play. No programming or configuration needed.

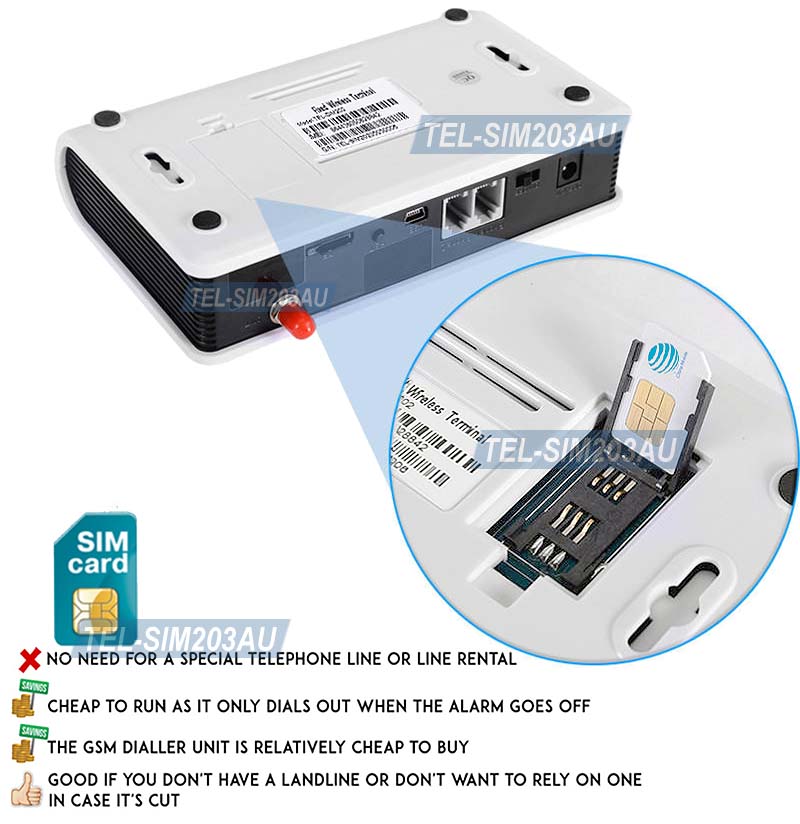

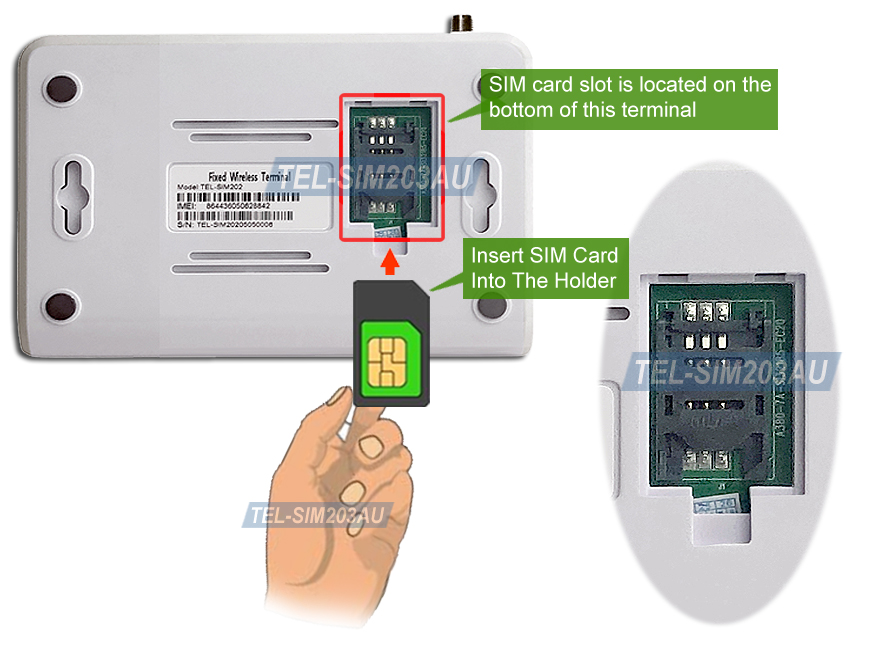

Simply insert an active SIM, mini SIM, nano SIM or micro-SIM card (using SIM adapter) into the SIM slot on the bottom of this unit and then connect with any kind of desk phone.
This unit will be instantly ready for use If you can hear a dial tone from the phone connected after inserting the SIM card into this evice
Wide Compatibility Range Support For 4G LTE 3G
WCDMA GSM Carriers
This cellular phone to PSTN landline phone adapter supports telecom carriers using 4G LTE, 3G and 2G frequency bands including:
- 4G LTE FDD services in B1, B2, B3, B4, B5, B7, B8, B28 band or frequency
700/850/900/1700/1800/1900/2100/2600 MHz for regions in
Australia, Mexico, New Zealand and South America.
- 4G LTE TDD services in B40 band or 2300 MHz frequency for
Australia, Mexico, New Zealand and South America.
- 3G WCDMA services in B1, B2, B5, B8 band or 850/900/1900/2100 MHz frequency
for
Australia, Mexico, New Zealand and South America.
- 2G GSM services: 850/900/1800/1900 MHz frequency
for
Australia, Mexico, New Zealand and South America.

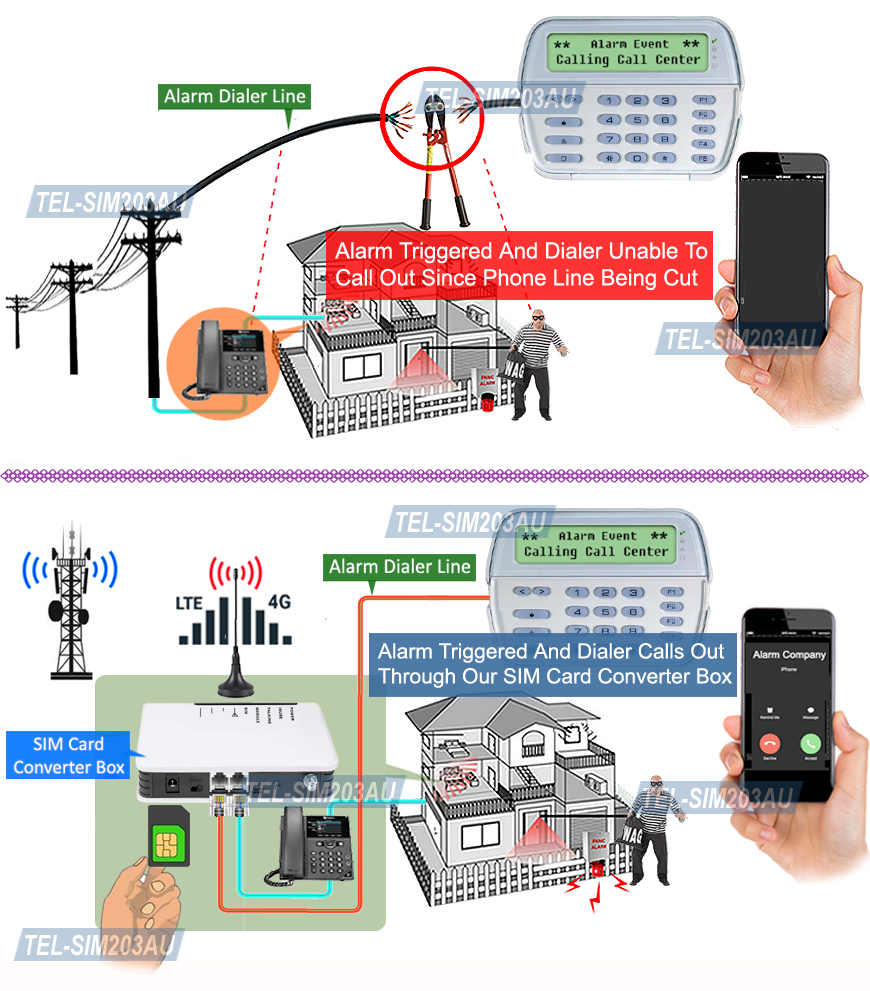

Auto Dialer For Security Alarm System
This device can also be used as phone dialer for those security alarm systems with call-out features.
Once there is any alarm-triggered event, those security systems with auto dialer function can call out through this device to the home owner or monitoring center through this
phone adapter when landline is failing or not available for the location.
Caller ID Display
This 4G/3G SIM to analog PSTN landline phone adapter can display the incoming caller ID or outgoing phone number on the phone screen if available.

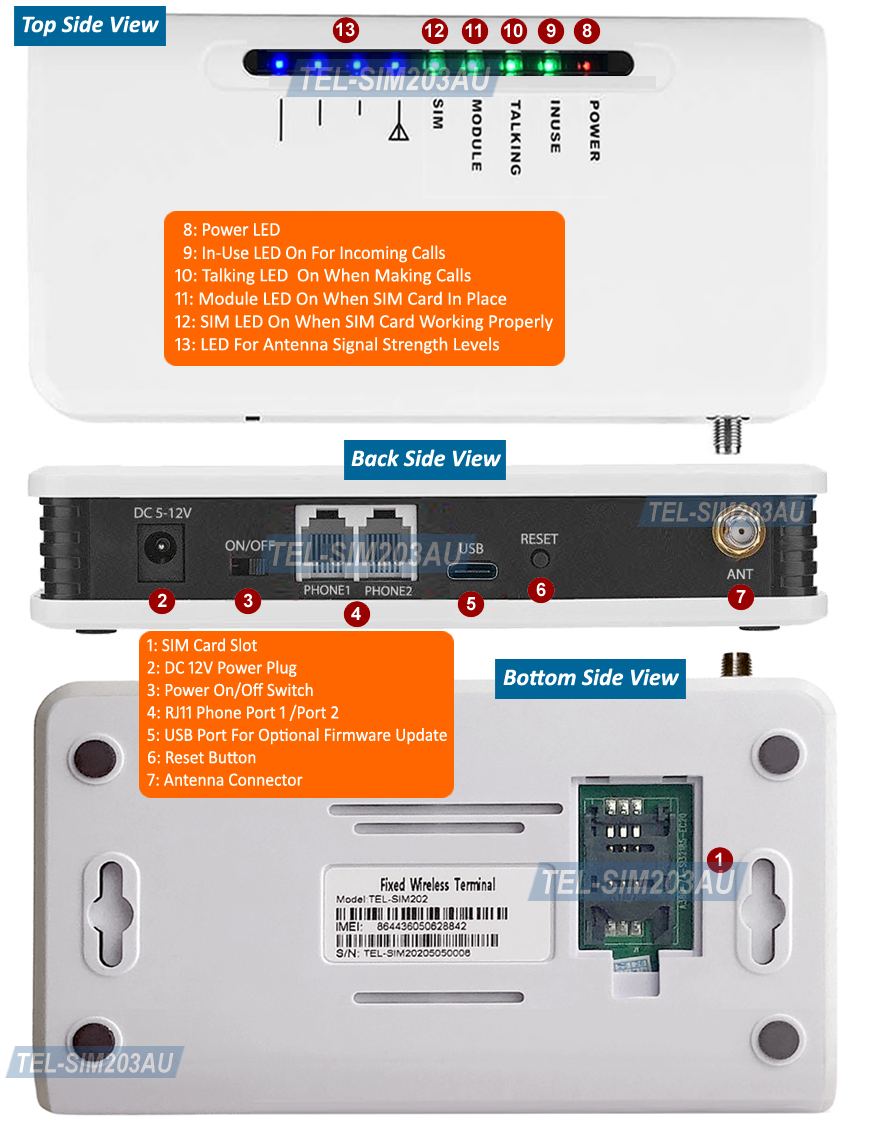

This phone adapter also provides a cellular network signal strength bar indicator on the units for visual reference.
Private Telephone Network Or Intercom For Office

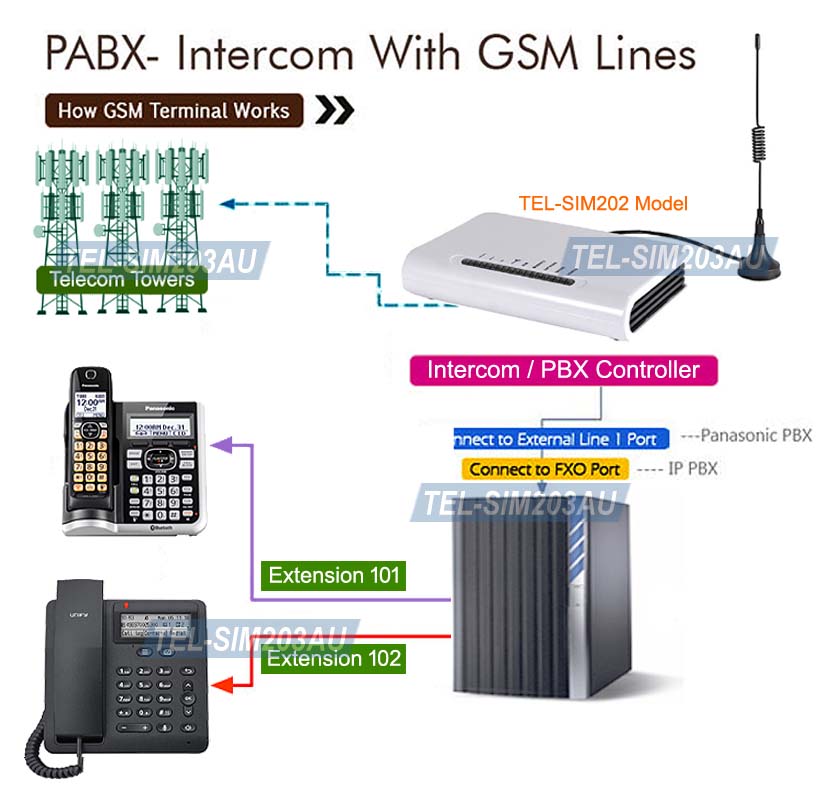

When connecting this device with a PBX system, users can create a private phone exchange system for call extension or office intercom used within a company or organization.
Save Monthly Phone Bills
You can use any pre-paid or locked/unlocked SIM card for this device and combined with desk phone as the dialer to make and receive phone calls.
Save the monthly bill of landline service from now on.
No Phone Line Cut-Off By Intruders
No more worry about the thief to tamper with the landline from the outside phone box.
Secure your alarm line by using the cellular phone service and prevent the cut-off on the phone line by intruders.
More importantly, this device saves you the extra fee that the alarm company charge you monthly for wireless radio service.
Skip paying for the wireless radio service by using this cellular phone to PSTN landline phone adapter as the dialer for your
alarm system.
Detachable Antenna Hookup
Users have the option of
using a more powerful antenna or adding an antenna amplifier for best reception.
The antenna base has strong magnetic suction so it can stay firmly on any metallic object or surface for flexible mounting
with stable reception quality.

- 4G
LTE and 3G WCDMA SIM card to landline PSTN phone adapter with 2 RJ11 phone ports for hookup with any regular desk phone or corded/cordless phone.
- Make phone calls or receive calls through using regular phones but the calls are originated from your 4G LTE or 3G mobile phone carrier' system.
- Easy setup. No programming or configuration needed.
- Users can receive and make phone calls through cellular networks when combing a desk phones or corded/cordless phone with this SIM card to phone jack adapter module.
- No need to subscribe to landline service with local phone company and save the monthly fee.
- Inserting an unlocked or pre-paid SIM card into this module as the dialer to make and receive phone calls through cellular system.
- Suitable for remote or rural areas that do not have landline service while mobile phone network is available.
- Supports SIM cards from cellular carriers adopting 4G VoLTE FDD frequency of
700/850/900/1700/1800/1900/2100/2600 Mhz for
Australia, Mexico, New Zealand and South America regions.
- Supports 3G WCDMA frequency of
850/900/1900/2100 MHz for
Australia, Mexico, New Zealand and South America regions.
- Supports 2G GSM frequency of 850/900/1800/1900 MHz for
Australia, Mexico, New Zealand and South America regions.
- Supports Caller ID display by showing the incoming caller ID or outgoing phone number through the corded or cordless phone used if available.
- A cellular network signal strength bar indicator is built on the unit for visual reference.
- Great phone dialer for security alarm system with auto dial function to call out to the monitoring center or home owner when
landline failing or not available for the location.
- Used as a phone dialer for calls out when the alarm goes off.
- No more cut-off on the phone line by intruders.
No worry about the thief to tamper with the landline from outside.
- Create private phone exchange system for call extension or office intercom when connecting this device with a PBX system.
- Compatible with ordinary telephone set, PBX , VOIP Gateway, Billing meter etc.
- Secure your alarm line by using the cellular phone service and prevent the cut-off on the phone line by intruders.
- Saves the extra fee that the alarm company charge you monthly for the wireless radio service by using this device as the dialer.
- Strong reception through the high gain antenna included with magnetic for flexible mounting and stable reception quality.

- 4G LTE FDD Support: B1, B2, B3, B4, B5, B7, B8, B28 band or frequency
700/850/900/1700/1800/1900/2100/2600 MHz for regions in
Australia, Mexico, New Zealand and South America.
- 4G LTE TDD Support:
B40 band or 2300 MHz frequency for
Australia, Mexico, New Zealand and South America.
- 3G WCDMA Support: B1, B2, B5, B8 band or 850/900/1900/2100 MHz frequency
for
Australia, Mexico, New Zealand and South America.
- 2G GSM/EDGE Support: 850/900/1800/1900 MHz frequency
for
Australia, Mexico, New Zealand and South America.
- SIM Card Support :1.8V,3V
- Phone Jack Interface: RJ-11 port x 2
- Hanging Voltage: 45V
- Dial Tone Frequency: 450Hz
- Antenna Interface: SMA-type
antenna with magnetic base
- Antenna Amplifying:
> 5db
- Sensitivity: <-104 DBM
- Transmitting Power: <3W
- Power Supply : 110~240V
AC with DC 12V 1A output

- SIM card to phone jack adapter module
- Antenna with magnetic base
- Power adapter
- User manual
