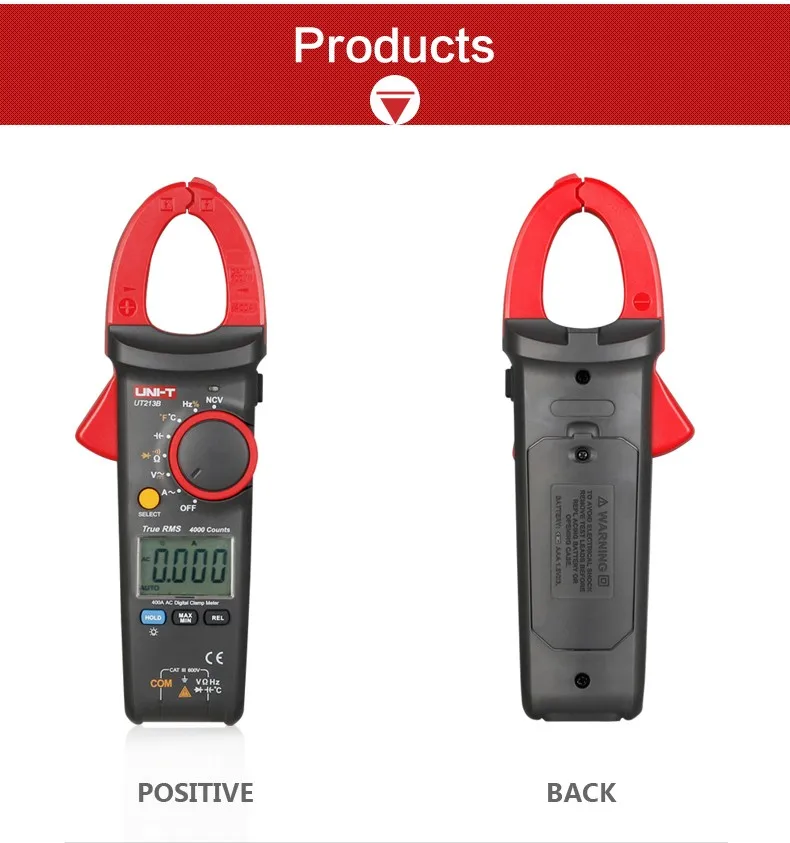

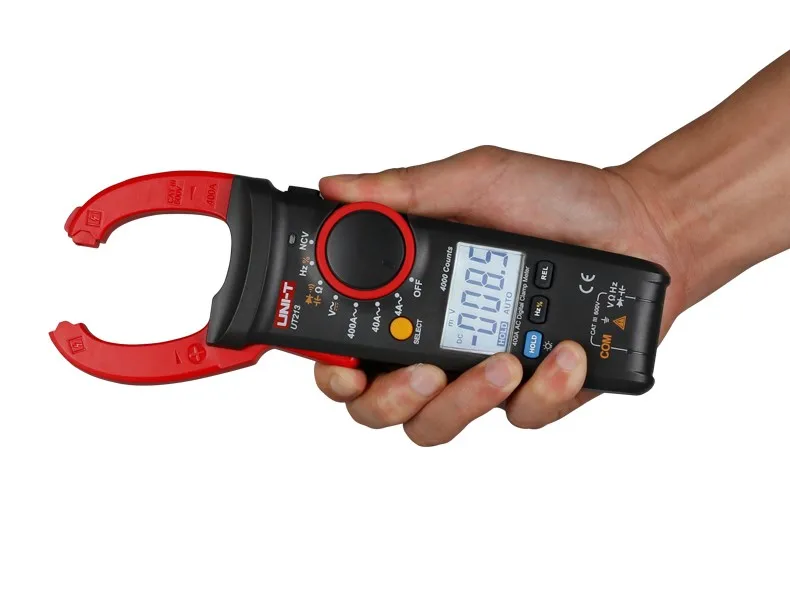

UNI-T UT213B Digital LCD Clamp Meter Auto Range Multimeter AC/DC Voltage Ampere Frequency Capacitance Temperature NCV Tester Data hold Flashlight
Product features
UT213series ac/dc digital clip-on table with ac/dc voltage, ac/dc current, resistance, capacitance, frequency, temperature, connectivity and diode measurement functions, is a full range of overload protection circuit, complete function and the outstanding performance of electrical/electronic instruments.
Can be widely used in electronics, electric power, petrochemical, metallurgy, manufacturing, oil and other industries, is an ideal tool for equipment maintenance and maintenance.
Product parameters
| Specifications | Range | Best Accuracy |
| Model |
|
UT213B |
| AC Current (A) | 4A/40A/400A | ±(1.8%+9) |
| AC Voltage (V) | 4V/40V/400V/600V | ±(1.2%+5) |
| DC Voltage (V) | 400mV/4V/40V/400V/600V | ±(0.8%+1) |
| Resistance (Ω) | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ/40MΩ | ±(1.0%+2) |
| Capacitance (F) | 40nF400nF/4μF/40μF/400μF/4mF/40mF | ±(4.0%+5) |
| Frequency (Hz) | 10Hz-1MHz | ±(0.1%+4) |
| Temperature (°C) | -40 °C ～ 1000°C | ±(1.0%+3) |
| Temperature (°F) | -40℉ ～ 1832℉ | ±(1.0%+6) |
| Features | ||
| Display Count | 4000 | |
| Auto Range | √ | |
| Jaw Capacity | 30mm | |
| True RMS | √ | |
| Diode | √(Around 3.0V) | |
| NCV | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| LCD Backlight | √ | |
| Flashlight | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | ≤3.6V | √ |
| Input Protection | √ | |
| Input Impedance for DCV | ≥10MΩ | √ |
| General Characteristic | ||
| Power | AAA 1.5V × 3(Batteries not included for shipping) | |
| LCD Size | 38mm × 24 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 280g | |
| Product Size | 220mm × 75mm × 40mm | |

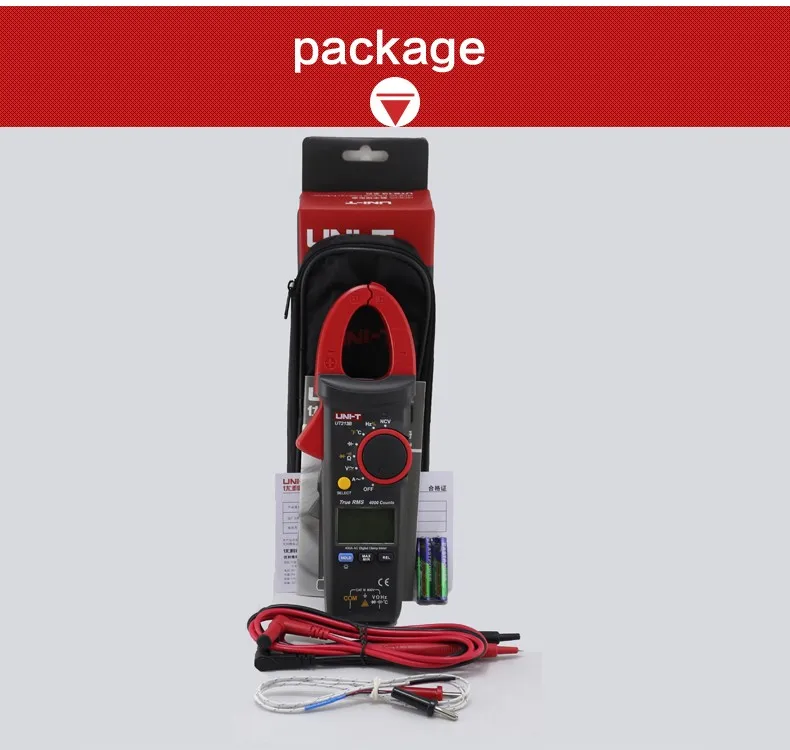

| Standard Accessories | Test Lead,Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box, Carrying Bag, English Manual | |
| Standard Quantity Per Carton | 40 PCs | |
| Standard Carton Measurement | 485mm × 320mm × 385mm (0.060 CBM Per Standard Carton) | |
| Standard Carton Gross Weight | 23Kg | |
