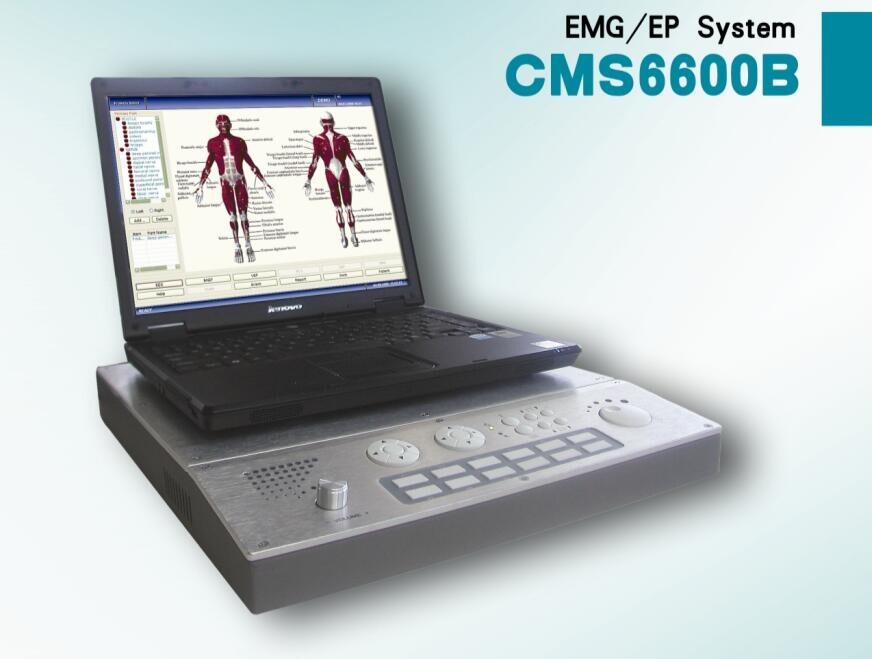

Introduction

The equipment records bioelectricity activity of nerve muscle for determining its function state, which combines with nerve conduction speed, to give patient an auxiliary diagnosis.

Checking contents: EMG(electromygram), MCS(motor nerve conductor velocity), SCS(sensory nerve conductor velocity), F wave, Hreflex, RNS(repetitive nerve stimulation), Blink Reflex, VEP(visual evoked potential), BAEP(brainstem auditory evoked potential), SEP(somatosensory evoked potential), etc.

Features

 Professional EMG/EP operation platform and perfect test projects,complete each test in the shortest time.

Perfect case report data and graph creating system.

Special database management system.

Select test part with Neuro and muscle navigation system and projects selecting system fleetly and conveniently.

Powerful normal value system,contrast with normal data automatically.

Flexible software design,configure systems according to requirements.

High-speed data collection,electromagnetic interference suppression,Photoelectric isolation and low noise.

Simple and convenient operation panel.

Good Electrostatic and electromagnetic interference suppression capability for using high strength and

light quality metal enclosure.

Selectable 1-4channel input mode meets multi-working modes in clinical EMG test.

High-speed collect and process data with parallel processing technology,display data with graph.

Function

 General electromyogram(EMG),Sensory nerve conductor velocity(SCS),Motor nerve conductor velocity(MCS),FWave,HReflex,Blink Reflex,Repetitive nerve stimulation(RNS),Brainstem auditory evoked potential(BAEP),Visual evoked potential(VEP),Somatosensory evoked potential(SEP).

Performance

 Technical parameters

Computer part

CPU     Intel PentiumⅢ(more than 800MHz)

EMS memory   More than 256M

HD           More than 40G

CD driver      CD-ROM or higher configuration

I/O interface    More than two USB2.0 interfaces

Operating system  Windows7,vista,xp 32bit

Laser printer

Main system part

A/D conversion resolution   16Bit

Sampling ratio             200kHz

Analysis time              5-5000ms

Stimulator part

Constant current            0.2-100mA

Pulse width                50-1000µS

Stimulation frequency        1Hz-50Hz

Single or continuous stimulation

Short circuit and overloading protection

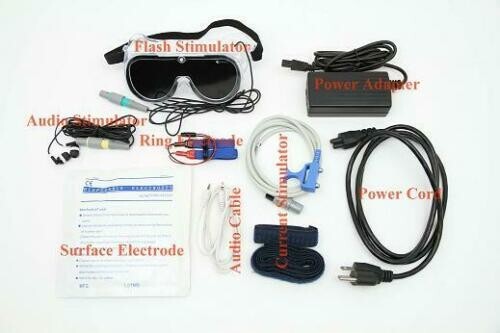

Auditory Stimulator

Stimulation waveform  40Hz Short,Click

Stimulation polarity    nondense wave,dense wave and alternant wave.

Sound intensity       40-120dB(5dB per level)

Frequency of 40Hz carrier wave 500-8000Hz

Visual stimulator

Mode                tessellation,horizontal bar and vertical bar

Stimulation view       all-view,half-view and quarter-view

Resolution            3x4、6x8、12x16、24x32、48x64

Flash stimulator        all quench,left light,right light,l&r light

Physical characteristic

 Dimension        438mm*354mm*56mm(L×W×H)

weight            about 4.5kg
