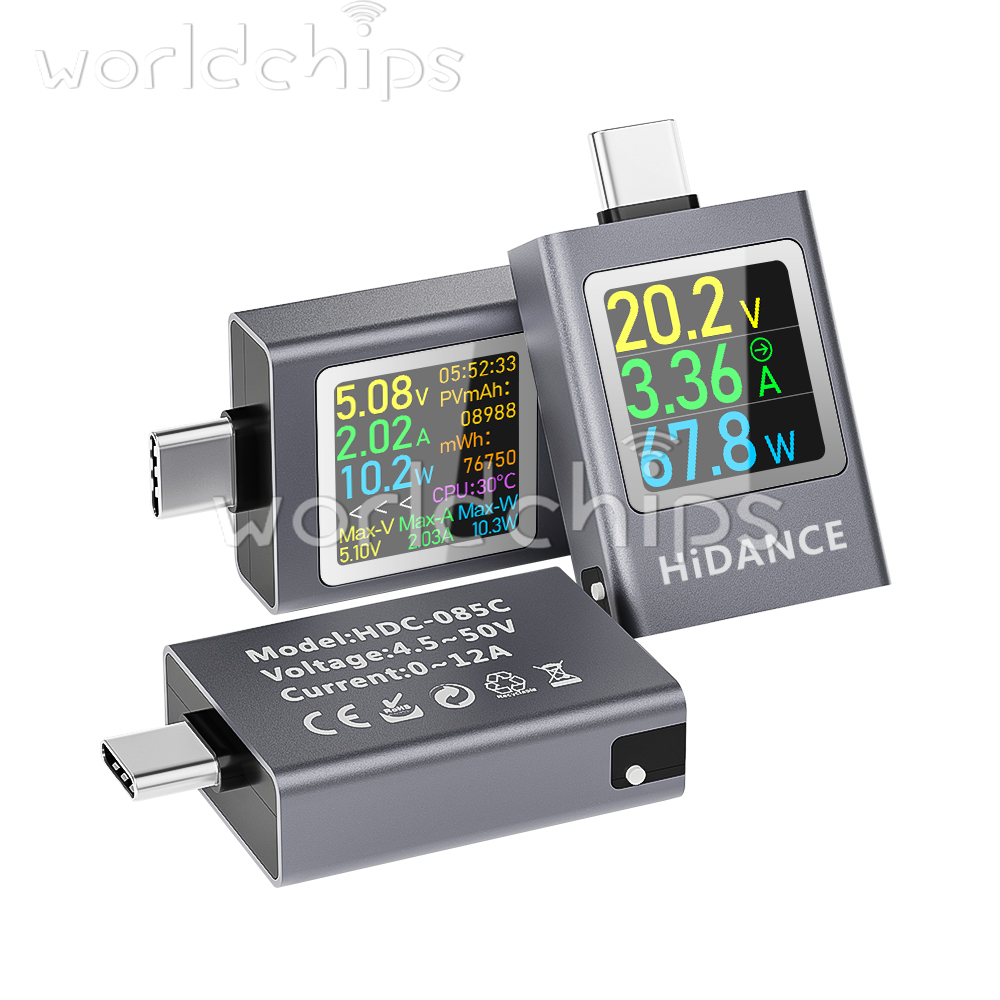

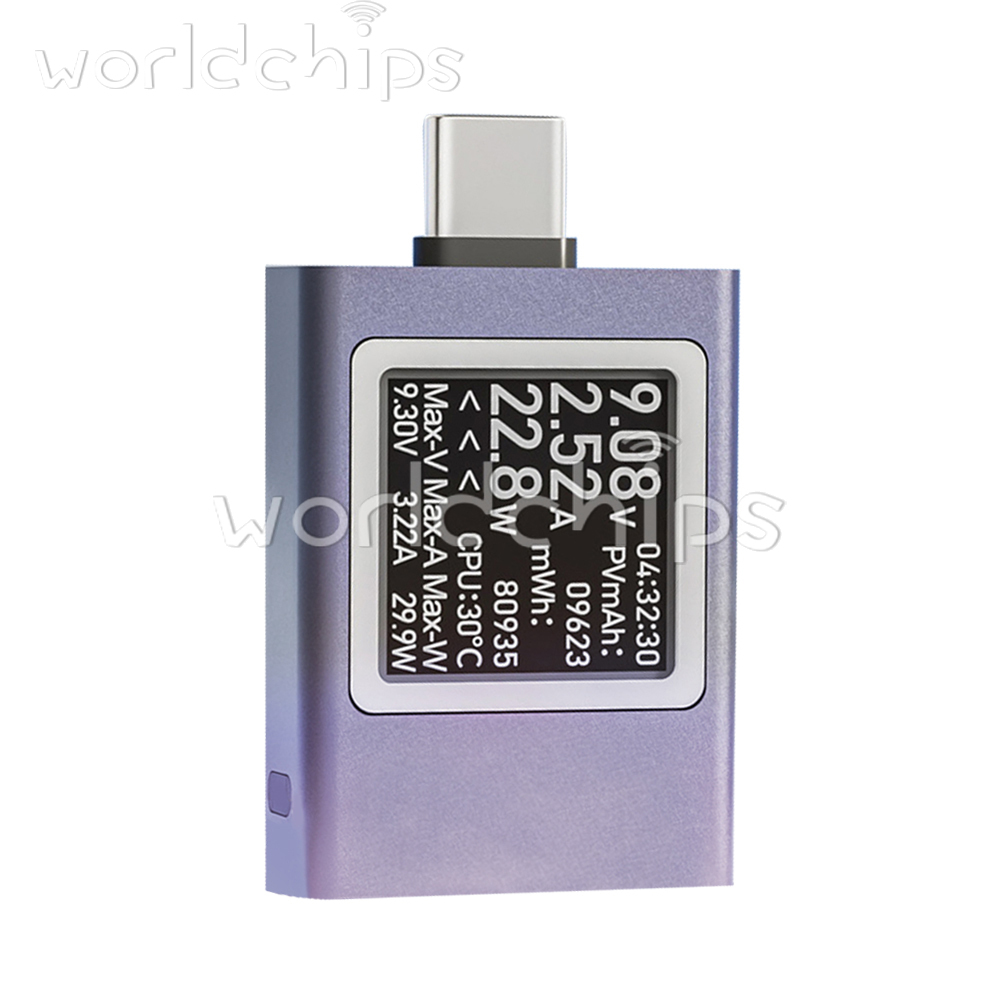

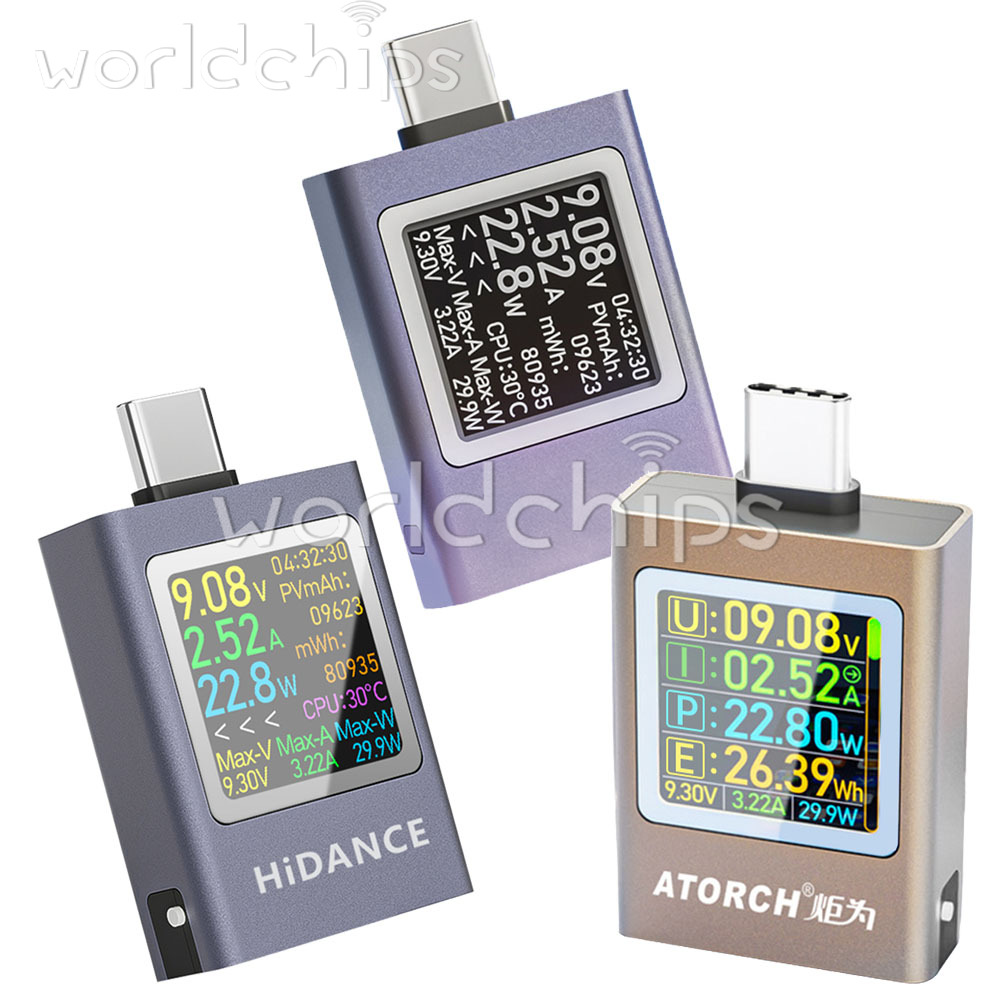

HDC-085C
Product Feature:
1. Real time display of voltage, current, power, electricity, capacity, temperature, timing, etc.

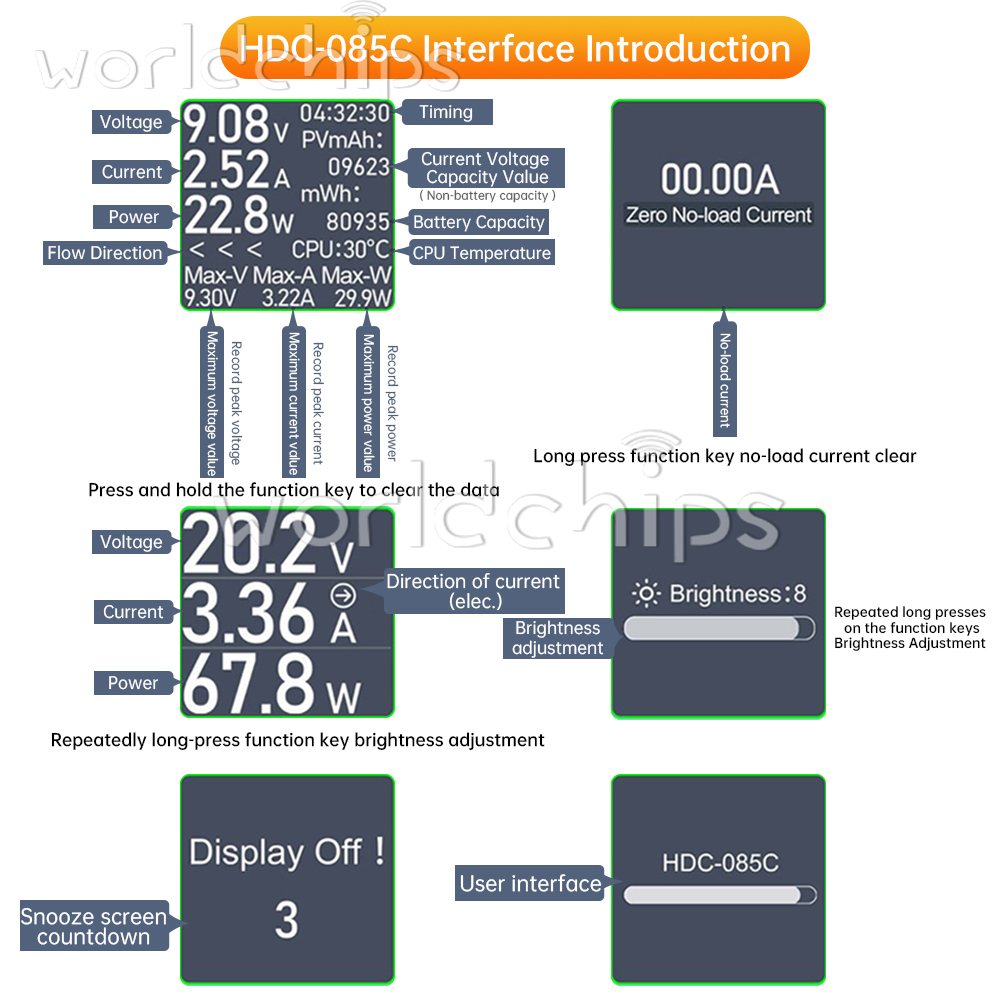

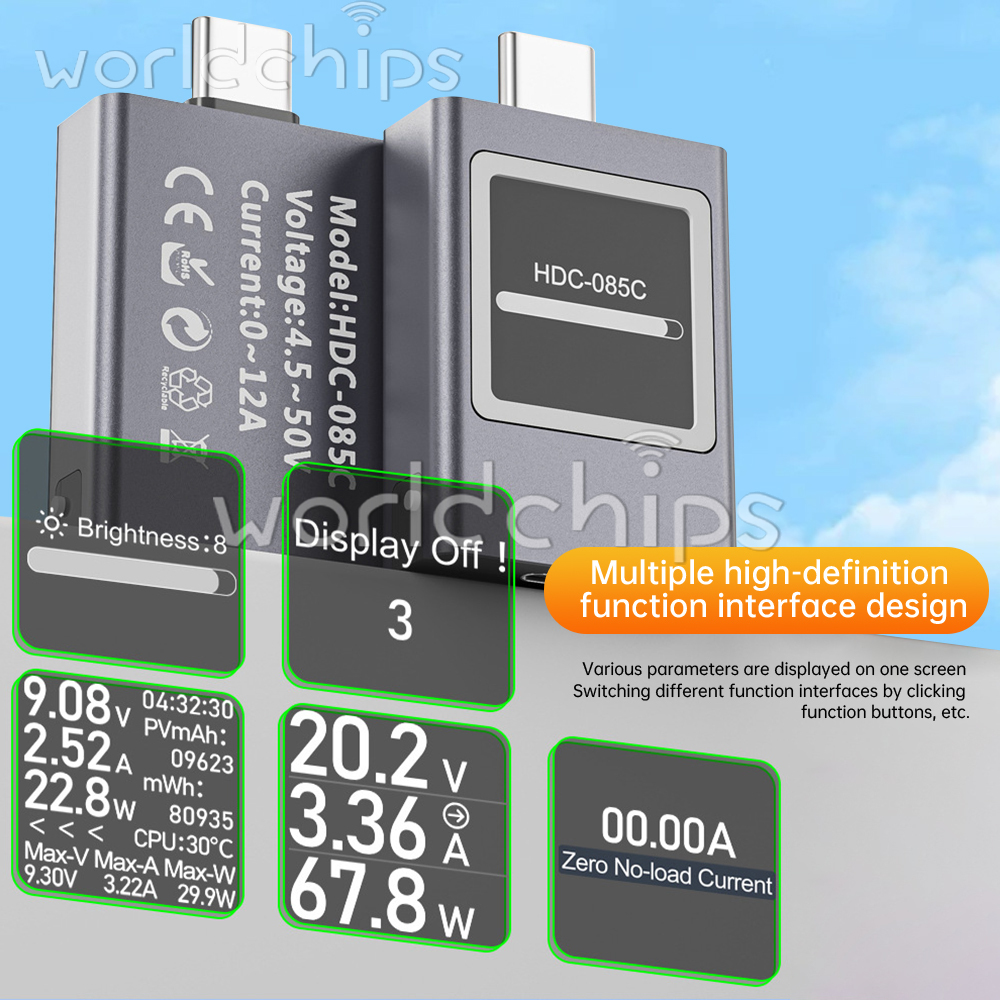

2. Click the button to switch between different interfaces, long press to reset all data, simple operation, clear at a glance.

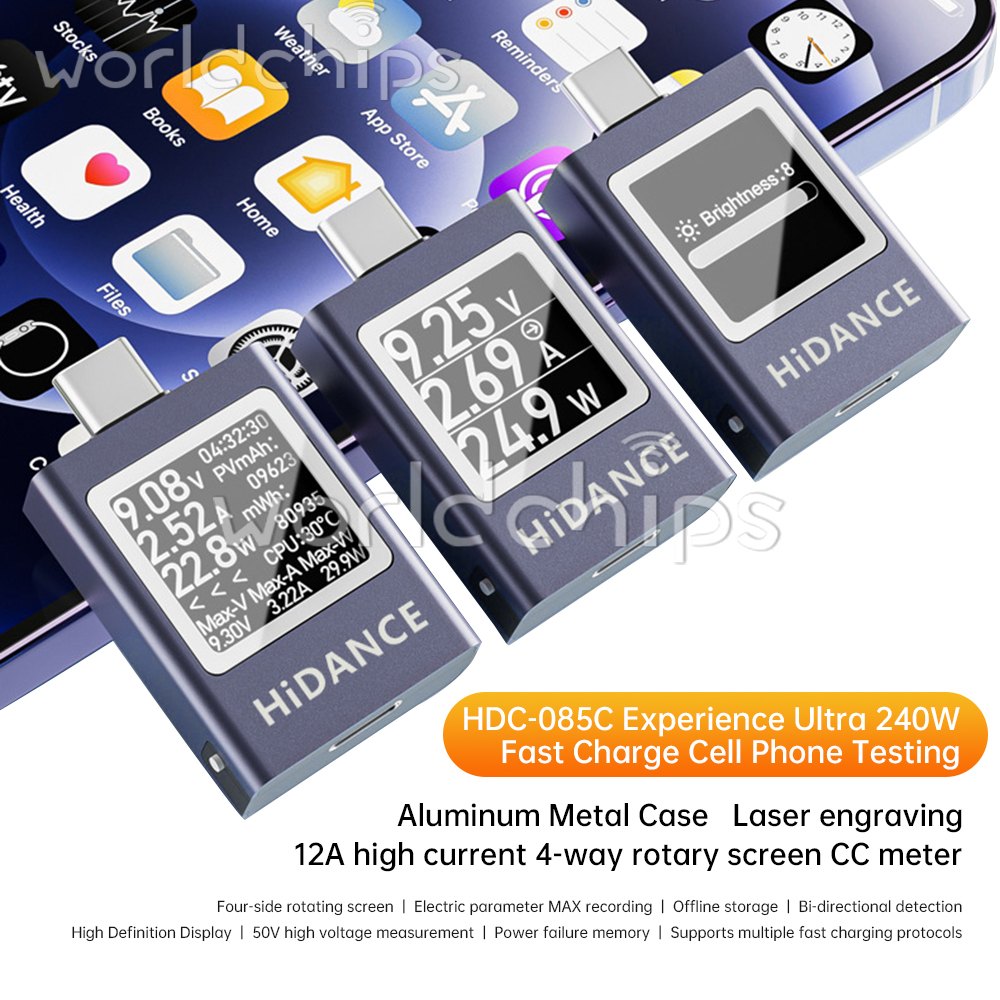

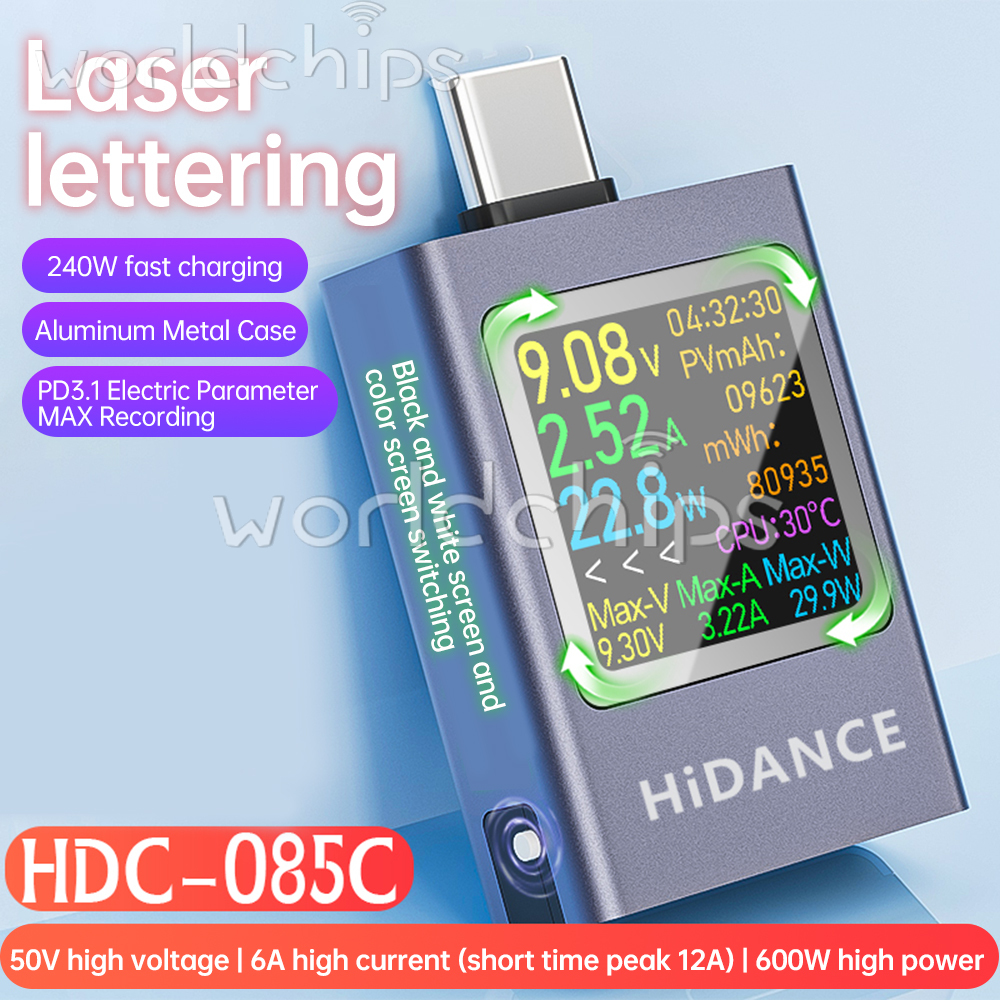

3. Aluminum metal shell, four-way rotating screen, integrating high and low voltage, high current, and high power.
4. Bidirectional current measurement and separate addition of no-load current reset function, making the measurement of fine current more accurate.
5. Equipped with power-off memory and data storage function, convenient for subsequent viewing, allowing for capacity testing of the portable power bank.
6. The PD protocol charger automatically turns off the screen with zero power consumption when there is no current, extending the lifespan of the screen and being energy-saving and environmentally friendly.
1. Real time display of voltage, current, power, electricity, capacity, temperature, timing, etc.
2. Click the button to switch between different interfaces, long press to reset all data, simple operation, clear at a glance.
3. Aluminum metal shell, four-way rotating screen, integrating high and low voltage, high current, and high power.
4. Bidirectional current measurement and separate addition of no-load current reset function, making the measurement of fine current more accurate.
5. Equipped with power-off memory and data storage function, convenient for subsequent viewing, allowing for capacity testing of the portable power bank.
6. The PD protocol charger automatically turns off the screen with zero power consumption when there is no current, extending the lifespan of the screen and being energy-saving and environmentally friendly.
Product Parameters:
Working voltage: DC 4.5~50V
Working current: 0-6A (short-term peak value 12A)
Battery display: 0~9999WH
Capacity display: 0~99999mAh
Power display: 0~600W
Working temperature: 0~45 ℃/32~113 ℉
Sampling resistance: 0.001R
Power consumption:<0.15W
Product size: 43 * 25 * 10mm
Working voltage: DC 4.5~50V
Working current: 0-6A (short-term peak value 12A)
Battery display: 0~9999WH
Capacity display: 0~99999mAh
Power display: 0~600W
Working temperature: 0~45 ℃/32~113 ℉
Sampling resistance: 0.001R
Power consumption:<0.15W
Product size: 43 * 25 * 10mm
Packing List
Power meter * 1
Power meter * 1
AT085C
Product Feature:
1. Real time display of voltage, current, power, electricity, capacity, temperature, timing, voltage and current curves, etc.
2. Supports multiple fast charging protocols, displays multiple parameters on one screen, high-definition color screen, and various test parameters are clear at a glance.
3. Added real-time voltage and current curve display function, making it convenient for users to analyze the fluctuation status during the charging process.
4. Bidirectional current measurement and separate addition of no-load current reset function, making the measurement of fine current more accurate.
5. Equipped with power-off memory and data storage function, convenient for data accumulation application in segmented endurance testing.
6. The PD protocol charger automatically turns off the screen with zero power consumption when there is no current, extending the lifespan of the screen and being energy-saving and environmentally friendly.
7. Using DC-DC switch power chips to supply power to the circuit, with a wide input voltage range, high power supply efficiency, and low self power consumption.
1. Real time display of voltage, current, power, electricity, capacity, temperature, timing, voltage and current curves, etc.
2. Supports multiple fast charging protocols, displays multiple parameters on one screen, high-definition color screen, and various test parameters are clear at a glance.
3. Added real-time voltage and current curve display function, making it convenient for users to analyze the fluctuation status during the charging process.
4. Bidirectional current measurement and separate addition of no-load current reset function, making the measurement of fine current more accurate.
5. Equipped with power-off memory and data storage function, convenient for data accumulation application in segmented endurance testing.
6. The PD protocol charger automatically turns off the screen with zero power consumption when there is no current, extending the lifespan of the screen and being energy-saving and environmentally friendly.
7. Using DC-DC switch power chips to supply power to the circuit, with a wide input voltage range, high power supply efficiency, and low self power consumption.
Product Parameters:
Working voltage: DC 4.5~50V
Working current: 0-6A (short-term peak value 12A)
Bidirectional current: 12A in both directions
Power display: 0~600W
Battery display: 0~9999Wh
Capacity display: 0~99999mAh
Working temperature: 0~45 ℃/32~113 ℉
Sampling resistance: 0.001R
Power consumption:<0.15W
Interface type: C male, C female
Protocol communication: CC1 CC2 protocol transmission, D+D-data transmission
Temperature measurement: CPU temperature measurement
Power supply mode: 48V full voltage power supply
Capacity calculation: Calculate capacity based on electricity value
Power chip: DC-DC switching power supply
Control method: Double key flipping
Curve function: Dual parameter curve can pause/run
Electrical parameter recording: real-time recording of voltage, current, power peak values
Display screen: IPS high-definition colorful display
Gravity Sensing: Gravity Rotating Screen/Supports Locking Direction
Product size: 43 * 25 * 10mm
Working voltage: DC 4.5~50V
Working current: 0-6A (short-term peak value 12A)
Bidirectional current: 12A in both directions
Power display: 0~600W
Battery display: 0~9999Wh
Capacity display: 0~99999mAh
Working temperature: 0~45 ℃/32~113 ℉
Sampling resistance: 0.001R
Power consumption:<0.15W
Interface type: C male, C female
Protocol communication: CC1 CC2 protocol transmission, D+D-data transmission
Temperature measurement: CPU temperature measurement
Power supply mode: 48V full voltage power supply
Capacity calculation: Calculate capacity based on electricity value
Power chip: DC-DC switching power supply
Control method: Double key flipping
Curve function: Dual parameter curve can pause/run
Electrical parameter recording: real-time recording of voltage, current, power peak values
Display screen: IPS high-definition colorful display
Gravity Sensing: Gravity Rotating Screen/Supports Locking Direction
Product size: 43 * 25 * 10mm
Packing List
Power meter * 1
Power meter * 1
-
Customer satisfaction is our top goal. We believe our items are so outstanding. All products are quality checked. They are new and in good condition when shipped to our customers. We are convinced you will be happy with your Purchase.
-
If product is defective or damage upon arrival, or wrong product shipped, please contact us immediately. Returns accepted within 30 days of delivery date and item must be in original new condition.
-
Please contact us first if you have any problems/questions/concerns. We will be happy to resolve any issues you may have in a cordial and friendly manner.
Please fill in the correct address and zip code and I will ship quickly!
- If the item is defect when you receive it or you are not satisfied with it, please return it within 30 days for a replacement or money back. But the items must be back in factory condition. Please contact us and double check the return address before you return it.
