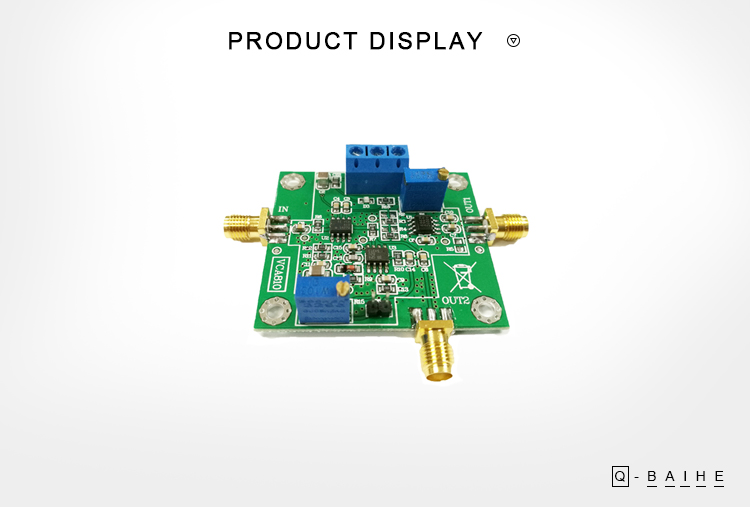

Title：	VCA810 AGC Module Automatic Gain Amplifier Broadband Voltage Control Gain Amplifier Adjustable DA Program Control
Specification:	Module Type: AGC Module Automatic Gain Amplifier Module power supply: ±4.5V - 5.5V High gain adjustment range: ±40dB Low input noise voltage: 2.4nV/VHz Constant bandwidth and gain: up to 35MHz Higher gain linearity in dB/V: ±0.3dB Gain Control Bandwidth: 25MHz Low output DC error: <±40mV High output current: ±60mA Low supply current: 24.8mA Temperature range: -40℃~+85℃ Module size: 50*45mm
Package:	1*AGC module automatic gain amplifier

---
