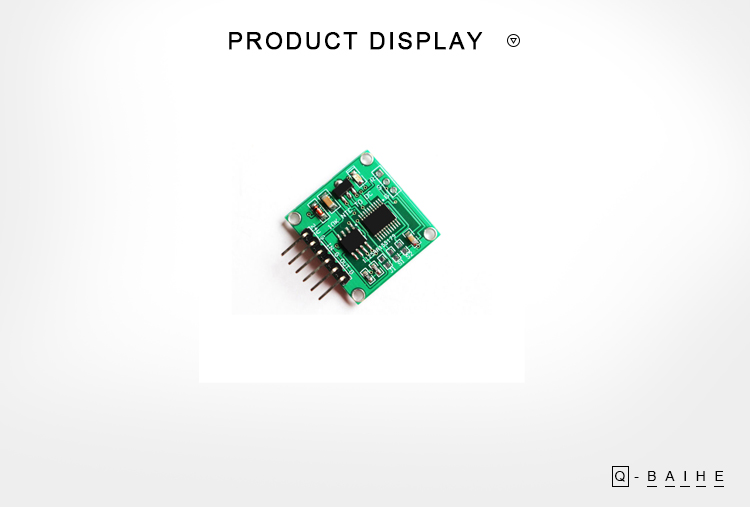

| Title： | Thermistor To Voltage 10K NTC To 0-5V 0-10V Linear Conversion Temperature Module | ||
| Working voltage: | 9V To 24V | Input resistance: | NTC 10K thermal resistance (B value 3435K) |
| Output voltage: | 0.00V ～ 5.00V / 0.00V ～ 10.00V | Temperature measurement range: | -40 ~ + 150 (degrees). |
| Size: | (length) 26mm x (width) 23mm x (height) 10mm | Output method: | S2 pad on the circuit board: open circuit (output 0.00V ~ 5.00V); short circuit (output 0.00V ~ 10.00V), the default is open circuit. |
| Module interface: | 24V: Power positive connector (9V ~ 24V). G: Power ground interface. IN: Positive terminal of thermal resistance. G: Thermal resistance negative terminal. OUT: Signal output interface (0.00V to 5.00V / 0.00V to 10.00V). G: Power ground interface. |
||
| Note: |
When outputting 0.00V ~ 10.00V, the power supply voltage should be 15V. Output (0.00V ～ 5.00V) Resolution: 0.0263157V / ℃ (Voltage / Celsius) Calculate the measured temperature formula: (output voltage (V) / resolution) -40 ° C = measured temperature (° C). |
||
| Package: |
1*NTC To 0-5V 0-10V Linear Conversion Temperature Module |
||
