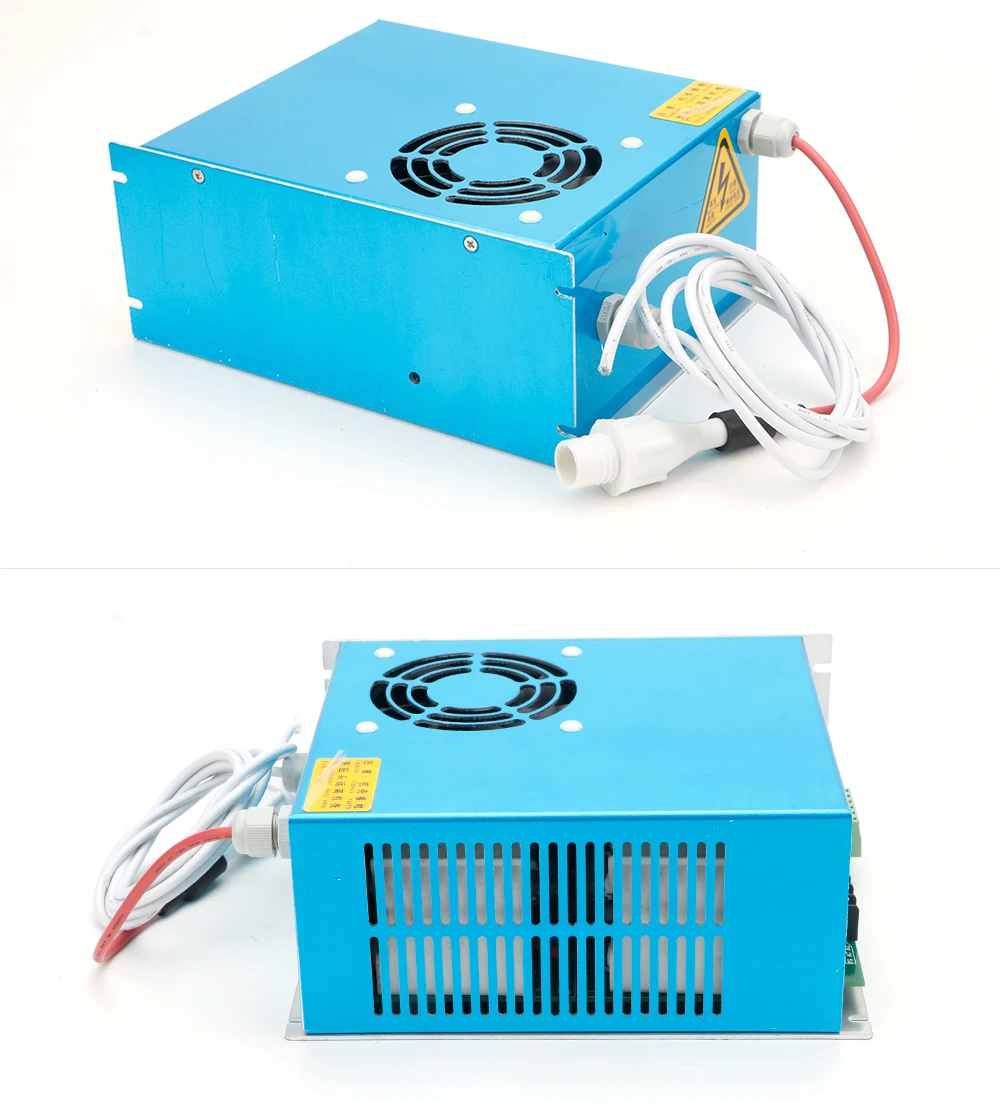

RECI Power Supply for RECI 75W-180W CO2 Laser Tube W1 W2 W4 W6 W8

Brand New, High Quality and Extra Long Life.

Item		RECI-DY10
Input	Input Voltage	AC220V or AC110V (The order should be especially instructions )
	AC Frequency	47 - 440Hz
	Max Input Power	550W
	Max Input current	8A
Output	Max output Voltage	40KV
	Max Output current	28mA
Efficiency		equal or more than 90% ( load down )
Time no-failure		equal or more than10000h
Response speed		equal or less than 1mS (the time from output of switch signal to 90% of initial setting current )
Voltage - resisting		Input - Output ,input - machine hull: C1500V 10mA 60s; output cathode and machine hull connection
Usage environment		Work temperature (-10 ~ 40) , Relative humidity: Equal or less than 90%
Cooling Type		The compulsive air cooling

Item		RECI-DY13
Input	Input Voltage	AC220V or AC110V (The order should be especially instructions )
	AC Frequency	47 - 440Hz
	Max Input Power	550W
	Max Input current	8A
Output	Max output Voltage	40KV
	Max Output current	30mA
Efficiency		equal or more than 90% ( load down )
Time no-failure		equal or more than10000h
Response speed		equal or less than 1mS (the time from output of switch signal to 90% of initial setting current )
Voltage - resisting		Input - Output ,input - machine hull: C1500V 10mA 60s; output cathode and machine hull connection
Usage environment		Work temperature (-10 ~ 40) , Relative humidity: Equal or less than 90%
Cooling Type		The compulsive air cooling

Item		RECI-DY20
Input	Input Voltage	AC220V or AC110V (The order should be especially instructions )
	AC Frequency	47 - 440Hz
	Max Input Power	1000W
	Max Input current	10A
Output	Max output Voltage	50KV
	Max Output current	35mA
Efficiency		equal or more than 90% ( load down )
Time no-failure		equal or more than10000h
Response speed		equal or less than 1mS (the time from output of switch signal to 90% of initial setting current )
Voltage - resisting		Input - Output ,input - machine hull: C1500V 10mA 60s; output cathode and machine hull connection
Usage environment		Work temperature (-10 ~ 40) , Relative humidity: Equal or less than 90%
Cooling Type		The compulsive air cooling

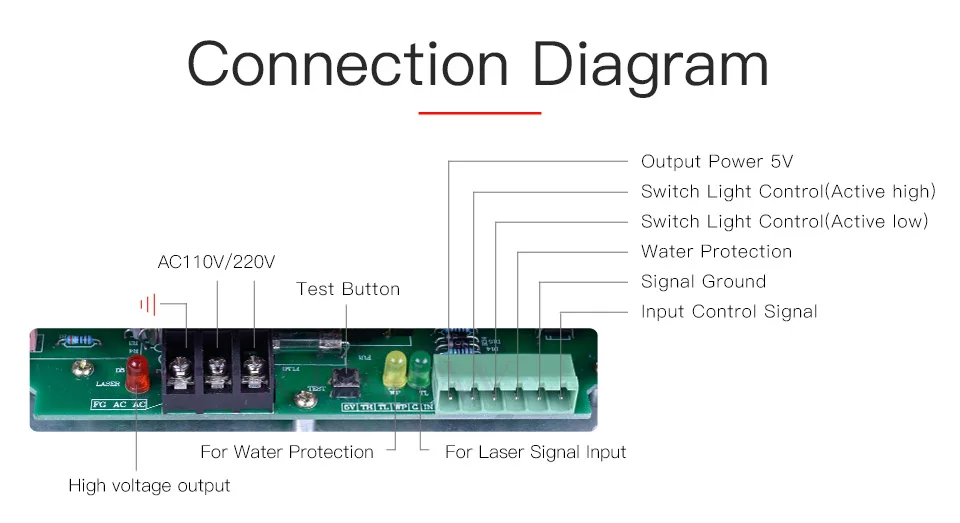

I. Instruction for sub - connection wire of the control end:

Footer 1 is 5V power supply. (Not needed when connecting the cardinal plate. It is used when regulating the power with potentiometer and the 5V current should be less than 10 mA.
TH. TL refers to high and low power level respectively, and WP refers to water protection.
Footer 5 G refers to ground and 6 refers to input end.
When connecting the control plate, connect the light signal with footer 2 in the case of high power level light-emitting, (footer 3 for low power level light-emitting), connect the ground-wire with footer 5, connect footer 6 with power control analog signal, and make short circuit for footer 4 and 5.
PWM can also be used in footer 6, but the pulse peak is required to reach 5V, and the frequency should be above 20K.
For testing: 3, 4 and 5 are in short circuit (or 4, 5 are in short circuit and 3, 5 are connected to switch), the potentiometer center is connected with 6 IN, and the two other ends are connected to 5V and ground (1 and 5) respectively.
The high power level controls the light, 1 and 2 are connected, and 4 and 5 are in water protection.
It is not proposed to control laser power with high-frequency modulation, because it will have impact on the service life of the laser.
The model is applicable to W2 laser, it is necessary to regulate and use the current according to the laser instructions.
The ammeter is concatenated to the cathode line.

Instruction for power wire:

Note: The table 10A refers to the connection wire requirement, but not the actual power dissipation.

Instruction for laser connection wire :

The positive red - line with high voltage is connected to the laser tail
The negative white - line is connected to laser output window

Current limitation:

To limit the working current, the potentiometer (Lies in the underside of the power supply should be rotated in counterclockwise (Please refer to the schematic diagram in our website). Limit the maximum output current as it is regulated in the operating instruction. The working current should be limited before delivery.

Linear scale between input signal and the output current:

Turn around the potentiometer; the linear scale will be changed: for example, when the input signal is 0 - 5V, the output current is 0 - 32mA.Or when the input signals 0 - 2V, the output signal is 0 - 32mA.
Note: When the potentiometer is turned down too much, the real output current will be brought down by the same input signal.

Using current:

The use standard for our power supply is under 220V, 50Hz. The fluctuation of the input voltage and frequency will affect the working current provided by the power supply, the impact is linear relative. The unstable of the input voltage will affect the output power of the laser tube. The fluctuation of the input voltage has no impact on the lifespan of the laser if only the current provided by the power supply is not over the current limitation.
