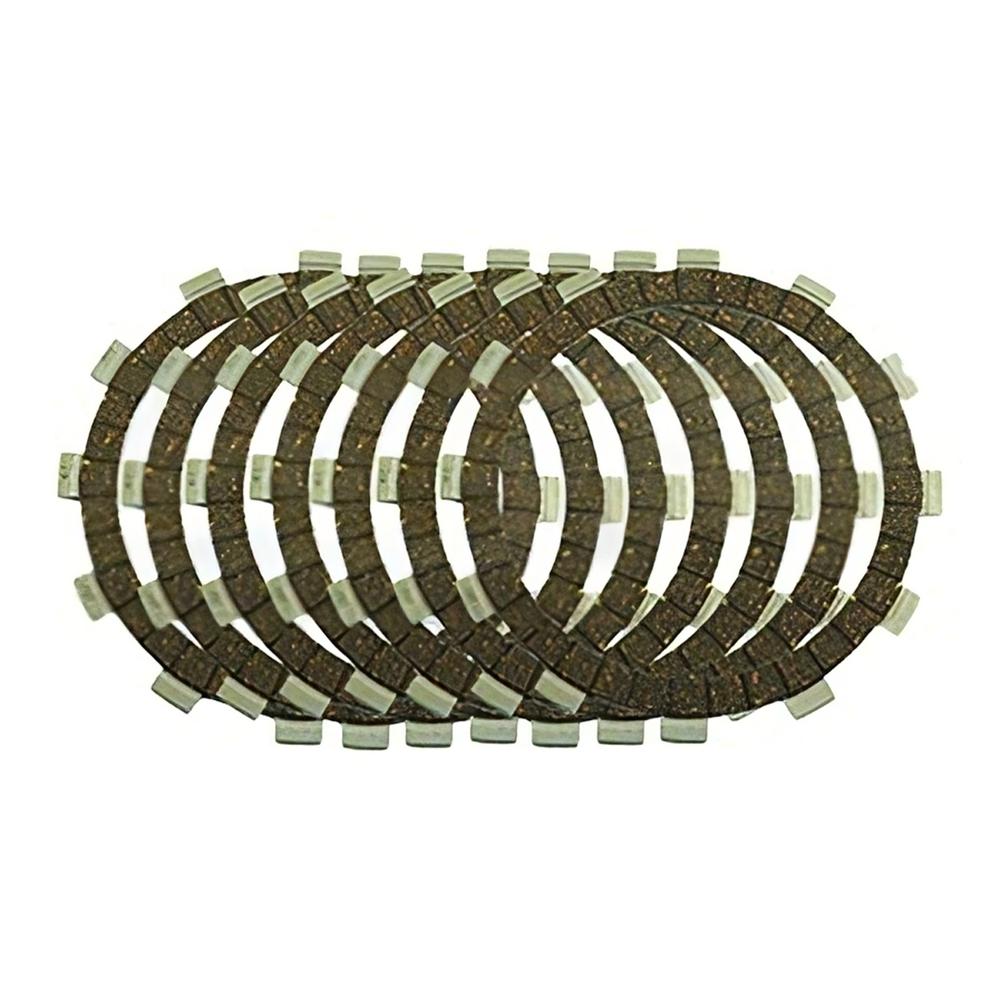

Clutch Plates Kawasaki Tecate 250 KXT250 1984 Three-Wheeler ATC Clutch Friction

Replaces Part Numbers & Specifications

Manufacturer Part Number:
09-153

Cross-Reference OEM Part Numbers:
Kawasaki: 13088-1065
Kawasaki: 13088-1064

Kit Specifications:
• Type: Clutch friction plates — complete set
• Number of Plates: 7 friction plates
• Material: Fiber friction composite

Notes:
• Friction plates only — steel separator plates sold separately
• 1984-ONLY model year — Kawasaki changed clutch plate design between years
• KXT250 Tecate is a 2-stroke three-wheeler (3-wheel ATC)
• Do NOT interchange with 1985 (09-154) or 1986-1987 (09-155) plates

Kit Contents:
• 7 friction plates clutch friction plates — complete set for one clutch assembly
• Friction Material: Fiber friction composite
• Precision-cut teeth for smooth engagement and disengagement

Features:
• Direct OEM replacement — matches factory dimensions and tooth count
• High-quality friction material for consistent clutch feel
• Heat-resistant compound prevents glazing and fade under load
• Grooved surface pattern promotes oil circulation and cooling
• Complete set eliminates need to mix old and new plates

When to Replace:
• Clutch slipping under load — engine RPM rises without corresponding acceleration
• Difficulty finding neutral or hard shifting between gears
• Clutch grabbing or chattering during engagement
• Glazed, burnt, or warped friction plates visible during inspection
• Plates worn below minimum thickness specification

Installation Notes:
• Soak new friction plates in engine oil for 30 minutes before installation
• Inspect steel drive plates for warpage — replace if out of specification
• Check clutch spring free length — replace springs if compressed beyond service limit
• Verify clutch basket and hub for notching — file smooth or replace if grooved
• Adjust clutch cable free play after reassembly per service manual

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

Kawasaki Models:
Tecate 250cc 2-Stroke (KXT250) — 1984
