Overview:
Type:
Vertical Machining Centers
Brand:
HAAS
Model:
MINI MILL
Year:
2002
Stock #:
7626
specifications:
X axis
16"
Y axis
12"
Z axis
10"
Power
7.5 hp
RPM
6,000 RPM
# ATC
10
Taper
CAT-40
Table-W
12"
Table-L
36"
Spec Sheet:

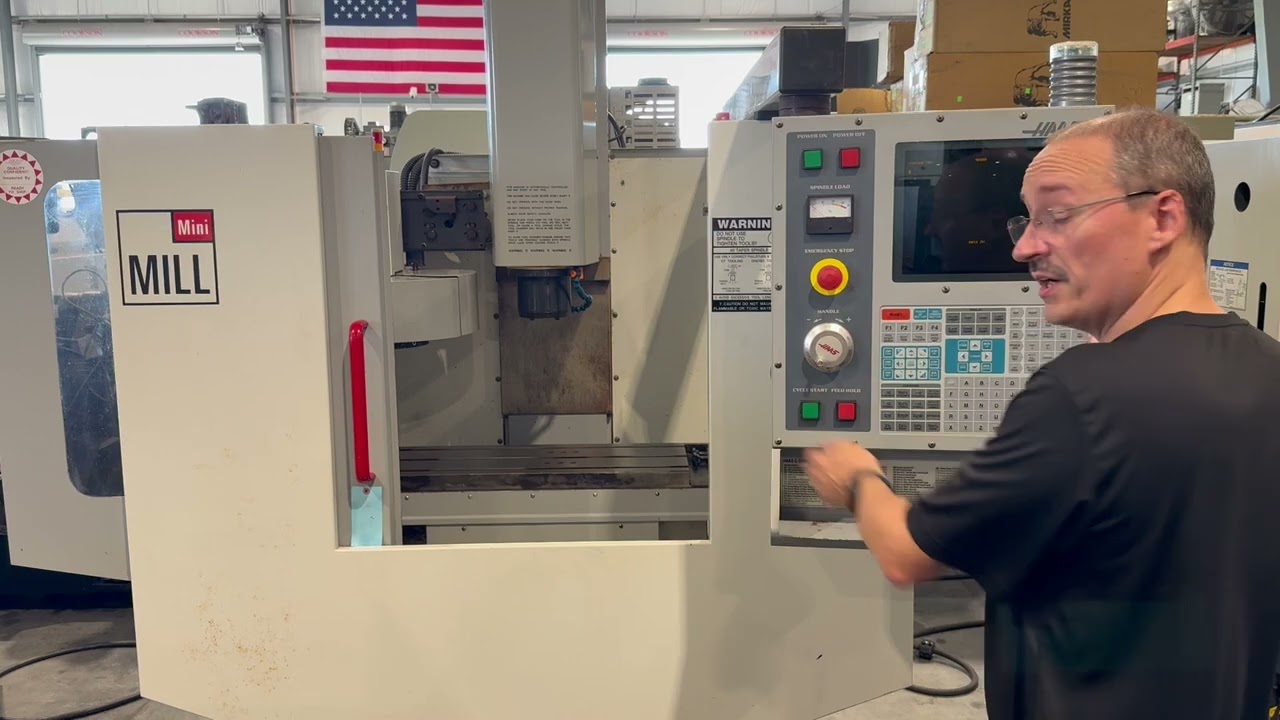

HAAS MINI MILL CNC Vertical Machining Center 2002’ #7626 Reference #7626 Model # Mini Mill Serial # 28400 Year of manufacture- 5/2002’ Table size- 36” x 12” Number of T slots- (3) Maximum table weight- 500 Lbs. Maximum spindle speed- 6,000 R.P.M. Spindle taper- CAT-40 X axis travel- 16” Y axis travel- 12” Z axis travel- 10” Minimum / Maximum spindle nose to table- 4” / 14” X,Y,Z Rapids- 600 I.P.M. Tool changer capacity- 10 Tool to tool time- 4.2 seconds
equipped with:
HAAS CNC Control Prewired for 4th axis Control options- Rigid tapping, DNC, Macro’s, Quick code (4) Leveling feet Air blow off gun Coolant tank & pump Servo time- 645 Motion time-124, Spindle time-143 Machine can be wired for 203 / 3 phase or 240 single phase Machine is wired for 230 volt / 3 phase / 60 H.Z. Machine weight- 4200 Lbs. Machine dimensions- 90” x 64” x 100” H Machine location- F.O.B. Sarasota, Florida
