✅ Brief

-       Qty: 1 pcs

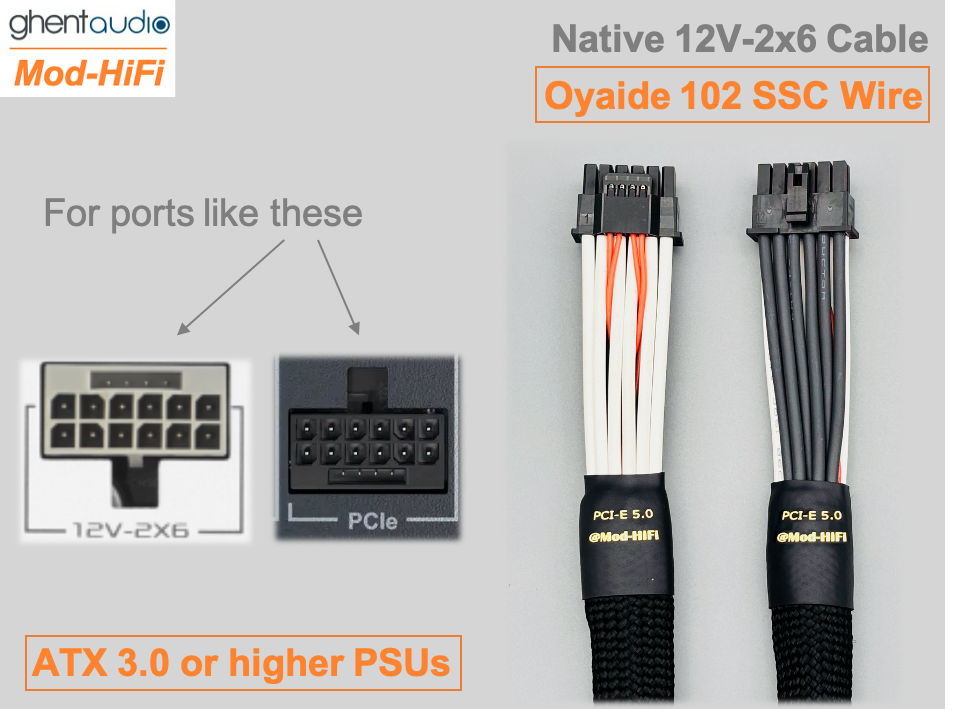

-       Cable Type: PCIe 5.0 12V-2x6 (Native)

-       Wire: Oyaide UL-3398 Style wire 16AWG

-       Length:  27" / 70cm (tip-to-tip)

-       Sleeving: Black PP Cotton

-       Compatibility: ATX3.0, ATX3.1 or higher PSUs with Native PCIe Gen5 12V-2x6 ports. (detailed models are listed later)

🌟 Features

-       Oyaide 3398 series wire: HiFi-grade hook-up wire, using 102 SSC conductor and XLPE insulation

-       Premium PP cotton sleeving: exceptionally soft touch with practical durability

-       Genuine Molex® connectors and terminals, ensuring safe and firm connection

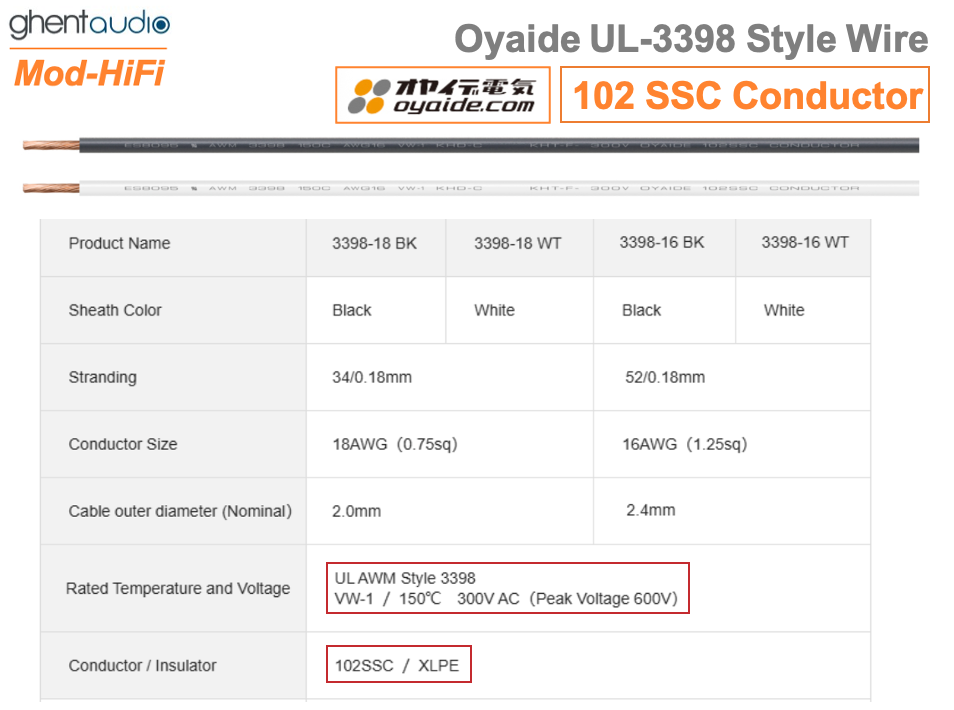

🛠️ About Oyaide UL-3398 Style Wires

-       "102 SSC" - Oyaide Electric Precision Conductor

• To avoid impurities as much as possible, only virgin copper that does not contain any recycled copper is used in accordance with JIS C1011.
• Peeling process is applied to remove 100% of impurities attached to the surface.
• In order to facilitate the flow of electrical signals through the surface layer of the conductor, the strand is made finer using a natural diamond die to improve the surface smoothness of the strand.
• The stranded wire is processed with a processing accuracy of ±1μm, far exceeding the standard error tolerance of ±8μm.
• Two annealing processes are used to eliminate mechanical stress distortions in the strands.
• Thorough product control of manufacturing control values, maintenance, shipping days, etc. Achieved the highest conductivity of 102.3% IACS.

-       Features of the 3398 Series

• The "3398 Series" of internal hookup wires for audio equipment uses the precision conductor "102SSC".
• Complies with the U.S. UL Standard AWM Style 3398 (except 3398-SY).
• Oyaide Electric's original "102SSC" precision conductor for audio applications is used.
• XLPE (cross-linked polyethylene), whose molecular structure has been reinforced by electron beam irradiation, is used as the insulator.
• XLPE has high heat resistance (rated 150°C), high withstand voltage (rated 300 V, peak voltage 600 V), and is not easily melted by soldering heat.
• In addition to three conductor sizes (16AWG/18AWG/22AWG), a single-core shield wire (3398-SY- non UL style) is also available.
• The 3398-SY has a spiral shield consisting of 34 strands, eliminating gaps between strands and providing excellent shielding effect. PVC is used for the outer sheath to ensure excellent flexibility.
• It can be used for a wide range of applications, including internal wiring of amplifiers and speakers and self-made audio cables.
• All 3398 wires are compliant with RoHS2 .

🛠️ About PP Cotton Sleeving

We provide premium PP cotton sleeving with this cable, its exceptional softness and durability reflects the the cable’s HiFi-grade quality well as our aesthetics.

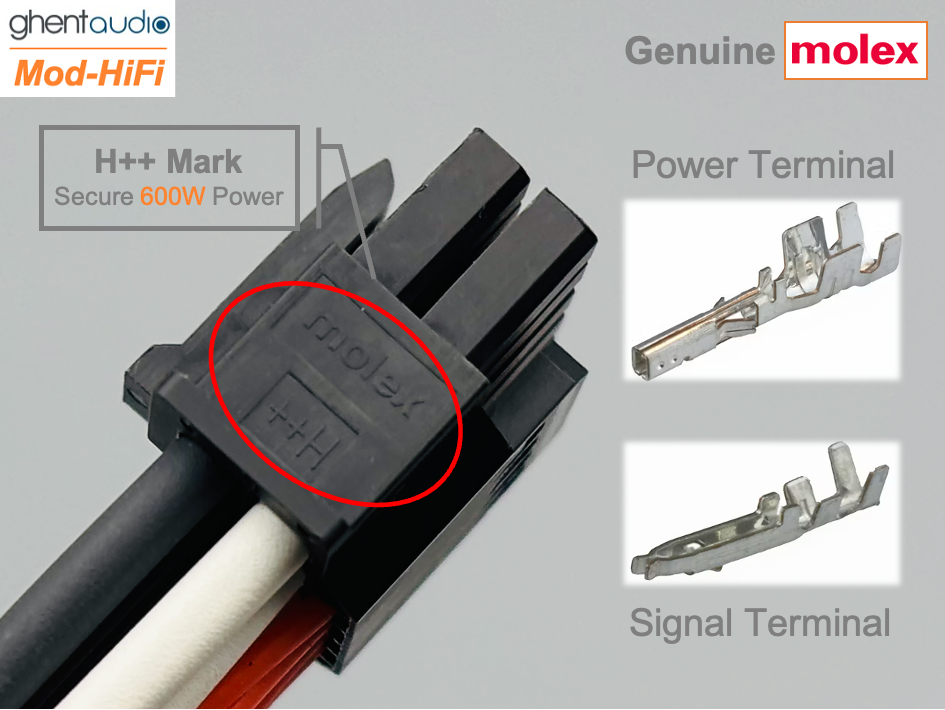

🛠️ About Molex® Connectors

-       Reliable power delivery with low resistance and minimal heat

-       Secure mechanical fit ensures long-term reliability

-       Perfect crimping compatibility reduces risk of poor contact

-       UL/CSA certified safety & compliance

-       Widely used by major OEMs (Corsair, SeaSonic, EVGA, etc.), perfectly matching modular layouts

* Note that Molex® 4.2-pitch connectors do not have logos or part numbers on them

** Note that colors may vary a bit due to different product batches from Molex®

💻 Compatible Models

This is a native 12V-2x6 cable, could be applied to all PCIe Gen5 compatible PSUs (having the below ports) and high-end graphic cards (e.g. RTX 40’ Series and above).

🛠️ Handmade Quality

At GhentAudio, each cable is carefully handmade with attention to detail and tested before shipping. Please expect quality and reliability you can trust in your custom build.

📦 Order Handling & Custom Options

-       Handing time: 1-2 business days, all cables are carefully handmade, thanks for your patience

-       Further custom needs (e.g. different color for wires, sleeving or connectors, custom lengths) or any questions, please contact us

-       Up-Level price policy: for custom length, 0.2m = 0.4m, 0.5m = 0.7m...

-    Custom orders cannot be returned or refunded, unless the item is defective or damaged due to our fault.

-    Note that extra $2 will be charged for customization other than lengths, we will contact you in case your needs are beyond our current stock.

🛠️ About JSSG360 Dual Shielding

JSSG360 (dual shielding), an audiophile concept, is what GhentAudio has long implemented and refined to protect power cables.

Forming a Faraday cage with 2 layers of copper mesh, JSSG360 can effectively resist external EMI, ensuring stable and clean DC power transmission.

If you are interested in JSSG360 – or would like to add this shielding to your cable – please feel free to contact us.

* Note that cables without JSSG360 will still be sleeved by PP cotton.

GhentAudio Mod-HiFi welcomes bulk orders from commercial clients.

We offer customizable options, including personalized logo printing, to meet your branding and production needs.

Please feel free to contact us.
