Note:

For PCB circuit board inspection, it is recommended to buy the version containing a macro lens.

Features:

Industrial-grade Thermal Camera

- 320x320 resolution 25Hz thermal imaging sensor

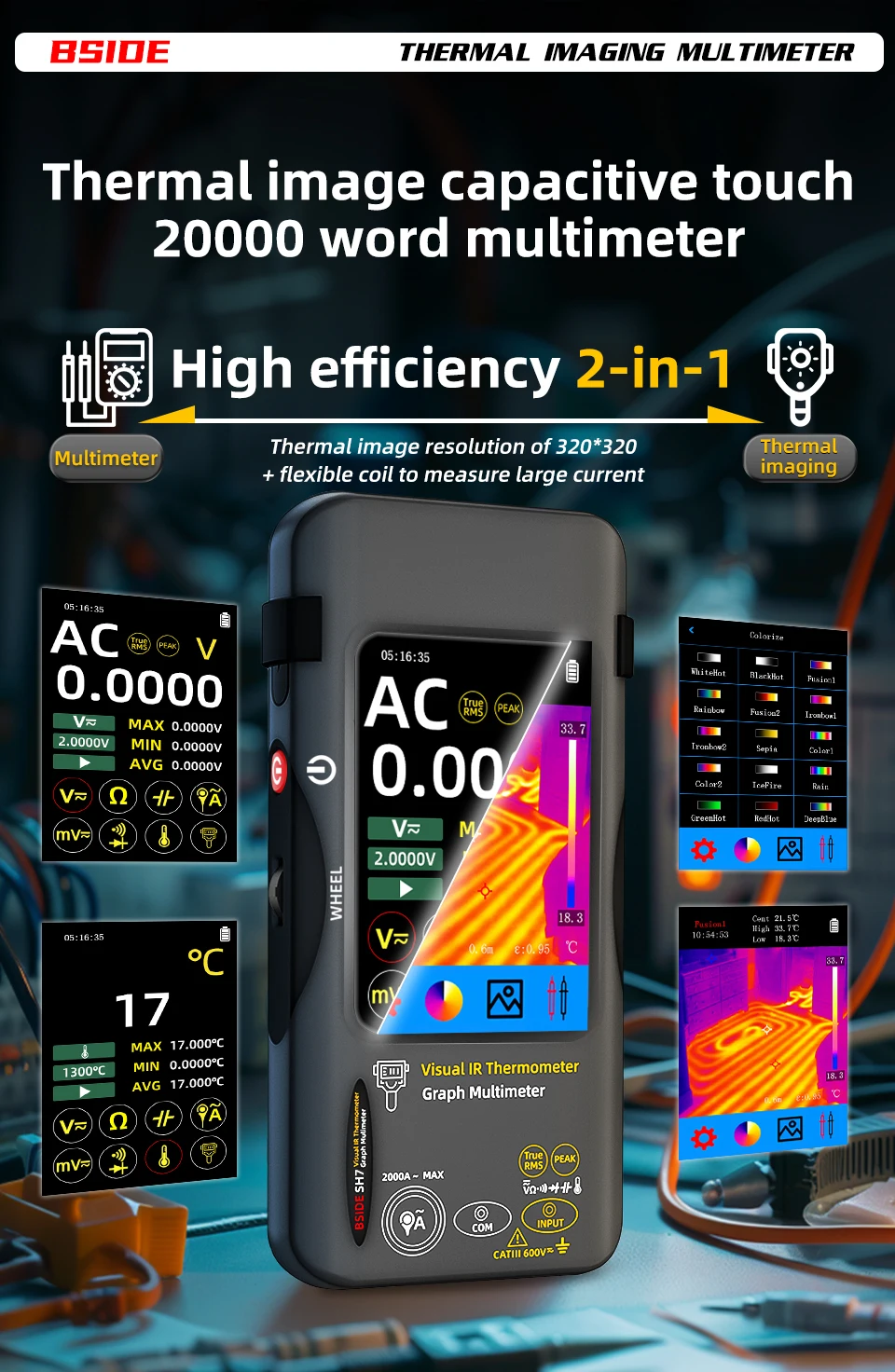

- 2-In-1 Thermal imaging&Multimeter.

- suitable for: underfloor heating leaks, HVAC maintenance, power system inspections, electronic repairs, and industrial inspect.

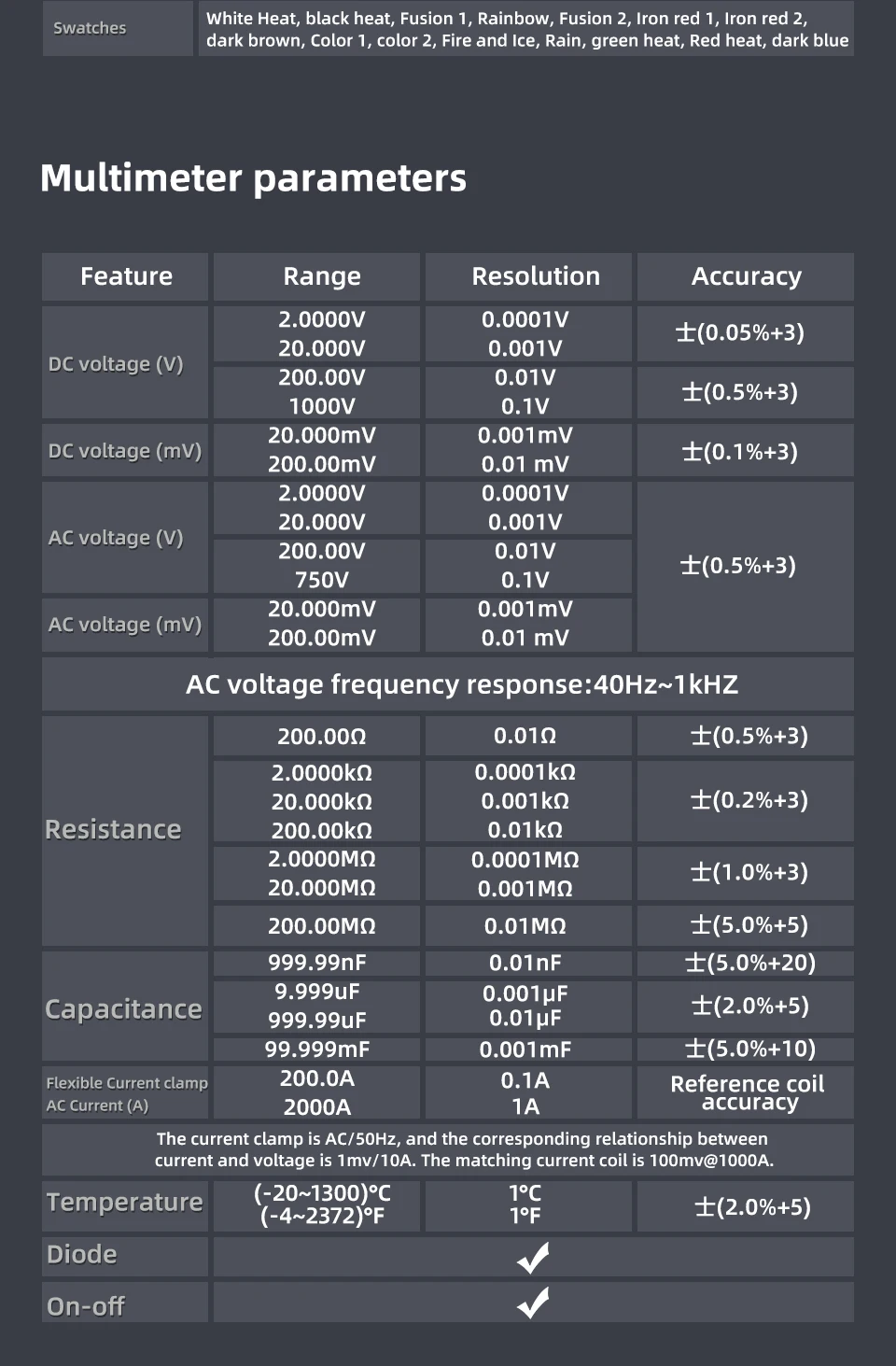

High-Precision Multimeter with 20000counts

- manual and automatic range options

- Maximum input DC voltage up to 1000V

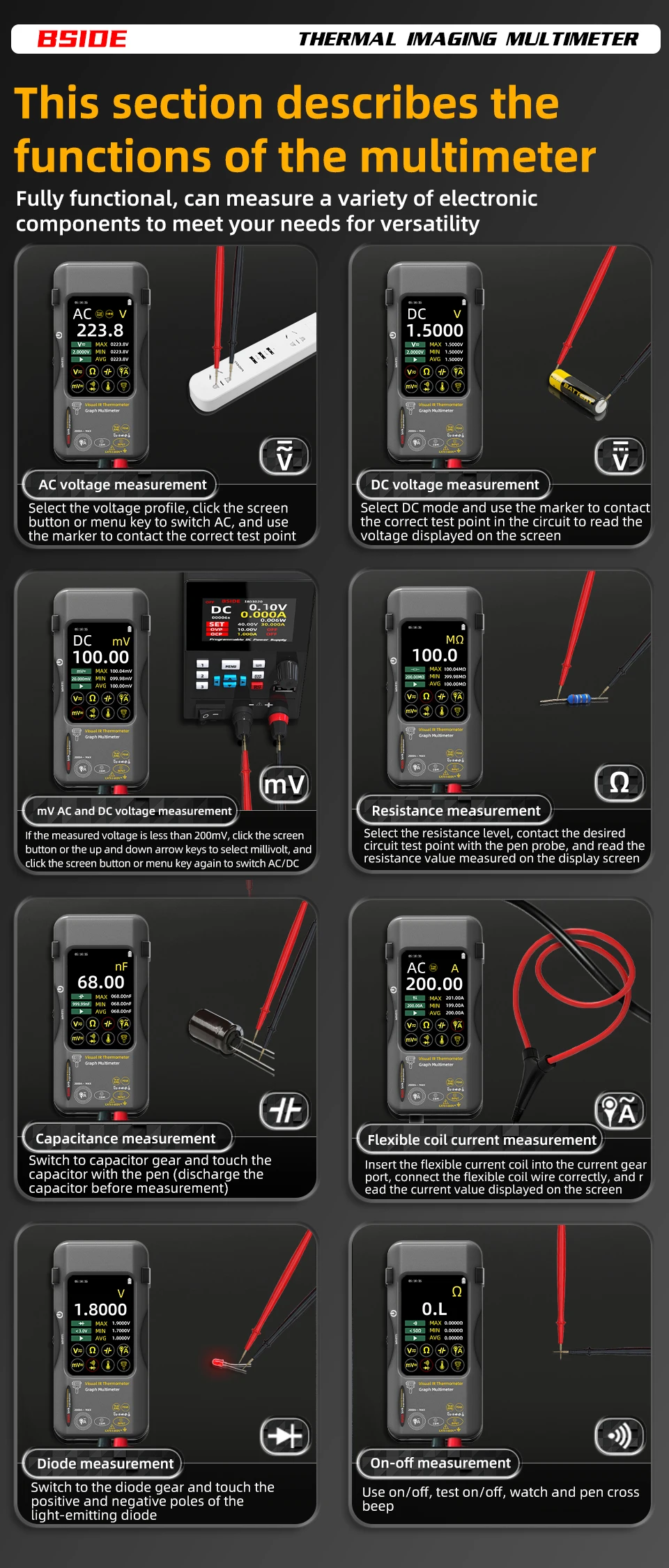

DC/AC voltage, current, resistance, capacitance, diode, frequency, NCV

temperature measurements.

Clear Display with Rich Color Options

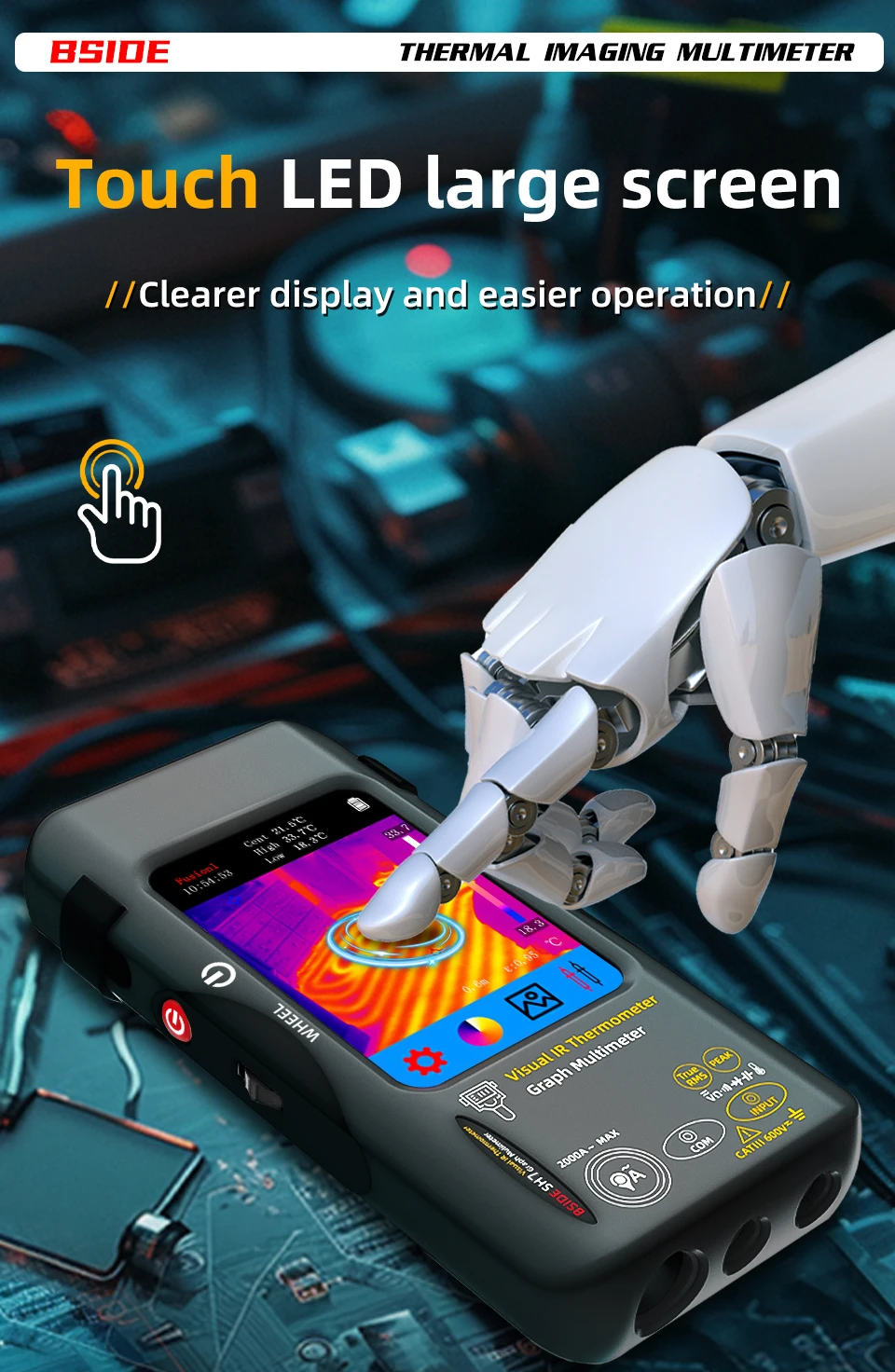

- 3.98 inches TFT Capacitive touch screen with a resolution of 320x480

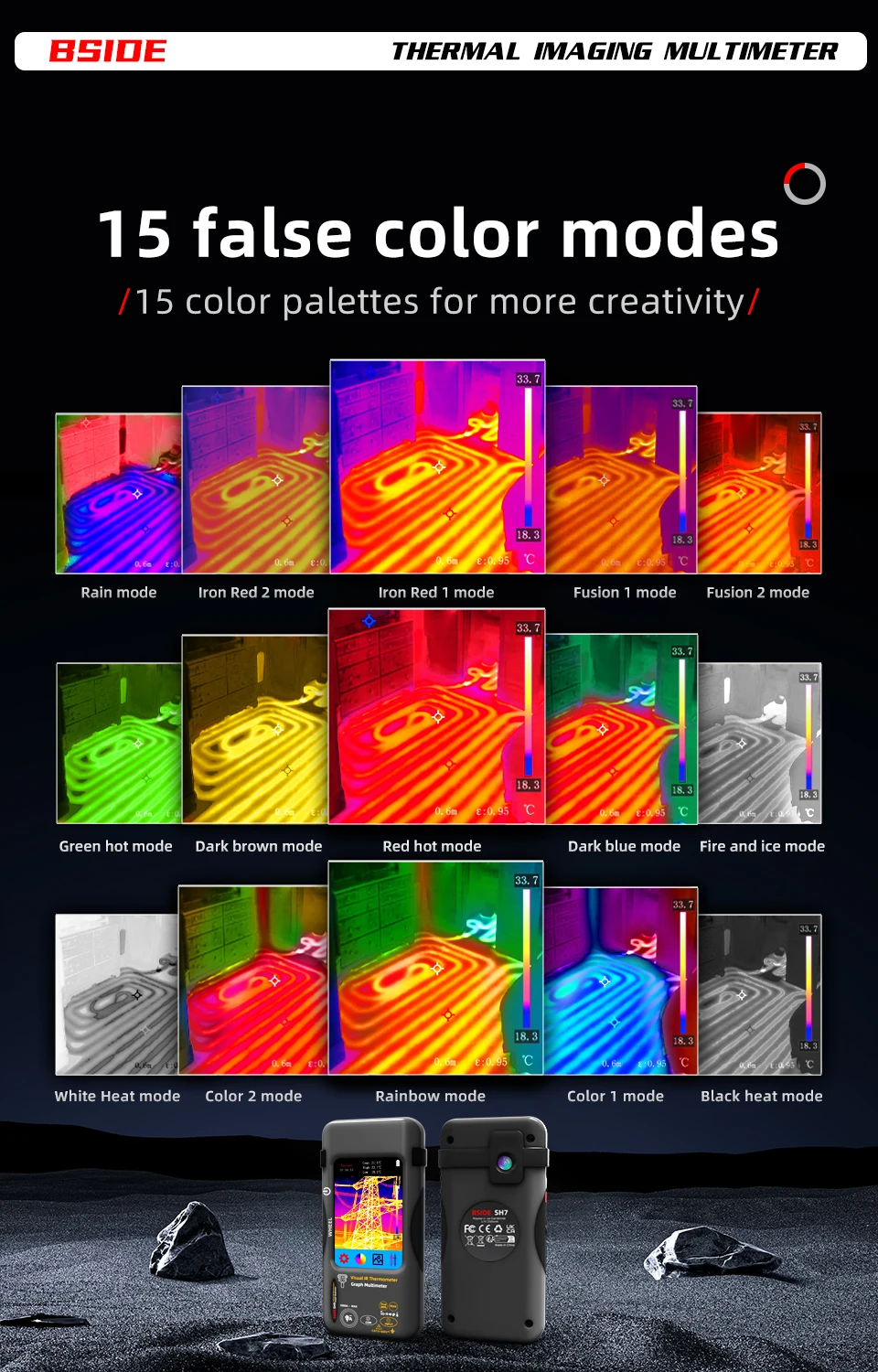

- 15 selectable color palettes, easily switching by long pressing the side button

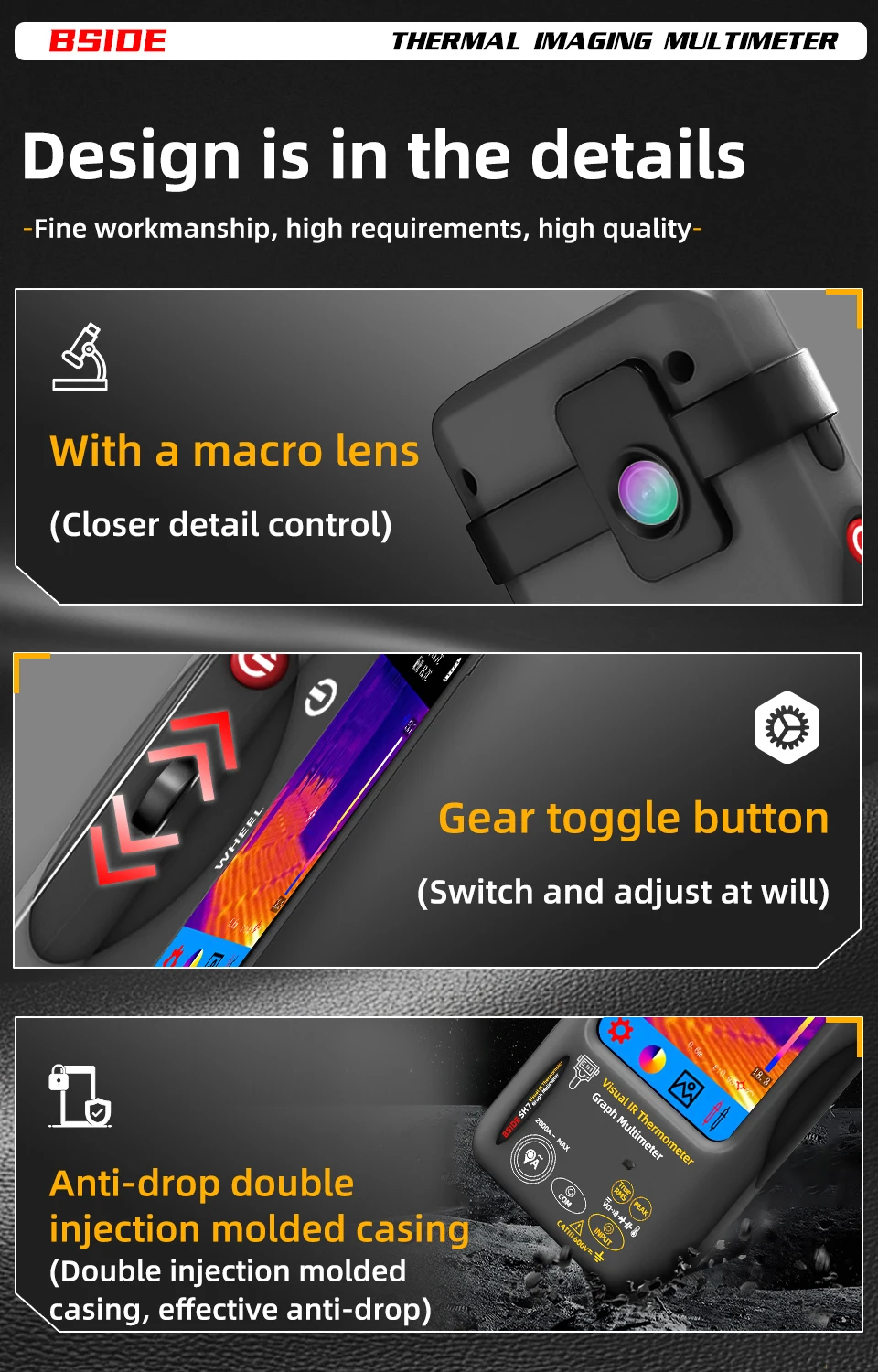

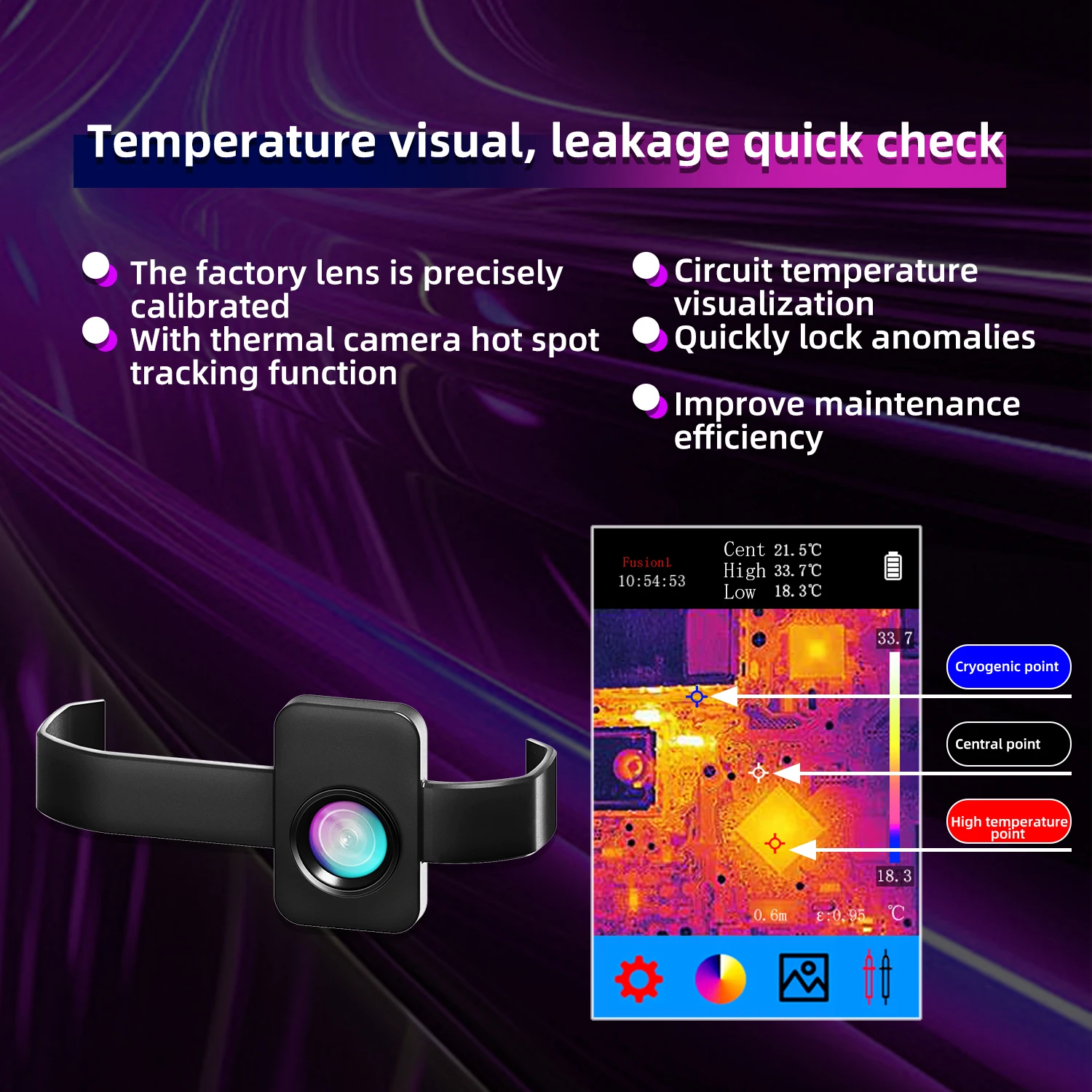

Optional Macro Lens

captures small details as clear as 1mm x 1mm, ideal for smartphone repairs and PCB mainboard inspections.

Available in 7 languages

Including English, German, French, Spanish, Portuguese,Japanese, Italian, and Chinese, catering to global users.

Strong Battery Life and Convenient Charging

Powered by lithium battery with a runtime of up to 8 hours, reliable USB charging.

PC Software Support

Can transfer and analysis the multimeter data chart and thermal image

Specifications:

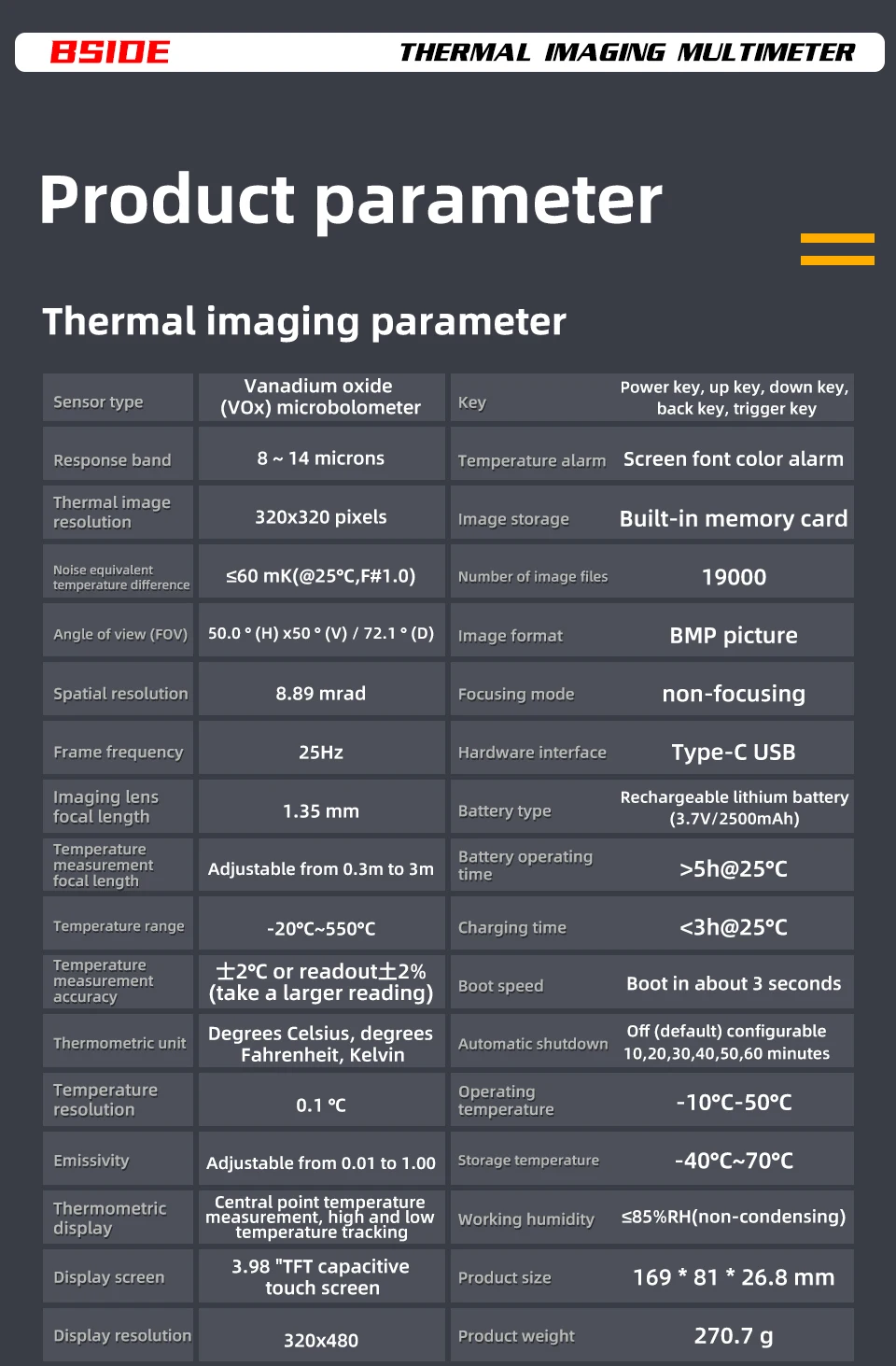

Thermal imaging parameters

Sensor: Vanadium oxide (VOx)

Image capture frequency:25Hz

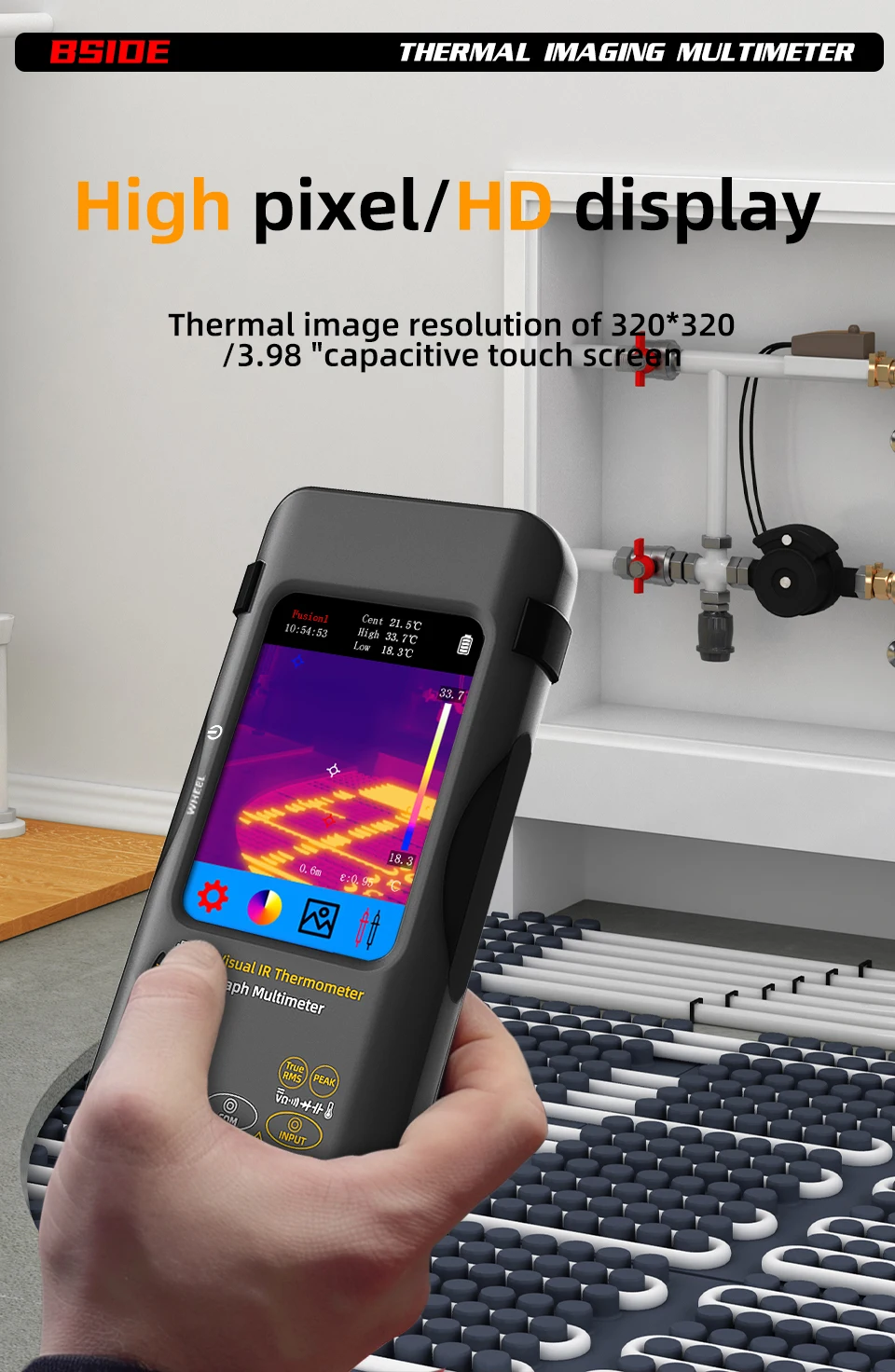

Display image resolution:320 x 320

Field of View (FOV):50.0°(H) × 50.0°(V)/72.1°(D)

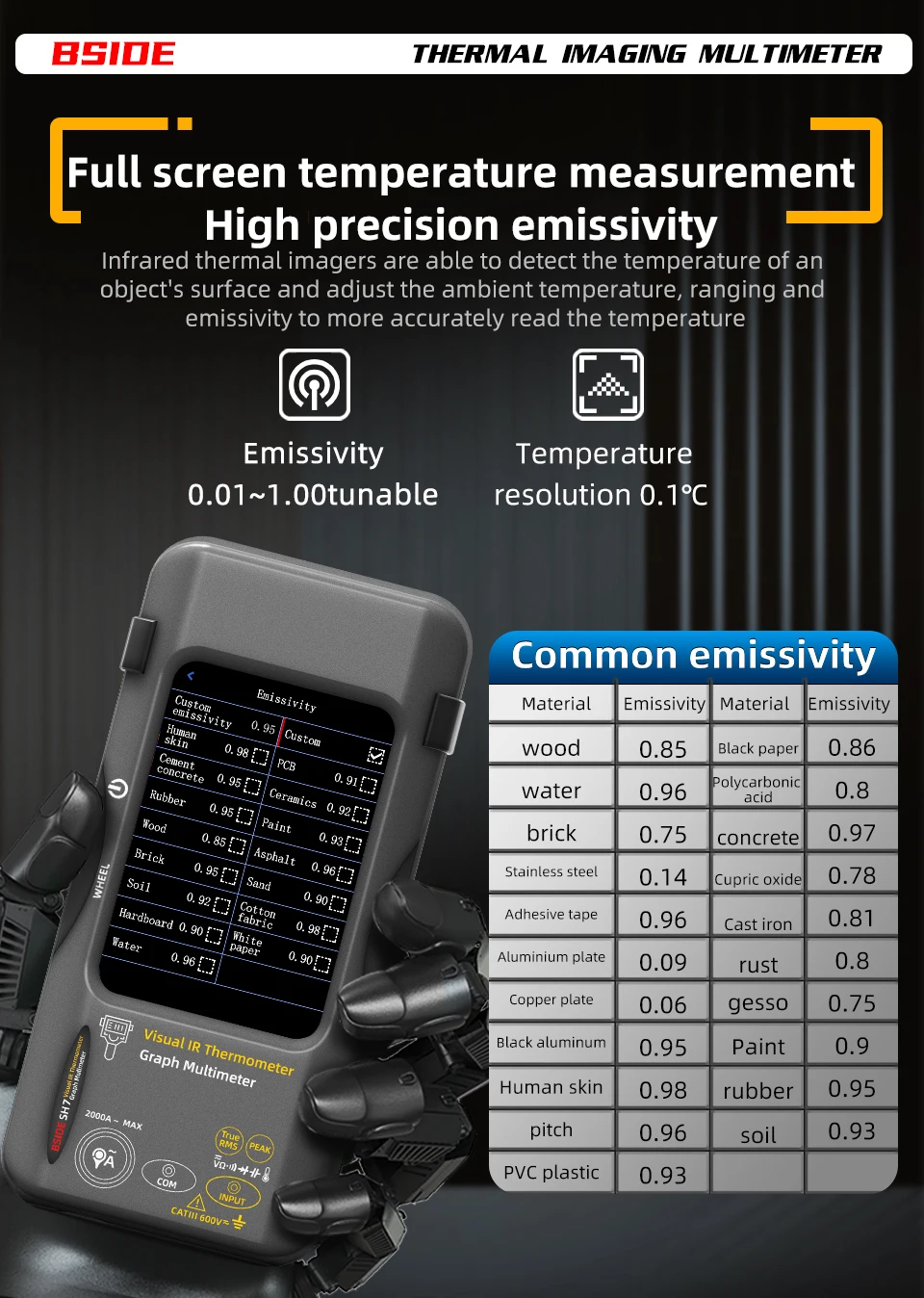

Emissivity:0.1 – 0.99 adjustable,(0.95 by default)

Temperature range:-20℃ ~ +550℃

Gain mode: Auto Gain

Color palette: White Heat, Black Heat, Fusion 1, Rainbow, Fusion 2, Iron Red 1, Iron Red 2, Dark Brown, Color 1, Color 2, Ice Fire, Rain, Green Heat, Red Heat, Deep Blue

Accuracy:±2℃or±2%

Measurement resolution:0.1℃/0.1℉

Macro Lens: Optional, no need to install, move the macro lens left and right during use.

Macro lens working distance: about 3~5cm, (please use normal thermal imaging when the distance exceeds this, otherwise the image will become blurred)

Other parameters of the equipment

Display type:3.98-inch 320 * 480 resolution

USB interface: Type-C USB

Storage capacity: includes a 4G TF card (Included).

Battery Type: Included Lithium-ion battery

Storage temperature:-20～60℃（-4～140℉）

Operating temperature:0～50℃（32～122℉）

Operating Humidity:＜85%RH （ non-condensing ）

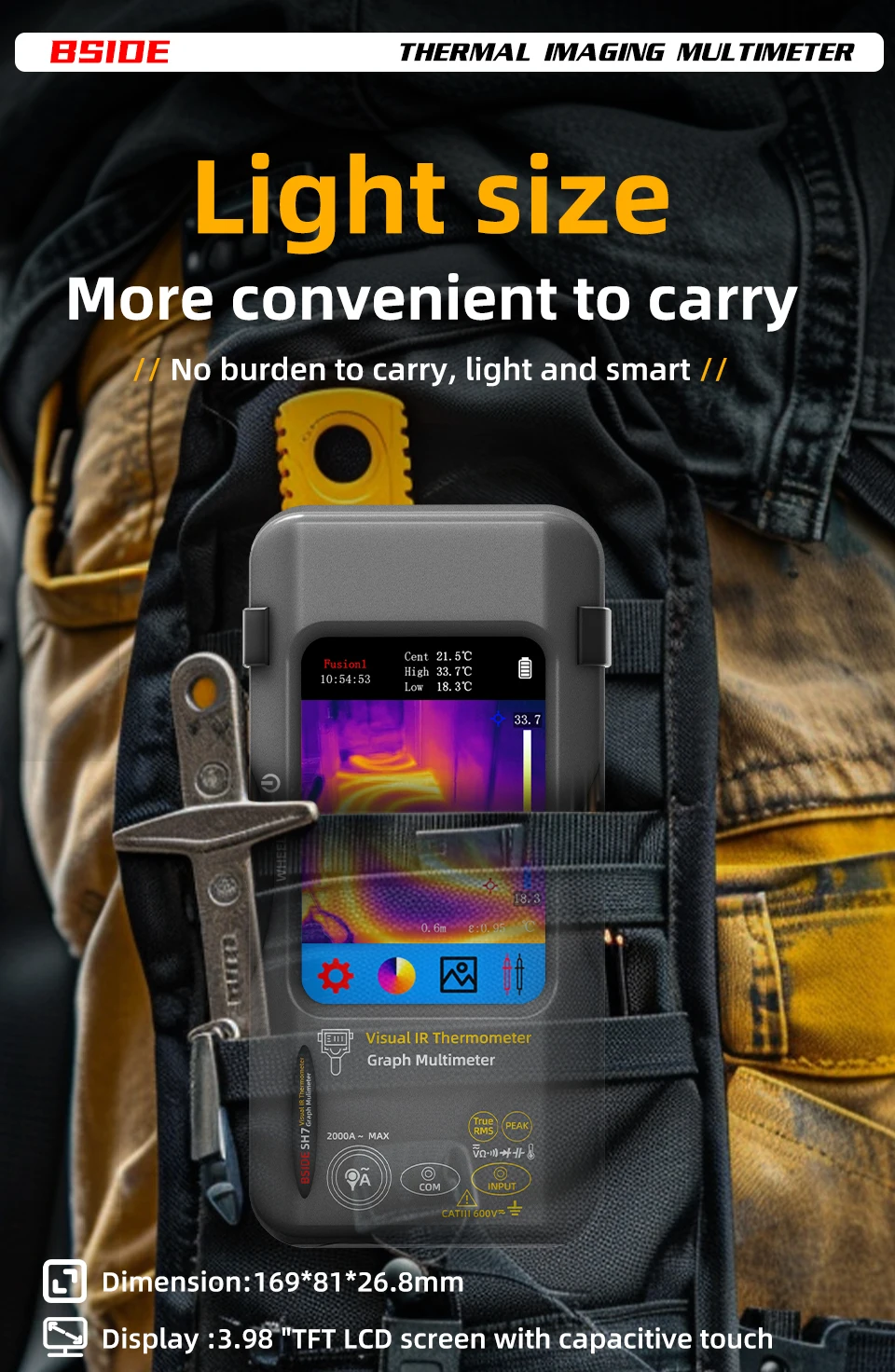

Size: 169*81*26.8mm

Weight: Host weight: 271g (including battery), packaging weight: 500g

Package List:

1 x BSIDE SH7 Thermal Camera Multimeter

1 x USB Cable

1 x English Manual

1 x storage bag

1 x multimeter probe

1 x Type K thermocouples

1 x 12-month warranty card

1 x Macro Lens (Optional)
