Product Highlights：

A full-protocol E.CU connection line for E.CU progarmming power adjustment

OBD2 independent PIN 4 body GND, PIN5 signal GND for special progarmming of some modules.

PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.

Standard OBD2 independent PIN4, PIN5.

Pure copper female seat supports repeated insertion and removal, and has a long service life.

Battery clip treated with environmentally-friendly salt spray, with a thickness of 0.5mm.

The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.

The DC connector has a resettable 7A fuse.

DC power interface, dedicated laboratory power connector.

OBD2 universal jumper of good quality.

Product Functions:

1.The OBD2 universal jumper is connected to the E.CU, and the E.CU module is diagnosed by the progarmming diagnostic equipment. (With MPPS, FGTech, Kess V2, etc, for E.CU data reading and writing, E.CU cloning, E.CU tuning)

2.GT105 II provides uninterrupted power supply during the car battery replacement process to protect the car E.CU data from being lost due to the power failure. The audio system is not locked, the IMMO data is not lost, the remote control does not need to be reset, the window regulator does not need to be reset, and the throttle valve does not need to be re-matched. The fault light will not be illuminated. No fault codes will appear. GT105 II provides internal insurance for users.

3.GT105 II can obtain 12V power from the car battery. (For progarmming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, read BMW, BENZ, IMMO E.CU outdoors, or provide 12V power supply for reading other car’s E.CU data. Provide power for 12V powered key cutting machines to realize outdoor faulty vehicles on-site repair. ）

4.After 2016, all Ford smart keys are lost, GT105 II cooperates with VVDI equipment (OBDSTAR AUTEL) and other IMMO matching equipment to progarm the keys.

5.GT105 II-All car keys lost matching---wake up the meter or wake up the IMMO E.CU. (Support VAG 4th and 5th generation IMMO, Toyota E.CU synchronization, auxiliary Mitsubishi all-key-lost matching or all-key-lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)

6.The VPW CANH CANL K-Line indicator light can judge the communication status between the vehicle and the diagnostic progarmming device. (If the connected device can determine whether the device can send communication, simply determine whether the diagnostic progarmming is normal.)

7.Universal Jumper -support DC and safety protection banana head super progarmming power supply dedicated connection port.

8.Universal Jumper -independent GND4 and GND5 meet the needs of special E.CU progarmming. (Note: The switch of GND4-5 is normally pressed to make it light. When some E.CUs need to be independently connected to GND4 and GND5, release the switch.)

9.Universal Jumper-with ignition analog switch, equipped with 1 large and 2 small ignition dedicated connecting cables. (After the ING ignition switch is pressed, the “ING12V” line will have 12v. This is the analog ignition switch. Because when some devices read some E.CUs, the device will prompt to turn on or off the ignition switch.)

10.With boot GND 4# clip. Cooperate with M-P-P-S, F-G-T-ECH, K*E*S*S*V2, etc. [Double K line, double CAN line] 3 large and 2 small power plugs, 4 large GNDs, and 4 small GNDs are designed to meet the progarmming connection needs.

Functions Display:

A. Connect E.CU module, special power supply to read and write E.CU data, E.CU clone, progarmming and adjustment.



B. GT105 II provides uninterrupted power supply during the car battery replacement process to protect the car E.CU data.

C. OBD2 universal jumper

D. After 2016, when all Ford smart keys are lost, GT105 II cooperates with VVDI equipment (OBDSTAR, AUTEL) and other IMMO matching equipment to progarm the keys.

All car keys lost matching---wake up the meter or wake up the IMMO E.CU. (Support VAG 4th and 5th generation IMMO, Toyota E.CU synchronization, auxiliary Mitsubishi key all-lost matching or all-lost remote control key setting, old Porsche Cayenne car for IMMO key learning.)

E.VPW CANH CANL K-Line indicator light can judge the communication status between the vehicle and the diagnostic progarmming device. (If the connected device can determine whether the device can send communication, simply determine whether the diagnostic progarmming is normal.)

F. IMMO AD Ford all lost smart keys, VVDI equipment (OBDSTAR, AUTEL) and other IMMO matching equipment. For all-loss matching, you need to disconnect the car battery, connect the negative pole of the battery via OBD5, and connect the 16 pin to the positive pole of the 12v battery.

Example: Use the Xhorse Key Tool Plus Pad to match a new Ford model after 2017. In the state of all keys lost, the vehicle is in the alarm state, and the tablet cannot be used for matching. If you want to match the keys, you must release the IMMO state.

If the vehicle has entered the IMMO state. Disconnect the positive pole of the battery as prompted by the device, and then connect the vehicle battery with the GT105 II power adapter cable, as the picture shows.

(In the process of key matching, the external 12V power supply is always maintained, no need to disconnect)

Follow the instructions on the Xhorse Key Tool Plus Pad to match the keys.

G. All lost car keys match---wake up the meter or wake up the IMMO E.CU.

Porsche and VW 4th generation smart, 5th generation card key (model list: new A6L Touareg A4 Q5 A7) lights up the instrument, the key matching tool is connected for data collection.

Some vehicle instruments do not light up, but data collection can also be performed, for example: A6L Q7.

H.Toyota replaces the engine E.CU, the IMMO E.CU needs to be synchronized, or some key matching equipment can match all lost keys of Toyota vehicles

I. Mitsubishi key lost all matching or all lost remote control key settings.

J. IMMO key learning for old Porsche Cayenne

K. Outdoor operation power collection

When the locksmith or E.CU engineer cannot get the 12V power supply in the outdoor operation, he can use the GT105 II power adapter cable to obtain the 12V power supply from the car battery.

Provides power to a 12V powered key cutter

Indicator Light Meaning：

1. Manufactory custom 2. SJE1850 wire 3. Manufactory custom 4. Power grounding 5. Signal grounding 6. SAEJ2284《CAN》high 7. ISO9141-2&iso, DIS4230-4K wire 8. Manufactory custom

9. Manufactory custom 10. SJE1850 wire (bus) 11. Manufactory custom 12. Manufactory custom 13. Manufactory custom 14. SAEJ2284《CAN》low 15. ISO9141-2 & ISO/DIS 4230-4L wire 16. Car battery positive

Package Includes:

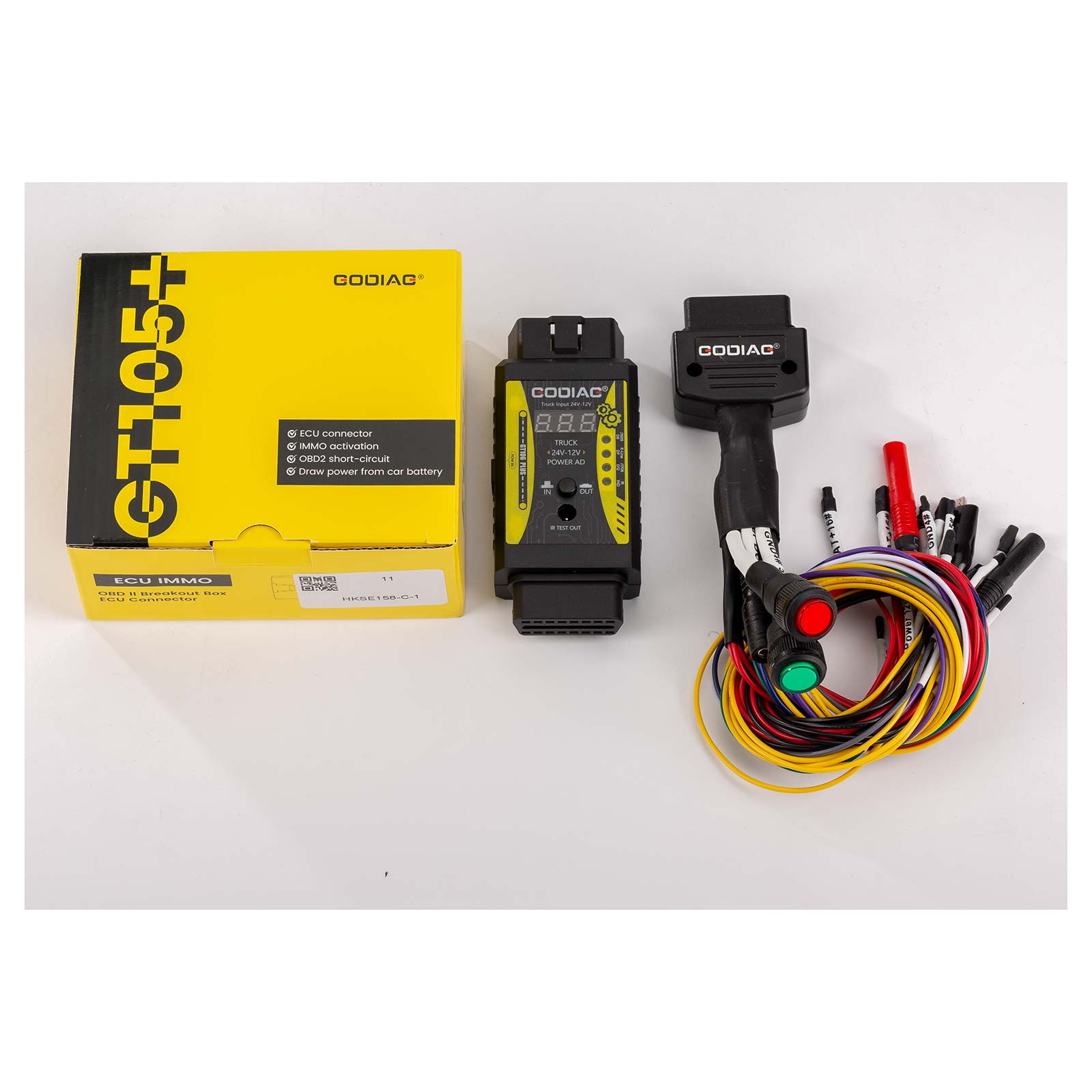

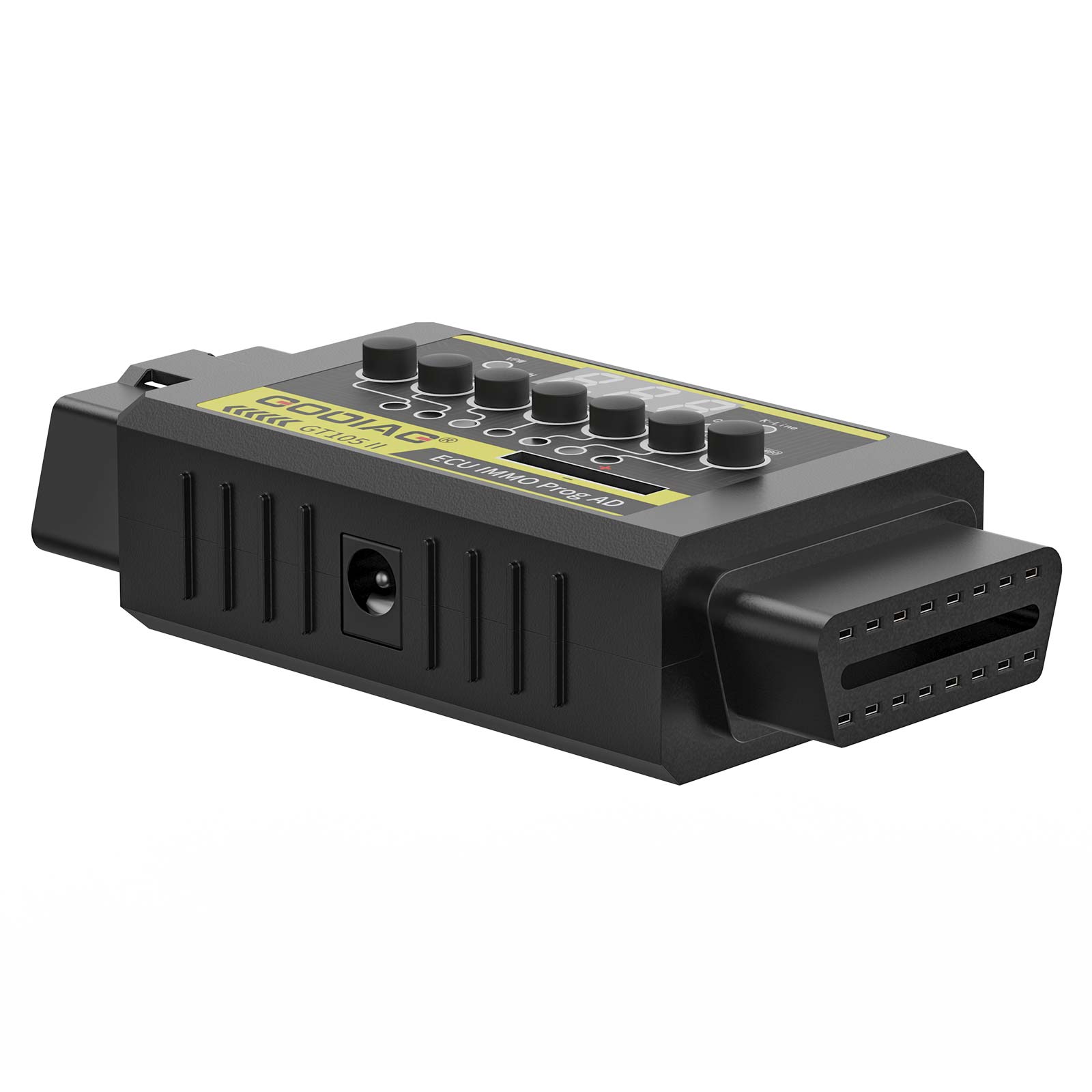

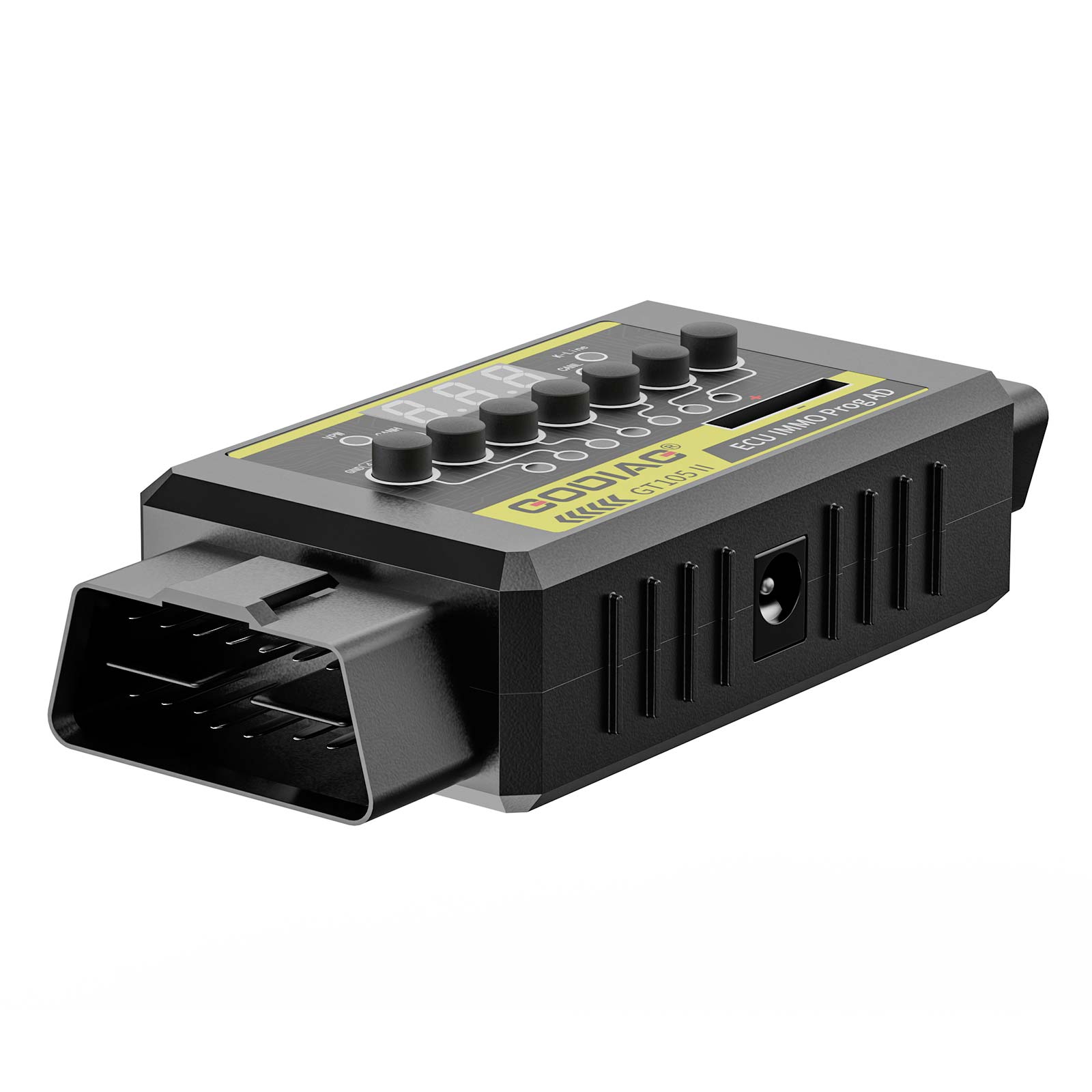

1pc x GT105 II host

1pc x Power cord with battery clip

3pcs x Electrical resistance

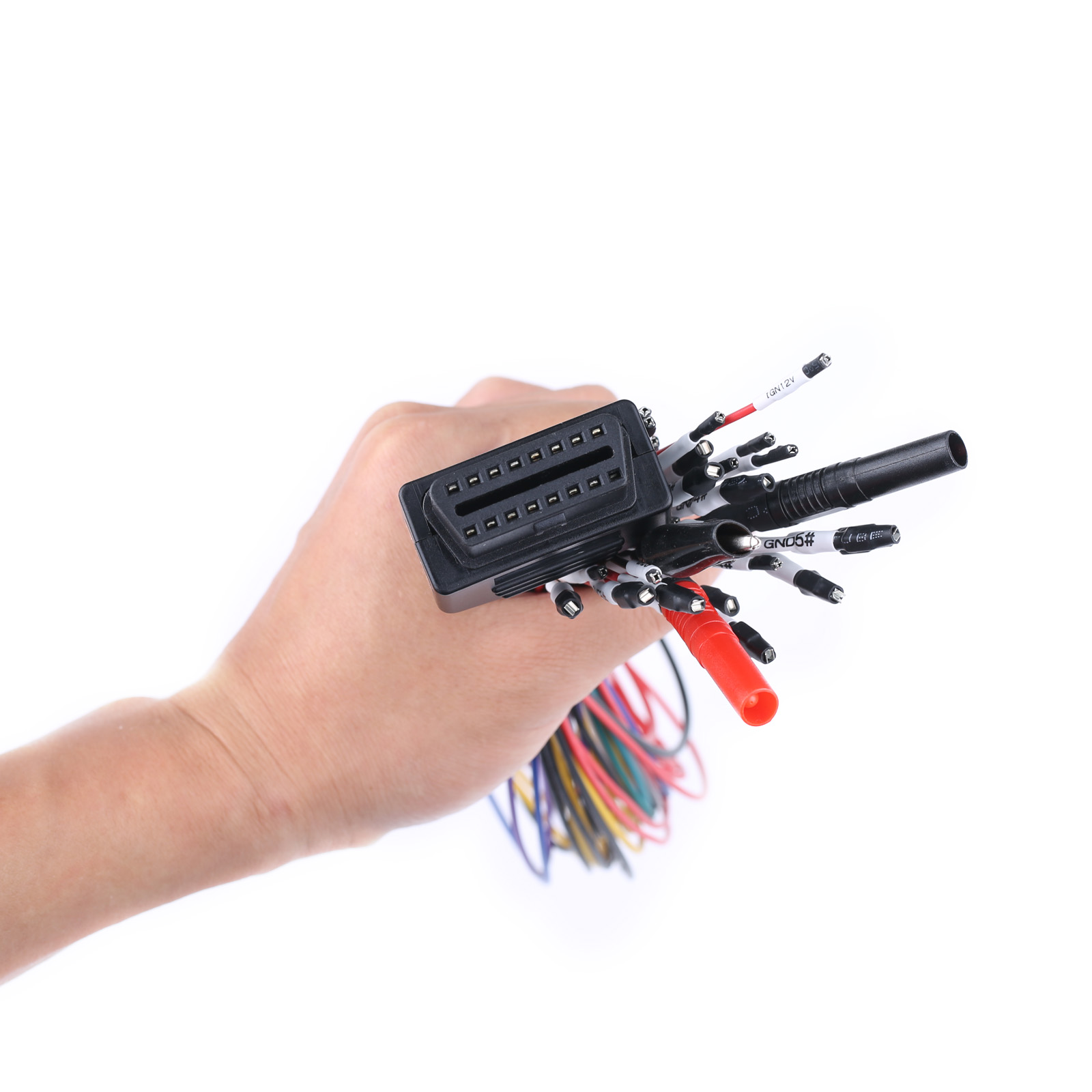

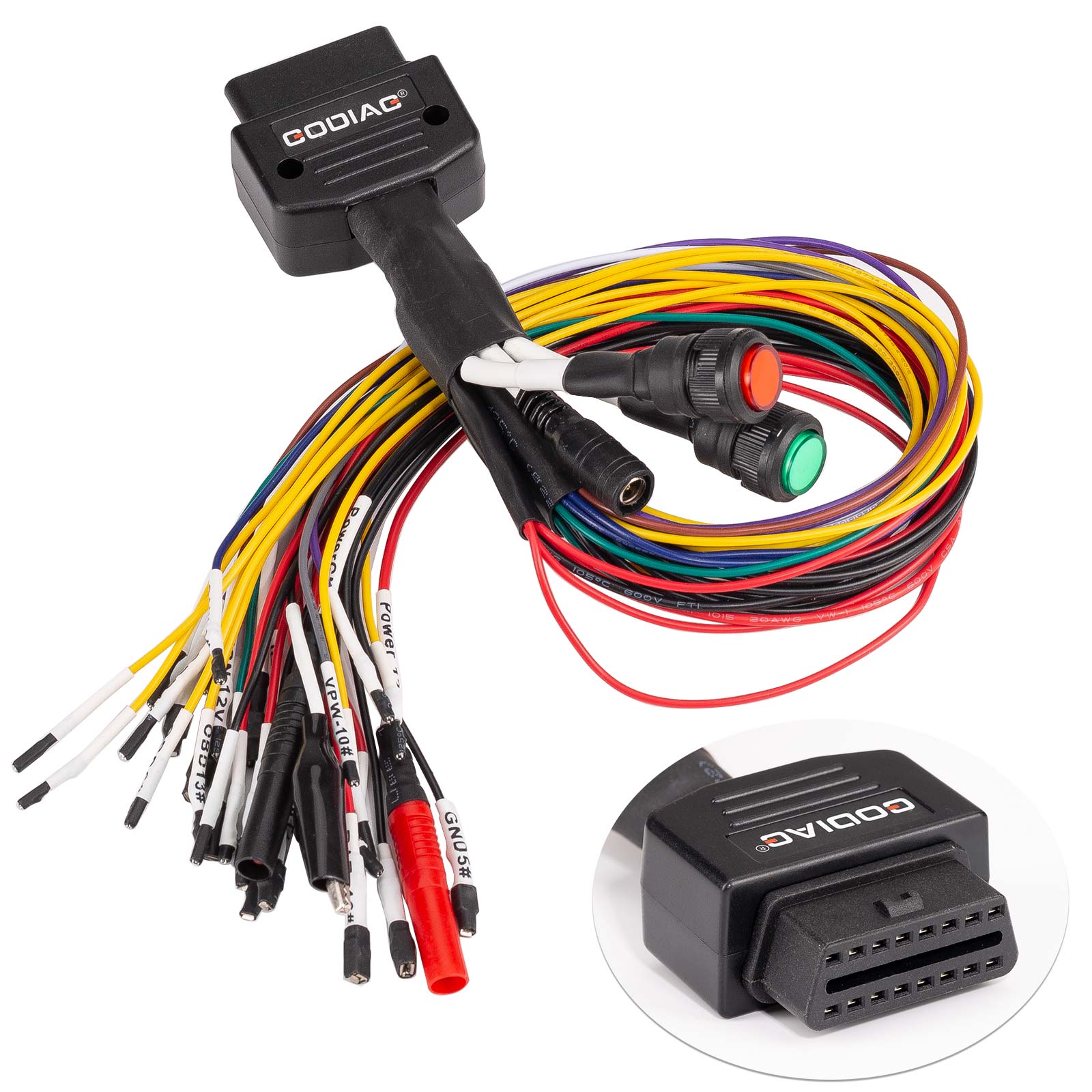

1pc x Full protocol OBD2 jumper
