DIY Thumbs Up - Soldering Project Teaching Learning Gift UK Seller

Product Description

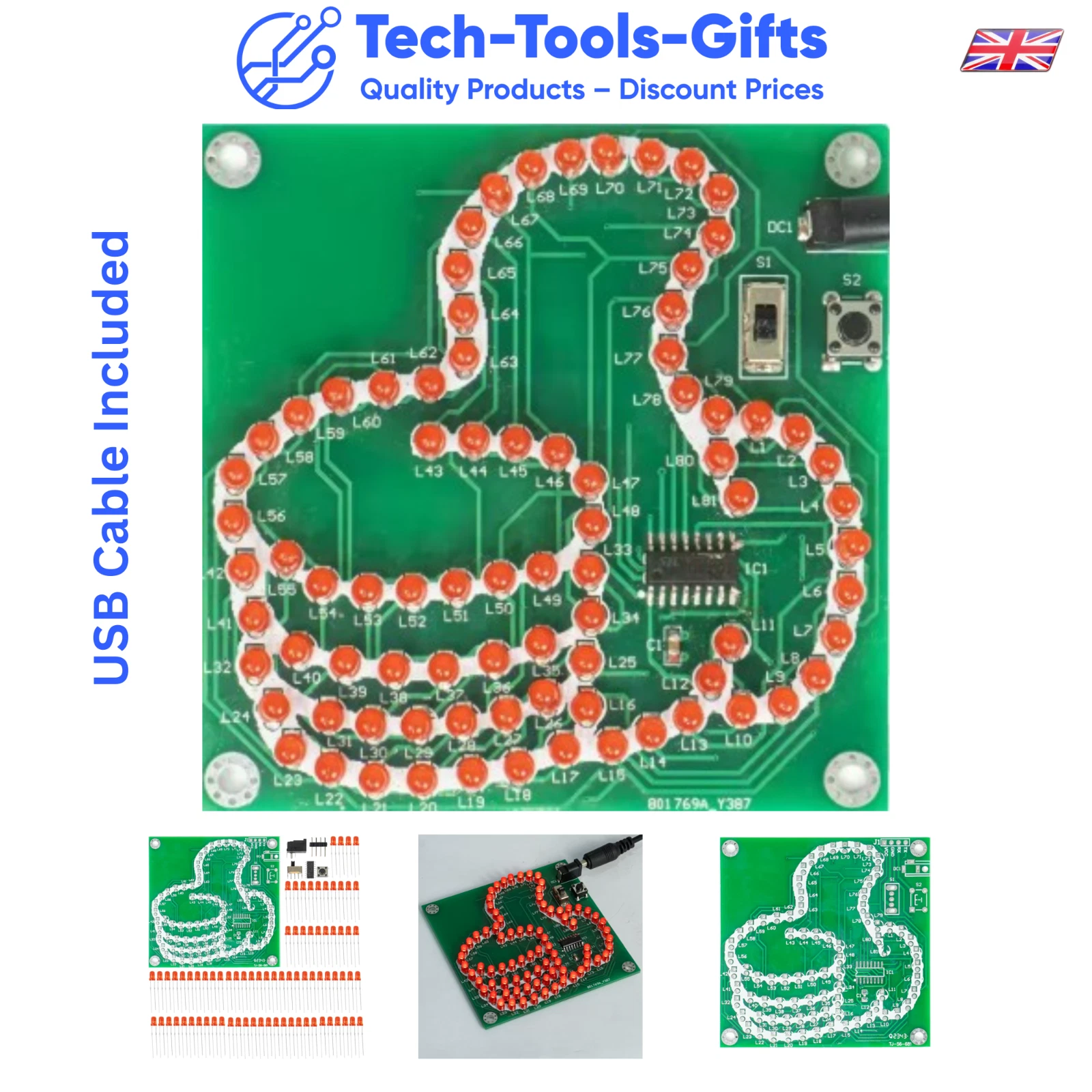

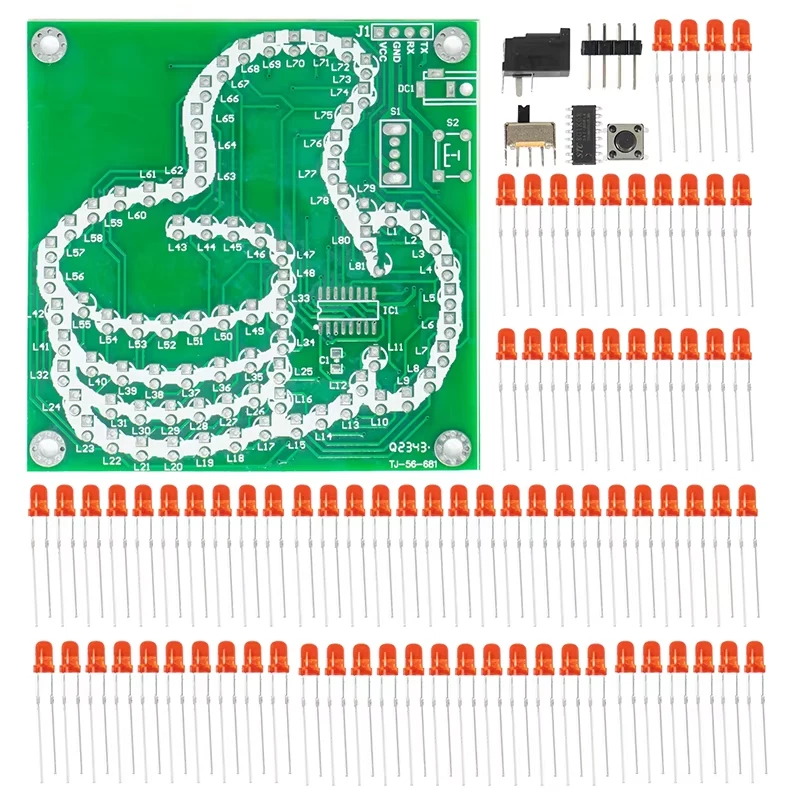

81LED Thumb Light Plate Flowing Light DIY Kit Fun Microcontroller Electronic Manufacturing Welding Practice Circuit Board

Specification:

Item name: 81LED Thumb Light Plate Flowing Light DIY Kit

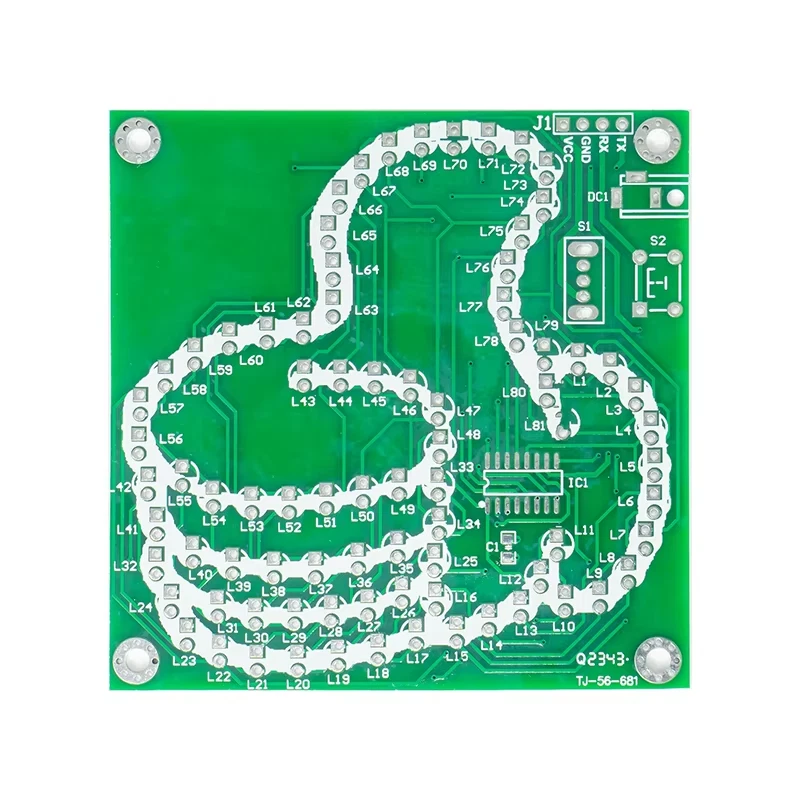

Board size: 75*75mm
Power supply: DC 5V (USB Cable Included)
Product model: TJ-56-681

Function description:

After the circuit is powered on, the thumbs-up pattern composed of 81 leds presents a variety of water flashing effects. Press S2 to adjust the water speed.

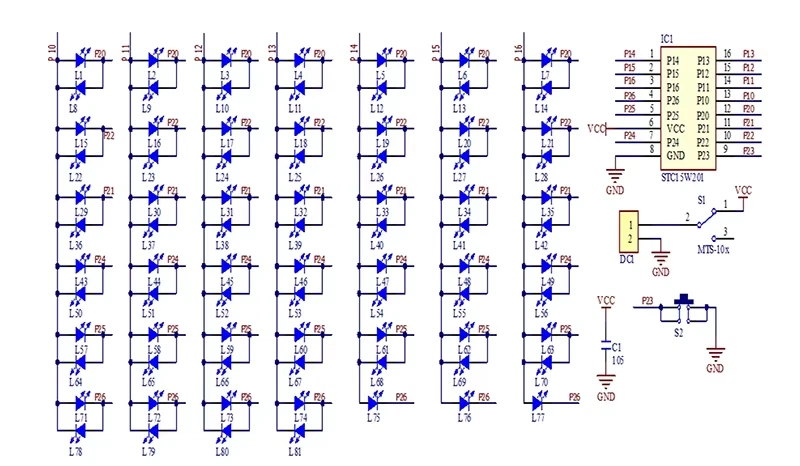

81 LEDs are connected to a dedicated microcontroller STC8G1K08 through row and column combination, and are scanned and driven to light up as needed through the microcontroller program. The microcontroller program of this kit has been burned and after welding, the product effect can be displayed. DC1 is a small DC socket that can be powered by either 4-5V DC or any 5V charging head. S1 is the power switch, C1 is the backup filtering capacitor, which generally does not need to be installed and is not provided in the kit, which does not affect the effectiveness of use.

Please Note:

We can only guarantee that the products are in good condition on delivery and cannot guarantee 100% success after assembly. The assembly of the product requires the user to have some basic soldering skills

Be careful not to overheat any of the components or the printed circuit board connection points as this can cause faults to occur

Please see our store for a range of DIY soldering projects and other cool stuff!
