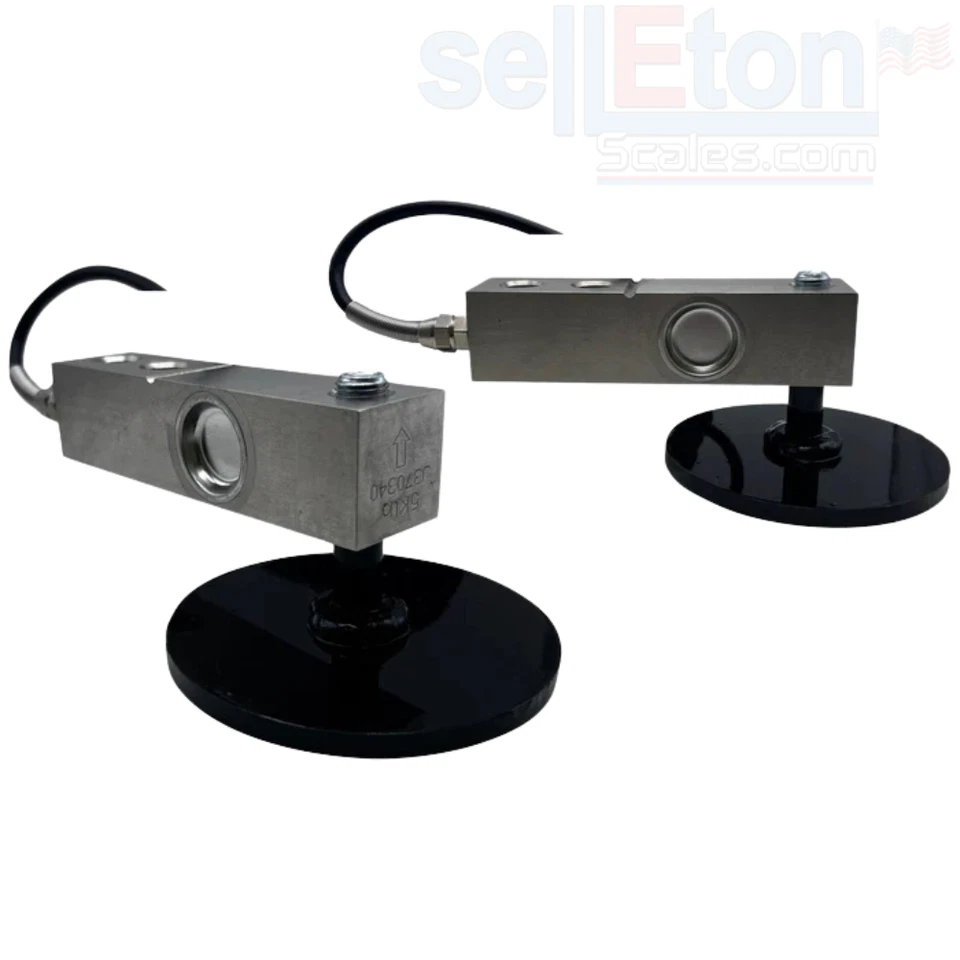

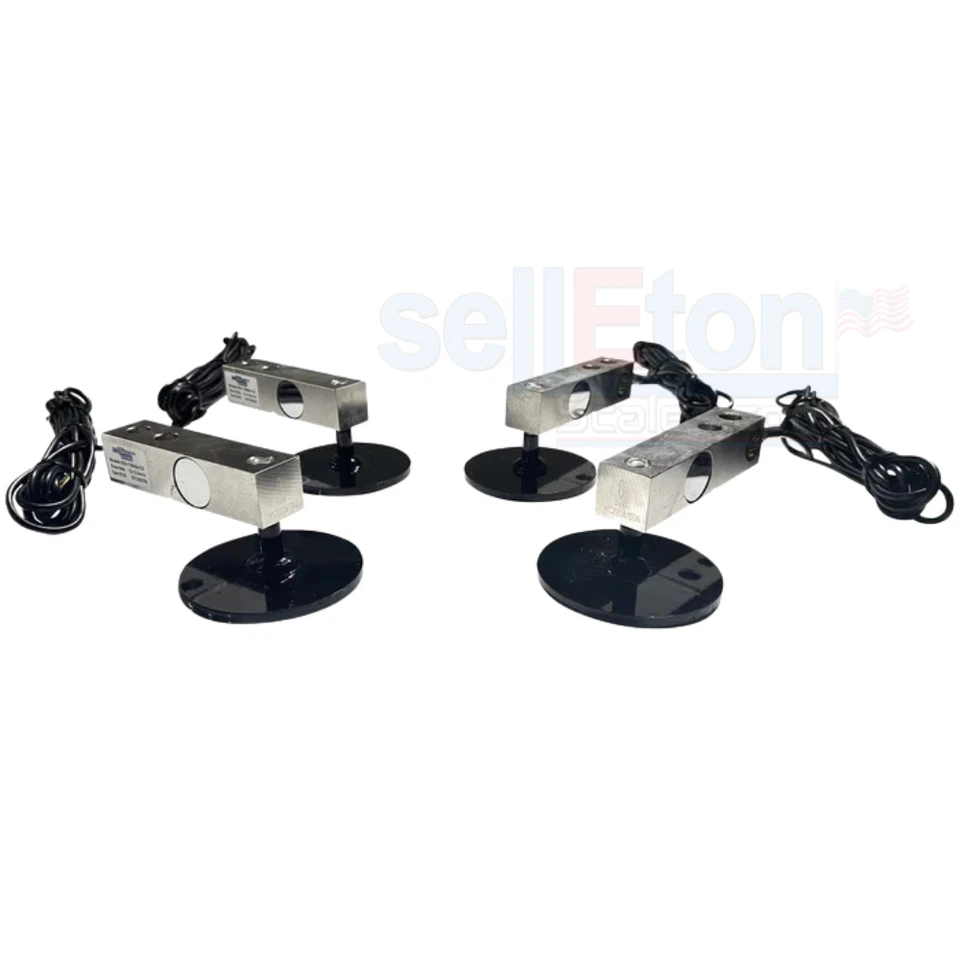

SL-818-5klb-4R NTEP Shear beam load cell kit-1/2" 20 UNF Thread, 4" Diameter

description

Upgrade to the SL-818-5klb-4R NTEP Certified Shear Beam Load Cell Kit for unmatched precision and reliability. This high-performance load cell sensor is explicitly designed to solve the problem of erratic weight data in various industrial environments, ensuring your weighing systems operate flawlessly and efficiently.

Key Features:

  • High Capacity: Supports up to 5,000 lbs, perfect for heavy-duty industrial use.

  • Enhanced Precision: Delivers accurate readings crucial for optimizing your operations.

  • Versatile Applications: Suitable for floor scales, platform scales, tank weighing systems, conveyor belts, and more.

  • Durable Construction: Made with robust alloy or optional stainless steel for harsh conditions.


    Specifications:
  • NTEP Certification: CC 25-075
  • Rated Capacity: 5,000 lb (per load cell)
  • Total Capacity of 4 Load cells with 200% overload protection: 10,000 lb
  • Kit calibration options: 1000 lb x .2 lb, 2500 lb x .5 lb, 5000 lb x 1 lb, 10,000 lb x 1 lb accuracy
  • Rated Output: 3.0 ± 0.003 mV/V
  • Total Error: ± 0.02% F.S.
  • Creep (30 min): ± 0.02% F.S.
  • Input Resistance: 385 ± 10 Ω
  • Output Resistance: 351 ± 2 Ω
  • Recommended Excitation Voltage: 4–12 VDC
  • Maximum Excitation Voltage: 15 VDC
  • Operating Temperature Range: -10 to +40°C
  • Safe Overload: 150% F.S.
  • Destructive Load: 200% F.S.
  • Cable Length: 10 ft (4-wire with shield)
  • Wiring Colors: Red (Exc+), Black (Exc-), Green (Sig+), White (Sig-)
  • Material Options: Available in Alloy Steel or Stainless Steel
  • Suitable for: Floor Scales, Platform Scales, Tanks, Conveyor Systems, Bagging Machines, Batching Systems, Animal Scales

We accept eBay-managed payments (Visa/Mastercard/Amex, PayPal, Apple/Google Pay).

Flat Rate Freight Estimated delivery time varies Shipping: Free shipping
30 day money back guarantee
Returns accepted within 30 days (unused item, in its original packaging).
We understand that sometimes returns are necessary, and we strive to make the process as smooth as possible. Please review our return policy guidelines below
SellEton Scales offers a 5-year limited warranty covering defects in materials and workmanship from the purchase date, including load cells, cables, and indicators. This warranty excludes damages to the actual product.
