Overview

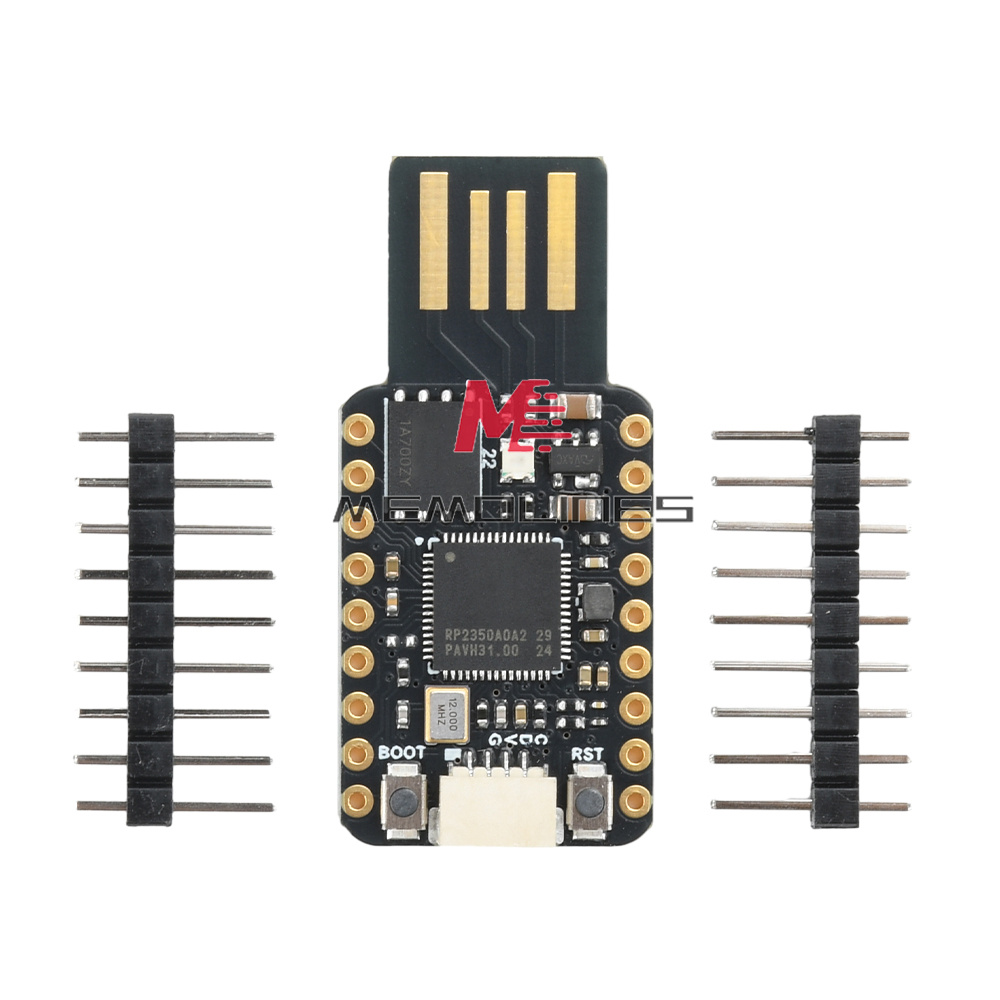

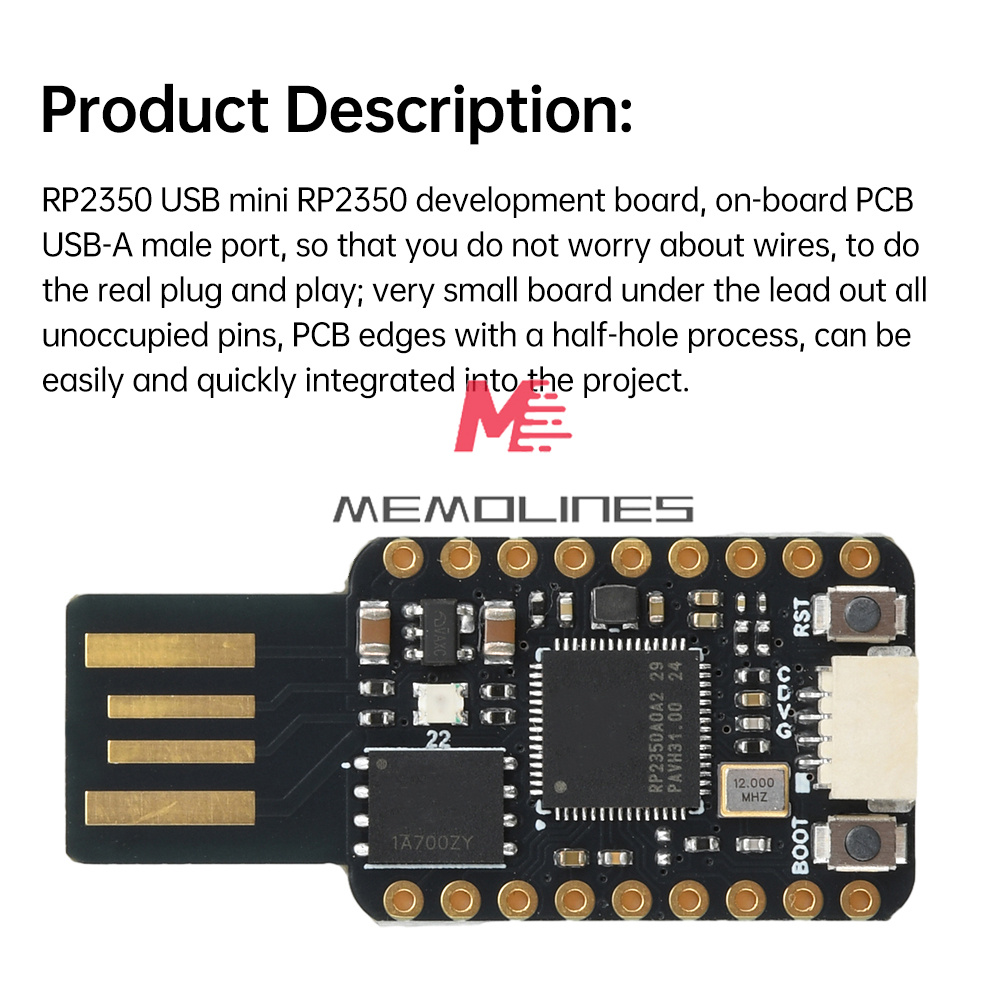

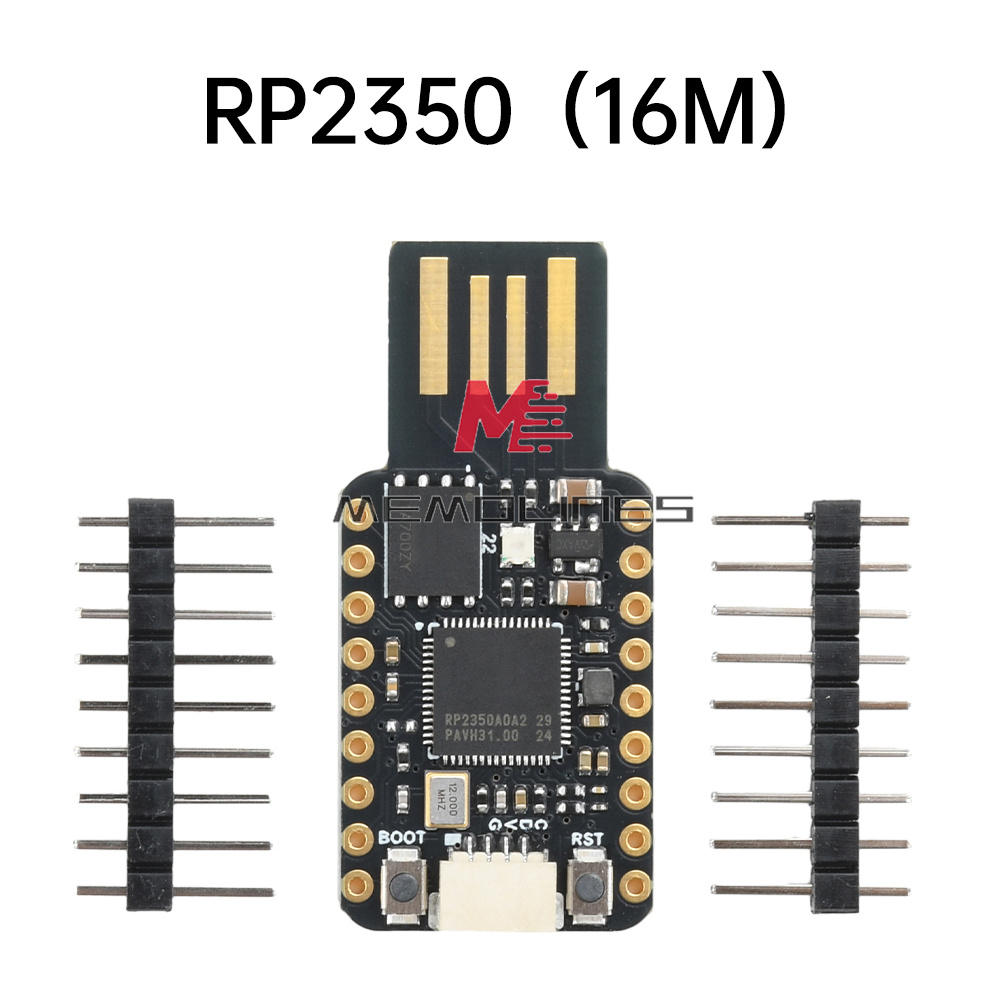

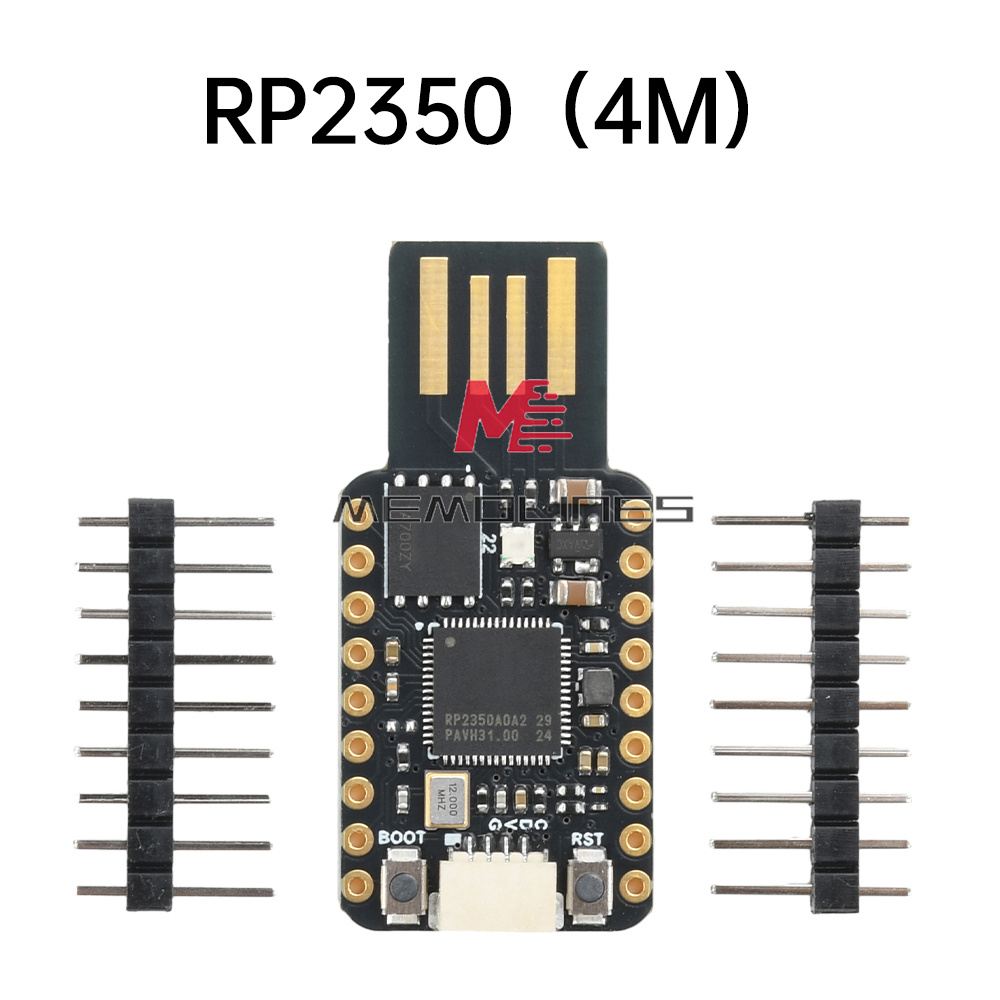

RP2350 USB mini RP2350 development board, on-board PCB USB-A public port, so that you do not worry about wires, to achieve the real plug and play; very small board under the lead out all unoccupied pins, the edge of the PCB using a half-hole process, can be easily and quickly integrated into the project.
1. Dual-core architecture: Equipped with dual-core processors to provide high-efficiency processing power.
2. Mass storage: Built-in 520KB SRAM and 4MB Flash to ensure fast access and saving of programs and data.
3. True Plug and Play: PCB USB-A male port design eliminates the need for additional wires for convenient connection.
4. Low Power Mode: Supports sleep and hibernate modes, which helps to extend battery life and save energy.
5. Rich peripheral interfaces: including SPI, I2C, UART, etc., adapting to the needs of a variety of application scenarios.
Adopts RP2350A microcontroller chip
Unique dual-core, dual architecture, equipped with dual-core ARM Cortex-M33 processor and dual-core Hazard3 RISC-V core processor, running at up to 150MHz flexible clock.
Built-in 520KB of SRAM and 4MB of on-chip Flash
On-board PCB USB-A male port allows you to plug and play without worrying about cables.
USB1.1 host and device support
Supports low-power sleep and hibernation modes
Drag-and-drop program download via USB recognized as mass memory

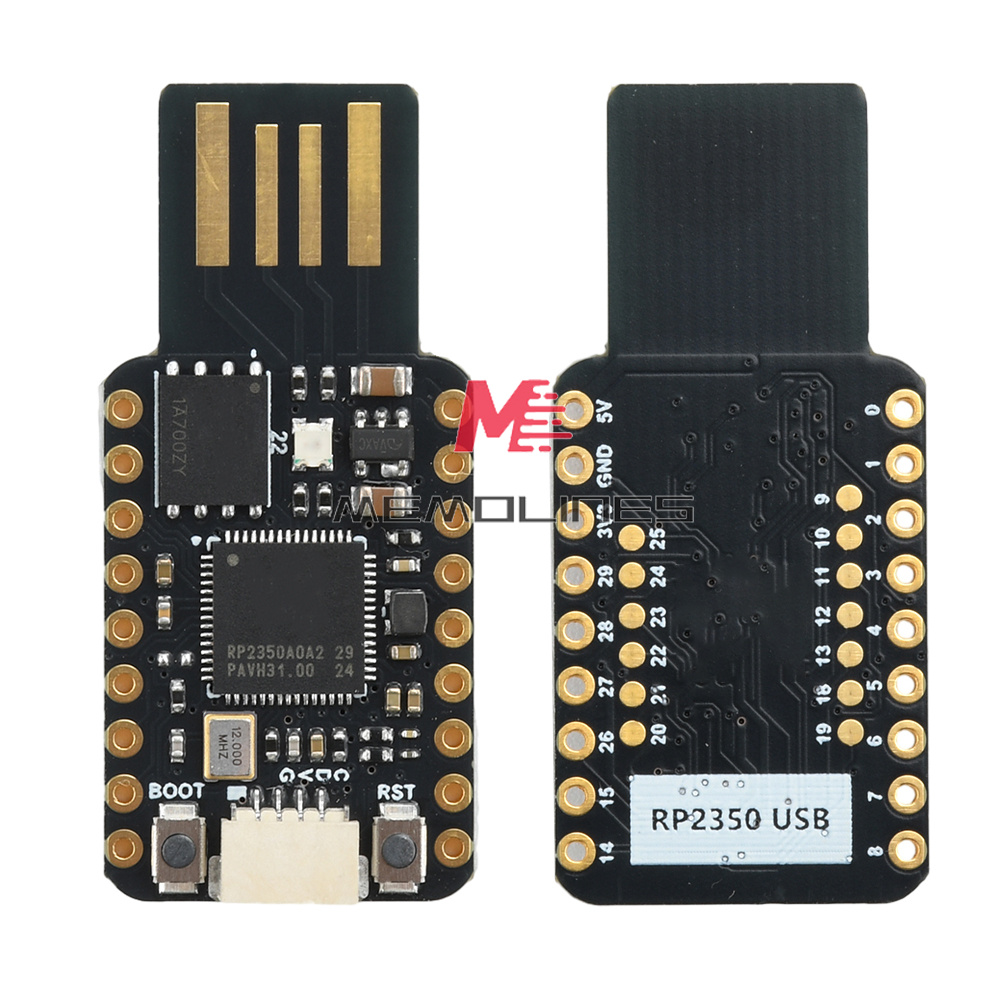

29 GPIO pins of RP2350A (20 pins can be pinned out, the rest can be pinned out by soldering only)
Multiple hardware peripherals 2 SPI 2 I2C 2 UART 4 12-bit ADCs 16 controllable PWM channels
Precision on-chip clocks and timers
Temperature sensors
On-chip accelerated floating-point library
12 programmable I/O (PIO) state machines for custom peripheral support

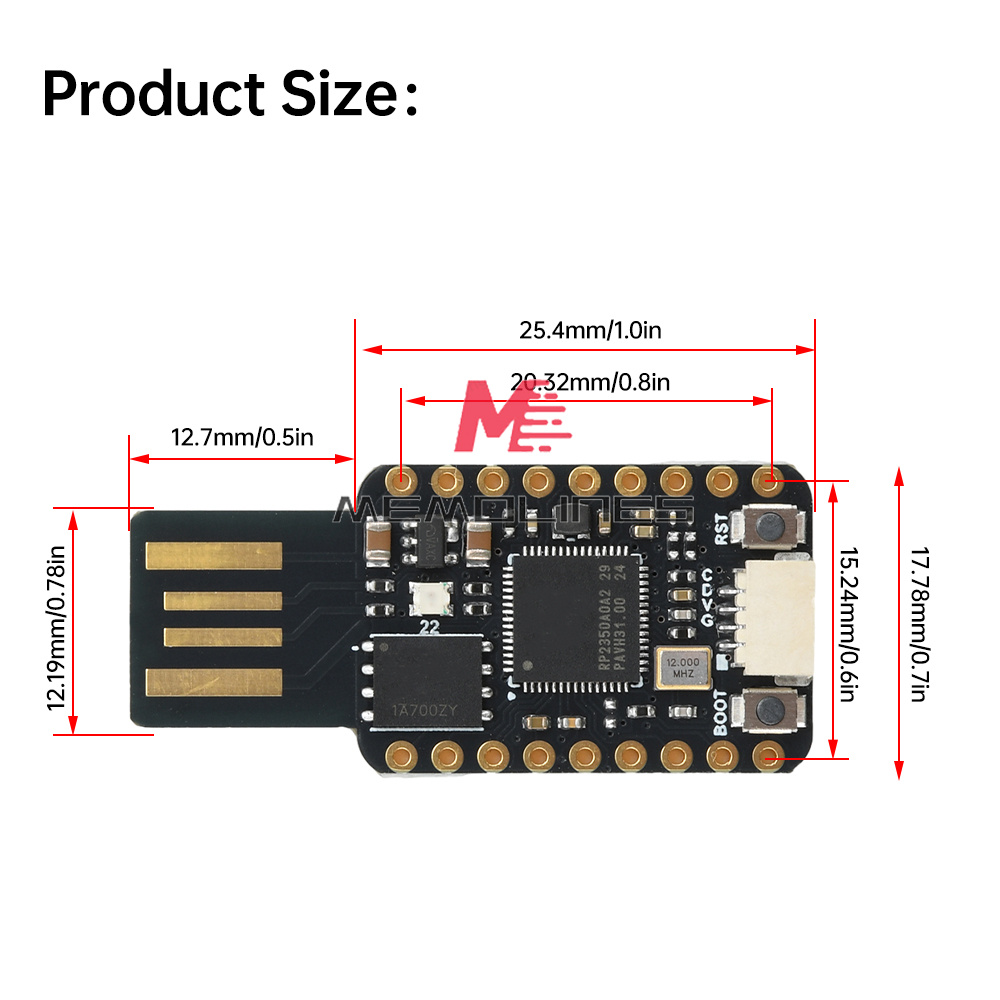

Size 38mm*17.8mm
1 x Development Board
2 x Pin
Overview

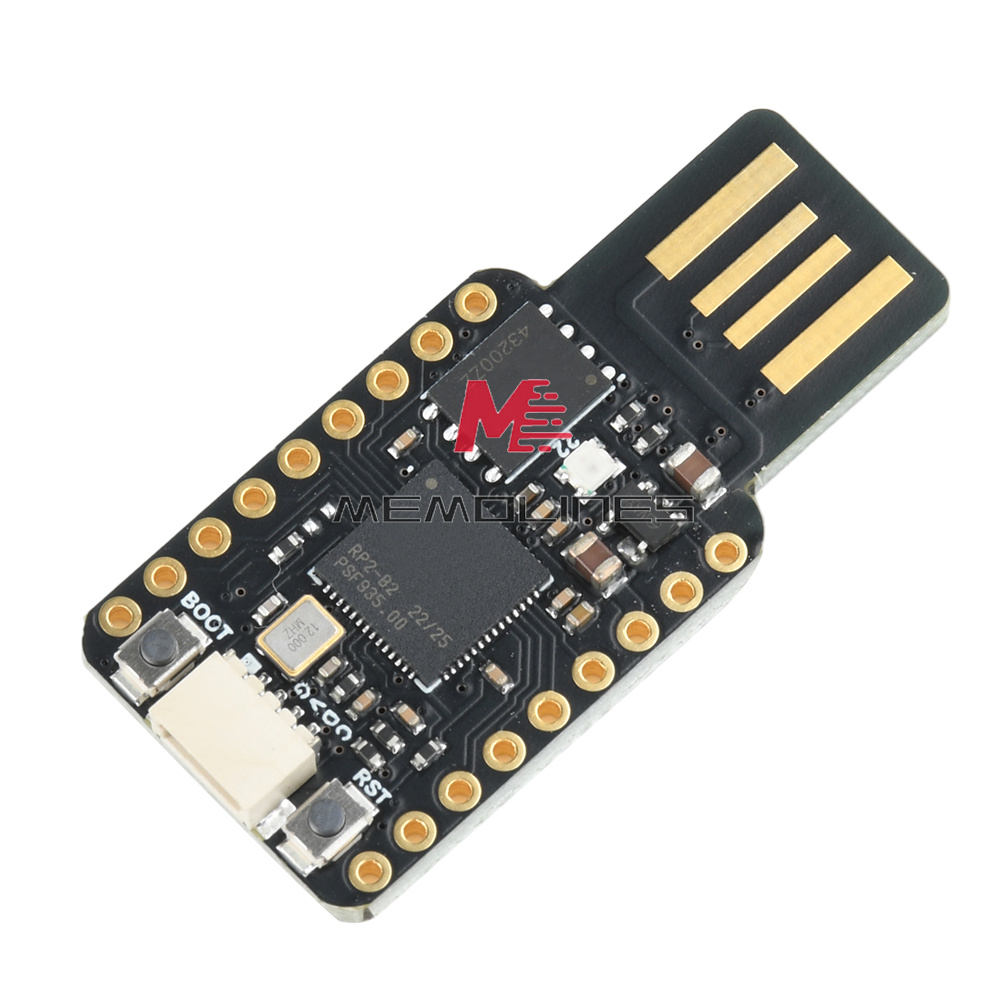

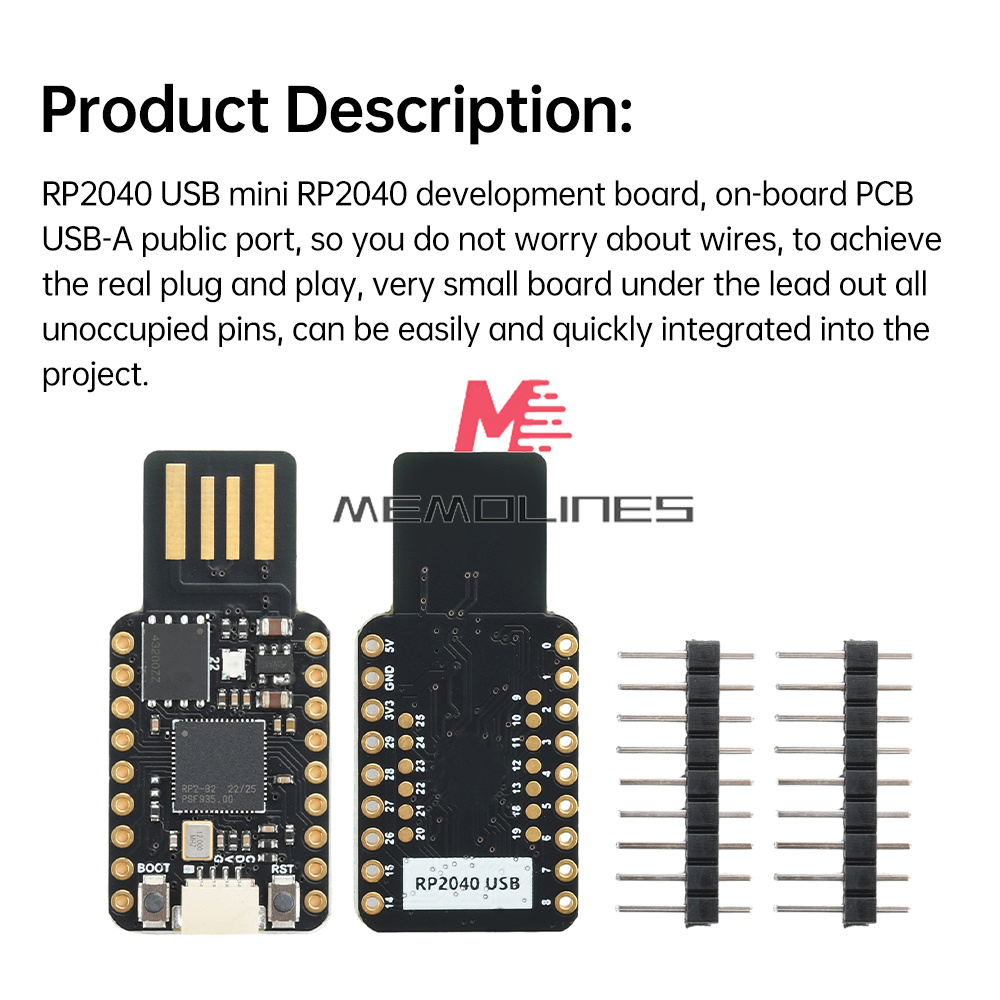

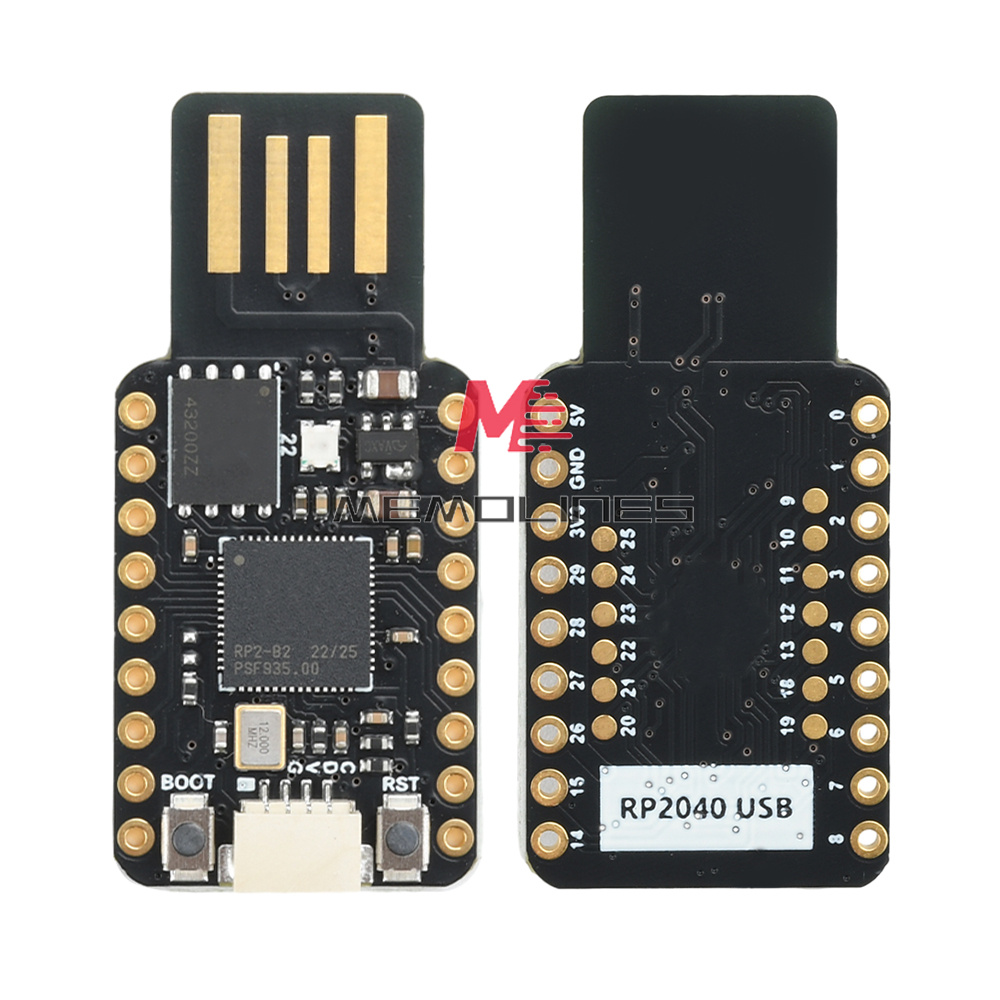

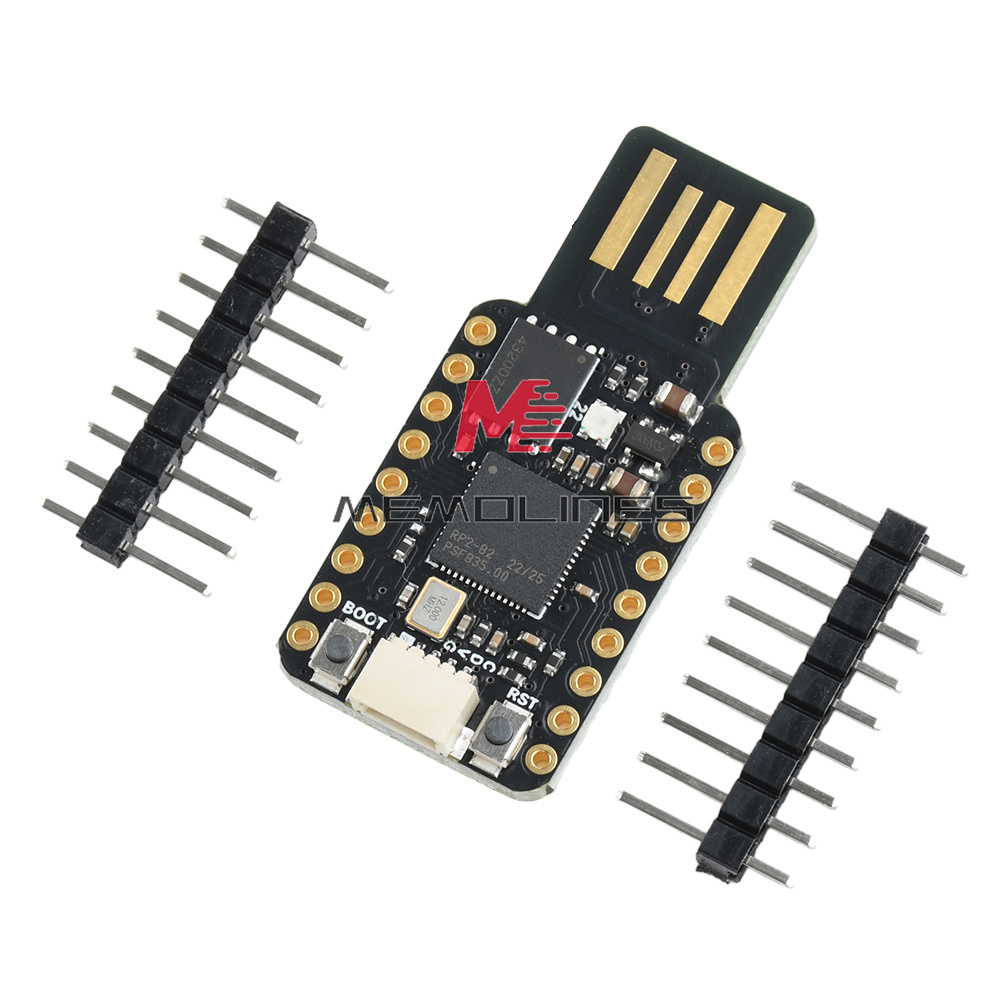

RP2040 USB mini RP2040 development board, on-board PCB USB-A public port, so you do not worry about wires, to achieve the real plug-and-play, very small board under the lead out of all unoccupied pins, you can easily and quickly integrated into the project.
1. High-performance microcontroller: RP2040 chip, dual-core processor, operating frequency up to 133MHz. 2.
2. large capacity storage: built-in 264KB SRAM, to meet the needs of a variety of projects, support drag-and-drop download program. 3. plug-and-play design: plug-and-play design.
3. Plug-and-play design: On-board PCB USB-A male port, no need to worry about wires, truly plug-and-play, convenient and fast.
4. Flexible Integration Options: stamp hole design, can be directly soldered and integrated into the backplane, suitable for compact projects and customized designs.
5. Rich peripheral interfaces: 29 GPIO pins are provided, supporting SPI, I2C, UART, ADC and PWM functions.
Utilizes the RP2040 microcontroller chip
Equipped with a dual-core ARM Cortex M0+ processor running at up to 133MHz flexible clock.
Built-in 264KB of SRAM and 2MB of on-board Flash
On-board PCB USB-A male port, so you don't have to worry about wires, so you can really plug and play.
Stamp hole design, can be directly soldered to the user's own design of the base plate integrated
USB1.1 host and device support
Supports low-power sleep and hibernation modes
Drag-and-drop program download via USB recognized as mass memory

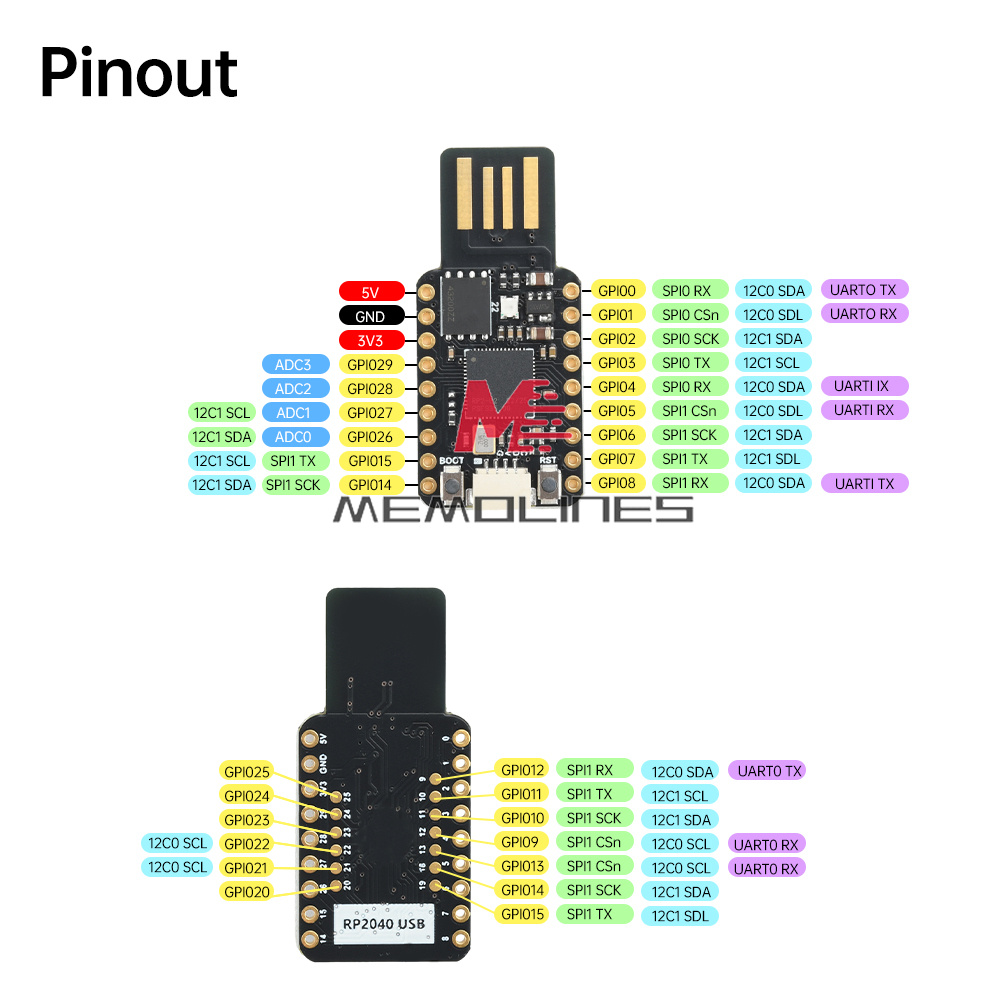

29 GPIO pin-outs on the RP2040 (20 pin-outs via row of pins, the rest are solderable only)
Multiple hardware peripherals 2 SPI 2 I2C 2 UART 4 12-bit ADCs 16 controllable PWM channels
Precision on-chip clocks and timers
Temperature sensors
On-chip accelerated floating-point library
8 programmable I/O (PIO) state machines for custom peripheral support

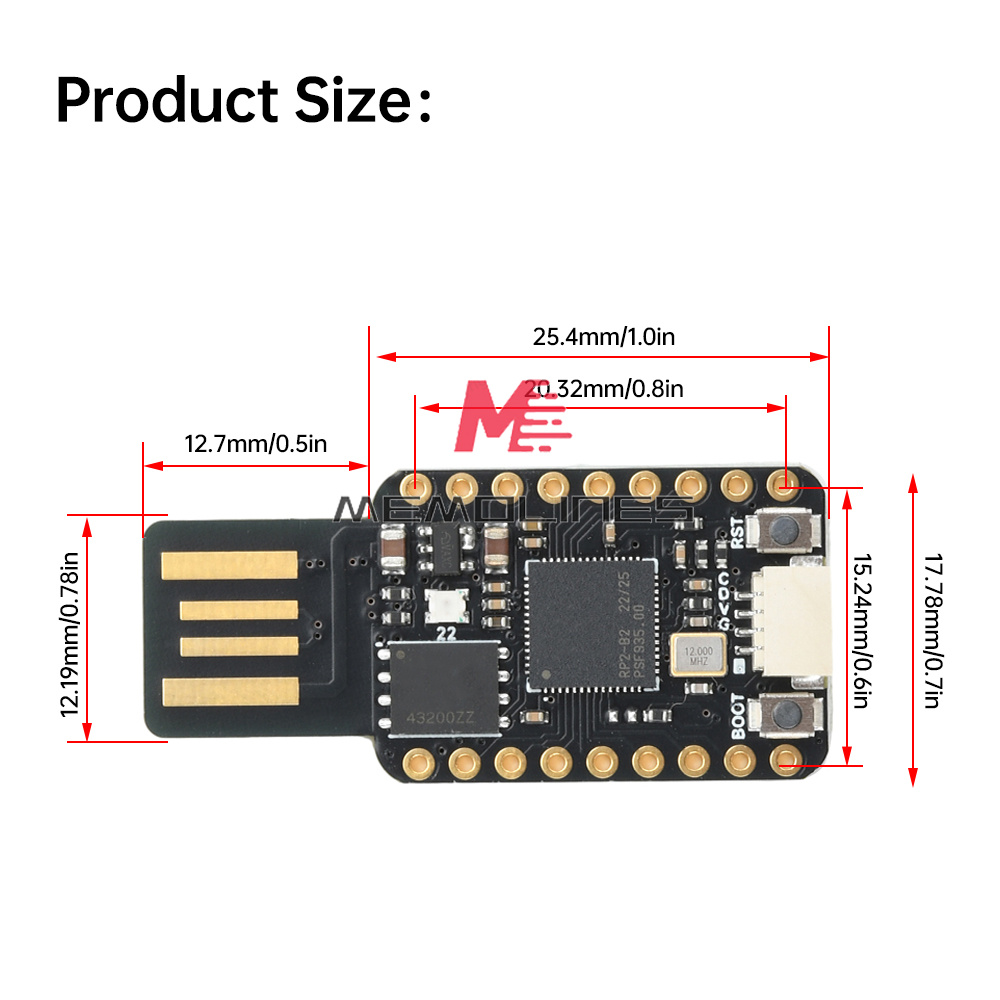

Size 38mm*17.8mm
1 x Development Board
2 x Pin
