Product Description


Description：

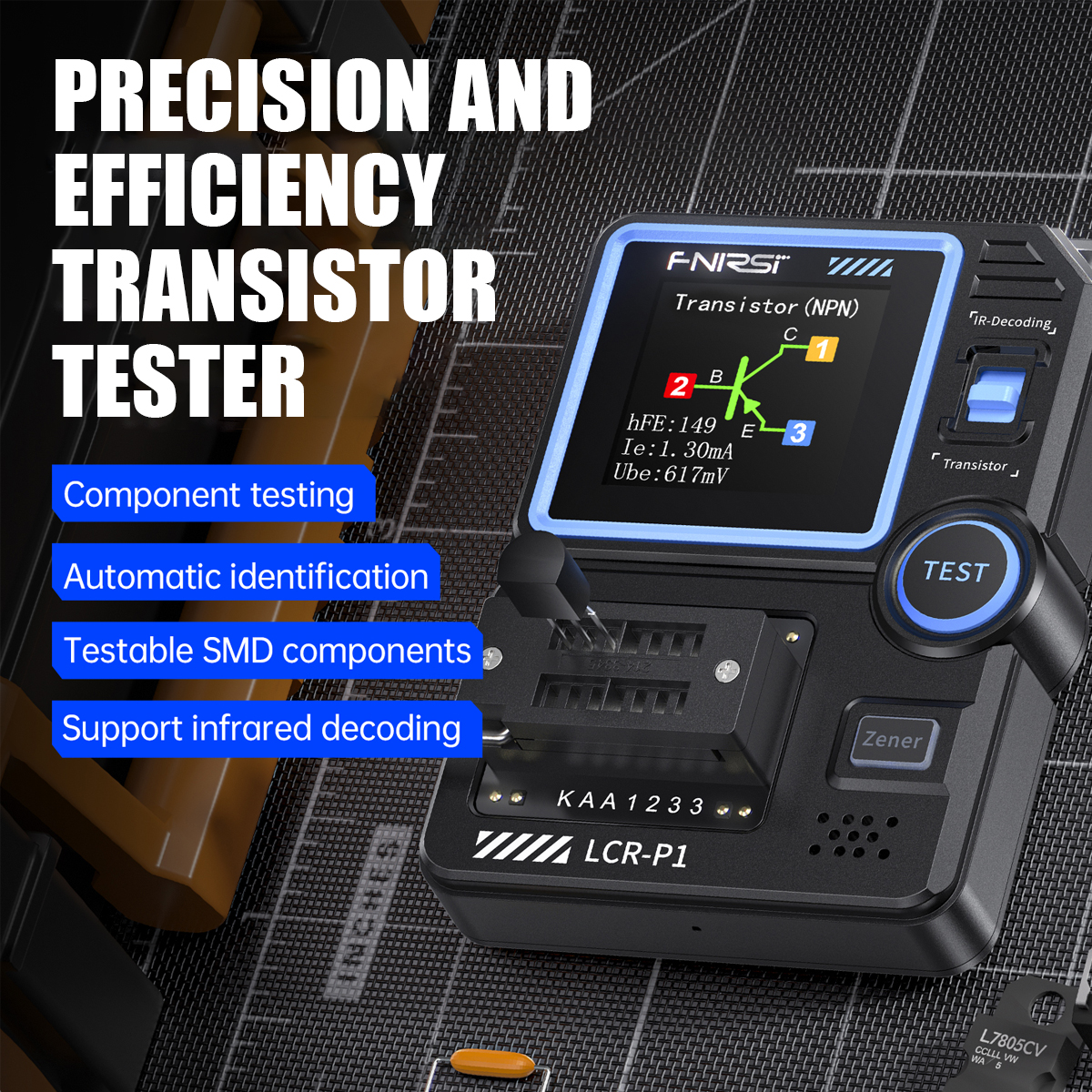

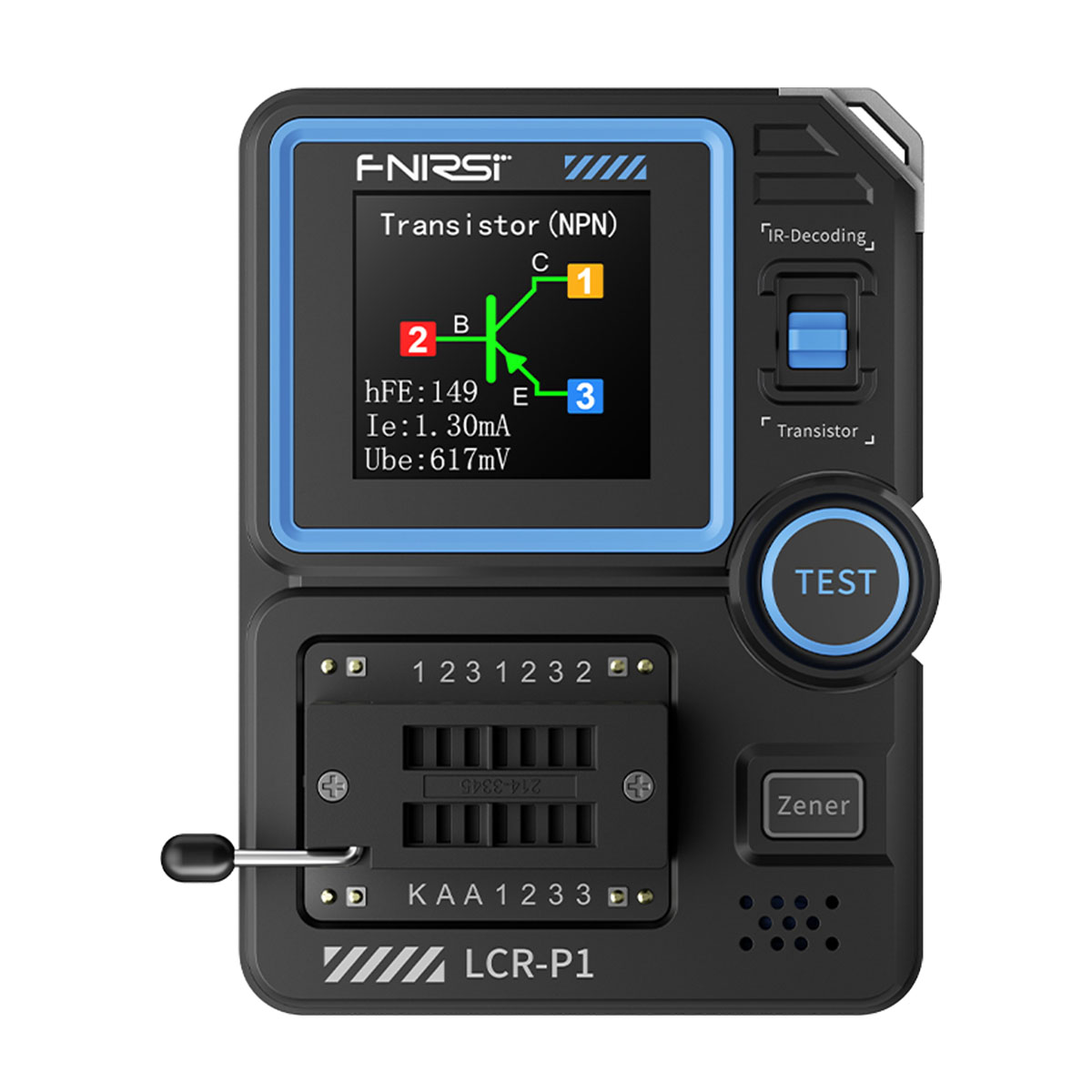

The LCR-P1 Transistor Tester is a high-precision, multifunctional electronic testing device designed specifically for electronic engineers, technicians, and enthusiasts.This device is intended for detecting and analyzing the performance and characteristics of semiconductor components such as transistors, diodes, triodes, and field-effect transistors (FETs).Equipped with a color screen, it allows for multi-parameter measurement of various components, automatically identifies the type and pin arrangement of the tested component, simplifying the operation process and enhancing testing efficiency.


Features：

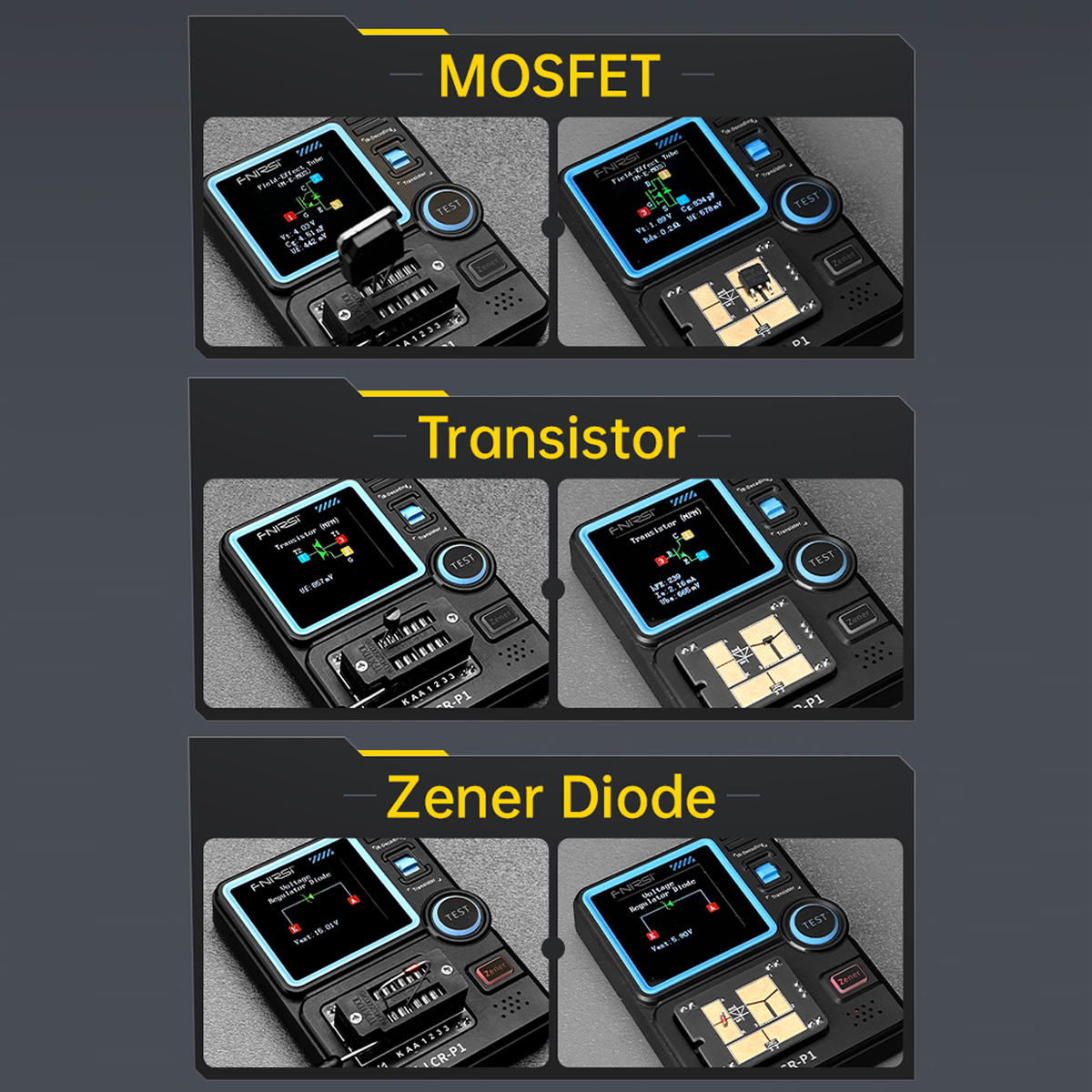

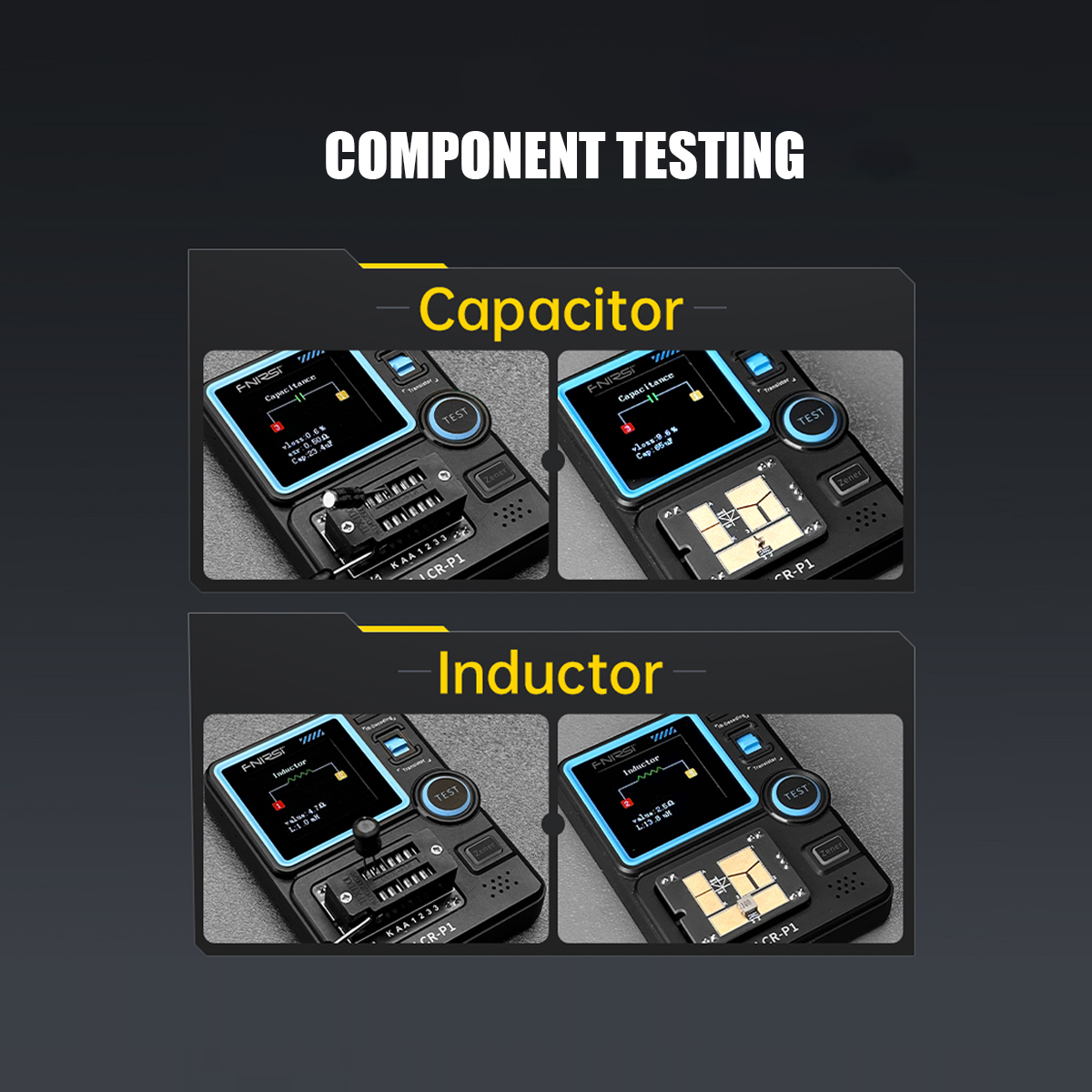

--Transistor Capacitor Tester: FNIRSI LCR-P1 transistor tester can be used for the measurement and analysis of patch component, NPN, PNP, triode, MOS, field effect transistor (FET), diode, Zener diode, capacitor, resistor, inductor, battery, etc.

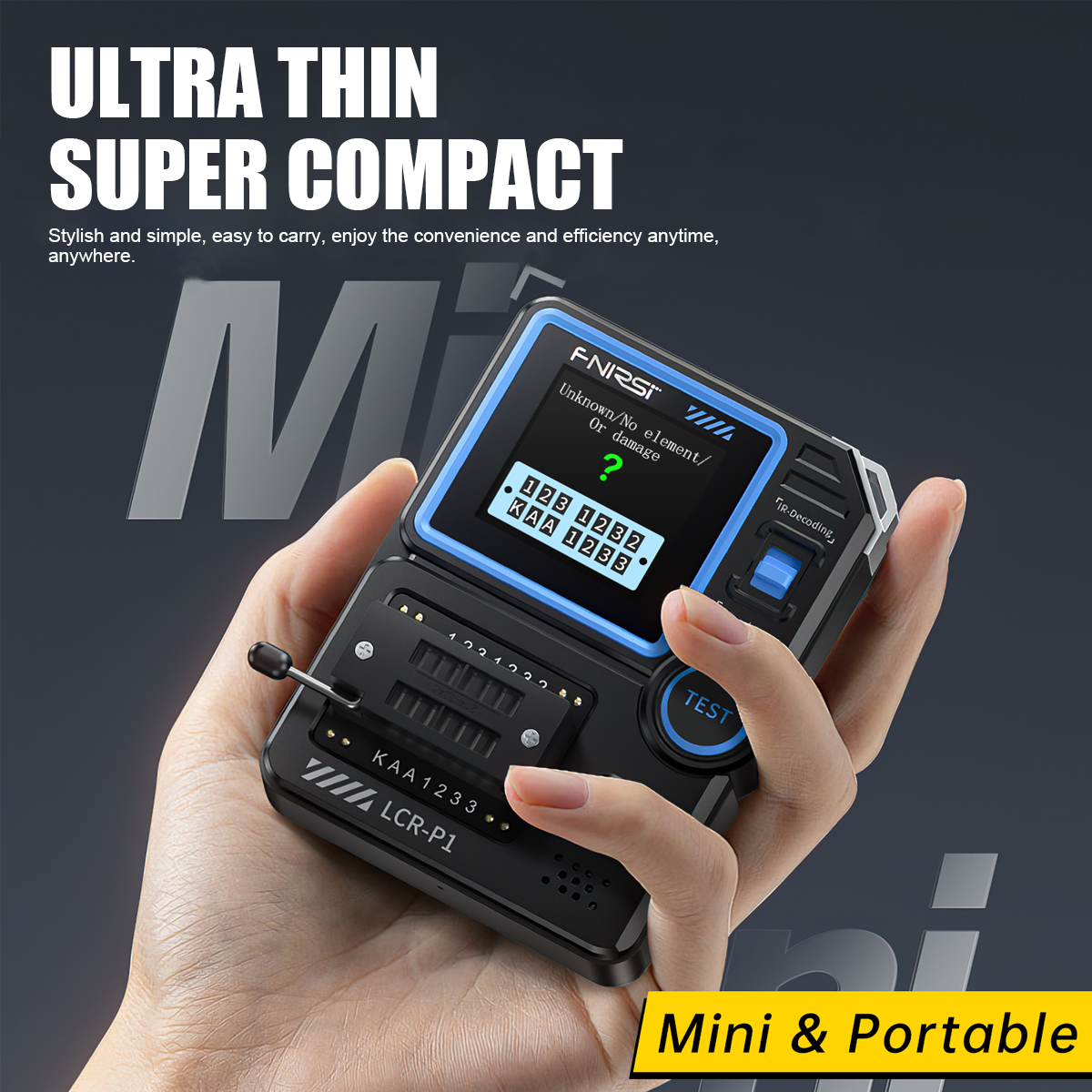

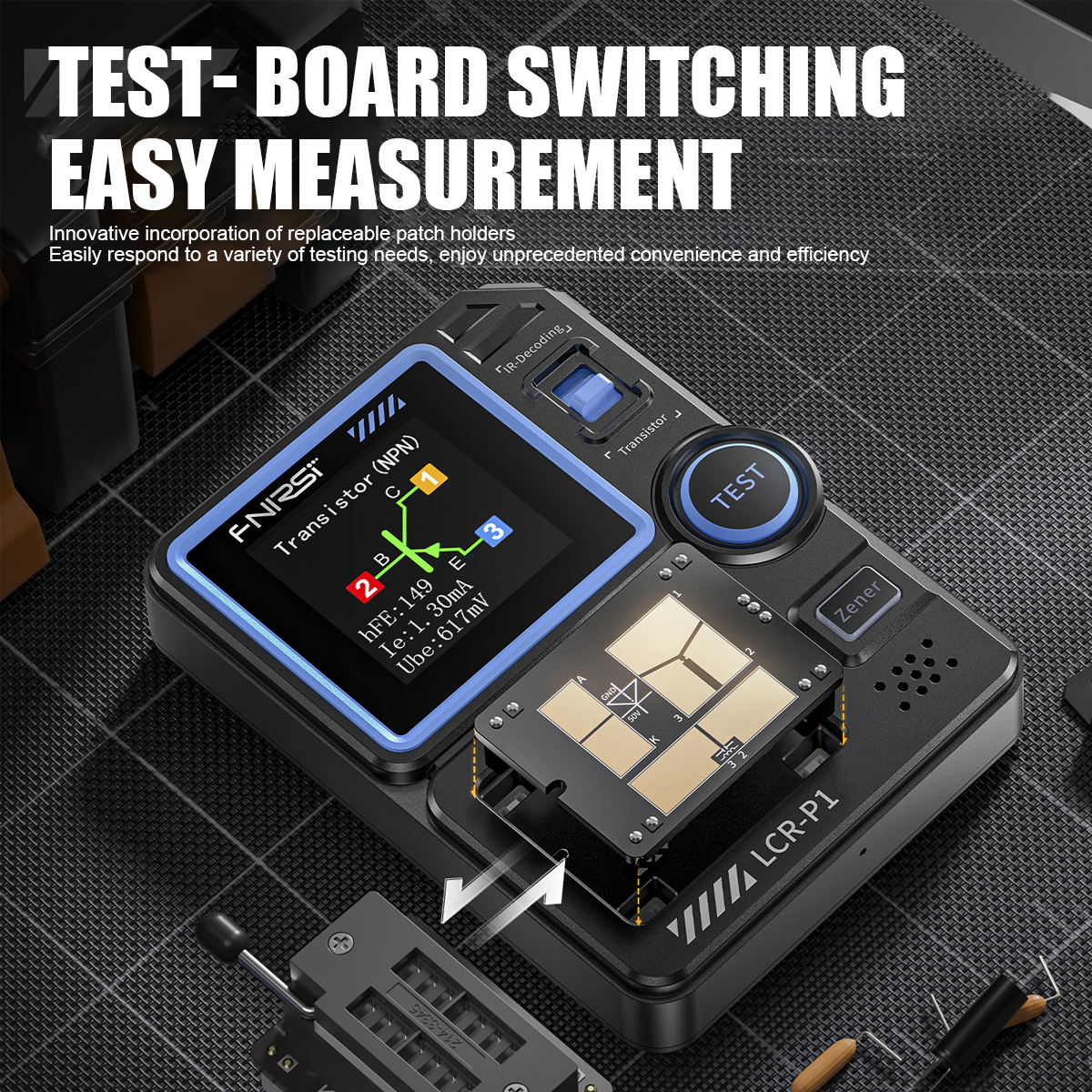

--Friendly Design: The design of the replaceable patch seat enables measurement of both tiny precision components and high-power devices. 1.44 inch full-color screen, 300 mah battery, Type-c interface for charging and data transmission, firmware upgrade.

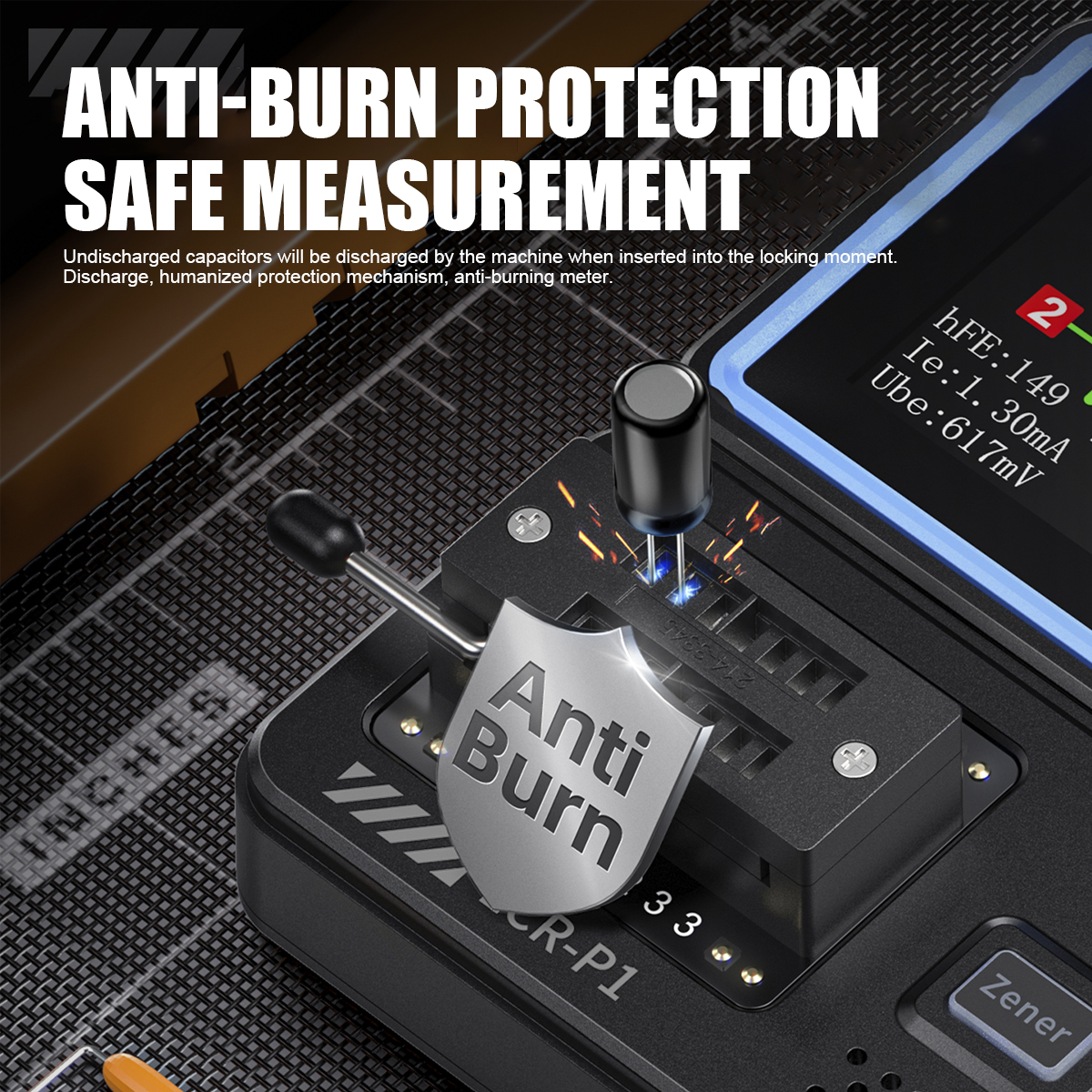

--Anti-burn protection mechanism: The capacitance resistance esr tester automatically identifies undischarged capacitors and automatically discharges them at the moment of insertion and locking, effectively avoiding accidental burning.

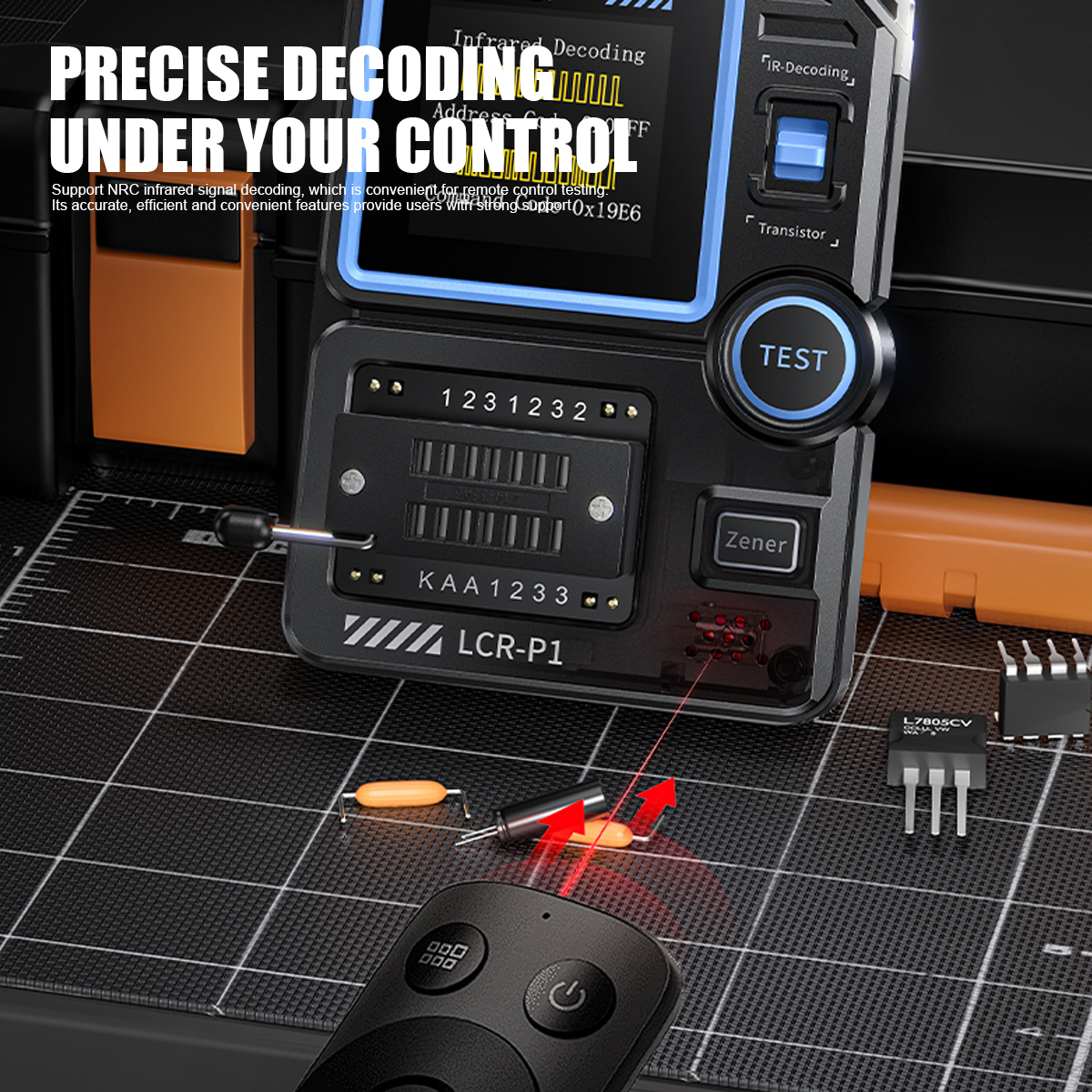

--NEC Infrared Waveform: FNIRSI LCR-P1 transistor detector supports the analysis of NEC infrared protocol code, so it can be used for the debugging and maintenance of remote control equipment, and provides users with comprehensive detection and analysis.

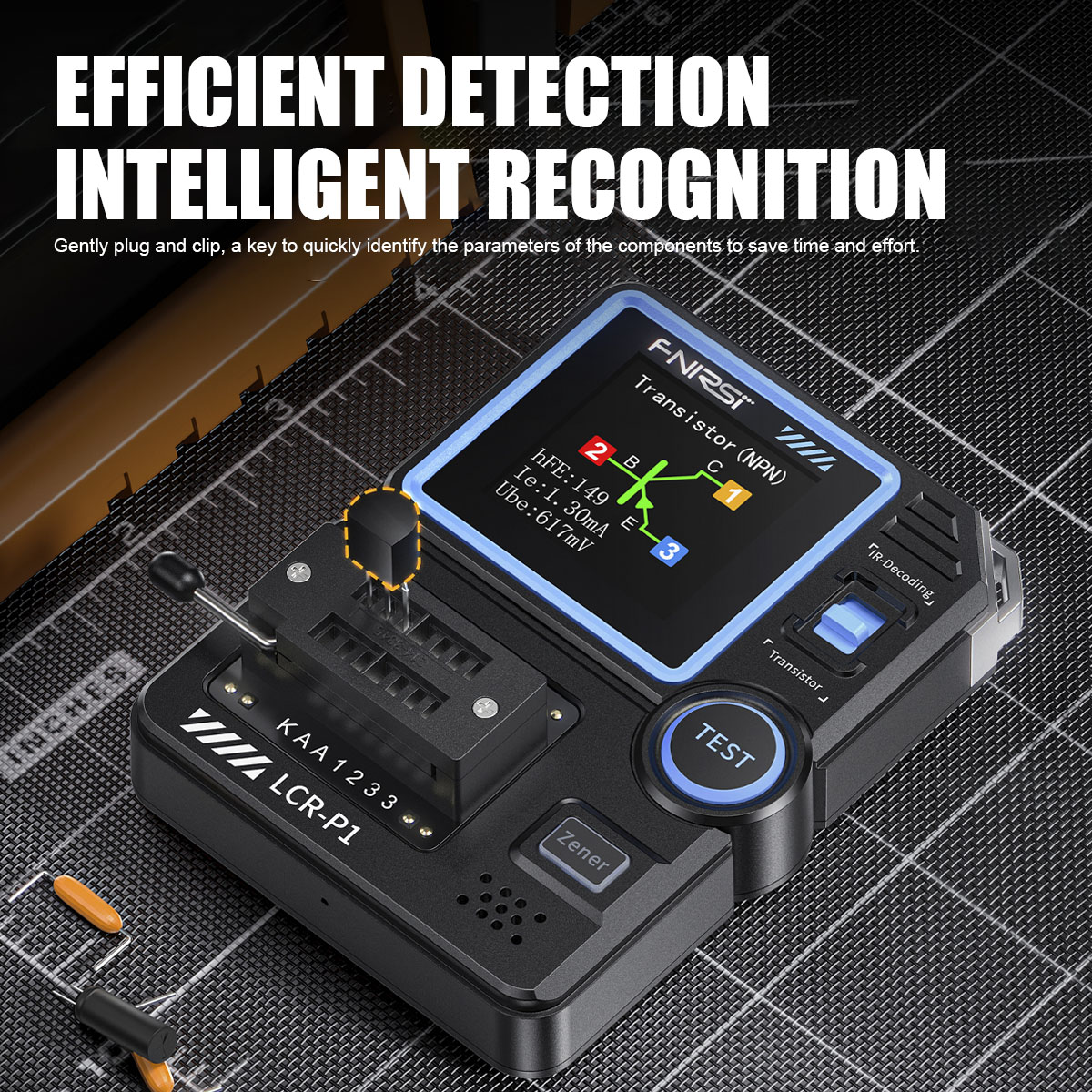

--Intelligent automatic identification: Capacer tester intelligent automatic detection of component pins definition and parameters, and can quickly identify its models and specifications, thereby greatly improving the efficiency of work.


Specification：

Product Model：LCR-P1
Screen Display：1.44 Inch Color Screen
Charging Specification: USB Type-C, 5V/1A
Power supply: 300mAh lithium battery
Operating Temperature：0~40℃
Resistance: 0.01Ω-50MΩ
Capacitance: 25pF~100mF
Inductance: 10uH-1000uH
Transistor: 10＜β＜600
Diode: Forward voltage drop＜4.5V

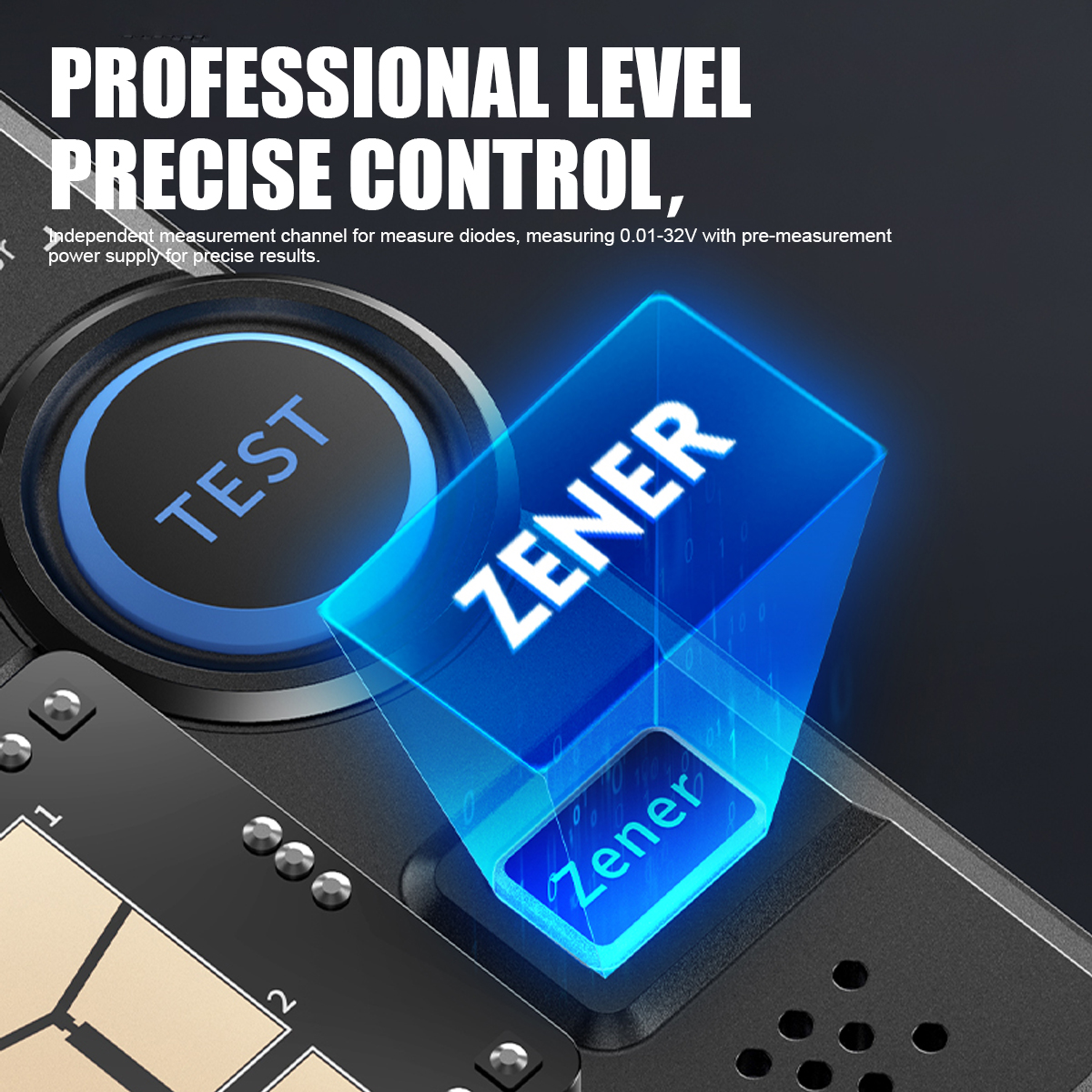

Voltage Regulator Diode: 0.01-4.5V, 0.01-32V
Field-Effect Transistor: JFET, IGBT, MOSFET
One-way/Bidirectional thyristor: Turn-on voltage < 5V, gate trigger current < 6mA
Battery: 0.1-4.5V
IR remote decoding: NEC protocol infrared code
Battery Capacity: 300mAh lithium battery
Anti-burn protection: yes
Data Export: supported
Firmware upgrade: supported

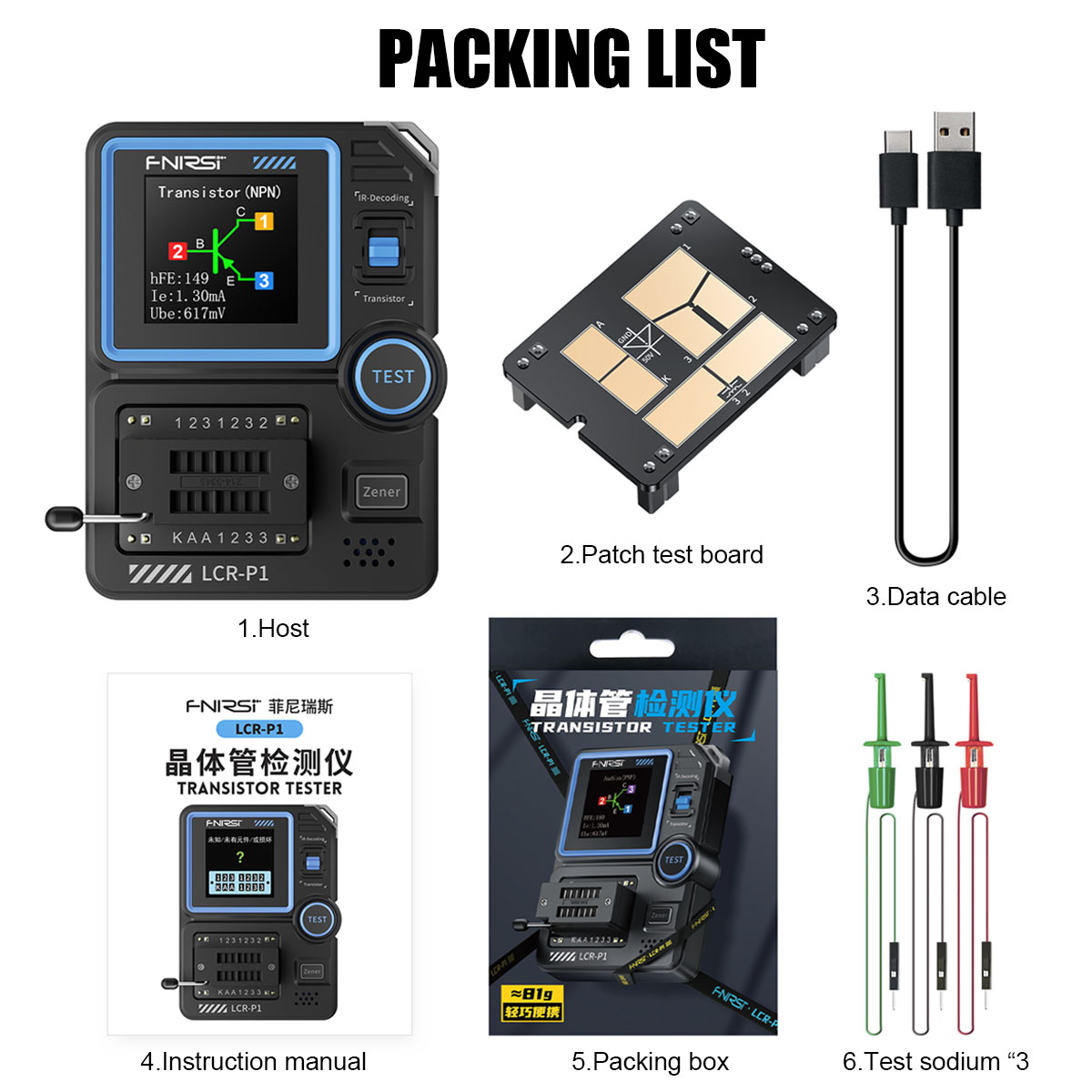

Package List：

1x Tester

1x Test board

1x USB cable

1x User manual

3x Test hook
