Note: the color of the laser shell will be shipped randomly.

Product structure design features:

1. The outer shell adopts 6061 aviation aluminum, NC turn-milling process, and adopts three-stage hard oxygen treatment.

2. Built-in rechargeable polymer lithium battery, TYPE-C direct charge, convenient and practical.

3. Touch the button to start, press for a long time to adjust the power.

4. The original design is mini and portable, smaller than a cigarette case.

Specification parameters:
Form factor: 85**37*15.5mm.
Shell material: 6061 aviation aluminum.
Surface treatment: surface oxidation black / army green two colors.
Output wavelength: 638nm
Gear setting: light up with a light touch and dimming with a long press of the infinite.
Switch mode: touch self-lock.
Center wavelength: selected.
Output power: ＜5mW
Average power: optional.

Circuit control: 5V boost or 5V buck, which should be driven according to the laser diode.
Circuit efficiency: boost and buck conversion efficiency more than 93%.
Flare form: dotted.
Beam pattern: continuous linear.
Spot size: about 5m < Zhong 8-12mm.
Focus mode: fixed focus.
Focusing method: non-focusing.
Waterproof level: not waterproof.
Operating current: 3. 7V @ 100-380mA.
Battery type: built-in polymer rechargeable cell.
Battery direction: built-in battery, anti-reverse port.
Battery capacity: 1000mAh.
Operating voltage: DC=3. 7V.
Starting voltage: DC=2. 5V.
Preheating time: 593nm yellow light needs to be preheated when it is below 25 degrees, but not for other wavelengths.
Operating temperature:-10 °C ~ + 60 °C.
Storage temperature:-10 "carbon dioxide 40C"

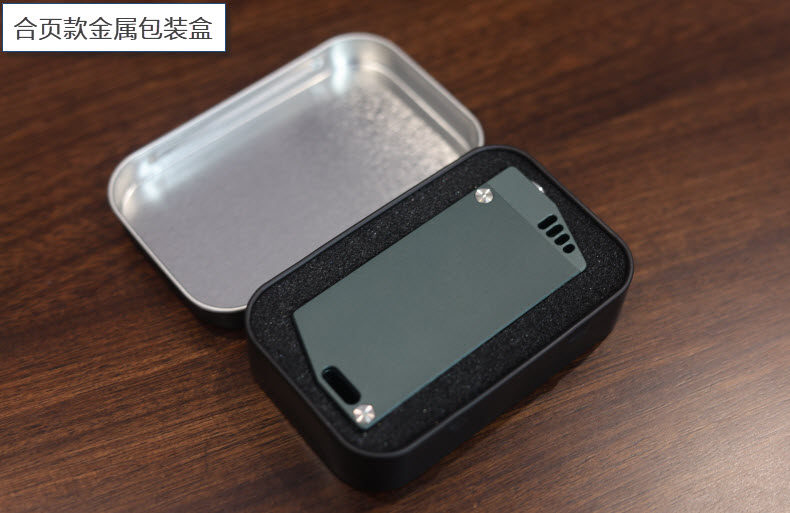

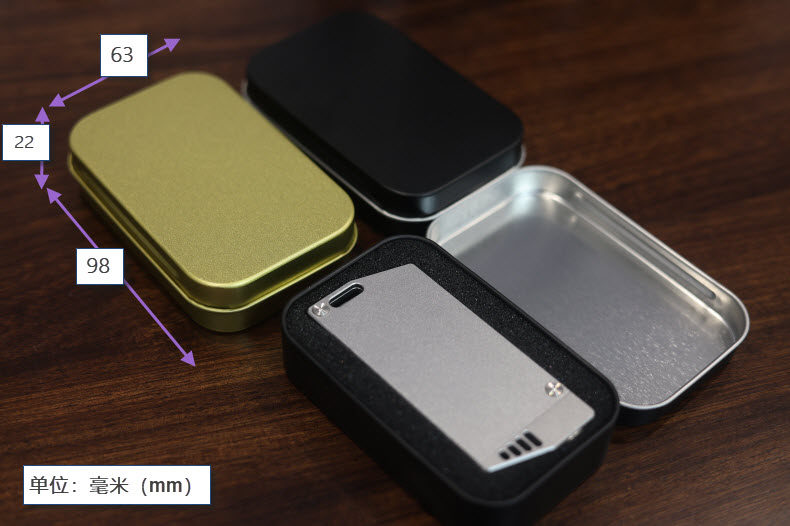

Packing: black or gold metal box.
Product net weight: 85-90g (this weight single laser).
Product gross weight: 120-125g (this weight includes packing metal box).
Charging method: TYPE-C direct charge.

Note: this price includes one laser and one packing box.

PACKAGE:

1*638nm Orange Red Light Fixed Focus Mini Laser Module 638T-100
