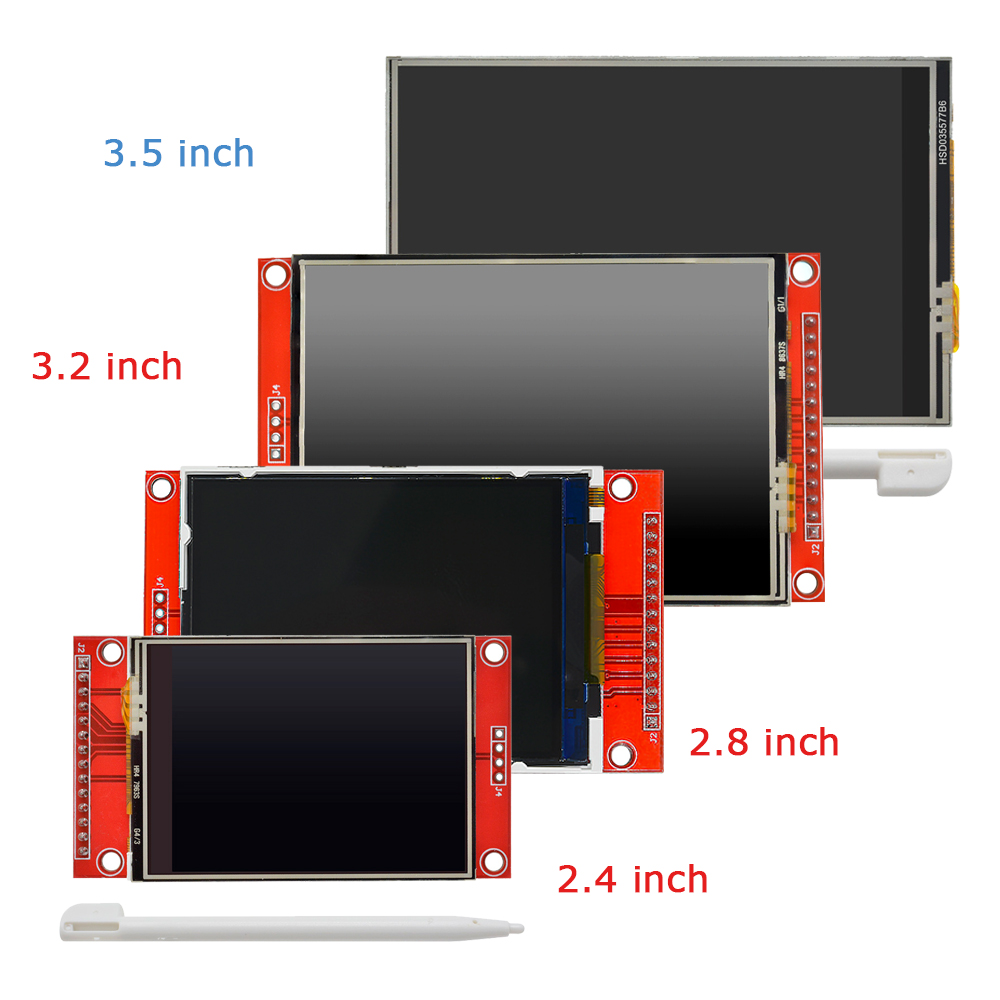

2.4 inch LCD
Features:
Type: without touch panel / with touch panel
Size:2.4" SPI Serial
Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o’clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC, SD), compatible with 5110 interface
Type: without touch panel / with touch panel
Size:2.4" SPI Serial
Display area:36.72(W)X48.96(H)mm
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o’clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC, SD), compatible with 5110 interface
Package Included:
1PCS * 2.4" SPI 240x320 TFT LCD Serial Port Module with 3.3V PBC Adapter SD ILI9341
1PCS * 2.4" SPI 240x320 TFT LCD Serial Port Module with 3.3V PBC Adapter SD ILI9341
2.8 inch LCD
Description:
100% brand new and high quality
Type: with / without touch panel
Size:2.8" SPI Serial
Display area:6.5(W) X 4.5(H)cm/2.55 x 1.77''
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o’clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC, SD), compatible with 5110 interface
Quantity:1pc
100% brand new and high quality
Type: with / without touch panel
Size:2.8" SPI Serial
Display area:6.5(W) X 4.5(H)cm/2.55 x 1.77''
Driver element: a-Si TFT active matrix
Pixel arrangement: RGB vertical stripe
Driver IC: ILI9341
Backlight: White LED
Viewing Direction: 6 o’clock
Color Depth: 262K/65K
Resolution (dots): 240RGB*320Dots
5V compatible, use with 3.3V or 5V logic
Need at least 4 IOs from your MCU
With PCB plate (including power supply IC, SD), compatible with 5110 interface
Quantity:1pc
Package Included:
1PC*SPI TFT LCD Serial Port Module
1PC*SPI TFT LCD Serial Port Module
3.2 inch LCD
Product Description:
3.2-inch color screen,support 65K color display,display rich colors
320X240 resolution, Press function
color: red
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program
process standards, long-term stable work
Provide underlying driver technical support
Product Parameters:
Screen Size : 3.2(inch)
Driver IC : ILI9341
Resolution: 320*240 (Pixel)
3.2-inch color screen,support 65K color display,display rich colors
320X240 resolution, Press function
color: red
Using the SPI serial bus, it only takes a few IOs to illuminate the display
Easy to expand the experiment with SD card slot
Provide a rich sample program
process standards, long-term stable work
Provide underlying driver technical support
Product Parameters:
Screen Size : 3.2(inch)
Driver IC : ILI9341
Resolution: 320*240 (Pixel)
Package Contents:
1* 3.2 inch 320*240 MCU SPI Serial TFT LCD Module
1* 3.2 inch 320*240 MCU SPI Serial TFT LCD Module
3.5 inch LCD
With Touch Panel
Product：
Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Supports development boards such as Arduino UNO and Mega2560 for plug-in use without wiring
480X320 resolution, clear display, support for touch function
Support 16-bit RGB 65K color display, display rich colors
8-bit parallel bus, faster than serial SPI refresh
On-board 5V/3.3V level shifting IC, compatible with 5V/3.3V operating voltage
Easy to expand the experiment with SD card slot
Provides an Arduino library with a rich sample program
Military-grade process standards, long-term stable work
Provide underlying driver technical support
Product Parameters
| Name | Parameter |
| Display Color | RGB 65K color |
| SKU | MAR3501（have touch screen）/MAR3502(have no touch screen) |
| Screen Size | 3.5(inch) |
| Type | TFT |
| Driver IC | ILI9486 |
| Resolution | 480*320 (Pixel) |
| Module Interface | 8-bit parallel interface |
| Active Area | 73.44*48.96(mm) |
| Module PCB Size | 85.49*55.63(mm) |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -40℃~70℃ |
| Operating Voltage | 5V/3.3V |
| Power Consumption | TBD |
| Product Weight(Package containing) | 44g(have touch screen)，55g(have no touch screen) |
Interface Definition
| Number | Pin Label | Pin Description |
| 1 | LCD_RST | LCD bus reset signal, low level reset |
| 2 | LCD_CS | LCD bus chip select signal, low level enable |
| 3 | LCD_RS | LCD bus command / data selection signal, low level: command, high level: data |
| 4 | LCD_WR | LCD bus write signal |
| 5 | LCD_RD | LCD bus read signal |
| 6 | GND | Power ground |
| 7 | 5V | 5V power input |
| 8 | 3V3 | 3.3V power input, this pin can be disconnected |
| 9 | LCD_D0 | LCD 8-bit data Bit0 |
| 10 | LCD_D1 | LCD 8-bit data Bit1 |
| 11 | LCD_D2 | LCD 8-bit data Bit2 |
| 12 | LCD_D3 | LCD 8-bit data Bit3 |
| 13 | LCD_D4 | LCD 8-bit data Bit4 |
| 14 | LCD_D5 | LCD 8-bit data Bit5 |
| 15 | LCD_D6 | LCD 8-bit data Bit6 |
| 16 | LCD_D7 | LCD 8-bit data Bit7 |
| 17 | SD_SS | SD card SPI bus chip select signal, low level enable |
| 18 | SD_DI | SD card SPI bus MOSI signal |
| 19 | SD_DO | SD card SPI bus MISO signal |
| 20 | SD_SCK | SD card SPI bus clock signal |
Connect to Arduino
Package included
1*Full Color Touch Screen Module
Without Touch Panel
Features:
100% brand new and high quality.
High quality LCD screen replacement part.
Highly recommend professional installation.
Each item has been tested before shipment and are 100% working.
Specifications:
Size: 3.5" Screen
Screen Material: TFT
Resolution: 480x320
Module pin: 28 Pin ( 8+8+6+6)
100% brand new and high quality.
High quality LCD screen replacement part.
Highly recommend professional installation.
Each item has been tested before shipment and are 100% working.
Specifications:
Size: 3.5" Screen
Screen Material: TFT
Resolution: 480x320
Module pin: 28 Pin ( 8+8+6+6)
Package include:
1 x 3.5 Inch for Arduino LCD Screen Module
1 x 3.5 Inch for Arduino LCD Screen Module
