Send from USA,2-8 days delivery with tracking.

Only can be use for solar panel directly,can't be use for wind power or battery.

Panel voc voltage need to be more than 31v.

Creative MPPT technology, efficiency more than 99%,Parallel type design for DC input and modularization design,Small volume, distributed installation, easy for system configuration

Adopting high-frequency isolation transformer type, high efficiency,Perfect electrical protection function,Stackable and Easy to install

Please be noted, This grid tie inverter cannot be used as off grid/stand alone solar system.

The output need to be connected to the grid power. Can not supply power directly to the AC loads.

1. The inverter is designed to handle PV panels as input source only and will not work with batteries/wind turbines as input source.

2. The 18V inverter panel Voc voltage needs to be less than 31V. For 24V/36V inverter panels, the Voc voltage needs to be more than 31V but less than the maximum PV input (as updated by the inverter).

3. The minimum power for solar panels should be half the power of the inverters.

4. If the red LED light on or all LED lights are off, please contact us first. Sometimes replacing some AC or DC side parts can make the item work again.

5. Before using the item, please make sure that all connections are tight. Otherwise, the product may short circuit.

6. The fan will turn on when the temperature inside the item reaches 38 degrees.

7. Please make sure that the item is in a good environment for cooling.

Introduction

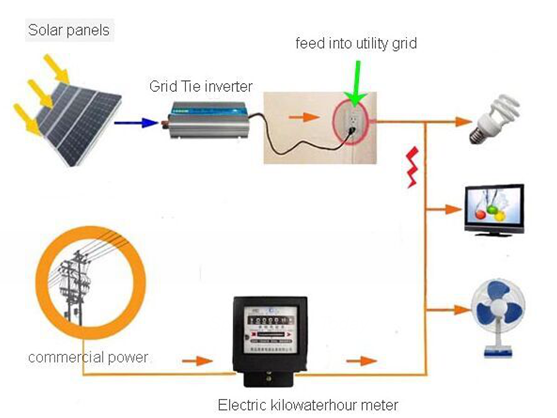

Grid tie inverter is a device which directly converts direct current into alternating current which sine wave, frequency and phase are same as power grid and then feed into utility grid. It is a key

device of power generation systems such as PV power generation system.Smart Microinverter specially optimized design to work with modularization of DC power supplies which includes the mainstream solar modules, 24V (60 cells) and 36V (72 cells) , monocrystal and/or Polycrystalline solar panels.

Smart Microinverters are stabilization, reliable and high conversion efficiency items. It is best choice for PV power generation systems.

Smart Microinverter can be easily placed and attached to the rack underneath of PV module. No need spaces for independent installation and low voltage DC wire connects from the PV module to

Smart Microinverter can eliminate the risk of high DC voltage. Distributed modularization design philosophy for Smart Microinverterl insures the productiveness of the whole system and will not affect by a single point of failure. Each Smart Microinverter is individually connected to one PV module in the array. Each PV module has the individual Maximum Peak Power Point Tracker (MPPT) control and insures the maximum power is exported to the utility grid regardless of the performance of the other PV modules in the array. When PV modules in the array under non-ideal conditions in practical applications such as PV modules are affected by shading, soiling,orientation, or mismatch, Smart Microinverter insures top performance for maximizes energy production from the whole PV system and gets return on investment in less time.

Advantages of Smart Microinverter

1. Unique circuit design, choice of import industrial electronic components, higher efficiency, more stable performance.

2. Creative MPPT technology, efficiency more than 99%, faster and more sensitive reaction, more reliable.

3. Parallel type design for DC input and modularization design for inverter, small volume, distributed installation, easy for system configuration, flexible for combination, strong expansibility of system.

4. Adopting high-frequency isolation transformer type, high efficiency, and high security.

5. Perfect electrical protection function.

6. Aluminum alloy housing, not rust, heat-resisting and cold-resistant as well as anti-corrosion.

7. Getting electronic circuit design, appearance design and other core technology patents.

Package : 1pcs inverter1pcs ac plug cable
