RMStator Stator Kit With Revolt Voltage Regulator For 2014-2017 Can-Am Commander Max 1000 4X4
SPECIFICATIONS
| Product SKU: | RMS020-108034 M-003 |
|---|---|
| Brand: | RMStator |
| Condition: | New |
Stock image. Actual product may vary.
For additional product details or technical questions, please contact us.
Monday-Friday 9AM to 6PM Eastern Time.
Free Ground Shipping
Easy Returns
Secure Payments
Great Customer Service
Product Details
RMStator Stator Kit With Revolt Voltage Regulator For 2014-2017 Can-Am Commander Max 1000 4X4
RMStator Stator Kit With Revolt Voltage Regulator For 2014-2017 Can-Am Commander Max 1000 4X4
Brand new REVOLT Voltage Regulator
Refuse to compromise to current 30-year-old technology. Join the revolt against bland voltage regulator performance. With its redesigned rectifier technology , REVOLT excels where every other fail: Fixing the weak rectifier design that causes 85% of voltage regulator failures in powersports applications. Welcome to a new era!
RUNS 50% COOLER THAN OEM
2 years of R&D and careful choice of top graded performance components has made REVOLT dramatically reduce failure rate by running substantially cooler than the best OEM and competitors' products on the market
SOLVES THE MAJOR CAUSE OF FAILURE
85% of the voltage regulator rectifiers failures comes from the rectifier-side failing. While latest technologies all improved the regulator side, REVOLT is the only voltage regulator rectifier on the market uses Active Rectification to considerably improve the rectifier reliability.
DISSIPATE HEAT 45% FASTER THAN OEM
Our improved proprietary Arctic Frostbite housing has increased and deeper fins and is CNC-machined from a high-quality aluminum billet for optimal heat transfer from internal components to external fresh air.
PROUDLY MADE IN USA
REVOLT is engineered, designed, and manufactured in USA under strict USA-based quality control standards. Say farewell to failures due to uneven quality control processes.
LIFETIME WARRANTY
REVOLT is so durable we are backing it with a limited lifetime warranty. Never ever will you need to change a voltage regulator.
Join REVOLT, the new era of voltage regulation!

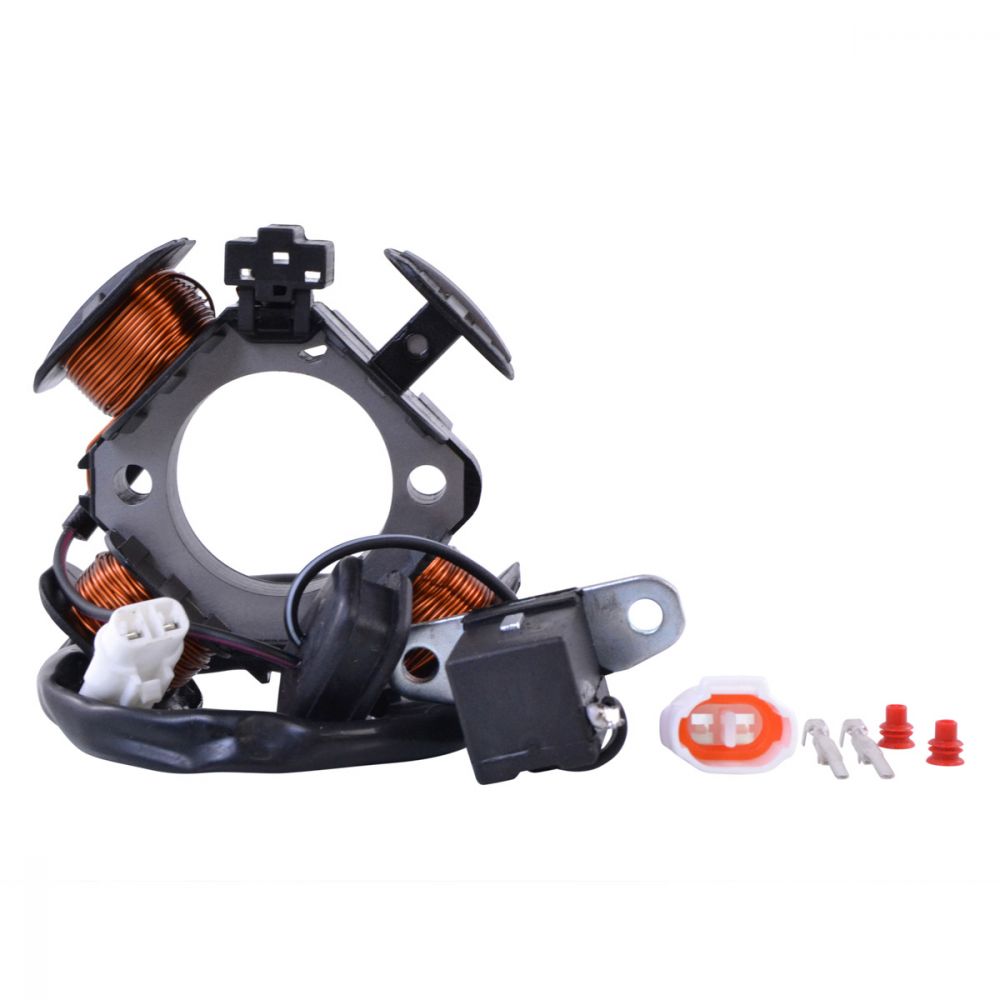

Stator
- Highest grade of lamination materials
- Highest grade of copper winding, resistant to 200 degrees Celsius
- Connectors included
- Rubber grommet included
Technical Data
REVOLT Voltage Regulator Rectifier :
Width: 103 mm
Length: 102 mm
Height: 26 mm
Fixation holes center to center: 78 mm
Other specifications:
Number of plugs: 2
Number of pins: 5
Number of wires: 0
Minimum Charging Voltage: 14.5 V +/- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20° C to 85°C
Interior diameter : 42 mm
Exterior diameter : 115 mm
Thickness : 24 mm
Length of wires stator to grommet : 150 mm
Length of wires grommet to plug : 1470 mm
Other specifications :
Number of wires : 3
Number of plugs : 1
Number of pins : 3
Number of poles : 18
Wire to wire resistance :
Alternator : Yellow to Yellow = 0.4 ohms +/-20%
RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.
We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.
THE POWER IN POWERSPORTS
Brand: RMStator
Part Number: RMS020-108034
Fitment:
- 2011-2017 Can-Am Commander 1000 4X4
- 2012-2017 Can-Am Commander 800R 4X4
- 2014-2017 Can-Am Commander Max 1000 4X4
- 2017 Can-Am Commander Max 800R 4x4 DPS
- 2016-2017 Can-Am Defender HD10 4X4
- 2016-2017 Can-Am Defender HD8 4X4
- 2017 Can-Am Defender Max HD10 4x4 DPS
- 2013-2017 Can-Am Maverick 1000R 4X4
- 2014-2017 Can-Am Maverick Max 1000R 4X4
- 2015-2017 Can-Am Maverick Max 1000R 4x4 Turbo DPS
- 2016-2018 Can-Am Outlander 1000R 4x4 DPS
- 2010 Can-Am Outlander 500 4x4 XTP HO EFI
- 2013-2018 Can-Am Outlander 650 4x4 DPS
- 2018 Can-Am Outlander 650 4x4 EFI T3 EFI F/C
- 2013-2018 Can-Am Outlander 650 4x4 XMR
- 2010-2011 Can-Am Outlander 650 4x4 XTP EFI
- 2013-2015 Can-Am Outlander 800R 4x4 DPS
- 2011-2012 Can-Am Outlander 800R 4x4 XMR
- 2015 Can-Am Outlander 800R 4x4 XMR
- 2010-2015 Can-Am Outlander 800R 4x4 XT
- 2010-2011 Can-Am Outlander 800R 4x4 XTP
- 2013-2015 Can-Am Outlander 800R 4x4 XTP
- 2011 Can-Am Outlander 800R 4x4 XXC EFI
- 2016-2017 Can-Am Outlander 850 4X4
- 2013-2015 Can-Am Outlander Max 1000 4x4 DPS
- 2016-2017 Can-Am Outlander Max 1000R 4x4 XT DPS
- 2013-2015 Can-Am Outlander Max 500 4x4 DPS
- 2010 Can-Am Outlander Max 500 4x4 LTD HO EFI
- 2010-2015 Can-Am Outlander Max 500 4x4 XT
- 2010 Can-Am Outlander Max 500 4x4 XTP HO EFI
- 2013-2017 Can-Am Outlander Max 650 4x4 DPS
- 2010-2012 Can-Am Outlander Max 650 4x4 XTP EFI
- 2013 Can-Am Outlander Max 800R 4x4 DPS
- 2015 Can-Am Outlander Max 800R 4x4 DPS
- 2014 Can-Am Outlander Max 800R 4x4 EFI
- 2010-2012 Can-Am Outlander Max 800R 4x4 LTD EFI
- 2010-2015 Can-Am Outlander Max 800R 4x4 XT
- 2010-2015 Can-Am Outlander Max 800R 4x4 XTP
- 2016-2017 Can-Am Outlander Max 850 4x4 DPS
- 2012-2016 Can-Am Renegade 1000 4x4 XXC
- 2010-2015 Can-Am Renegade 800R 4x4 XXC
- 2017 Can-am Traxter HD10
- 2016-2017 Can-am Traxter HD8
Note: Image is for reference only, actual product may vary slightly.
OEM Numbers:
107068-R00
