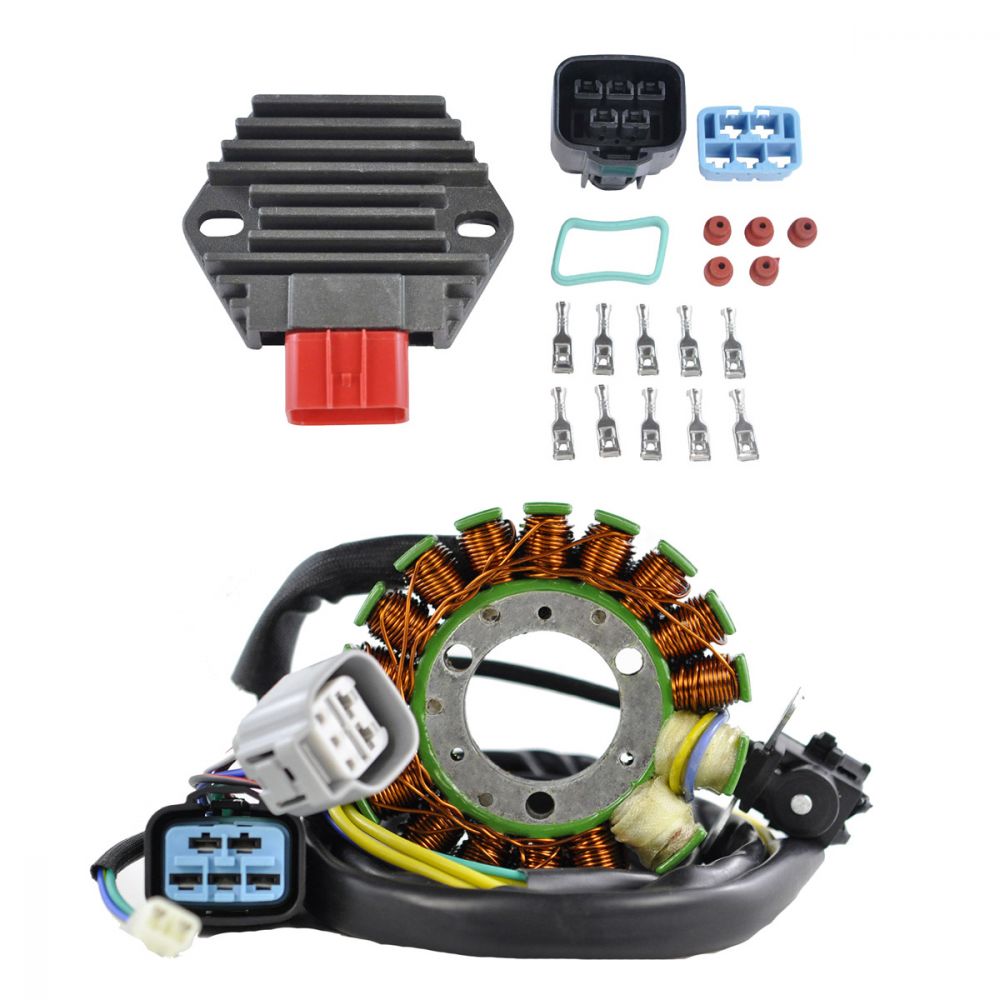

RMStator Stator And Voltage Regulator Rectifier Kit For 2006-2009 Honda TRX450ER Electric Start

SPECIFICATIONS
Product SKU: RMS900-106026 M-001
Brand: RMStator
Condition: New

Stock image. Actual product may vary.

For additional product details or technical questions, please contact us.
Monday-Friday 9AM to 6PM Eastern Time.

Free Ground Shipping

Easy Returns

Secure Payments

Great Customer Service

Product Details

RMStator Stator And Voltage Regulator Rectifier Kit For 2006-2009 Honda TRX450ER Electric Start



RMStator Stator And Voltage Regulator Rectifier Kit For 2006-2009 Honda TRX450ER Electric Start


Brand new aftermarket Stator + Voltage Regulator Rectifier Kit

  • Direct replacement to your original unit
  • Plug-and-play, direct fit, easy installation
  • All shipped products are tested

All item pictures are accurate; if in doubt, do not hesitate to compare our item to your original part.

Stator

  • Highest grade of lamination materials
  • Highest grade of copper winding, resistant to 200 degrees Celsius
  • Pick up pulsar coil included
  • Connectors included
  • Rubber grommet included

Voltage Regulator Rectifier

  • No assembly required
  • Higher grade of electric components
  • Improved heat sink and charging capabilities
  • The quality exceeds the OEM equipment

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and are a major cause of repetitive electrical issues.



Technical Data

Stator

Dimensions :

Interior diameter : 34 mm
Exterior diameter : 95 mm
Thickness : 15 mm
Length of wires stator to grommet : 40 mm
Length of wires grommet to plug : 920 mm
Length of pickup coil's wire to grommet : 75 mm

Other specifications :

Number of wires : 12
Number of plugs : 3
Number of pins : 12
Number of poles : 17

Wire to wire resistance :

Alternator 3p : Yellow between each Yellow = 0.4 ohms +-20%
Pickup : Green to Blue = 250 ohms +-20%
Alternator to ground = O.L
Source #1 : Black/Red to Yellow = 36 ohms +-20%
Source #2 : Blue to White = 7 ohms +-20%

Voltage Regulator

Dimensions:
Width: 63 mm
Length: 80 mm
Height: 22 mm
Fixation holes center to center: 60 mm

Other specifications:
Number of plugs: 1
Number of pins: 5
Minimum Charging Voltage: 14.5 V +- 0.5 V
Maximum Charging Current: 50 A / 500 W
Open Circuit Voltage: < 15 V
Operation Temperature: -20? to 85?

RMSTATOR are committing to innovate in finding clever ways to design more efficient parts that produce better results than any other part on the market.

We do not just sell electrical parts for powersports, we solve problems. RMSTATOR take pride in designing & manufacturing more efficient parts, providing all the information necessary for an easy and reliable installation, and supporting the customer before, during, and after the sale.

THE POWER IN POWERSPORTS

Brand: RMStator
Part Number: RMS900-106026

Fitment:

  • 2006-2009 Honda TRX450ER Electric Start
  • 2012-2014 Honda TRX450ER Electric Start
  • 2006-2009 Honda TRX450R

Note: Image is for reference only, actual product may vary slightly.

OEM Numbers:
106026-R00
