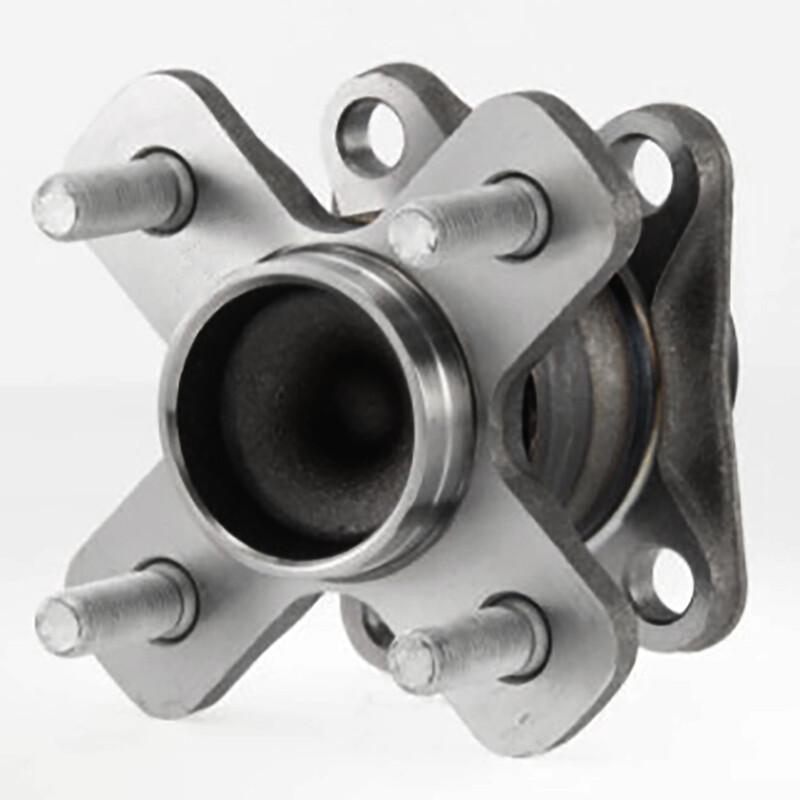

Premium Rear Wheel Bearing Hub Assembly


Premium wheel bearings to get you back on the road.

When it's time to replace your wheel bearing hub assemblies, our high-quality aftermarket products will provide the reliable performance you need at competitive prices. Karshield recommends replacing your wheel bearing hub assemblies in pairs to ensure even wear of components and improve overall ride comfort.



Easy to install. Comes pre-assembled; no need for special tools or a press.




Vehicle Compatibility:

MAKE

MODEL

YEAR

POSITION

NOTES

Scion

IQ

2012-2015

Rear Left or Right

w/ ABS




Specifications

Drivetrain

FWD / Front Wheel Drive

Fit Position

Rear Left or Right Side

ABS Sensor Included

Yes

Flange Diameter

5.34 in. / 135.8 mm

Flange Bolt Hole Quantity

4

Flange Offset

2.36  in. / 60 mm

Flange Shape

Modified

Hub Pilot Diameter

2.9 in. / 73.8 mm

Bolt Pattern

4 x 3.93  in. / 4 x 100.1 mm

Bolt Circle Diameter

3.93 in. / 100.1 mm

Brake Pilot Diameter

2.16  in. / 55 mm

Wheel Pilot Diameter

2.12 in. / 54 mm

Wheel Stud Quantity

4

Wheel Studs Included

Yes

Wheel Stud Size

0.472 in. / 12 mm

Spline Quantity

Sealed



Features:

  • 1 Year Warranty. We provide aftermarket products that are surfaced to OE quality standards. Just contact seller Karshield.
  • Easy Installation Position: Rear Left or Right Side. 100% Fitment Guarantee or your money back.
  • Superior Performance - Precise roll-form design ensures consistent and optimal factory-installed preload to minimize excessive noise and wear.
  • All products being produced by TS16949 Certified Manufacturers.
  • Reliable Performance - Precise roll-form design ensures consistent and optimal factory-installed preload to minimize excessive noise and wear.
  • Rigorous Testing - Comprehensive testing throughout design and development processes by engineers for quality you can count on.
  • Keeps Water and Dirt Out - Quad lip seal design inhibits damage by keeping moisture and other contaminants out.
  • Vibration-free hubs are machined to exact OE fit and function.
  • Get it Fast! We ship all orders within 1 business, in most cases we ship the same day an order is placed.
