Features
1.Adopting 1.2MM FR-4 material, circuit board design is reasonable, long service life.
2.Upgrade TYPE-C interface, strong versatility, large fog output, stable performance, simple to use, easy to get started.
3. Easy to use, seven-color dual spray humidification module, colorful lights more atmosphere.

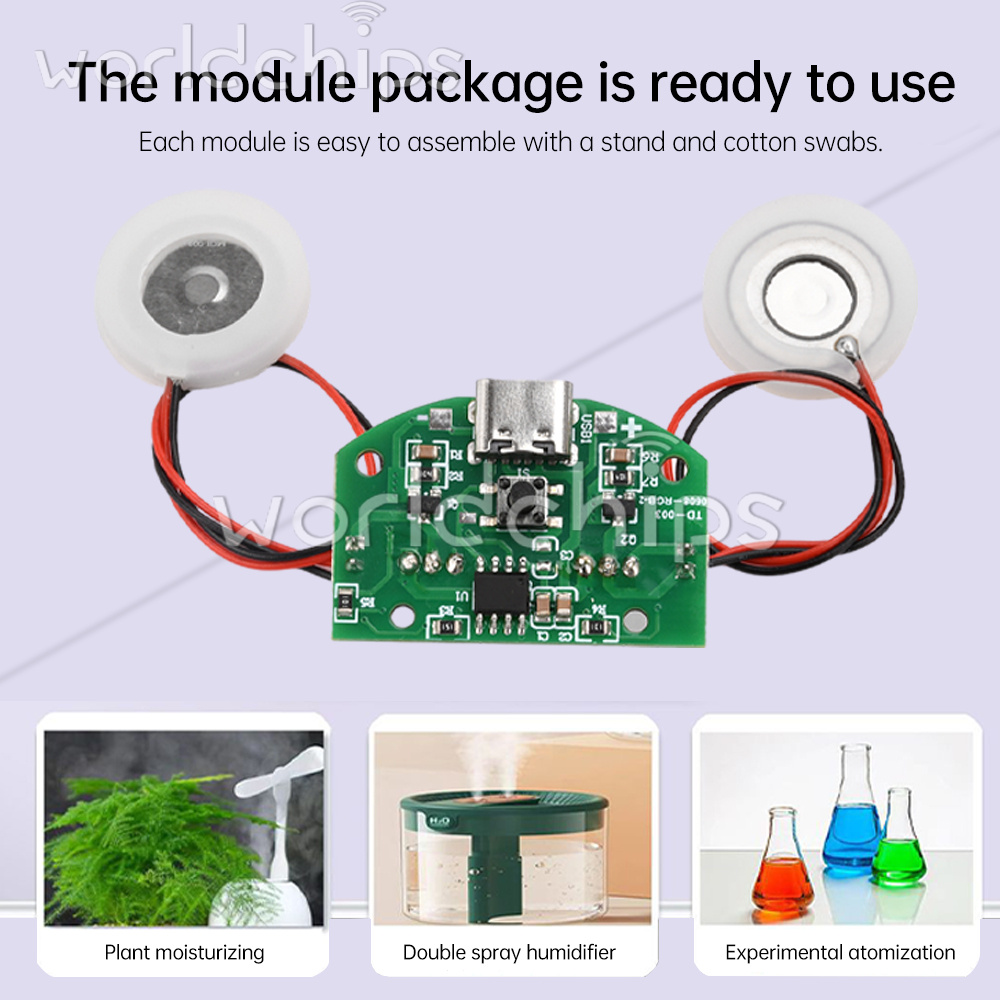

4.Module set ready to use, each set of modules with bracket and cotton swabs, easy to assemble.

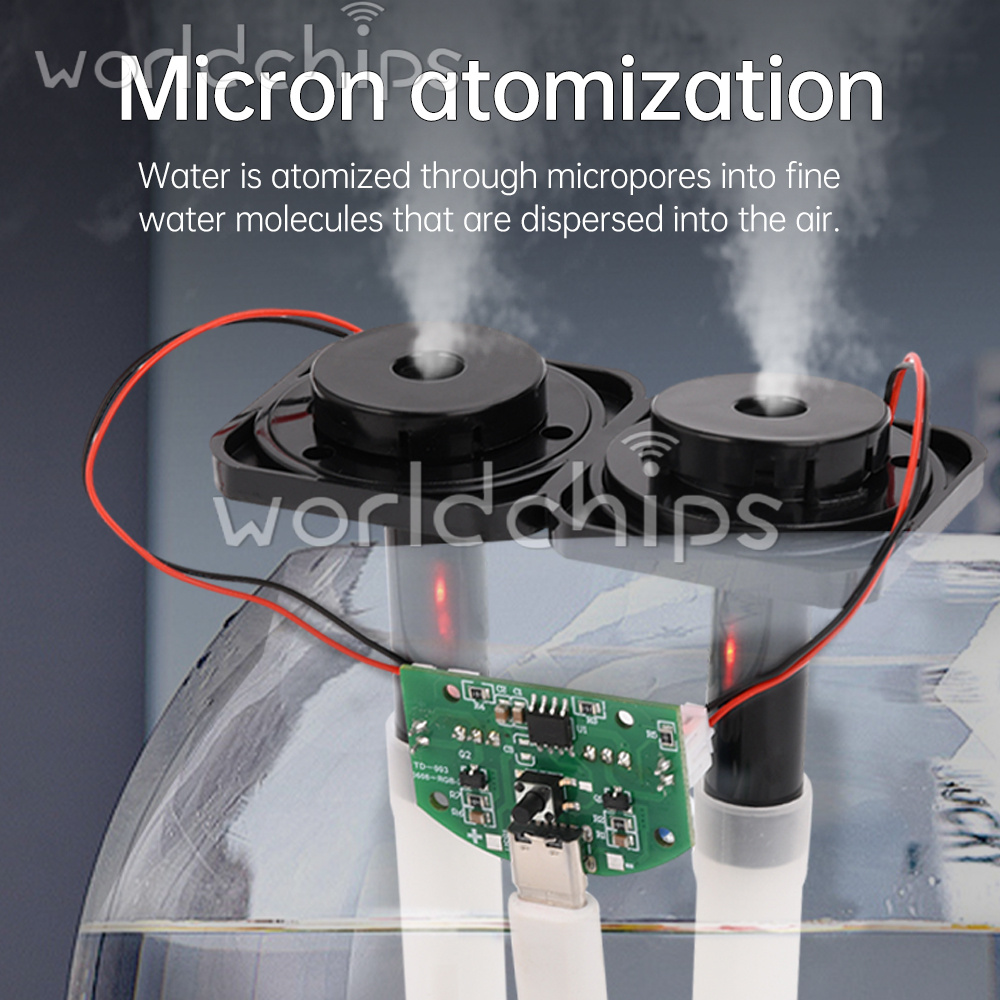

5.Micron atomization, atomize the water through the microscopic holes into fine water molecules, floating air.
2.Upgrade TYPE-C interface, strong versatility, large fog output, stable performance, simple to use, easy to get started.
3. Easy to use, seven-color dual spray humidification module, colorful lights more atmosphere.
4.Module set ready to use, each set of modules with bracket and cotton swabs, easy to assemble.
5.Micron atomization, atomize the water through the microscopic holes into fine water molecules, floating air.

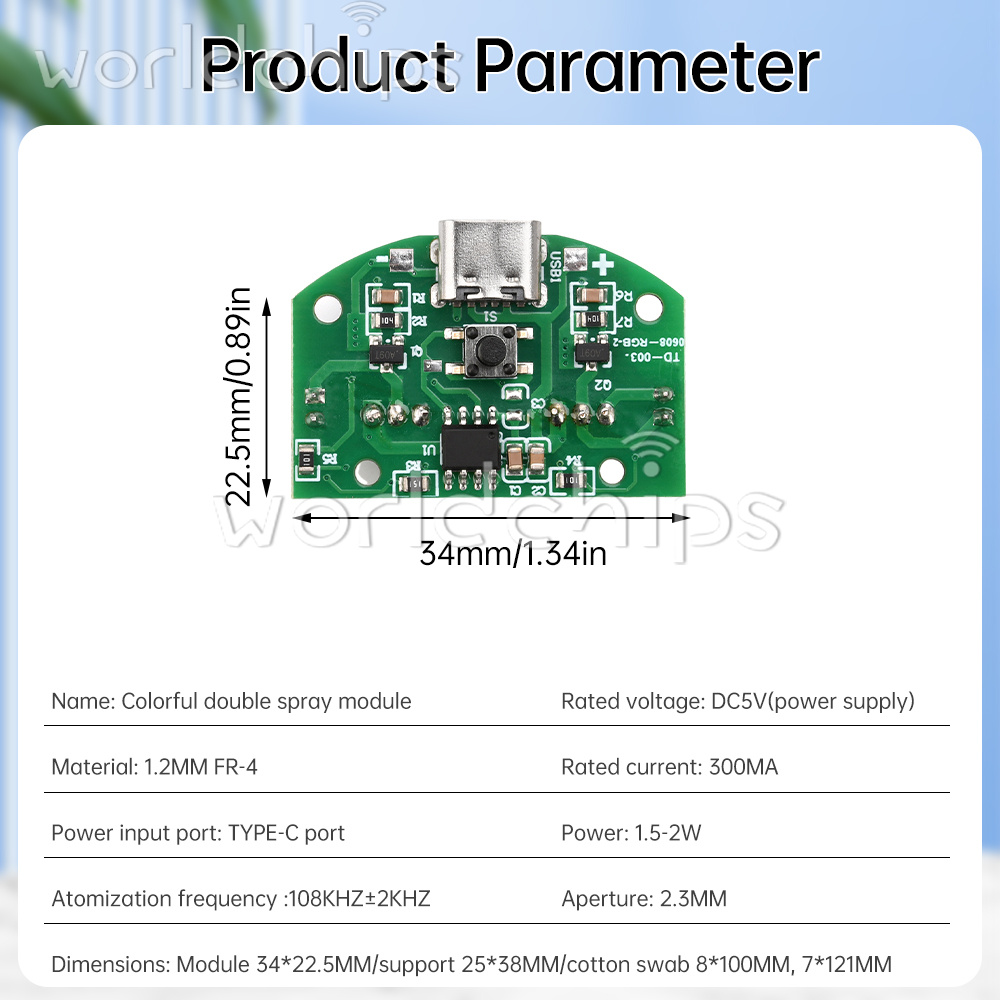

Specification
Name: Colorful Double Fogging Module
Material: 1.2MM FR-4

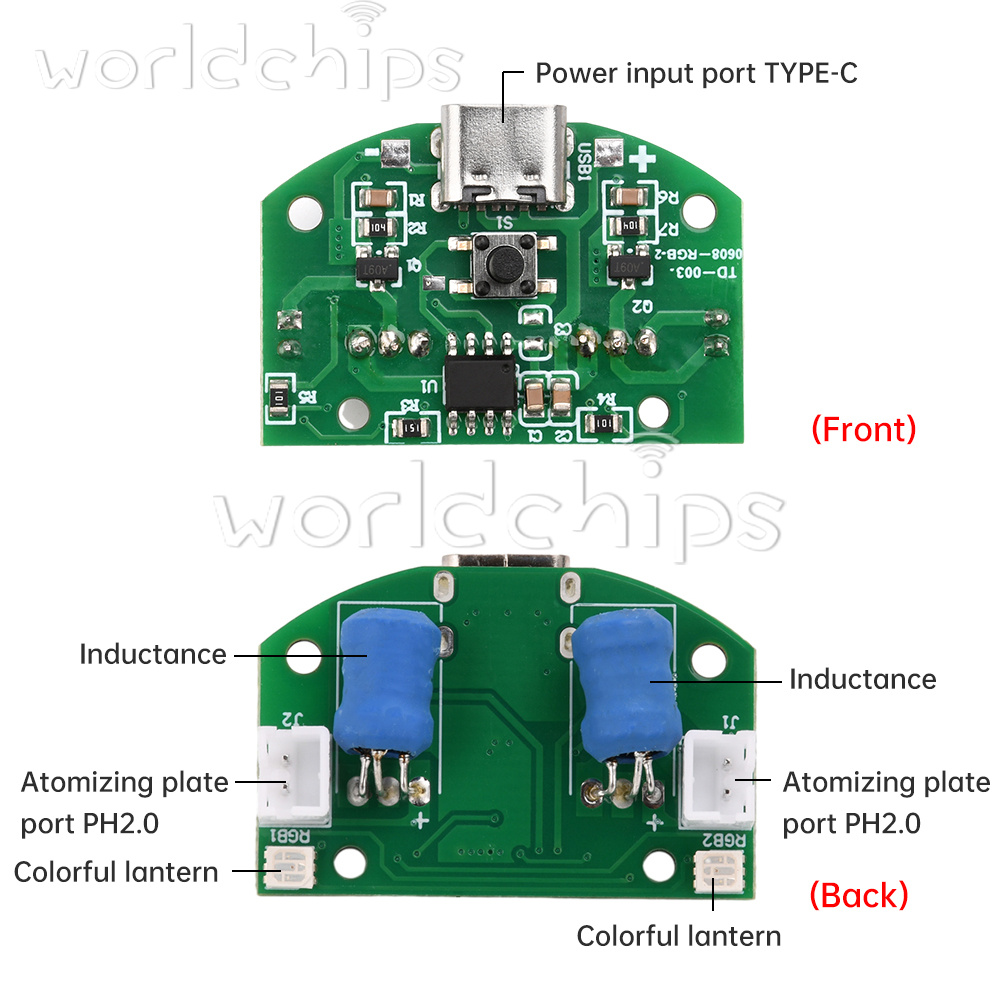

Power input port: TYPE-C port
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ±2KHZ
Aperture: 2.3MM
Module: 34*22.5MM
Bracket: 25*38MM

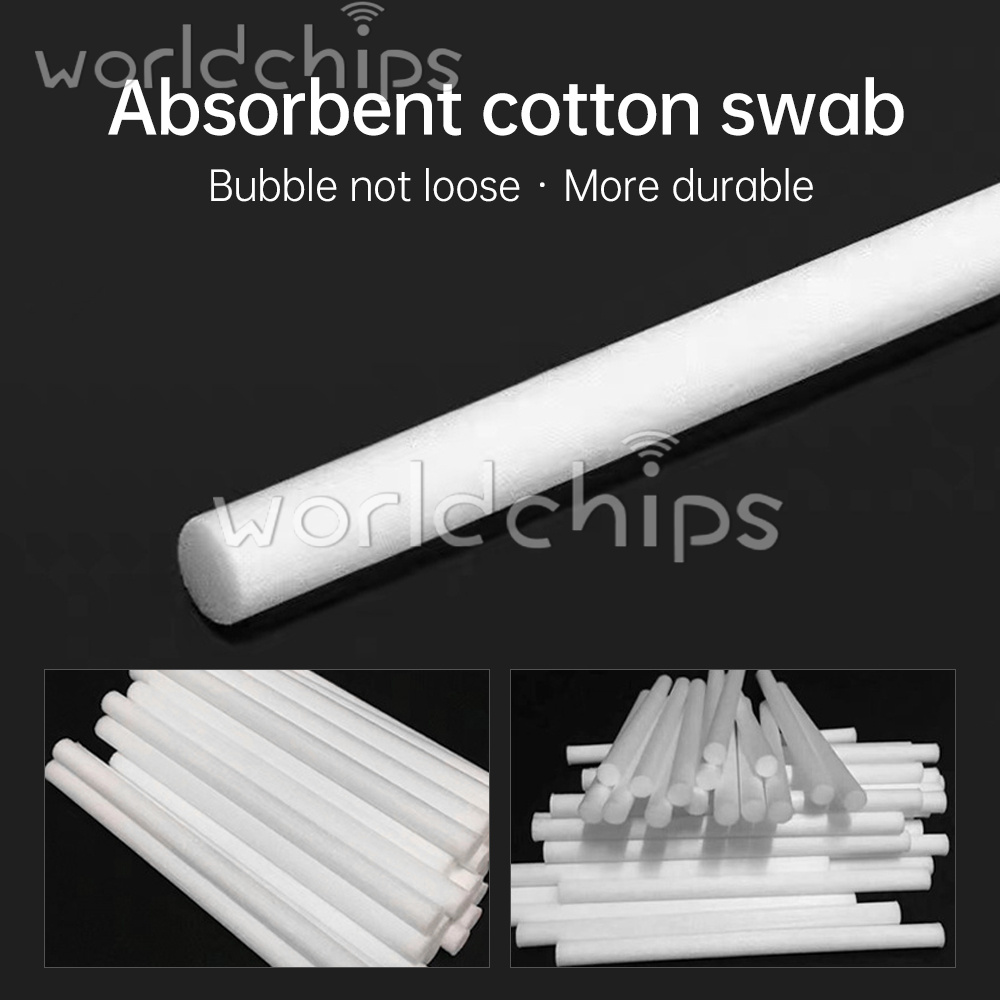

Cotton stick: 8*100MM, 7*121MM
Name: Colorful Double Fogging Module
Material: 1.2MM FR-4
Power input port: TYPE-C port
Rated voltage: DC5V (power supply)
Rated current: 300MA
Power: 1.5-2W
Atomization frequency: 108KHZ±2KHZ
Aperture: 2.3MM
Module: 34*22.5MM
Bracket: 25*38MM
Cotton stick: 8*100MM, 7*121MM

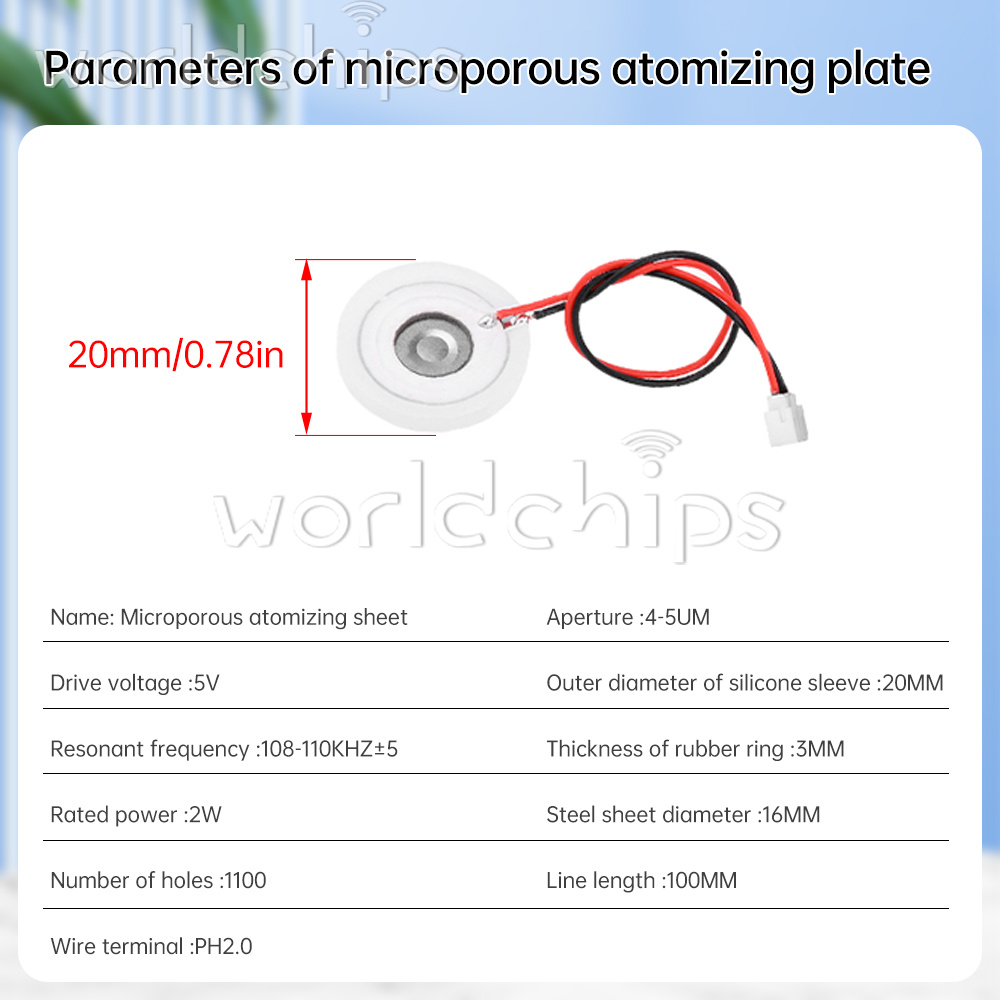

Parameters of nebulizer sheet:
Name:Microporous nebulizer sheet
Driving voltage:5V
Resonant frequency:108-110KHZ±5
Rated power:2W
Number of holes:1100
Hole diameter: 4-5UM
Outer diameter of the silicone sleeve: 20MM
Thickness of rubber ring:3MM
Diameter of steel plate:16MM
Wire length:100MM
Wire terminal:PH2.0
Name:Microporous nebulizer sheet
Driving voltage:5V
Resonant frequency:108-110KHZ±5
Rated power:2W
Number of holes:1100
Hole diameter: 4-5UM
Outer diameter of the silicone sleeve: 20MM
Thickness of rubber ring:3MM
Diameter of steel plate:16MM
Wire length:100MM
Wire terminal:PH2.0

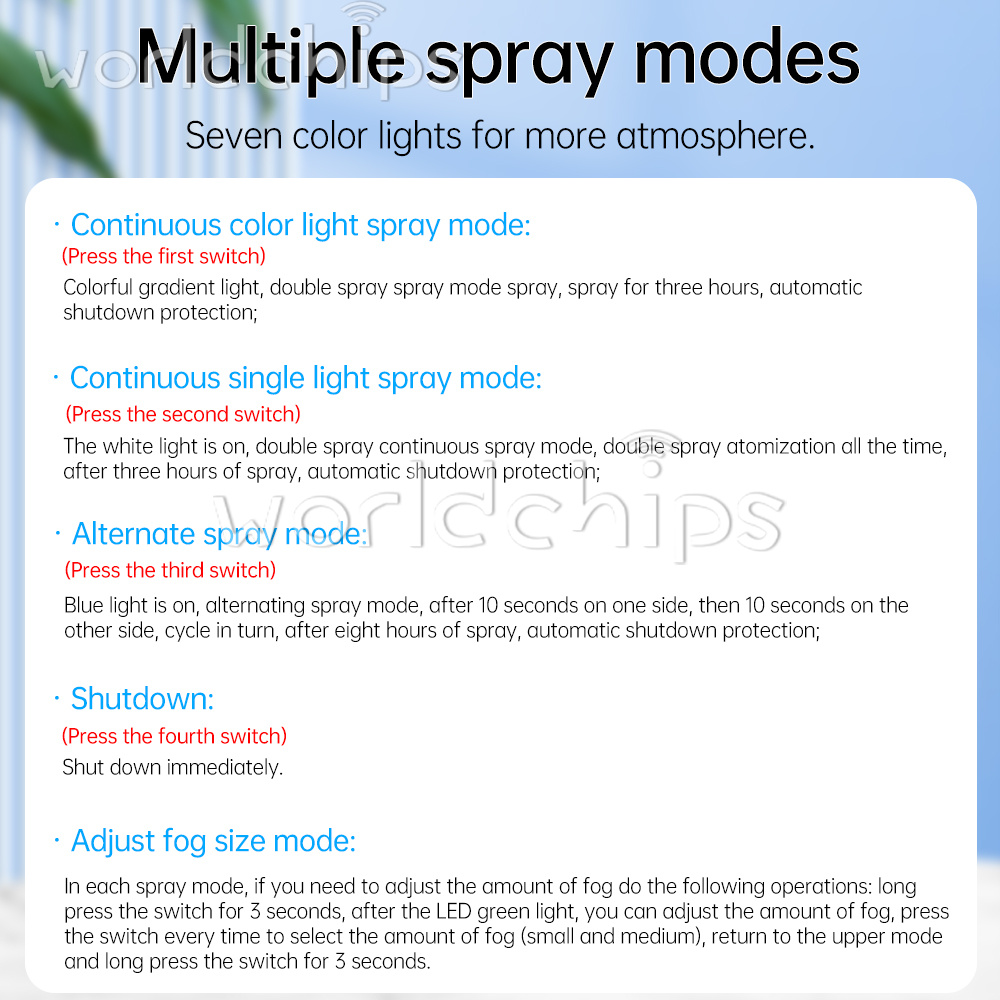

Spray mode:
Continuous color light spray mode: press the first switch, seven-color gradient light, double spray continuous spray mode, has been spraying, spray three hours, automatic shutdown protection.
Continuous single light spray mode: press the switch for the second time, white light is always on, double spray continuous spray mode, double spray has been atomized, after three hours of spraying, automatic shutdown protection.
Alternate spray mode: press the switch for the third time, the blue light is always on, alternate spray mode, single side of the spray for 10 seconds, then the other side of the spray for 10 seconds, and so on, the cycle of spraying eight hours, automatic shutdown protection.
Shutdown: press the switch for the fourth time, shutdown.
Adjust the mist size mode:
In each spray mode, if you need to adjust the size of the fog to do the following: long press the switch for 3 seconds, the LED green light, you can adjust the amount of fog, every time you press the switch to select the amount of fog (large, medium and small), return to the upper level of the mode and then long press the switch for three seconds.
Continuous color light spray mode: press the first switch, seven-color gradient light, double spray continuous spray mode, has been spraying, spray three hours, automatic shutdown protection.
Continuous single light spray mode: press the switch for the second time, white light is always on, double spray continuous spray mode, double spray has been atomized, after three hours of spraying, automatic shutdown protection.
Alternate spray mode: press the switch for the third time, the blue light is always on, alternate spray mode, single side of the spray for 10 seconds, then the other side of the spray for 10 seconds, and so on, the cycle of spraying eight hours, automatic shutdown protection.
Shutdown: press the switch for the fourth time, shutdown.
Adjust the mist size mode:
In each spray mode, if you need to adjust the size of the fog to do the following: long press the switch for 3 seconds, the LED green light, you can adjust the amount of fog, every time you press the switch to select the amount of fog (large, medium and small), return to the upper level of the mode and then long press the switch for three seconds.

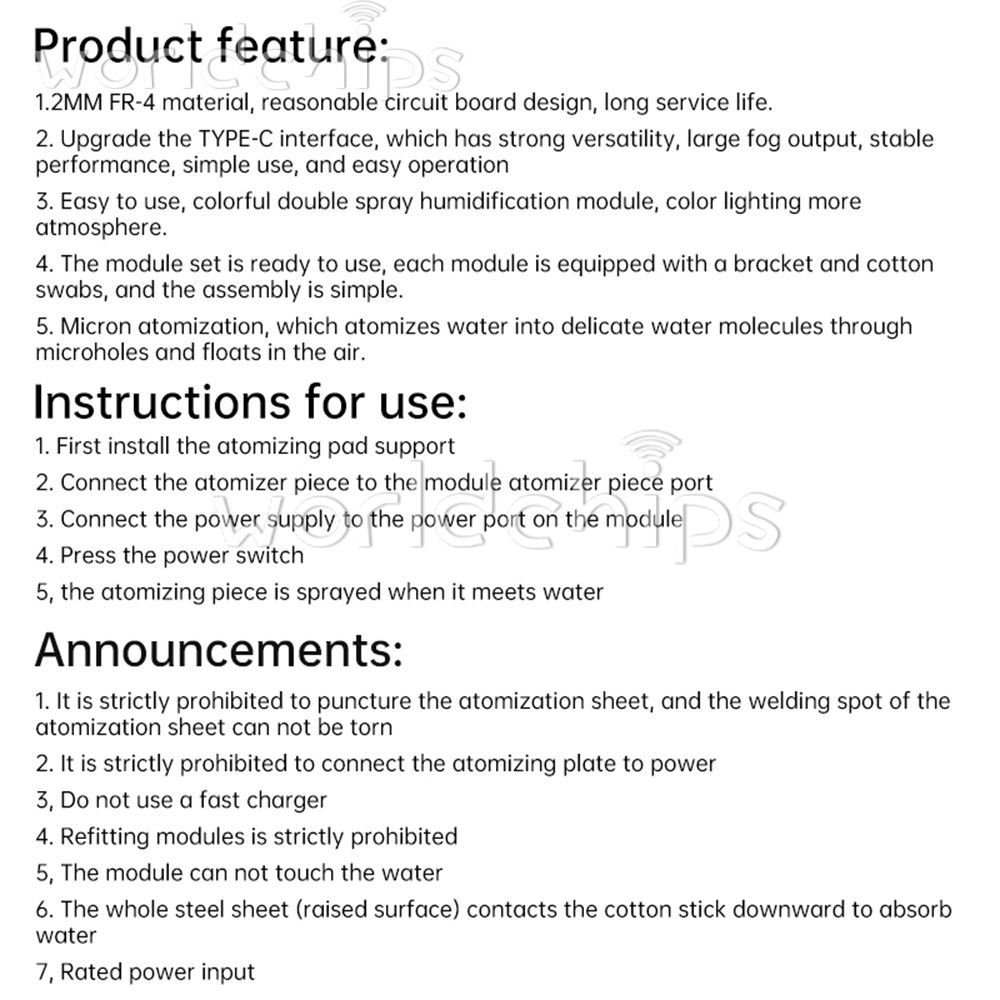

Usage:
1, first loaded with a good fog sheet bracket cotton swabs
2, will be connected to the atomizer module atomizer port
3, and then connect the power supply to the module power port
4, press the power switch
5, the atomizer is sprayed when it meets water
1, first loaded with a good fog sheet bracket cotton swabs
2, will be connected to the atomizer module atomizer port
3, and then connect the power supply to the module power port
4, press the power switch
5, the atomizer is sprayed when it meets water

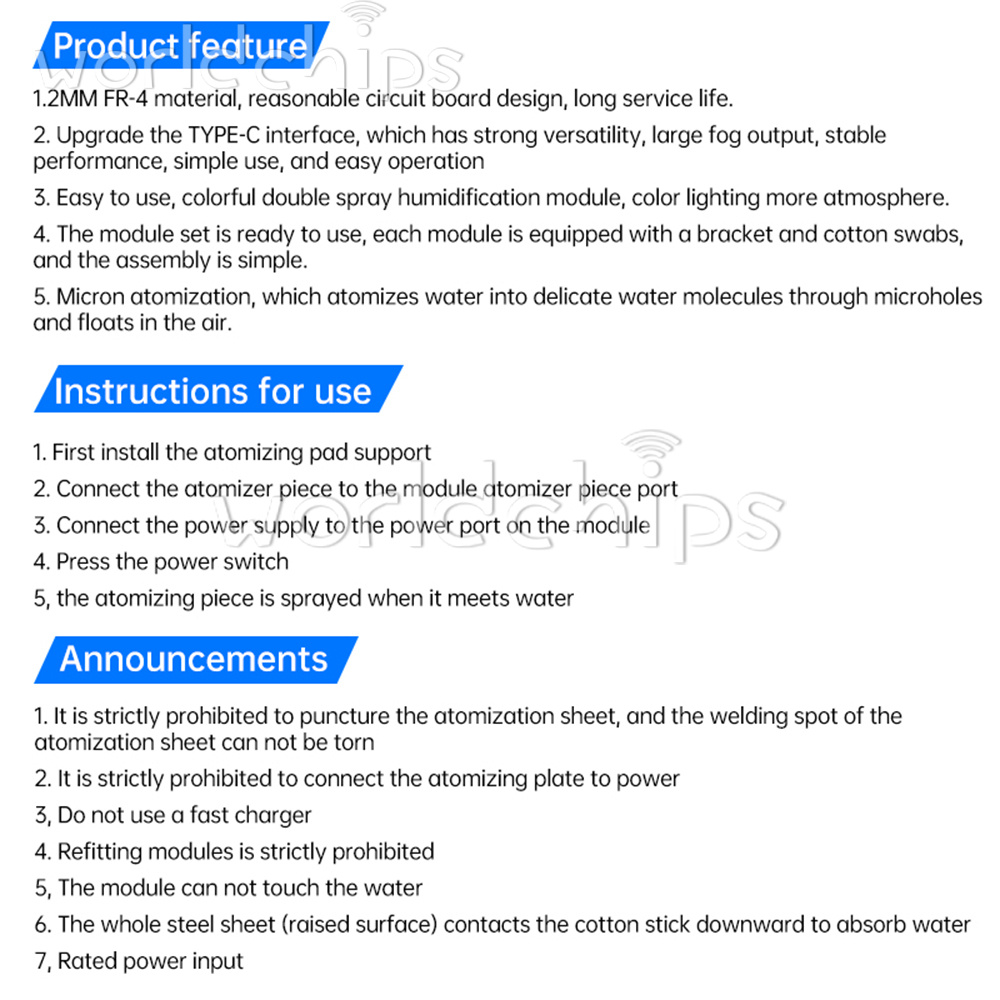

Precautions:
1, it is strictly prohibited to poke the atomizer, atomizer welding points can not be folded and pulled!
2, is strictly prohibited without connecting the atomizer powered on
3, it is strictly prohibited to use fast charger
4, is strictly prohibited to modify the module
5, the module can not touch the water

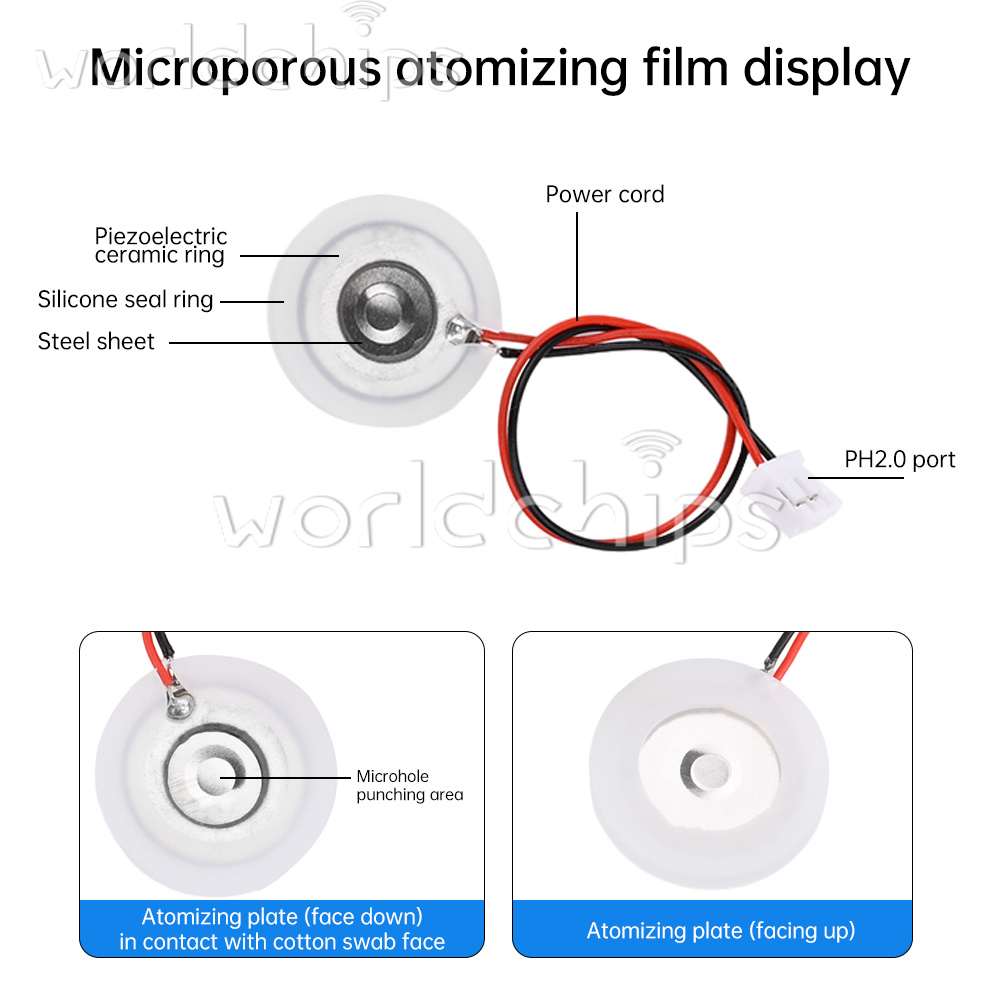

6, all-steel piece (raised surface) down to contact the cotton swab to absorb water
7、Rated power input
1, it is strictly prohibited to poke the atomizer, atomizer welding points can not be folded and pulled!
2, is strictly prohibited without connecting the atomizer powered on
3, it is strictly prohibited to use fast charger
4, is strictly prohibited to modify the module
5, the module can not touch the water
6, all-steel piece (raised surface) down to contact the cotton swab to absorb water
7、Rated power input

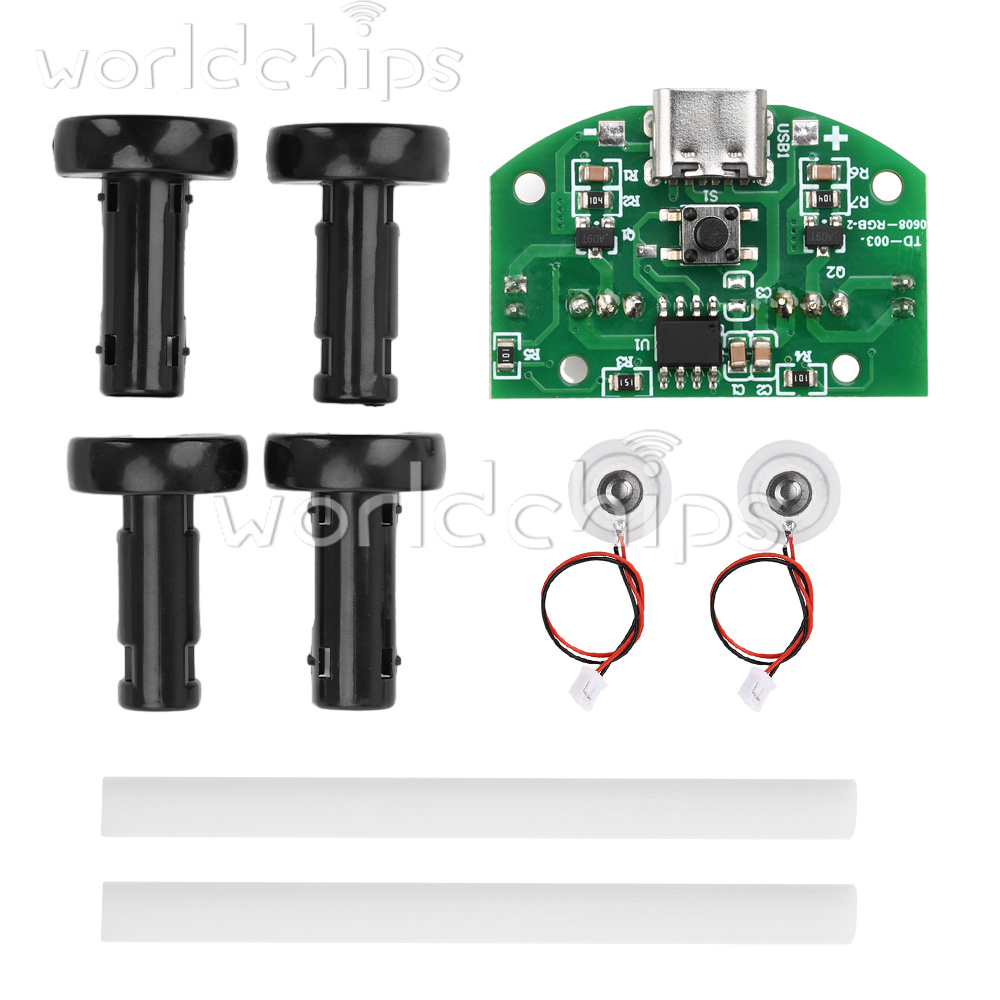

List
1 x Module
2 x Swabs
2 x Holder
2 x Atomizing Tablets
1 x Module
2 x Swabs
2 x Holder
2 x Atomizing Tablets
-
