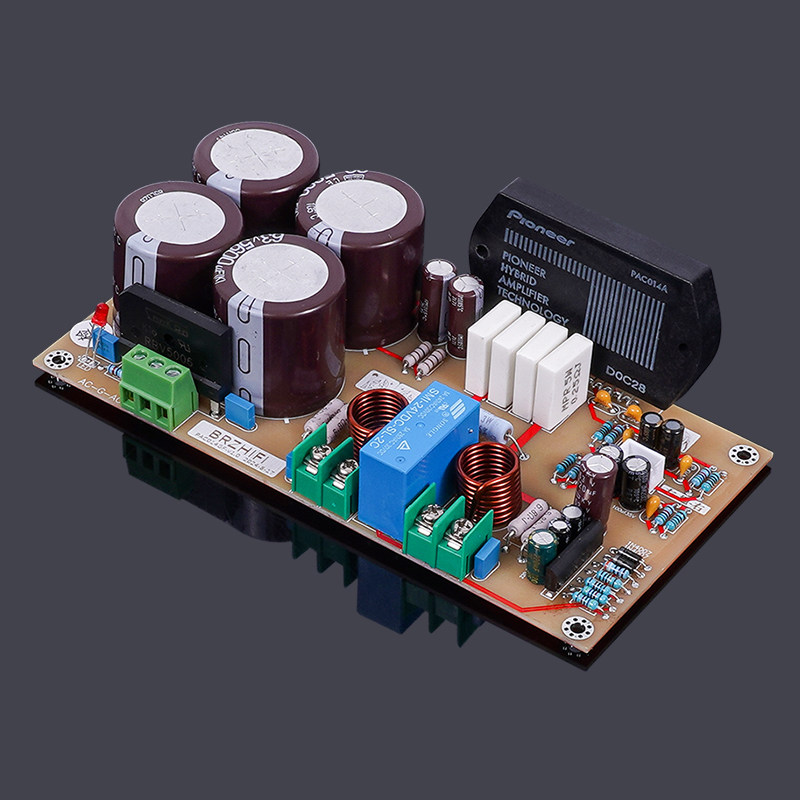

The PAC014A thick film actually feels very resistant to hearing, and the sound details, resolution, human voice, and low-frequency strength are better than other series.
Basic parameters:
Power supply voltage: AC dual 25V-38V
Output power: 50W+50W 8Ω 110W+110W 4Ω Measured continuous maximum output power
frequency Sound: 20Hz-50kHz
Input sensitivity: 700mV
Input impedance: 50K
Magnification: 32 times
lost True: 0.2%

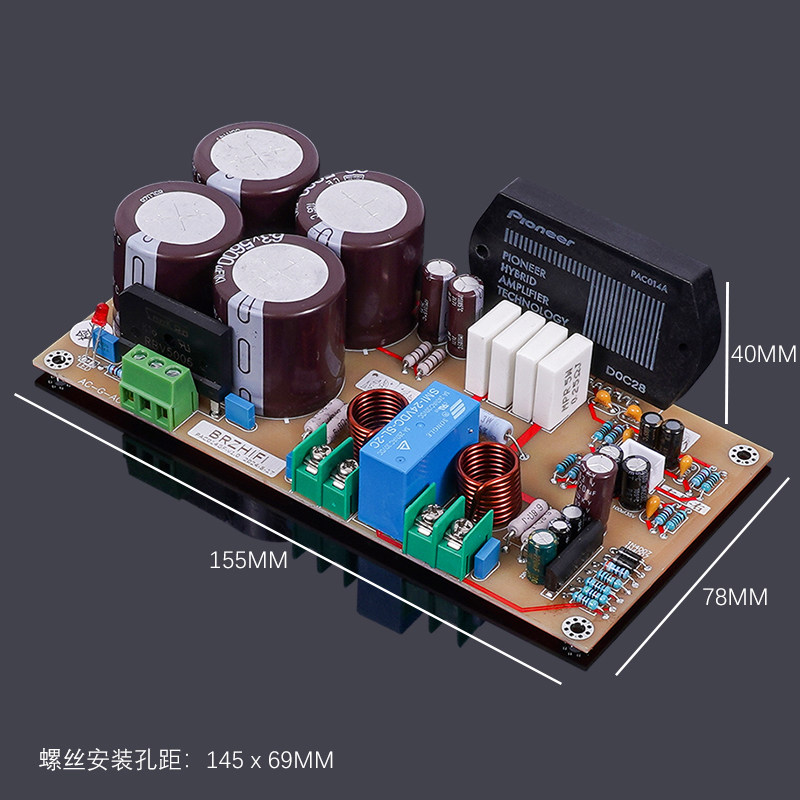

feet Inch: 155 x 78 x 40MM L x W x H
with Parts: copper stud nuts *4, input shield wires *1, long screws *2

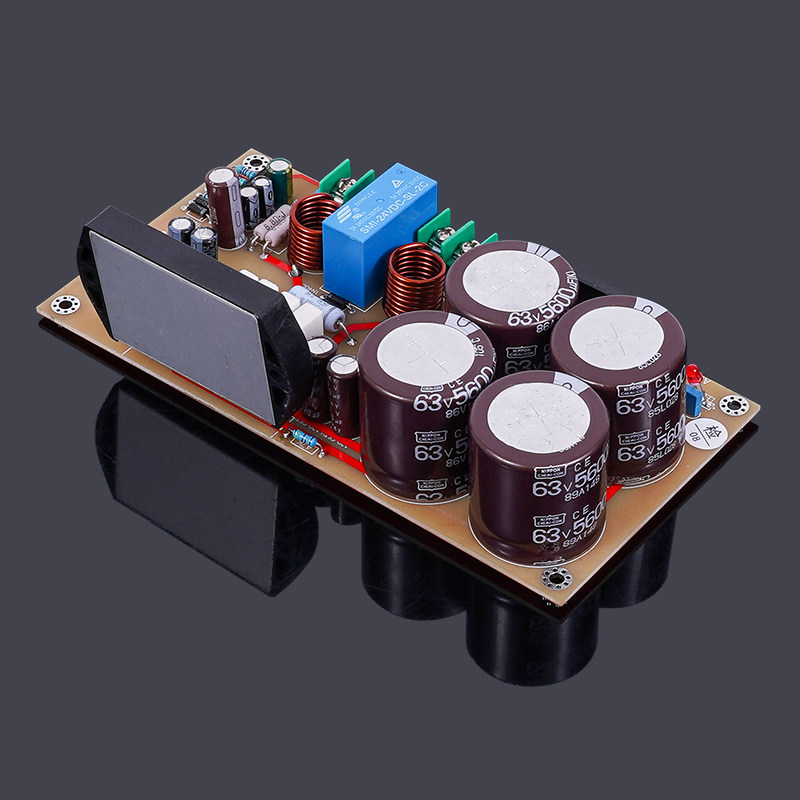

四颗化工黑金刚5600uF 63V主滤波电容（拆机）
板上设有完整的保护电路，输出采用大红环电感和松乐大电流继电器

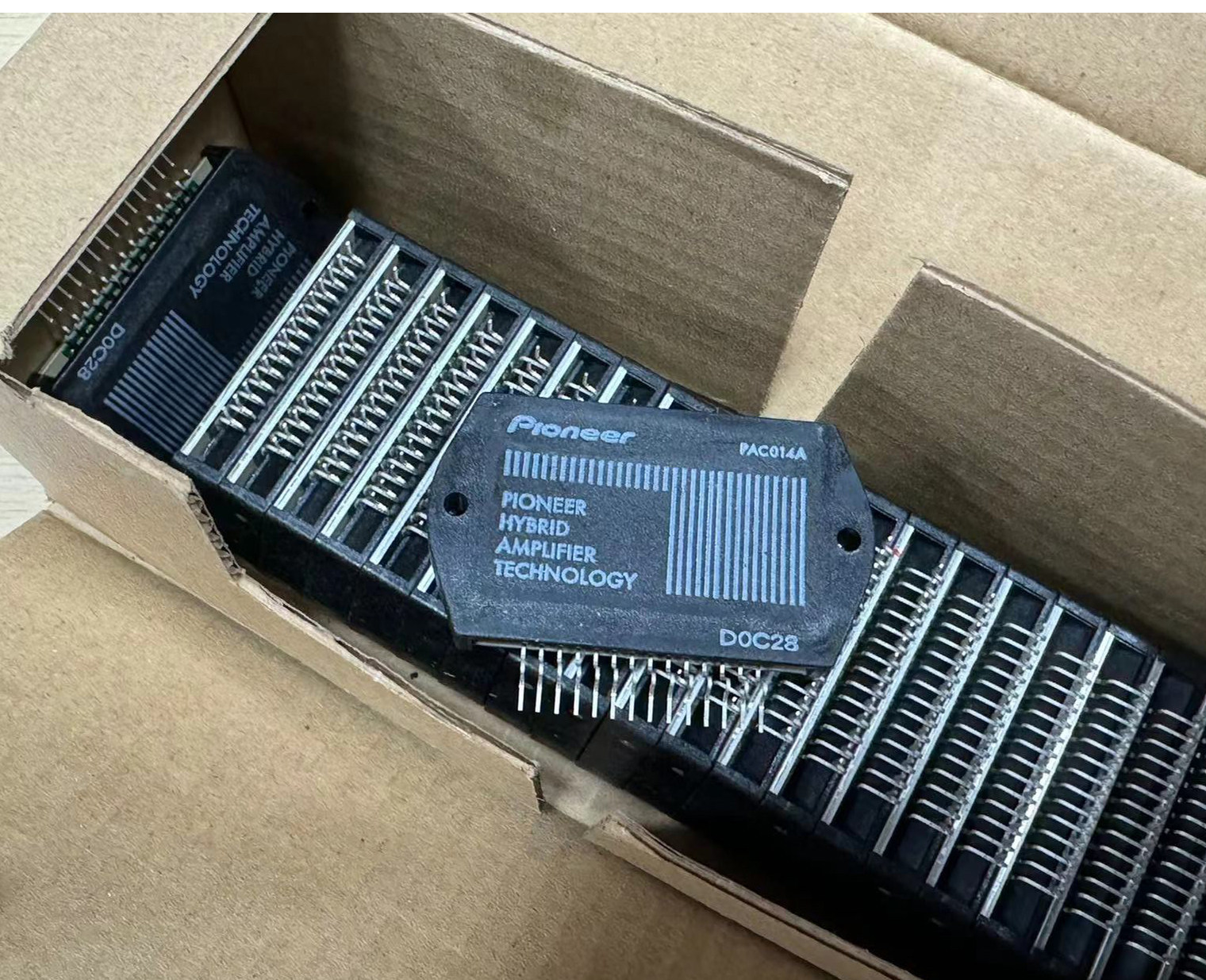

全新原盒包装

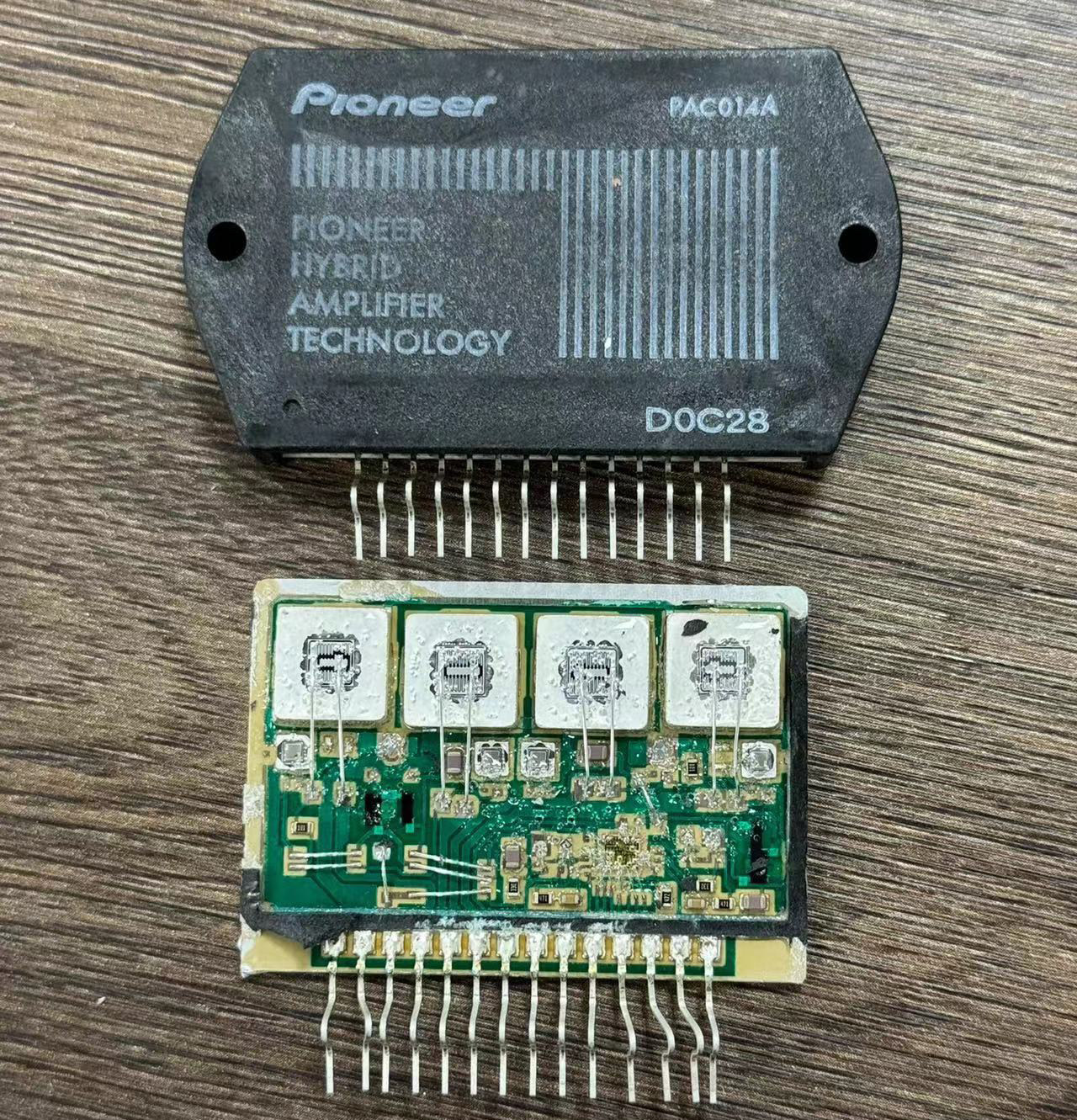

肉眼可见两对大功率输出管
