Lock Collar Bearing Greaseable Bore 1-3/8" fits Agricultural Bearings Bearings

DESCRIPTION

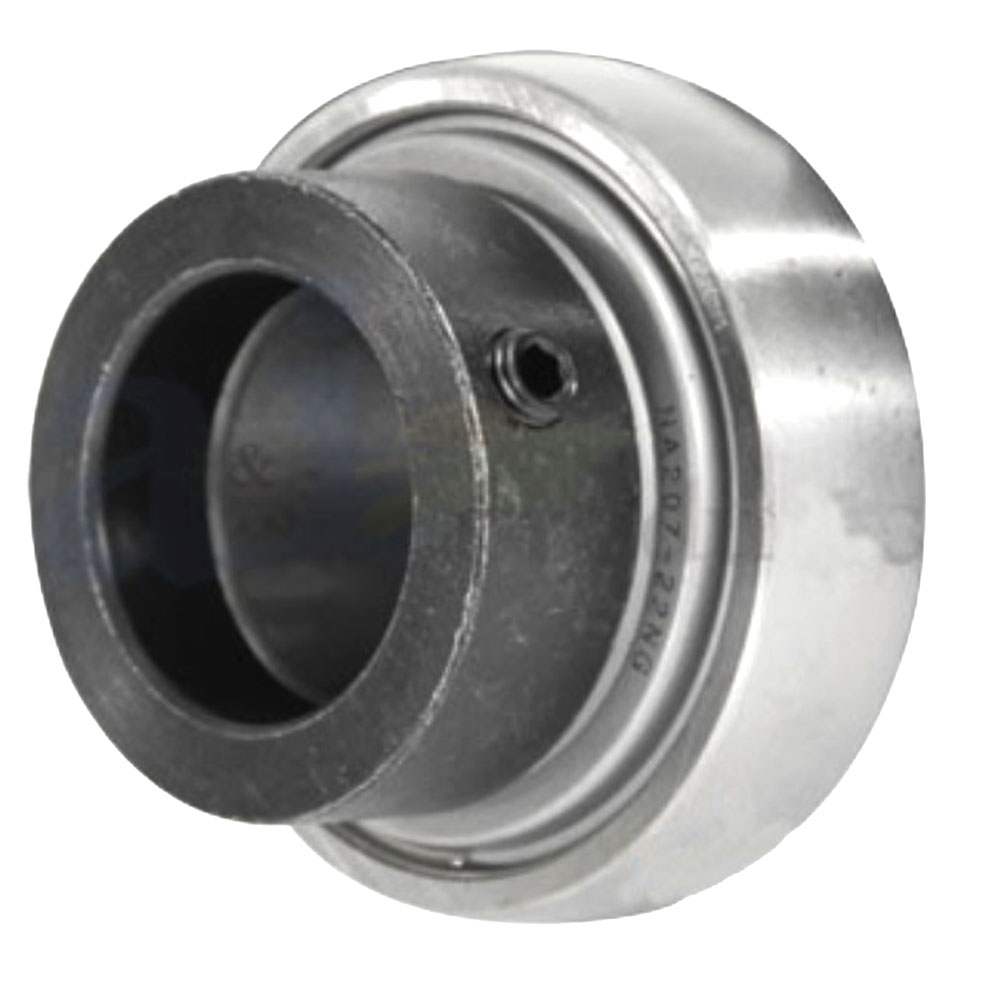

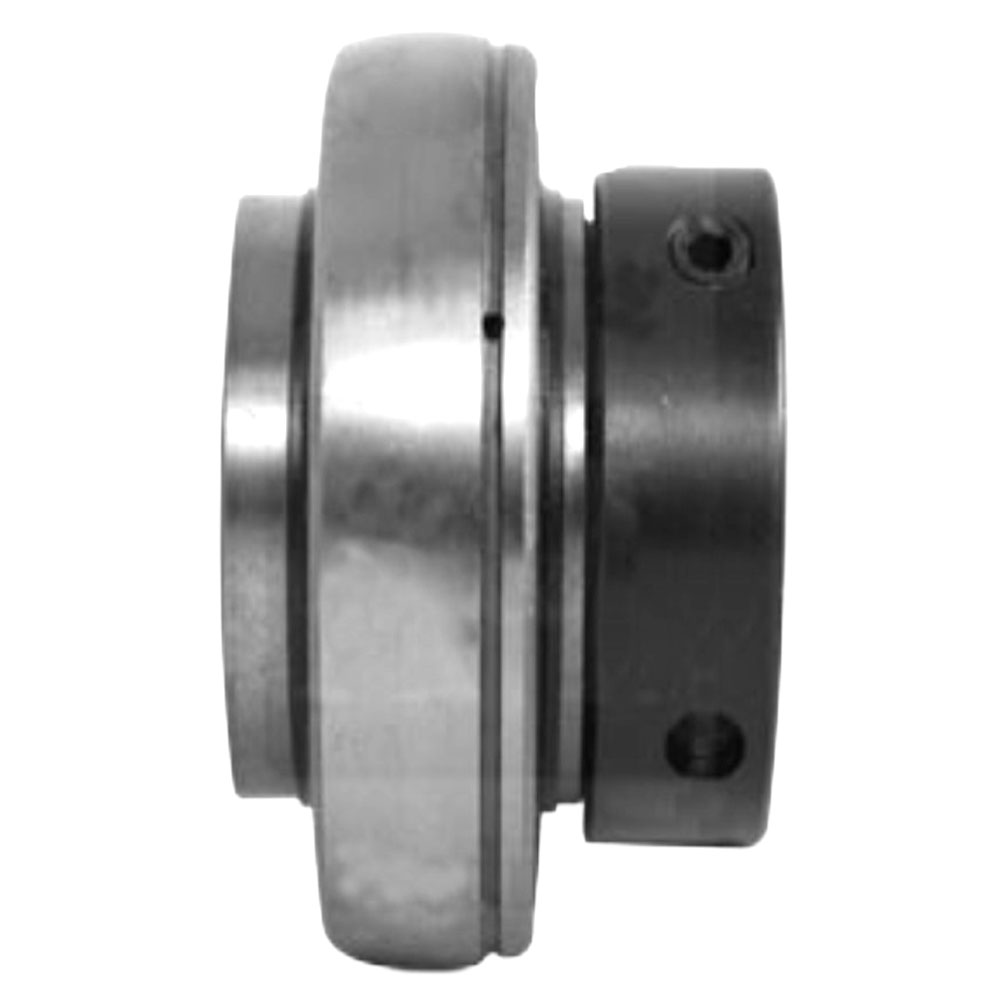

One New Aftermarket Replacement Lock Collar Greaseable Spherical Ball Bearing for Case IH, International Harvester, and John Deere Combines

This greaseable spherical ball bearing with eccentric cam locking collar and lock ring is used on feeder jackshafts, inclined delivery augers, straw chopper rotors, grain delivery leveling augers, and cleaning fan shafts across a wide range of Case IH (Case/International Harvester) and John Deere combines. The HC200 Series eccentric locking collar secures directly to a 1-3/8" round bore shaft. The bearing is self-aligning and fully relubricable for extended service life in high-demand harvesting environments.

Specifications

  • Bearing Type: Spherical Ball Bearing, Self-Aligning
  • Bore (Inner Diameter): 1.375" (1-3/8") Round
  • Outer Diameter: 2.840" (72mm)
  • Overall Width: 2.020"
  • Locking Type: Eccentric Cam Locking Collar with Set Screw and Lock Ring
  • Lube Type: Greaseable / Relubricable
  • Includes: Lock Ring

Compatible Models

Case IH / International Harvester Combines:

  • 1420 (Feeder Jackshaft)
  • 1440 (Feeder Jackshaft)
  • 1460 (Feeder Jackshaft)
  • 1470 (Feeder Jackshaft)
  • 1480 (Feeder Jackshaft)
  • 1482 (Feeder Jackshaft)
  • 1660 (Inclined Delivery Auger)
  • 1666 (Inclined Delivery Auger)
  • 1670 (Feeder Jackshaft)
  • 1680 (Inclined Delivery Auger)
  • 1682 (Feeder Jackshaft)
  • 1688 (Inclined Delivery Auger)
  • 2144 (Inclined Delivery Auger)
  • 2166 (Inclined Delivery Auger)
  • 2188 (Inclined Delivery Auger)
  • 2344 (Inclined Delivery Auger)
  • 2366 (Inclined Delivery Auger)
  • 2377 (Inclined Delivery Auger; SN 292001-300000)
  • 2388 (Inclined Delivery Auger)
  • 2577 (Inclined Delivery Auger)
  • 2588 (Inclined Delivery Auger)
  • 615, 715 (Feederhouse Jackshaft, Left Hand)

John Deere Combines:

  • 3300 (ASN 200000) - Straw Chopper Rotor
  • 4400 (ASN 201251) - Straw Chopper Rotor
  • 4420 - Straw Chopper Rotor
  • 4650, 4655, 4750, 4755 - Various applications
  • 6600 (ASN 206200) - Straw Chopper Rotor
  • 6620 - Straw Chopper Rotor
  • 7700 (ASN 213300) - Straw Chopper Rotor
  • 7720 - Straw Chopper Rotor
  • 8820 (Straw Chopper Rotor; Cleaning Fan Shaft)
  • 914, 915

Also fits various Hesston, New Idea, and Riverside Tractor agricultural equipment including mower conditioners, swathers/windrowers, balers, manure spreaders, and corn pickers.

Replaces Part Number(s):

611582R91, 611583R91, 80553C91, 517618R91, 50864, 050864, T18852, F86574, 15271SW, 711861, 712307, 012630, K4037, 3242414, WPS106GRC, JD9275, JD9319

Aftermarket Interchange Numbers

HC207-22, G1106KRRB, G1106KRRB-I, UEL207-106D1W3, NA207-22, VE-222, YG222NL, EX207-22, EW207-22S

New aftermarket replacement part - not remanufactured, not used.
