RAM Double U-Bolt Mount with Double Ball Adap...

RAM-101U-UK2

Genuine RAM Products!

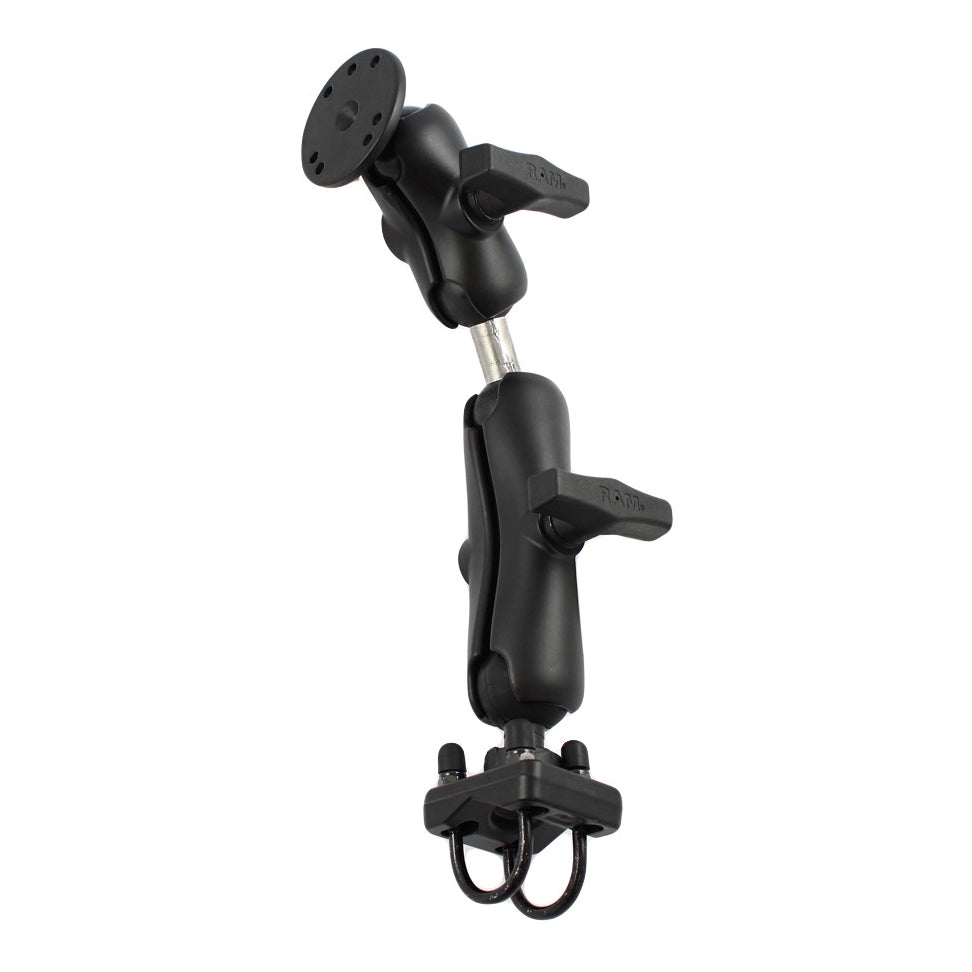

This kit contains a short double socket arm connected to a medium double socket arm with a double-ball adapter. On the bottom is our c-size double u-bolt base and on top is our 1.5 inch ball with 2.5 inch AMPS mounting plate.hardware included (2) 1/4 INCHES -20 U-Bolts for 1 INCHES - 1.25 INCHES Rails(4) 1/4 INCHES -20 Nylock Nuts(4) Rubber Capsclamp range 1 INCHES - 1.25 INCHES diametersocket to socket length Medium Arm: 4.66 INCHES Short Arm: 2.5 INCHES hole pattern 4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameterball size C Size (1.5 INCHES )weight capacity Standard Use: 4 lbsHeavy-Duty Use: 3 lbsmaterials Marine-grade aluminumpackaging type Poly BagWeight 2.3 lb

hardware included
(2) 1/4 INCHES -20 U-Bolts for 1 INCHES - 1.25 INCHES Rails(4) 1/4 INCHES -20 Nylock Nuts(4) Rubber Caps

clamp range
1 INCHES - 1.25 INCHES diameter

socket to socket length
Medium Arm: 4.66 INCHES Short Arm: 2.5 INCHES

hole pattern
4-Hole AMPS: 1.181 INCHES x 1.496 INCHES 3-Hole 120-Degree: 1.812 INCHES Diameter

ball size
C Size (1.5 INCHES )

weight capacity
Standard Use: 4 lbsHeavy-Duty Use: 3 lbs

materials
Marine-grade aluminum

packaging type
Poly Bag

Weight
2.3 lb
