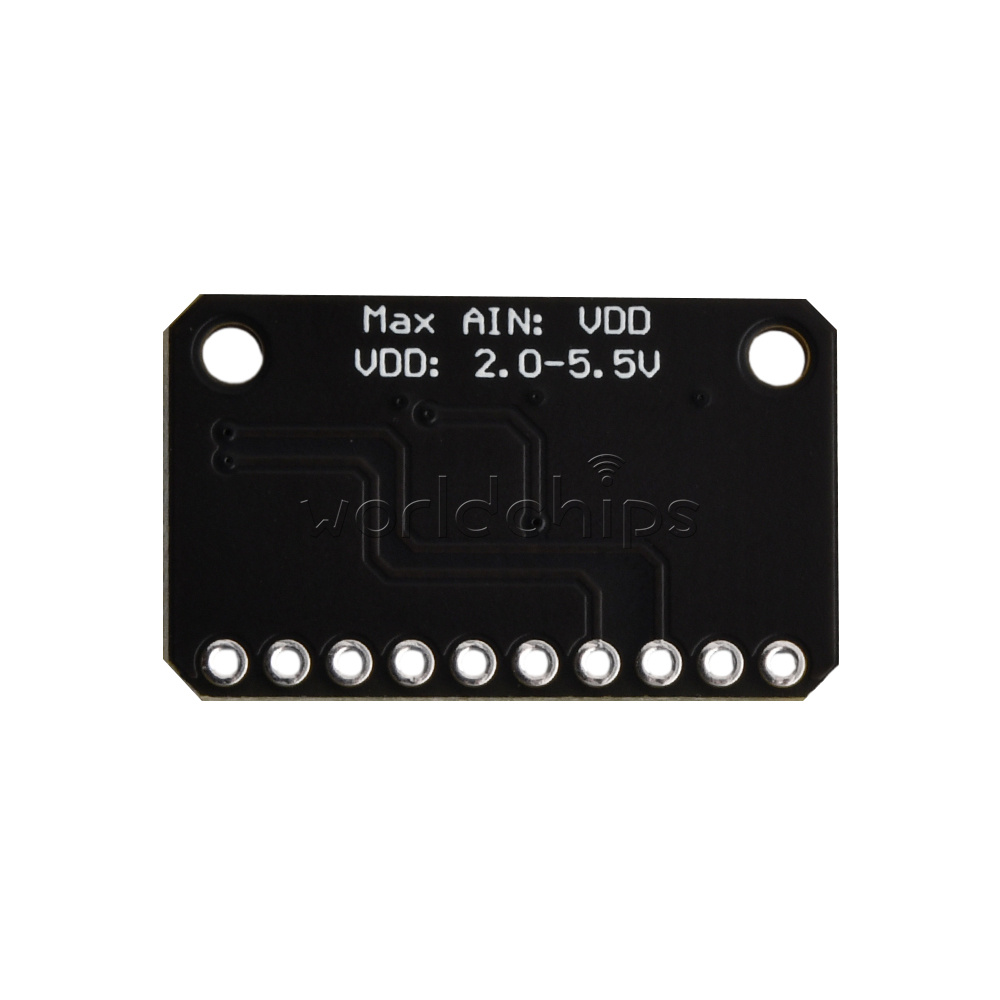

Product Features:
1. SGM58031 is a 4-channel adapter board, ideal for use in high resolution analog to digital conversion microprocessors
2. It operates from 2V to 5V, so it is suitable for all common 3.3V and 5V processors
3. This 4-channel adapter board controls 2 identical I2C buses and provides up to 16 single-ended or 8 differential channels
4. The programmable gain amplifier provides up to ×16 gain for small signals, and SGM58031 has high resolution
5. The chip is small, so it keeps AVDD and AGND quiet in a breakout board with ferrite, and the interface is done via l2C, and the address can be changed to one of four options so that you can connect up to four SGM58031s on a 2-wire l2C bus for 16 single-ended inputs
1. SGM58031 is a 4-channel adapter board, ideal for use in high resolution analog to digital conversion microprocessors
2. It operates from 2V to 5V, so it is suitable for all common 3.3V and 5V processors
3. This 4-channel adapter board controls 2 identical I2C buses and provides up to 16 single-ended or 8 differential channels
4. The programmable gain amplifier provides up to ×16 gain for small signals, and SGM58031 has high resolution
5. The chip is small, so it keeps AVDD and AGND quiet in a breakout board with ferrite, and the interface is done via l2C, and the address can be changed to one of four options so that you can connect up to four SGM58031s on a 2-wire l2C bus for 16 single-ended inputs
Product parameters:
Resolution:16 bits

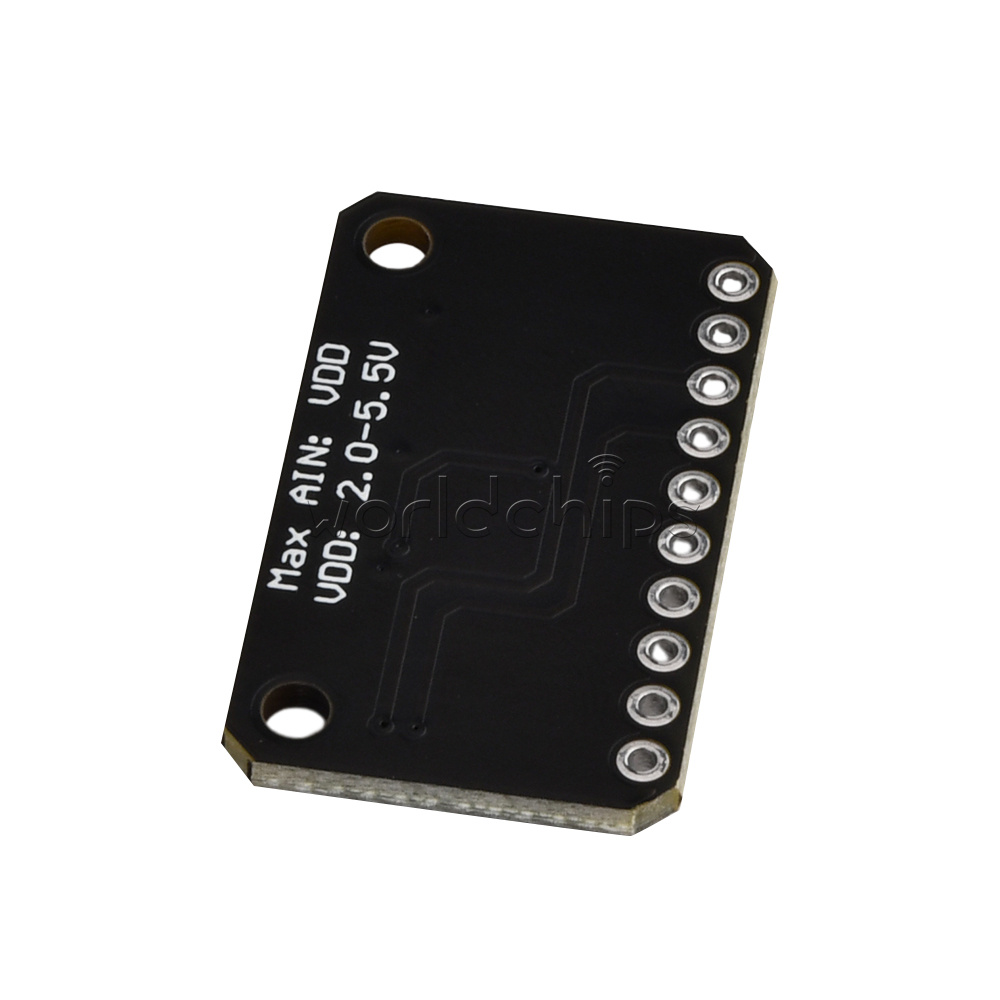

Wide power supply range: 2.0V to 5.5V
Low current consumption.
1. Continuous mode: only 150uA
2. Single mode: automatic shutdown
Programmable data rate: 8SPS to 860SPS
Internal low drift reference voltage source
Internal oscillator
Internal PGA
I2C interface: pin selectable address
Four single-ended or two differential inputs
Programmable Comparator
This board/chip uses l2C 7-bit address between 0X48-OX4B, selectable via jumper

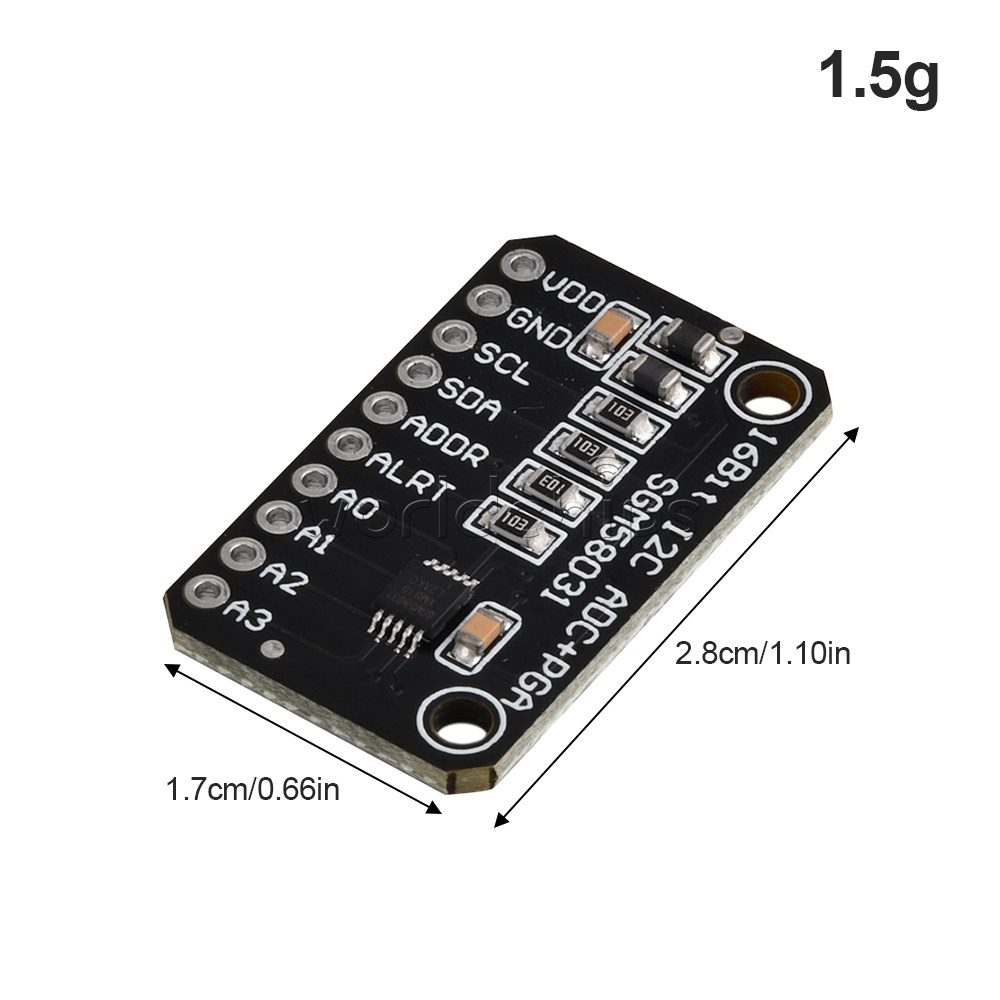

Size: about 28mm*12mm
Resolution:16 bits
Wide power supply range: 2.0V to 5.5V
Low current consumption.
1. Continuous mode: only 150uA
2. Single mode: automatic shutdown
Programmable data rate: 8SPS to 860SPS
Internal low drift reference voltage source
Internal oscillator
Internal PGA
I2C interface: pin selectable address
Four single-ended or two differential inputs
Programmable Comparator
This board/chip uses l2C 7-bit address between 0X48-OX4B, selectable via jumper
Size: about 28mm*12mm
Product List:

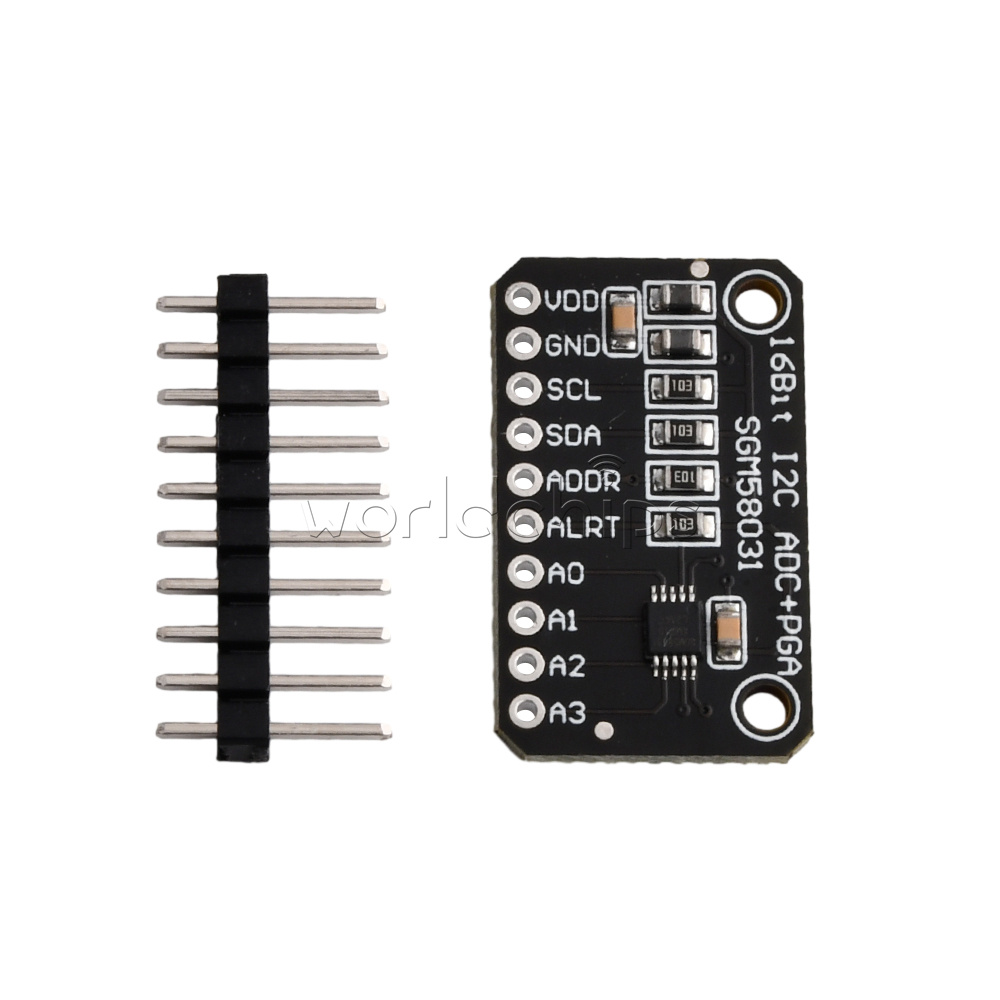

1* Module
1* Row of pins
1* Module
1* Row of pins
