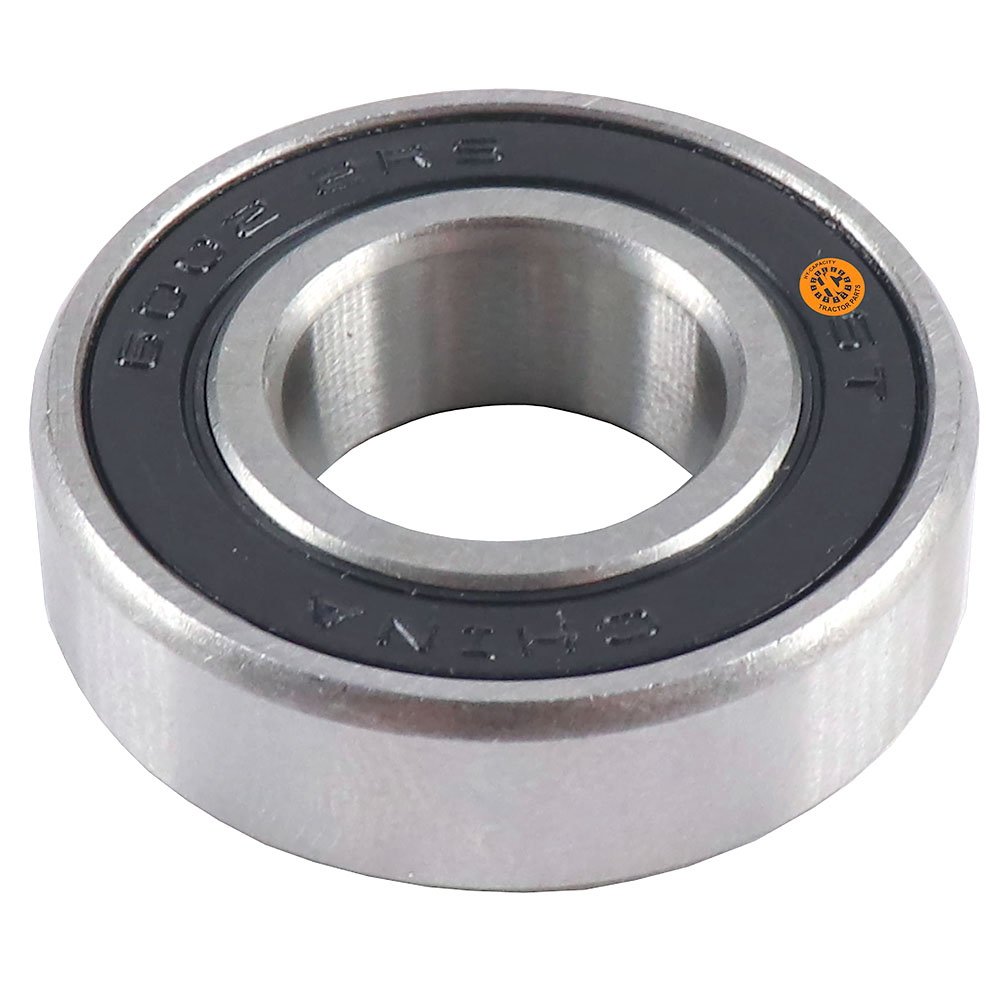

Fits Kubota Pilot Bearing 08121-06002

DESCRIPTION


One New Aftermarket Replacement Pilot Bearing Fits Kubota, Fits Massey Ferguson, and Multi-Brand Compact Tractors

This aftermarket replacement clutch pilot bearing supports the transmission input shaft within the crankshaft or flywheel bore, providing precise alignment during clutch engagement. It is a sealed ball bearing used in the clutch system of a wide range of compact agricultural tractors across many brands.

Specifications

  • Inner Diameter (ID): 0.590"
  • Outer Diameter (OD): 1.260"
  • Width: 0.354"
  • ID Range: 0.450" - 0.749"
  • Type: Sealed ball bearing (non-greaseable)
  • Sold as: Each

Compatible Models

AGCO: ST28A, ST30, ST30X (8-1/2" Dual Stage Clutch - excludes hydrostatic models; all models with 9" Single Stage Clutch), ST33A, ST34A (w/ Independent PTO & Synchro Shuttle Transmission), ST35, ST35X, ST40, ST40X, ST41A (w/ Independent PTO & Synchro Shuttle Transmission), ST47A (excludes hydrostatic models), ST52A (excludes hydrostatic models)

Fits Allis Chalmers: 234, 235, 244, 245, 254, 255, 265, 270, 275

Fits Case IH / Fits International: 235, 245, 255, 265, 275

Challenger: MT255, MT255B, MT265, MT265B (w/ Independent PTO & Synchro Shuttle Transmission), MT275, MT275B (w/ Independent PTO & Synchro Shuttle Transmission), MT285, MT285B (excludes hydrostatic models), MT295B (excludes hydrostatic models)

Fits Cub Cadet: 7000, 7192, 7194, 7195, 7200, 7205, 7232, 7234, 7260, 7265, 7272, 7274, 7300, 7305, 7360

Farmtrac / Montana / LS: 1030L

Kioti: CK25, LB2214, LK3054

Fits Kubota: L185DT, L185F, L225, L225DT, L235, L245DT, L245F, L245H, L260P, L275, L285P, L285WP, L295DT, L295F, L305DT, L305F, L345, L345DT, L2050DT, L2050F, L2250DT, L2250F, L2350DT, L2350F, L2500DT, L2500F, L2501D, L2501DT, L2501F, L2501H, L2501HST, L2502DT, L2502F, L2502HST, L2550DT, L2550DTGST, L2550F, L2550TOW, L2600DT, L2600F, L2650DT, L2650DTGST, L2650F, L2800DT, L2800DTHST, L2800F, L2850DT, L2850DTGST, L2850F, L2950DT, L2950DTGST, L2950F, L3000DT, L3000F, L3200DT, L3200F, L3200H, L3250DT, L3250F, L3301DT, L3301F, L3301H, L3301HST, L3350DT, L3400DT, L3400DTHST, L3400F, L3450DT, L3450DTGST, L3450F, L3650DT, L3650DTGST, L3650F, L3700SU, L3800DT, L3800F, L3800H, L3901DT, L3901F, L3901H, L3901HST, L3902, L3902DT, L3902H, L3902HST, L4350DT, L35

Mahindra: E23, E230, E280, E1804, E2002, E2004, E2302, E2304, E2804, S3010

Fits Massey Ferguson: 1010 (2WD eff. S/N 10906 &up; 4WD eff. S/N 40824 &up), 1020, 1030, 1030L, 1035, 1120, 1205, 1210, 1215, 1220, 1230, 1240, 1250, 1260, 1417, 1428V, 1429, 1433, 1433V, 1440, 1440V, 1526, 1528, 1529, 1531, 1532, 1533, 1540, 1547, 1552, 1635, 1643, 1648, 1652, 1655, 1736, 1740, 1742, 1747, 1749, 1754, 2015, 2216, 2740, 2816, 3016, 3240, 3616, MT250, MT255, MT255B, MT265, MT265B, MT275, MT275B, MT285, MT285B, MT295B, MT300, MT300D, MT2001, MT2201, MT2301, MT2501, 16 Field Fits Boss

Fits Mitsubishi: D2000, D2050, D2300, D2350, D2500, D2650, D3250

White: 2015

Replaces Part Number(s):

08121-06002, 1-08121-06002, 812106002, 3283513M1, 3435646M1, 3708600M1, 3756038M1, 1440564X1, 6002-RS, 6243123M1, 72100719, 72103151, 7500560024, H830655, MD002613

Aftermarket Interchange Numbers

Hy-Capacity 830655; also cross-references bearing industry number 6002-RS

New aftermarket replacement part - not remanufactured, not used.
