Product wiring diagram:

RED—————————3.3V

GREEN—————————SDA

YELLOW—————————SCL

BLUE—————————GND

description:

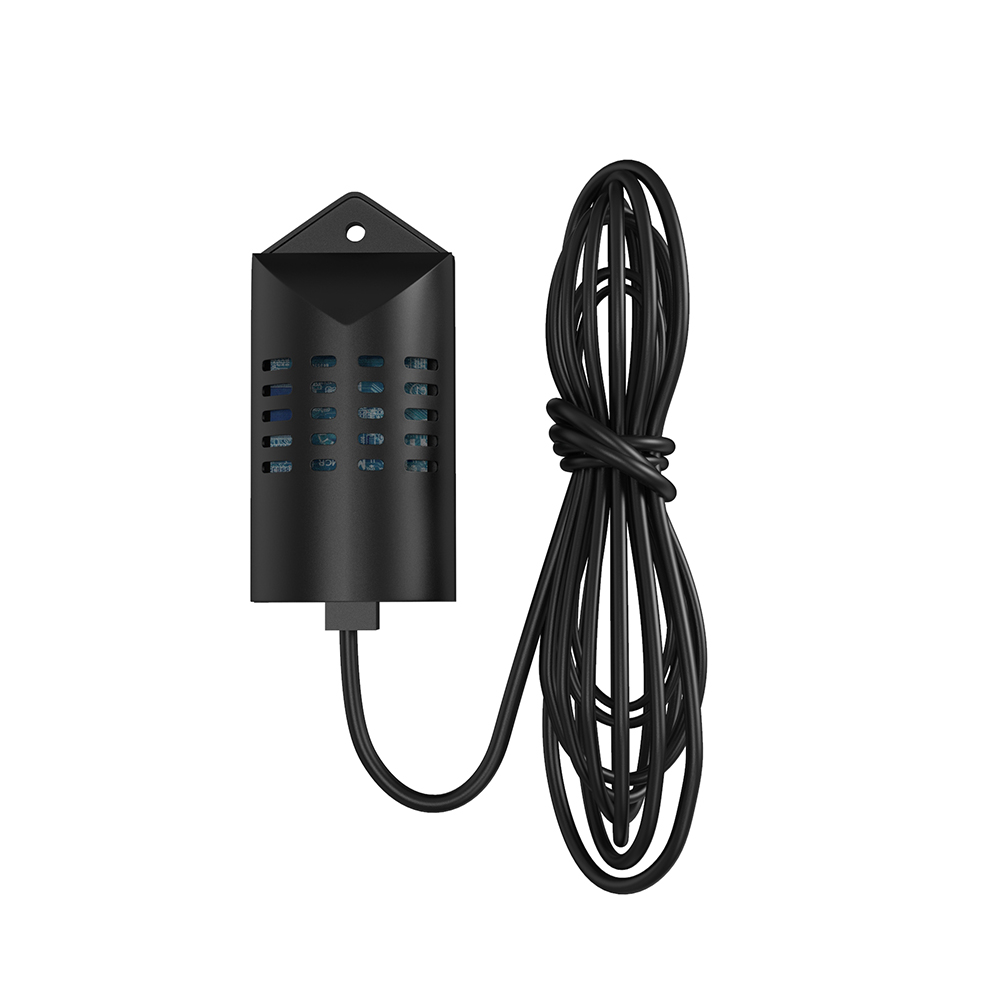

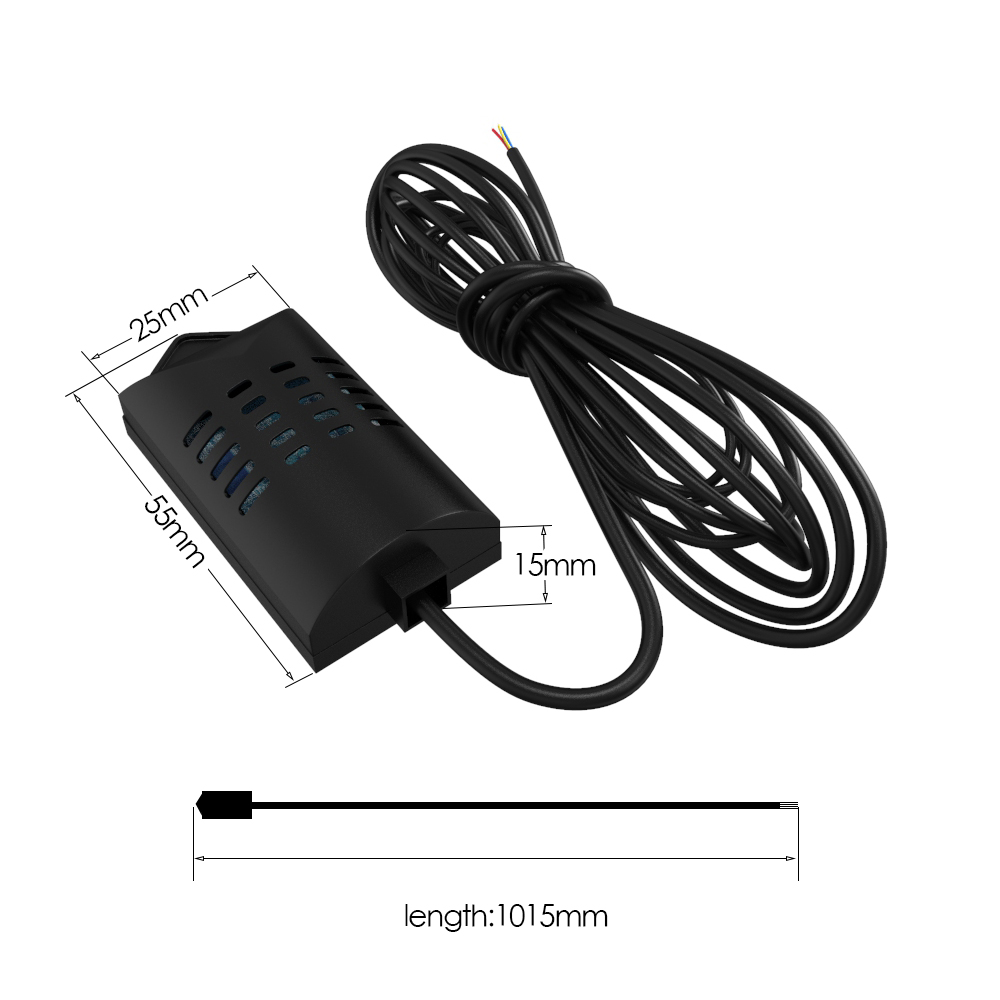

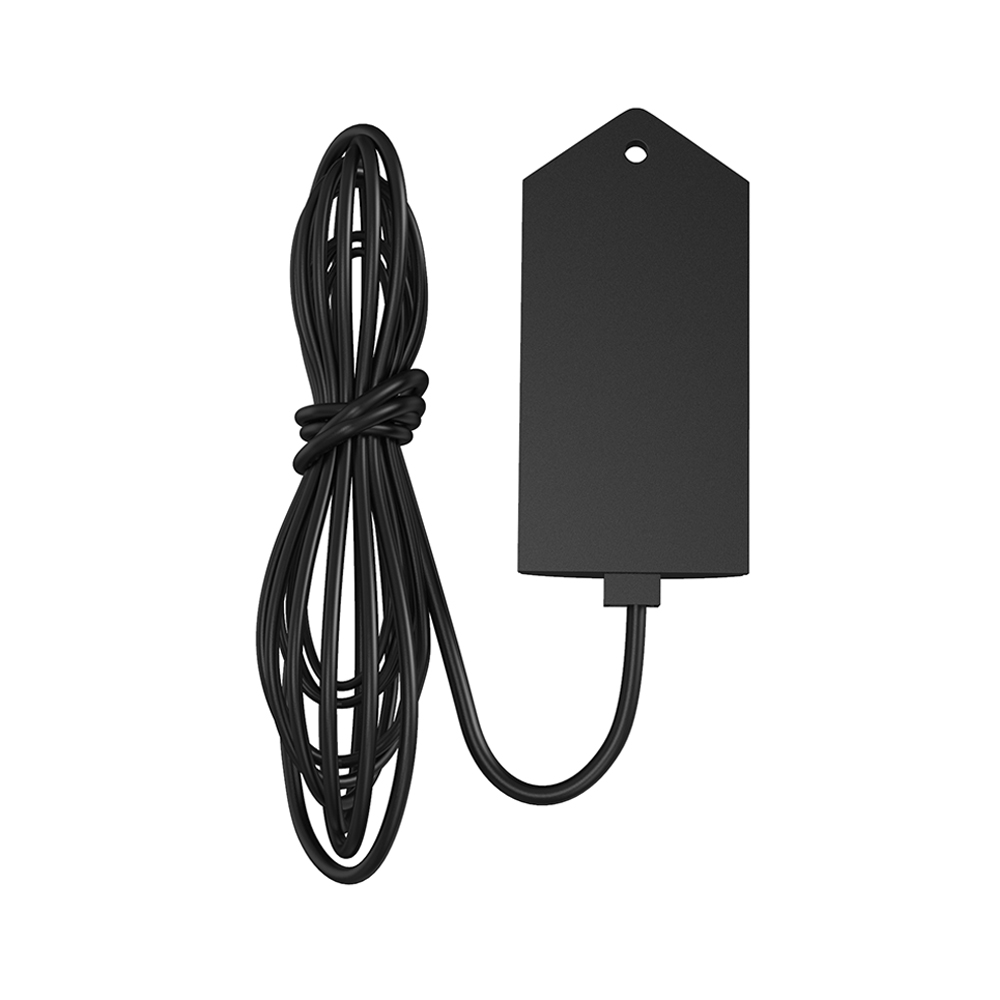

The SHT20 digital temperature and humidity sensor is based on digital sensing technology and offers high reliability and long-term stability. Full-scale calibration, two-wire digital interface, can be directly connected to the microcontroller, greatly reducing development time, simplifying peripheral circuits and reducing costs. In addition, it is small in size, quick in response, low in energy consumption, immersible, strong in anti-interference ability, integrated in temperature and humidity, combined with dew point measurement, and cost-effective, making the product suitable for a variety of applications.

Technical Parameters:

1. Humidity measurement range: 0~100%RH.

2. humidity measurement accuracy: ± 3% RH

3.temperature measurement range: -40 ~ 125 ° C

4. temperature measurement accuracy: ± 0.3 ° C

5. working voltage: 2.1 ~ 3.6VDC (please note: do not use 5V power supply!!!)

6. I2C interface output

Package Included: 1 x SHT20 Digital Temperature and Humidity Sensor
