Product Type: Starter |
Replaces: |
  • Starter Type: PMDD |
  • Volts: 12 |
  • Teeth On Drive: 16 |
  • Rotation: Counterclockwise |
  • Source: Aftermarket

Starter Cub Cadet 580 582 1604 1605 1606 1610 John Deere 116 Toro 216-5 497596

Replaces Part Numbers & Specifications

OEM PART NUMBERS:
• Briggs & Stratton: 497596 / 393017 / 394674 / 394808 / 435307 / 497956
• John Deere: AM38984 / AM39287 / AM122238 / LG497596 / AM38999
• Case / IH: IH-106749-C1 / IH-78232-C1

SPECIFICATIONS:
• Voltage: 12V
• Type: PMDD (Permanent Magnet Direct Drive)
• Rotation: CCW (Counterclockwise)
• Teeth: 16
• Gear OD: 40.6mm / 1.598 Inch
• Field Case Length: 3.8 Inch / 96.5mm
• Mounting Ear 1: 9.5mm ID Unthreaded
• Mounting Ear 2: 8.5mm ID Unthreaded
• Mounting Ear 3: 8.5mm ID Unthreaded
• Pinion Gear: Plastic
• Weight: 5.18 lbs / 2.35 kg
• Includes: Extra 16-Tooth Plastic Gear
• Condition: New

APPLICATION:
• Cub Cadet: 580 (1982-1984) / 582 (1979-1984) / 1604-1610 (1985-1986)
• John Deere: 116 (1982-1985) / 116H (1983-1985) / 65 / 66 / 68 Riding Mowers
• John Deere Walk-Behind Commercial: 32 / 36 / 48 / 52 Inch Models
• Toro: 216-5 Tractor (1985-1987)
• Briggs & Stratton V-Twin Air Cooled 14-18HP Engines (1996-1998)
• For plastic flywheel ring gears ONLY

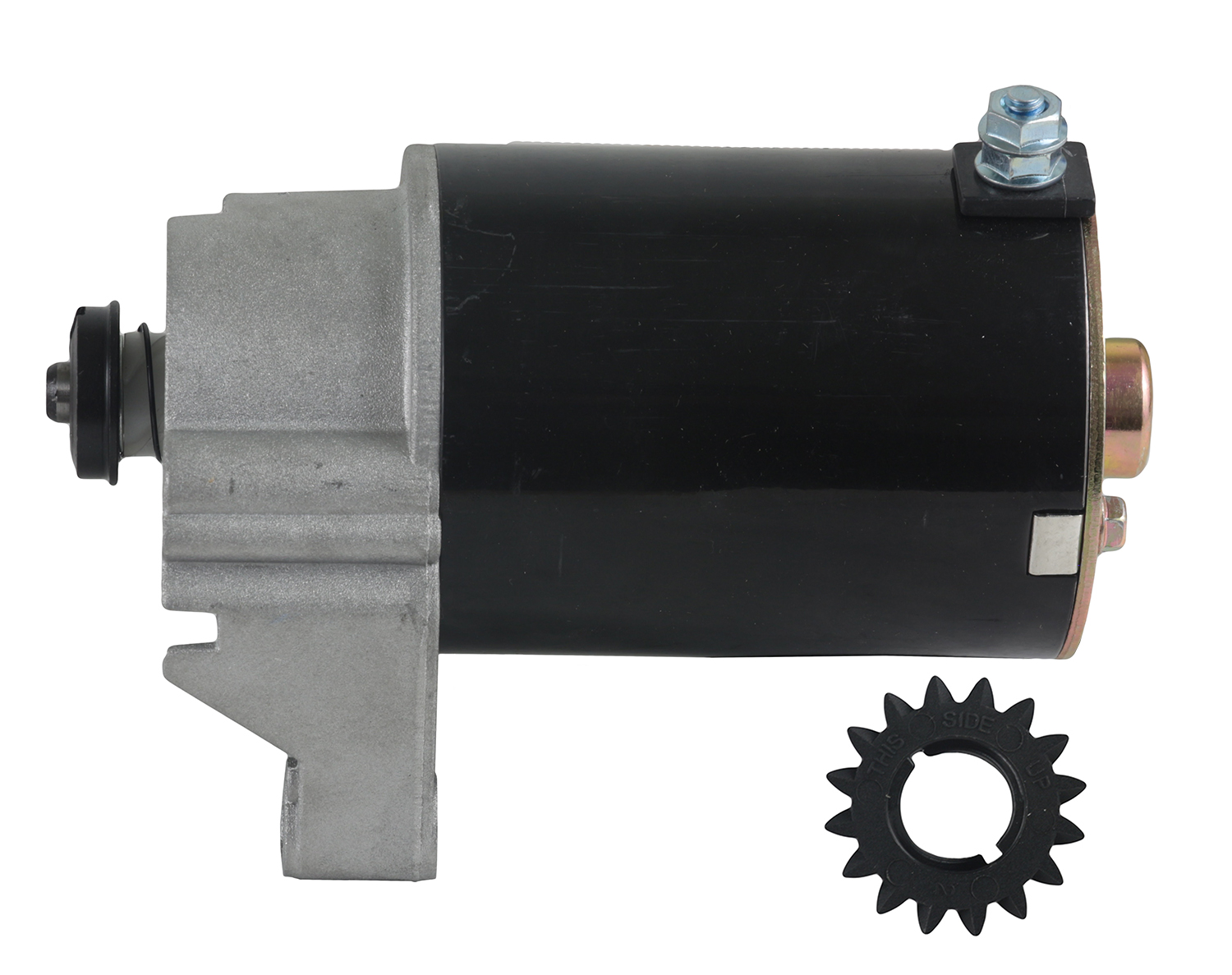

12V PMDD Starter Motor — Briggs & Stratton V-Twin 14-18HP
Direct OEM replacement 12V PMDD starter motor with 3.8-inch field case and plastic pinion gear for Briggs & Stratton air-cooled V-Twin 14-18HP engines. 16-tooth CCW rotation. Fits Cub Cadet garden and lawn tractors (580, 582, 1604, 1605, 1606, 1610), John Deere 116/116H lawn tractors, 65/66/68 riding mowers, walk-behind commercial mowers (32-52 inch), and Toro 216-5. Ships with extra 16-tooth plastic gear included. Direct replacement for 497596, 393017, 394674, 394808, AM38984, AM39287, LG497596.

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

CUB CADET GARDEN TRACTORS:
• 580 16HP Gas (1982-1984)
• 582 16HP Gas (1979-1984)
• 1604 16HP Gas (1985-1986)
• 1606 16HP Gas (1985-1986)

CUB CADET LAWN TRACTORS:
• 1605 16HP Gas (1985-1986)
• 1610 16HP Gas (1985-1986)

JOHN DEERE LAWN TRACTORS:
• 116 (1982-1985)
• 116H (1983-1985)

JOHN DEERE RIDING MOWERS:
• 65 / 66 / 68

JOHN DEERE WALK-BEHIND COMMERCIAL MOWERS:
• 32 Inch / 36 Inch / 48 Inch / 52 Inch Commercial Models
• Various Models with 16HP Briggs & Stratton Engines

TORO LAWN TRACTORS:
• 216-5 Tractor 16HP (1985-1987)

BRIGGS & STRATTON V-TWIN ENGINES:
• Air Cooled 14HP Horizontal (1996-1998)
• Air Cooled 14HP Vertical (1996-1998)
• Air Cooled 16HP Horizontal (1996-1998)
• Air Cooled 18HP Horizontal
• Engine Series: 204332, 400707, 401707, 402437, 404437, 40A777
• Engine Series: 422432, 422435, 422437, 422442, 422445, 422707, 422777
• Engine Series: 42A707, 42A777, 42B707, 42D707, 42D777
• Engine Series: 42E707, 42E777, 460777, 461707, 462707, 463707

IMPORTANT: For use with plastic flywheel ring gears ONLY — will NOT fit steel ring gears. Verify OEM part number from your original unit before ordering.
