Product Type: Piston Kit |
Replaces: |
  • Source: Aftermarket

OEM Grade Piston Kit .25mm Over KFX400 LT-Z400 DVX 400 398cc 13001-S006

Replaces Part Numbers & Specifications

OEM CROSS-REFERENCE PART NUMBERS:
• Kawasaki: 13001-S006 (piston)
• Kawasaki: 13002-S006 (piston pin)
• Kawasaki: 13008-S008 (ring set)
• Suzuki: 12111-29F00-0F0 (piston)
• Suzuki: 12140-29F00 (ring set)
• Arctic Cat: 3402-846 (piston)
• Arctic Cat: 3402-847 (ring set)
• Arctic Cat: 3502-011

SPECIFICATIONS:
• Bore Size: 90.25mm
• Oversize: .25mm Over
• Standard Bore: 90mm
• Stroke: 62.6mm
• Displacement: 398cc
• Engine: Liquid-Cooled 4-Stroke DOHC Single Cylinder
• Compression Ratio: 11.3:1
• Valves Per Cylinder: 4
• Carburetor: Mikuni BSR36
• Material: Cast Aluminum Alloy

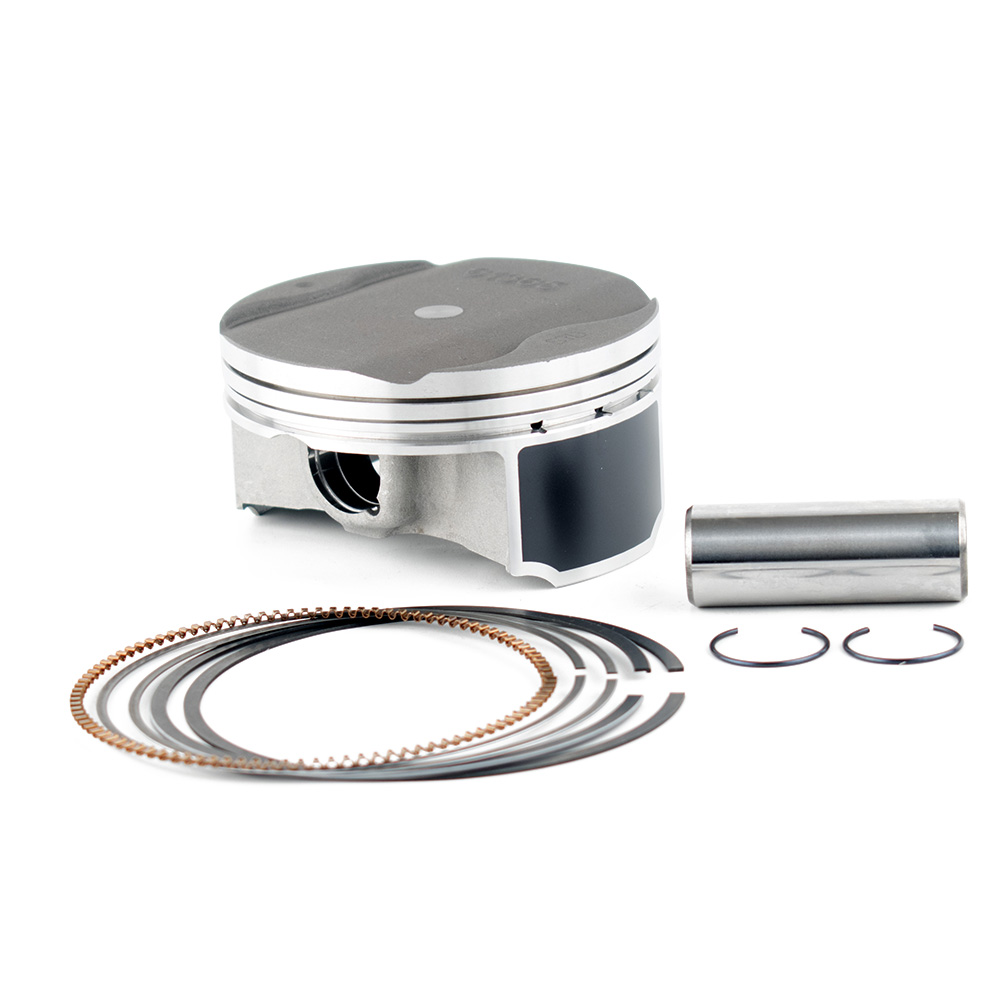

• Kit Contents: Piston, Rings, Wrist Pin, Circlips

COMPATIBILITY:
• 2003-2006 Kawasaki KFX400 ATV
• 2003-2004 Kawasaki KLX400R Dual-Sport
• 2003-2014 Suzuki LT-Z400 QuadSport Z400 ATV
• 2000-2024 Suzuki DRZ400 Dual-Sport
• 2004-2008 Arctic Cat DVX 400 ATV

Product Notice

As a parts distributor we mostly sell aftermarket parts (any OEM parts would be noted as such). Aftermarket parts are not sourced from the original vehicle or equipment manufacturer, but are designed to function the same as - if not better than - the original. All parts sold are new.

ATV SPORT QUAD APPLICATIONS:

KAWASAKI KFX400:
• Kawasaki KFX400 KSF400A ATV (2003-2006)
• 398cc Liquid-Cooled DOHC 4-Stroke Single Cylinder
• Standard Bore: 90mm x 62.6mm Stroke
• Compression Ratio: 11.3:1
• Transmission: 5-Speed with Reverse
• Drive: Chain

SUZUKI LT-Z400 QUADSPORT Z400:
• Suzuki LT-Z400 QuadSport Z400 2x4 ATV (2003-2014)
• Suzuki LT-Z400 QuadSport Z400 Limited Edition (2003-2012)

ARCTIC CAT DVX 400:
• Arctic Cat DVX 400 ATV (2004-2008)
• Arctic Cat DVX 400 Tony Stewart Edition (2006-2007)

DUAL-SPORT AND MOTORCYCLE APPLICATIONS:

KAWASAKI KLX400:
• Kawasaki KLX400R Dual-Sport (2003-2004)
• Kawasaki KLX400SR Dual-Sport (2003)

SUZUKI DRZ400:
• Suzuki DRZ400 Dual-Sport (2000-2024)
• Suzuki DRZ400E Enduro (2000-2007)
• Suzuki DRZ400S Dual-Sport (2000-2023)
• Suzuki DRZ400SM Supermoto (2005-2023)

NOTES:
• Bore Size: 90.25mm
• Oversize: .25mm Over
• All models share same 90mm bore x 62.6mm stroke engine block
• Verify OEM part number before ordering
