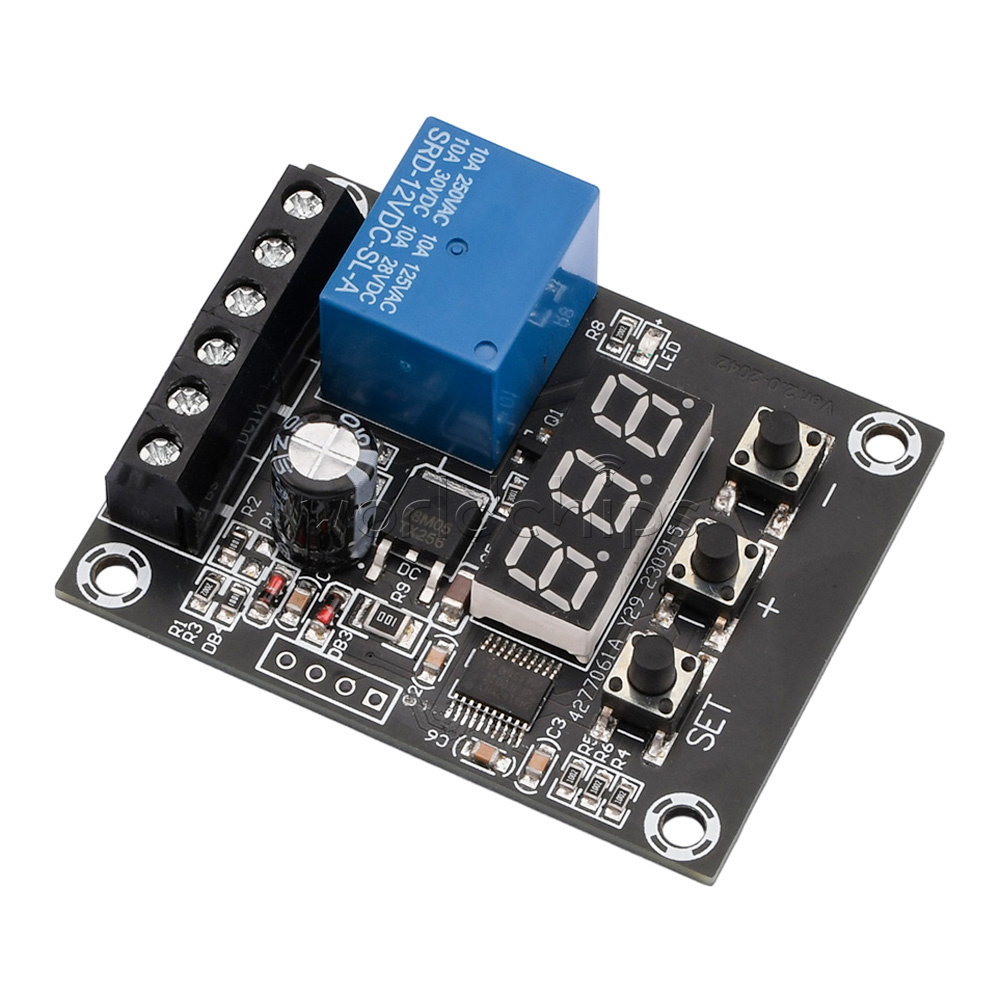

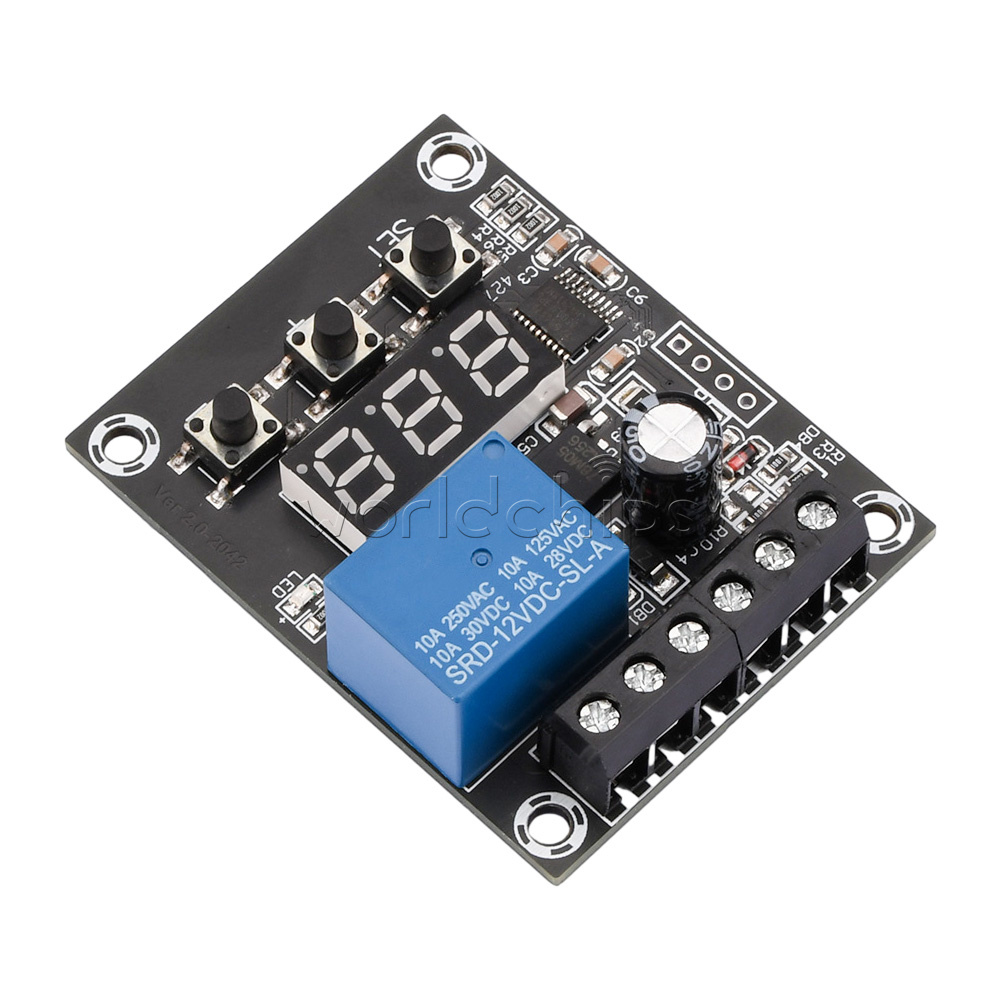

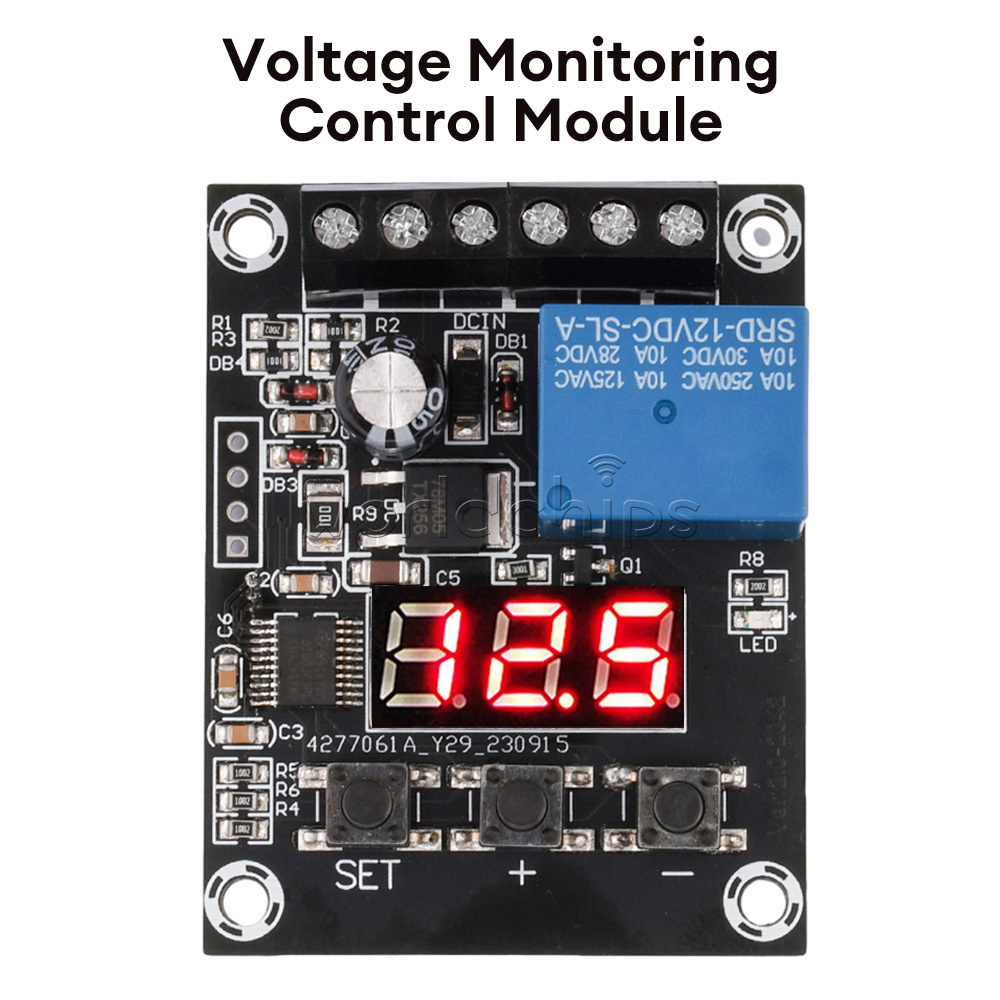

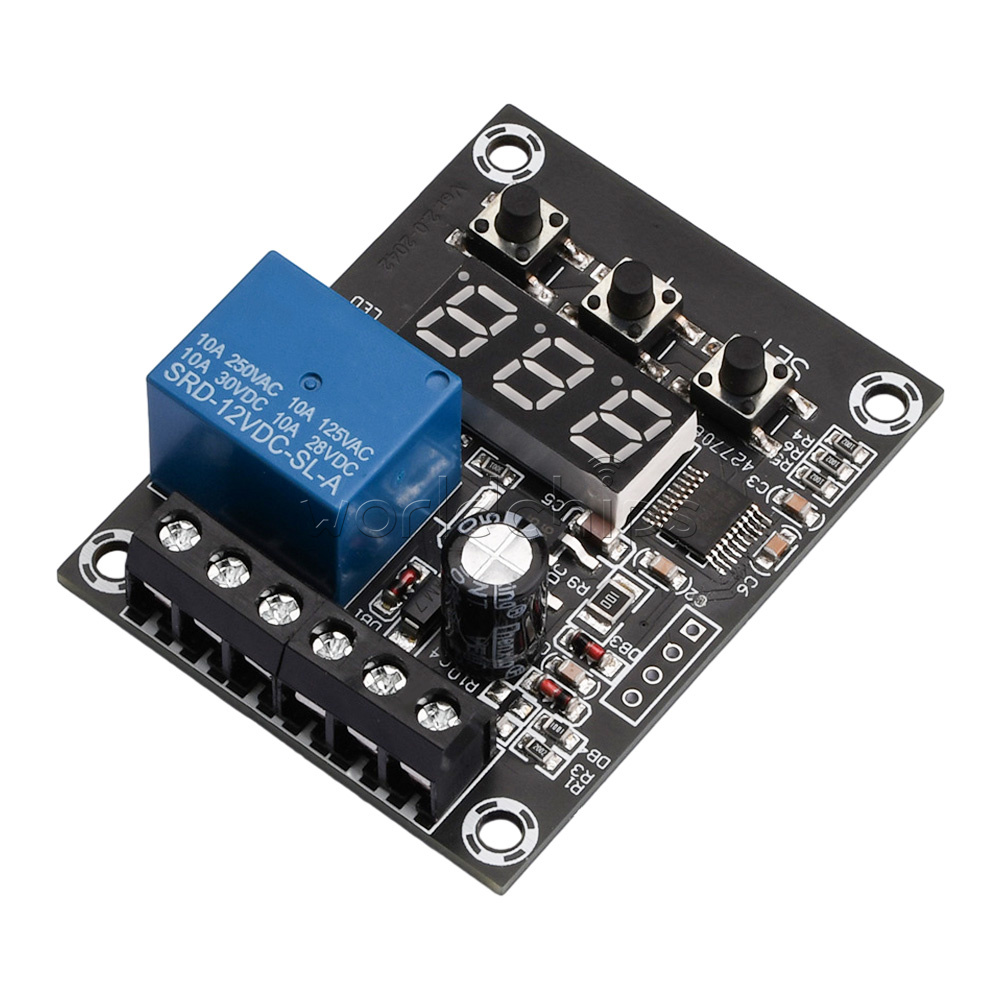

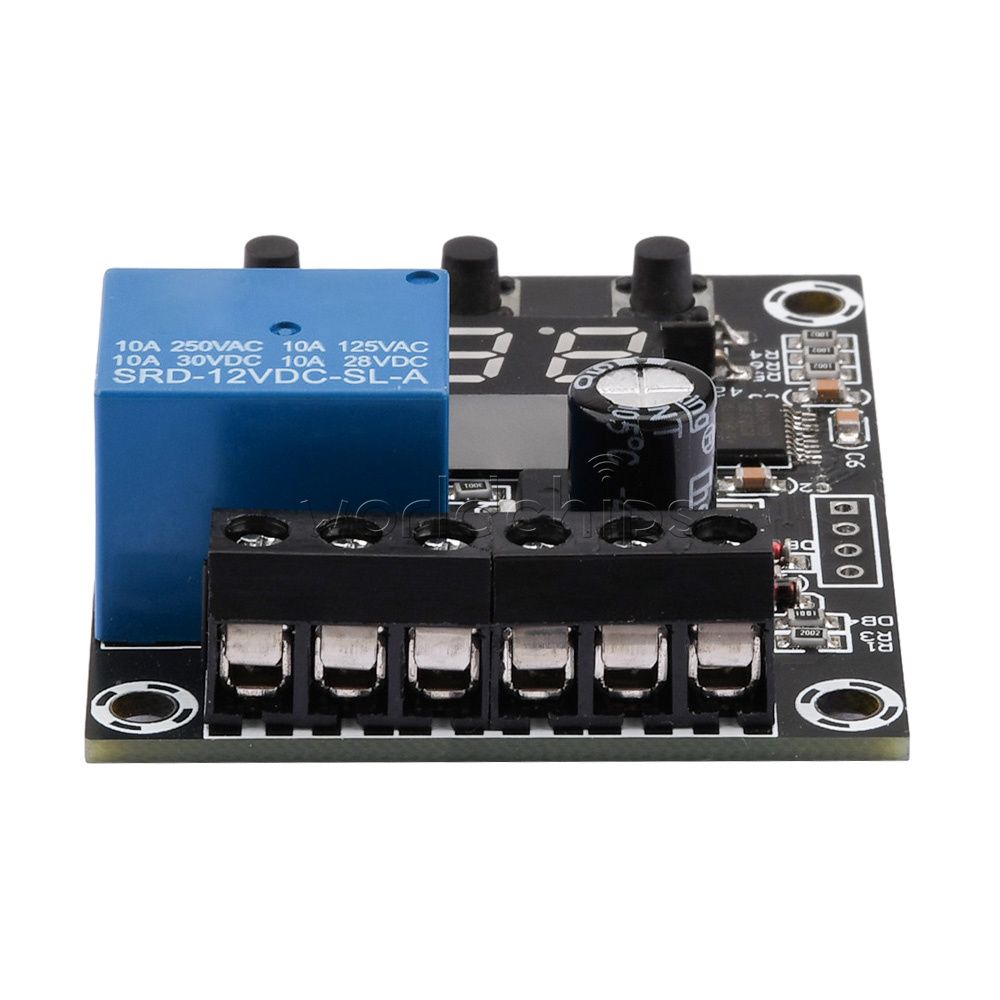

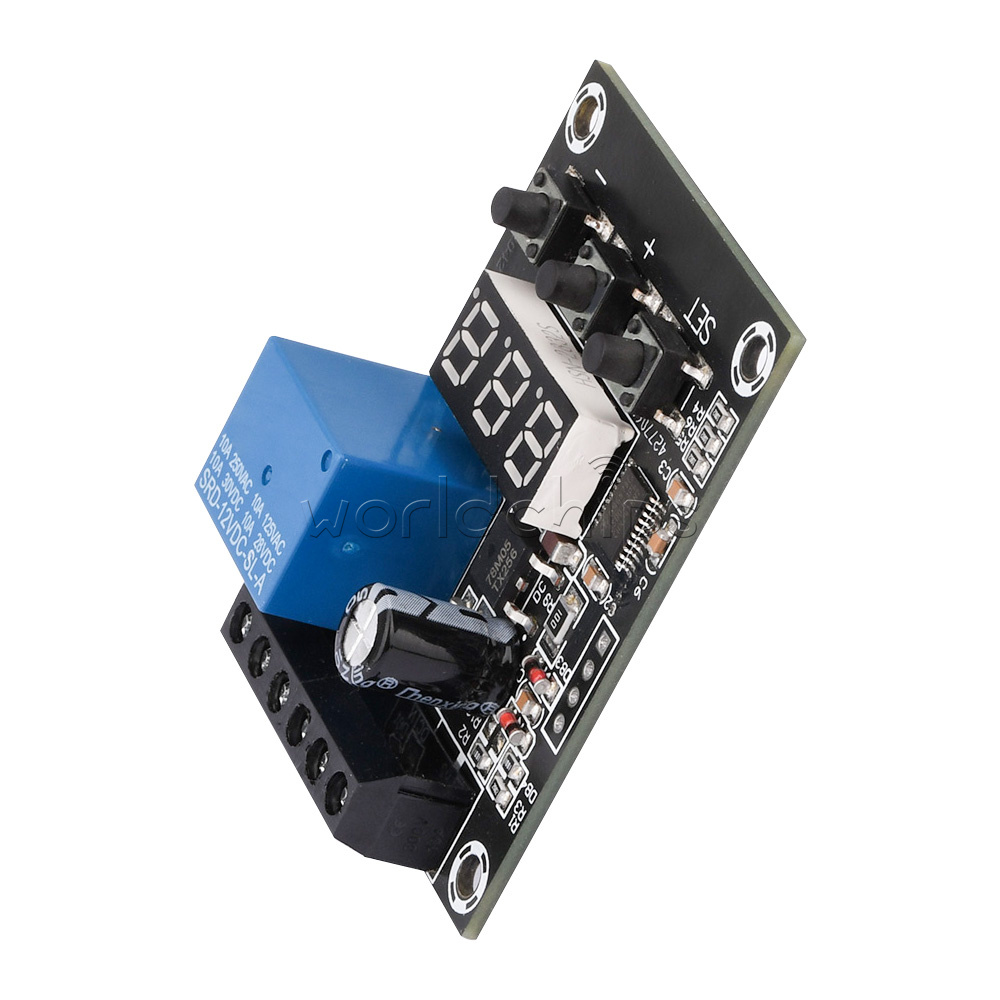

Product features:
1. Powerful, with a detection range of DC 0-99.9V and a minimum of 0.1V adjustable;
2. Multiple protection functions, including charging protection, discharge protection, overvoltage protection, and undervoltage protection;
3. Fixed point pulse, stable performance;
4. Compact appearance, powerful function, and charge and discharge control;
5. Multiple specifications are available, with options of 7-9V/12V/24V, which can be used with various voltage products.
Product parameters:
Color: Black
Detection voltage range: 0-99.9V (minimum 0.1V adjustable)
Working voltage: DC7-9V/12V/24V optional
Maximum current of relay contact: 12A (please leave some margin for use)
Product size: 56mm * 44mm

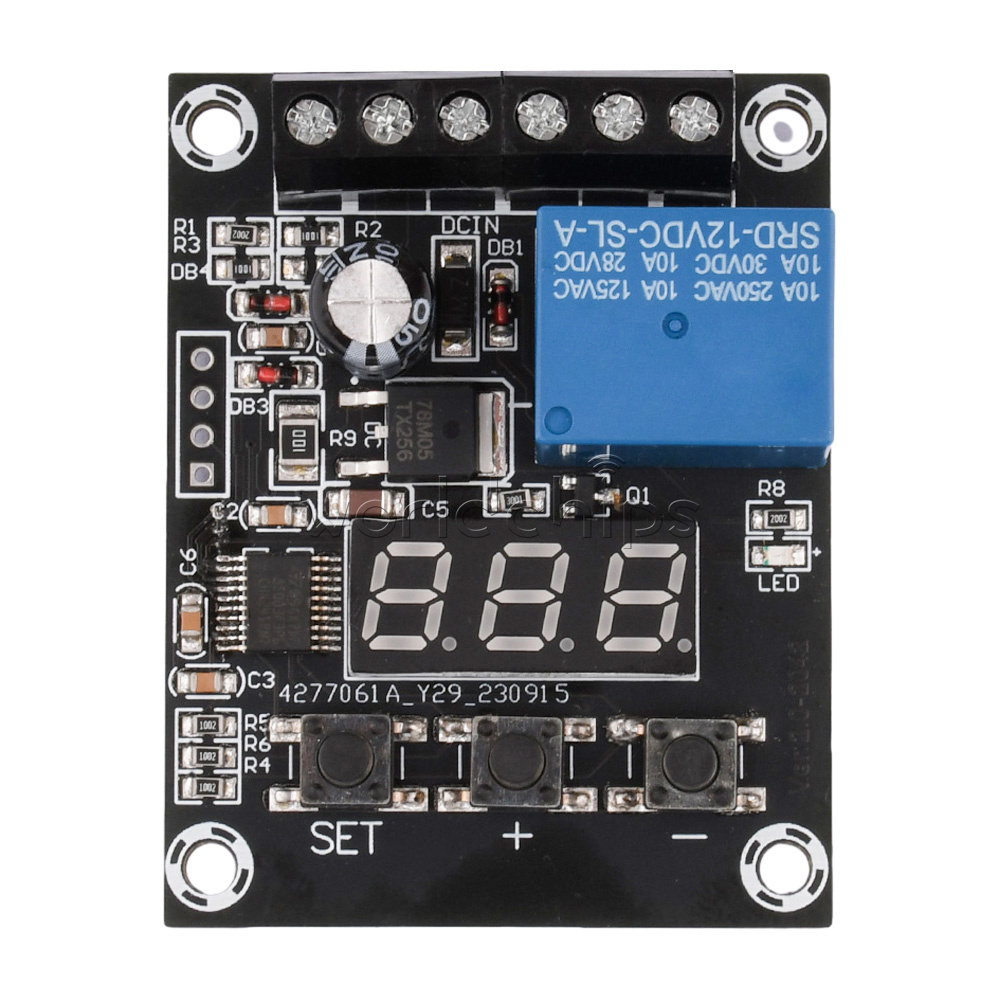

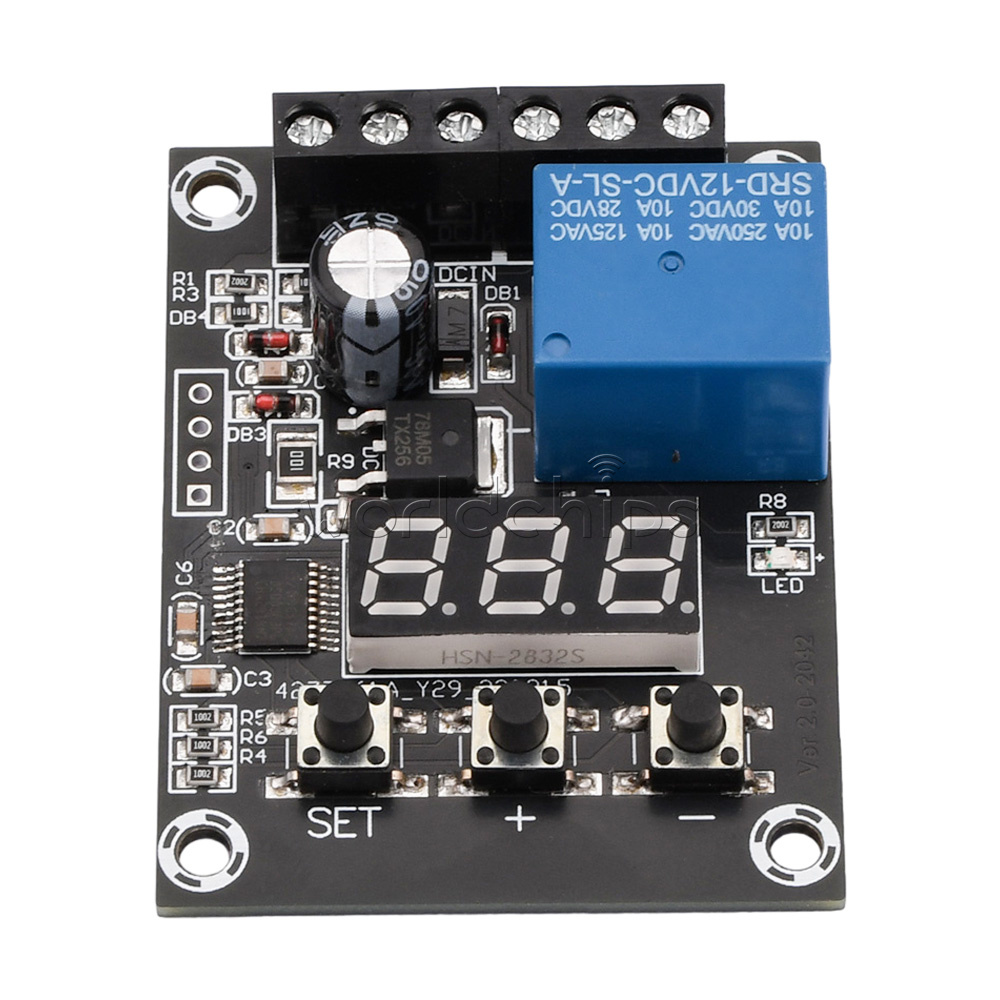

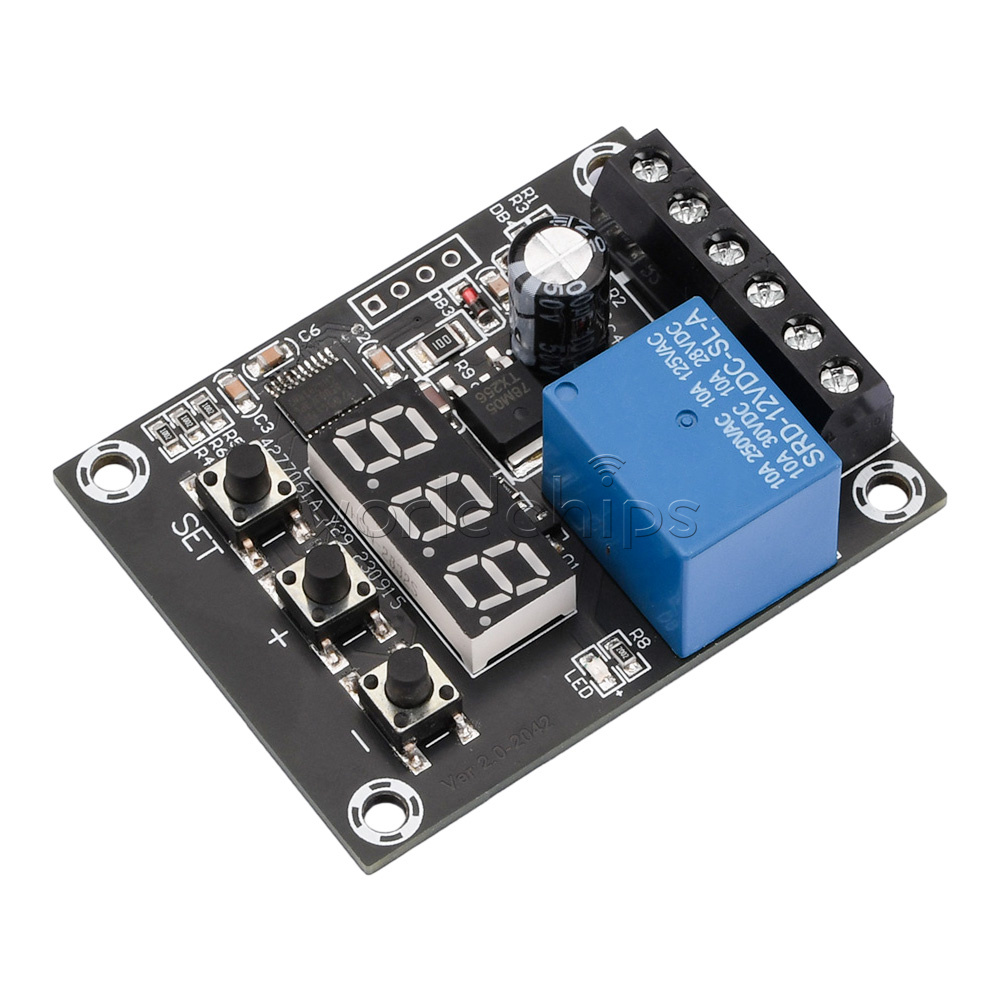

Introduction to operation:

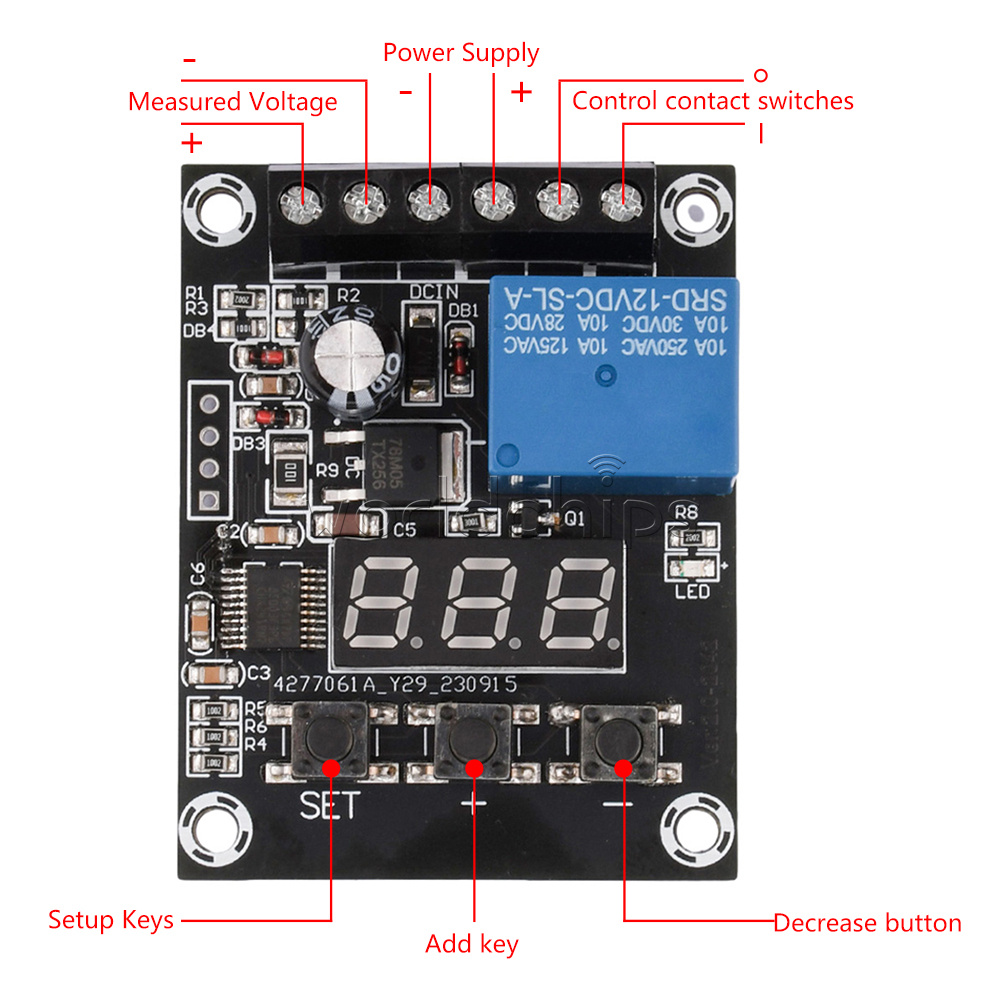

1. In a non set state, press the SET key briefly to cycle through the display: Work mode ->Lower limit voltage ->Upper limit voltage.
2. In a non setting state, press the Changan SET key for 2 seconds to enter the parameter setting state; The display shows F01, press the+- key to select the parameters to be set, such as F01 (upper limit voltage), F02 (lower limit voltage), F03 working mode, and F04 voltage calibration value.
3. After selecting the parameters to be set, briefly press the SET key to enter the parameter setting state. Press the+- key to adjust. When the lower limit voltage is greater than or equal to the upper limit voltage, the display will display an Err for 1 second, prompting the user. When the lower limit voltage is equal to the upper limit voltage, turn off the relay output function.
After setting the parameter values, briefly press the SET key to return to the parameter list.
After setting the parameters, press and hold SET for 2 seconds to exit and save the parameters.
6. In a non setting state, press and hold the SET and+keys for 2 seconds to restore the factory settings.
7 long press - turn off or on the digital tube display energy-saving mode

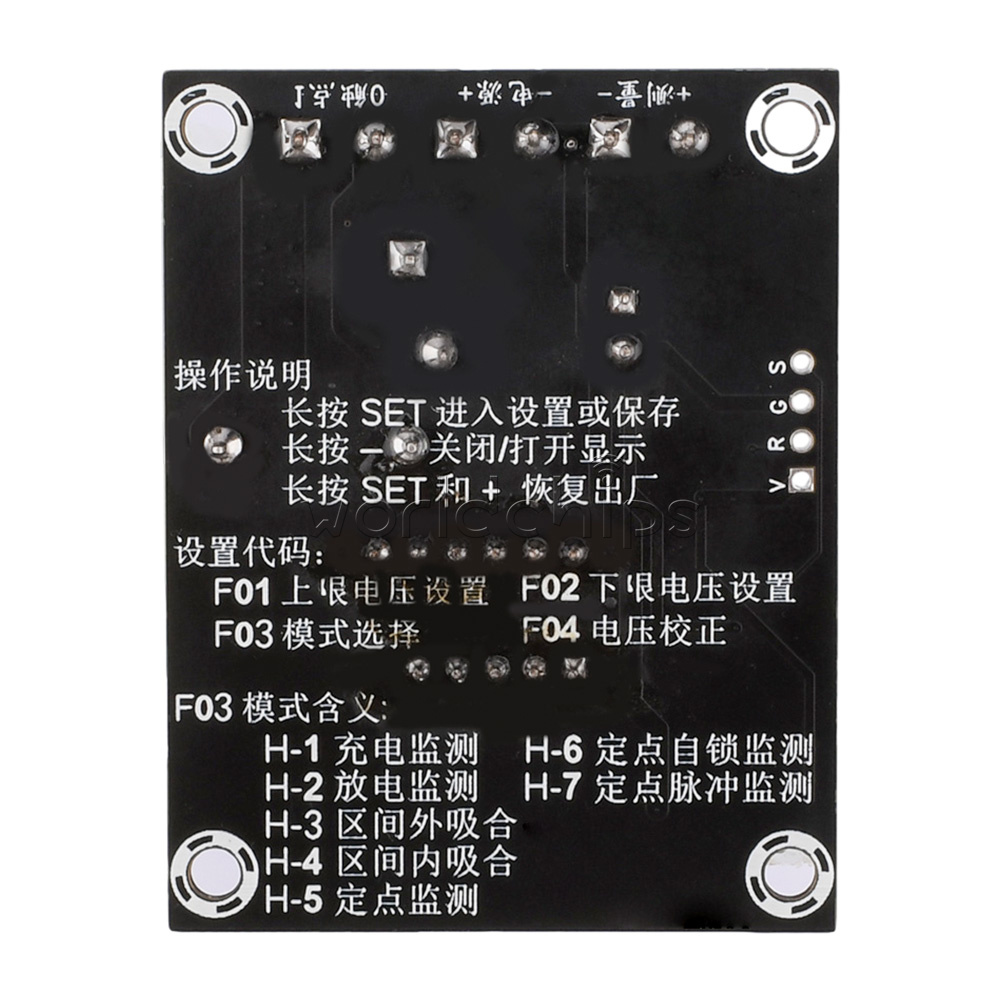

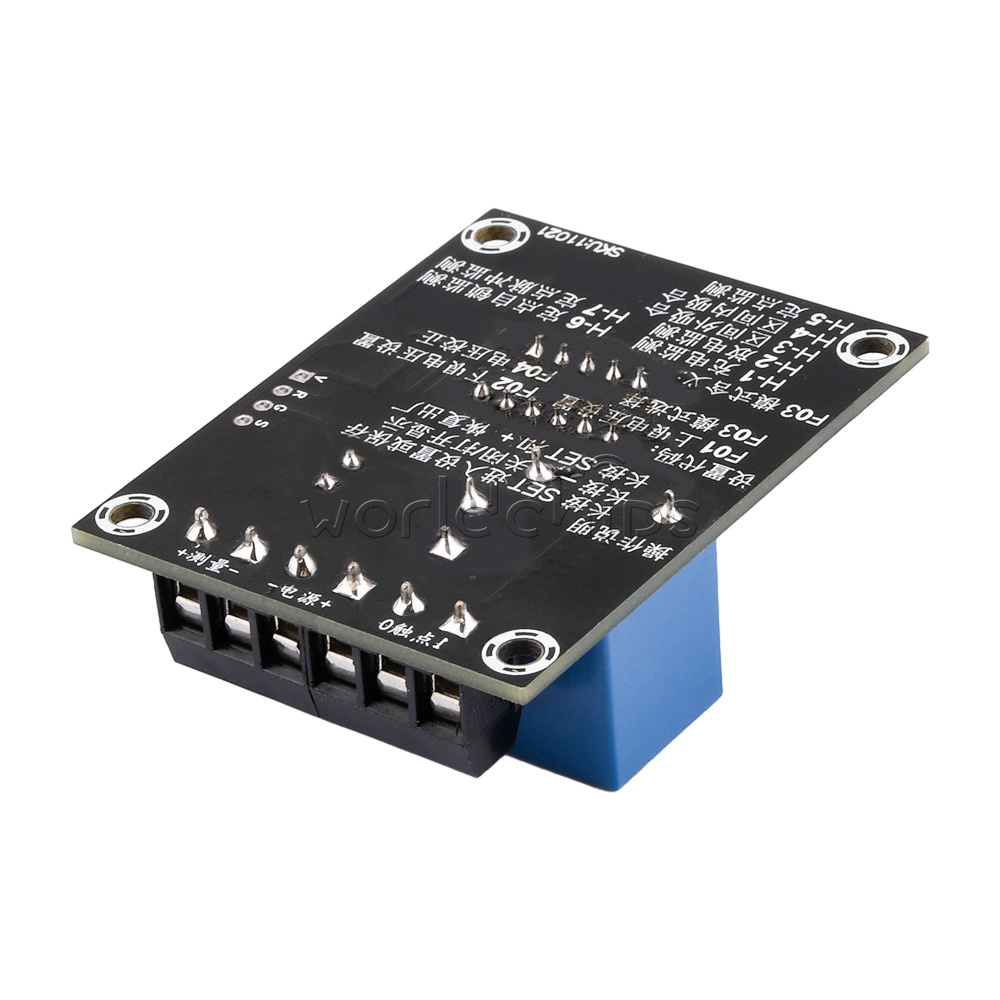

Explanation of settings:
F03 working mode not set
Long press SET to select F03 working mode,+and - to select the desired function, then long press SET to save and exit
Please note that before setting this parameter, please set the upper and lower voltage as needed
H-1, Charging monitoring: When the monitoring voltage is lower than the lower limit voltage, the relay is engaged, and when the voltage is higher than the upper limit voltage, it is disconnected
H-2, discharge monitoring: When the monitoring voltage is higher than the upper limit voltage, the relay is closed and the lower limit voltage is disconnected
H-3 interval external pull-in: When the monitoring voltage is between the upper limit voltage and the lower limit voltage, the relay is disconnected, and the relay in other states is pulled in
Pull in within H-4 range: When the monitoring voltage is between the upper and lower limit voltage, the relay will pull in and disconnect in other states
H-5 fixed point monitoring: When the monitoring voltage is higher than the lower limit voltage, the relay is closed, and the relay is disconnected below the lower limit voltage
H-6 fixed point self-locking monitoring: When the monitoring voltage is higher than the lower limit voltage, the relay will always remain engaged until manual intervention or power outage occurs
H-7 fixed point pulse monitoring: When the monitoring is equal to the lower limit voltage (± 0.1V) each time, the relay outputs a jog signal
F04 calibration mode is not in the set state, long press the SET key to enter,+- select
The default is 0 error. If you need to adjust it as needed,
For example, if the actual input voltage is 12.5V and the module displays 12.4V, the error can be corrected here to 0.1V, which means 12.4+0.1=12.5
For example, if the actual input voltage is 12.5V and the module displays 12.6V, the error can be corrected here to -0.1V, which means 12.6-0.1=12.5
Attention:
A customer reported unstable detection and found that they had detected AC voltage. Do not use it to detect AC voltage, as it may cause instability or even burn out the board. Pulsating DC is also prone to fluctuations (DC electrical signals that are directly rectified without filtering). Pure DC signals should be detected, remember! Otherwise, you will bear the consequences!
Product List:
1X module
