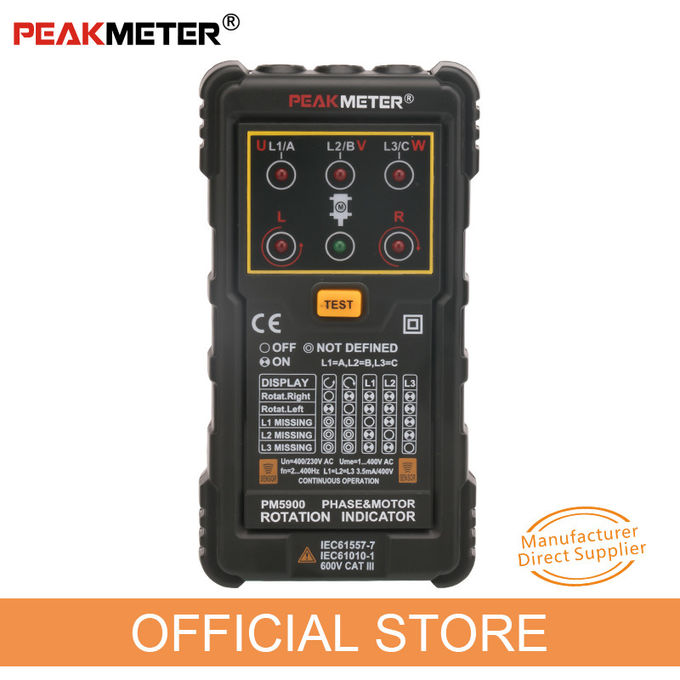

Three Phase Rotation Indicators Tester MulitiMeter With 3 Phase System Testing



This phase sequence indicator is a durable, reliable and lightweight handheld device that is an essential tool for those who frequently install, repair or maintain three-phase systems or motors.

Brand: PEAKMETER

Model: PM5900(MS5900)( These two models all are from Peakmeter)

Maximum operating voltage: 400V AC voltage

Nominal voltage (rotation direction test) : 2~400V AC voltage, 2~400Hz

Nominal voltage (phase sequence test) : 120~400V AC voltage, 2~400Hz

Test current (per phase) : <3.5mA

Battery: 3 1.5V AA batteries (not included)

Temperature:

Operating: 0~40℃, maximum relative humidity 80% (non-condensing)

Storage: -10~50℃, maximum relative humidity 80% (non-condensing, without battery)

Altitude: <2000m(m)

Explosion-of type: IP 40

Weight: 442 g (approx.)



SPECIFICATIONS	DESCRIPTION
Operating Voltage	120V~400V AC
Current Consumption	≤20mA
Frequency Range	2Hz~400Hz
GENERAL
Power Supply	3×1.5V AA Batteries(Not included)
Product Size	128mm×70mm×30mm
Product Weight	Approx.168g
Safety Rating	EN61010-1,EN61326,CAT.III 600V
