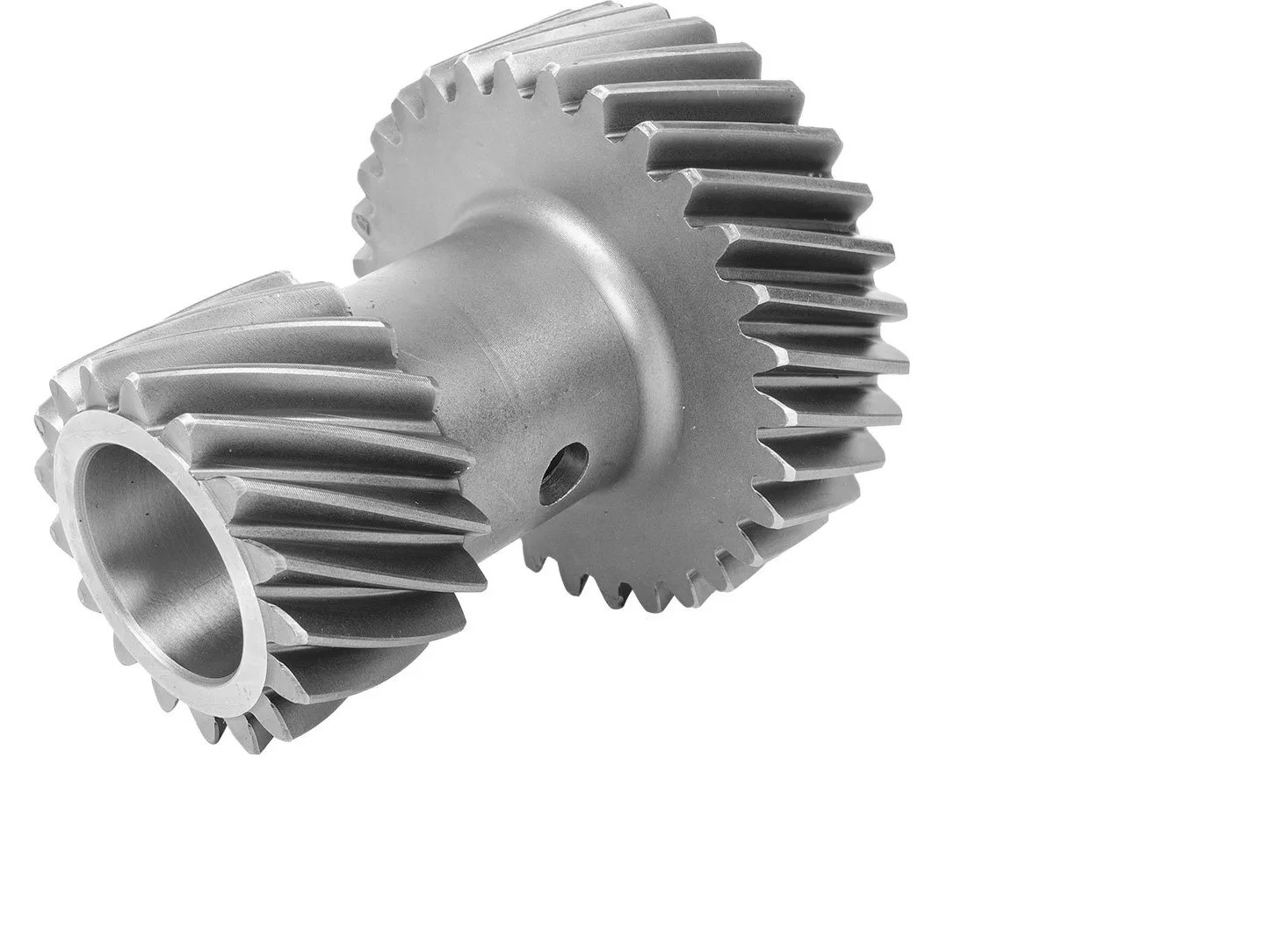

Trail-Creeper™ 3:1 Suzuki Sidekick T-Case Gears



If you want to get the most out of your 1991-2001 Sidekick, Tracker, X-90, or Vitara, you are going to need lower gears. While these vehicles are well rounded off-road machines right off of the assembly line, their paltry 1.8:1 low range is sorely lacking. There is simply nothing worse than hitting the trail and not having enough power to push your oversized tires.


If our Trail-Creeper 4.24:1 T-Case Gears are too low for your application, our 3:1 gears are exactly what you need. Trail-creeper 3:1 T-case gears are constructed out of high quality materials for superior strength and to take the punishment that any trail has to offer. These gears provide a 72% low range reduction from the stock 1.8:1 gears giving you the power and control needed to conquer the most difficult of obstacles. The Trail-Creeper 3:1 T-Case Gears also include Trail-Safe input and output seals. Unlike Samurai gears, Sidekick t-case reduction gears have no affect on the high range ratio.


Why buy Trail-Gear 3:1 Gears?


High Quality Materials

Precision fitting spline fit for long life

72% low range gear reduction for more power and control on the trail


Specifications


Made out of Japanese SCM415 alloy for its great strength and wear resistance

SCM415 outperforms the 8620 material in yield and ultimate tensile strength

High Quality Materials

Precision fitting spline fit for long life

72% low range gear reduction for more power and control on the trail

Includes Trail-Safe input and output seals

New thrust washer provided


Application



4WD All Transmissions


1991 - 1998 Suzuki Sidekick


1991 - 2001 Geo Tracker


1991 - 2001 Chevy Tracker


1995 - 1997 Suzuki X90


1991 Suzuki Vitara


2000 - 2001 Suzuki Vitara





Download 3:1 transfer case gear installation instructions here.


https://trail-gear.com/media/downloads/pdf/instructions/302893-3-INS.pdf
