Features
1.Adopting 1.2MM FR-4 material, circuit board design is reasonable, long service life.
2.Upgraded TYPE-C interface, strong versatility, large fog output, stable performance, simple to use, easy to start operation.
3. Six spray nozzles, support for six spray, dynamic spray, can be single spray, can be multiple spray multiple modes.
4. Module set ready to use, each set of modules with bracket and cotton swabs, easy to assemble.
5.Micron atomization, atomize the water into fine water molecules through the microporous, floating in the air.
2.Upgraded TYPE-C interface, strong versatility, large fog output, stable performance, simple to use, easy to start operation.
3. Six spray nozzles, support for six spray, dynamic spray, can be single spray, can be multiple spray multiple modes.
4. Module set ready to use, each set of modules with bracket and cotton swabs, easy to assemble.
5.Micron atomization, atomize the water into fine water molecules through the microporous, floating in the air.
Specification
Name:Six spray atomization driver board
Material:1.2MM FR-4
Power plug: TYPE-C interface
Rated voltage: DC5V (power supply)
Rated current: 300MA (minimum 2A)
Power:2.5-3W
Atomization frequency:108KHZ±2KHZ
Module: 65*30MM
Bracket: 25*38MM

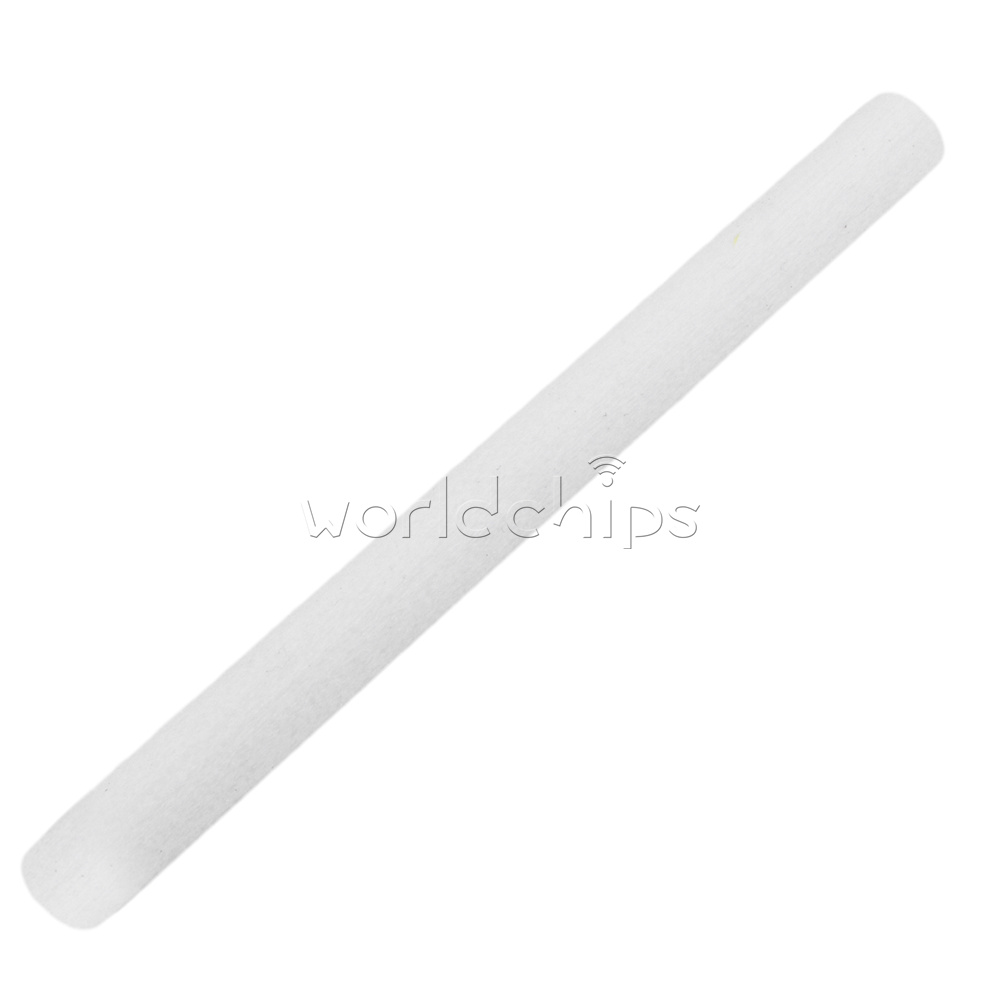

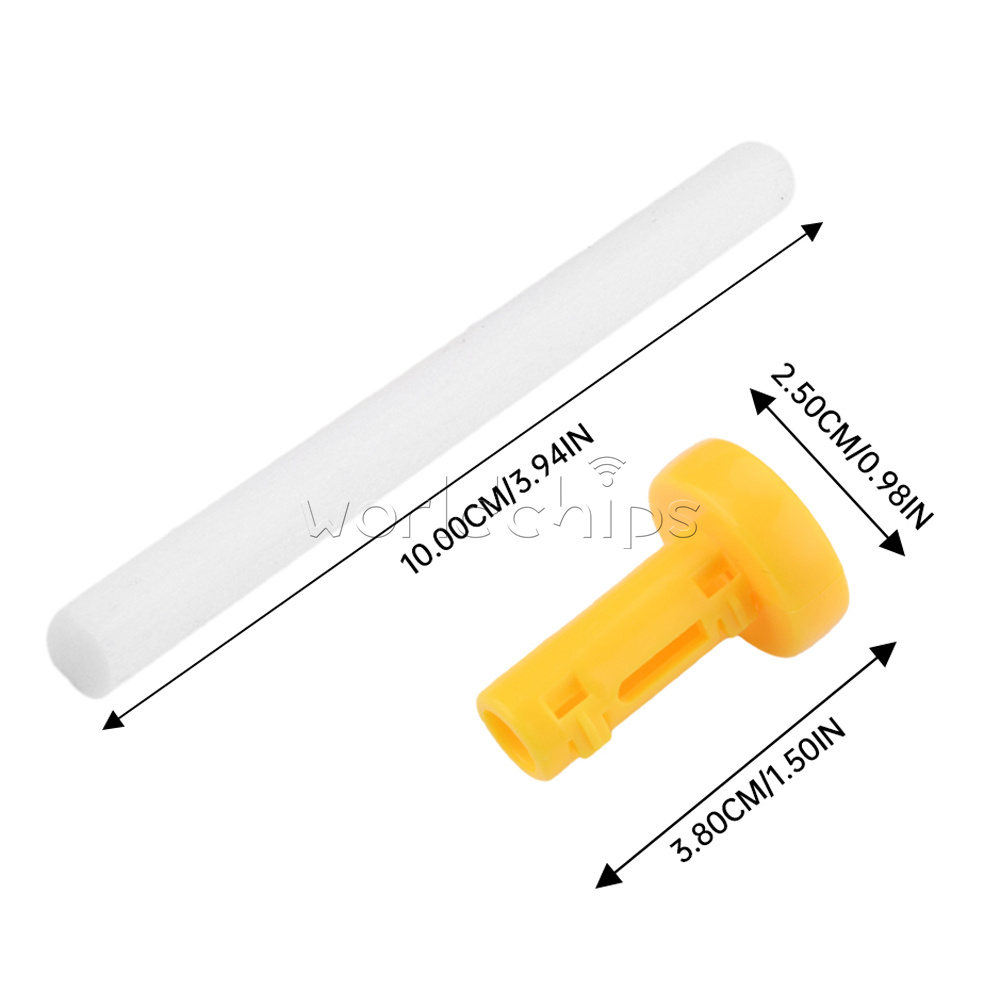

Cotton stick: 8*100MM

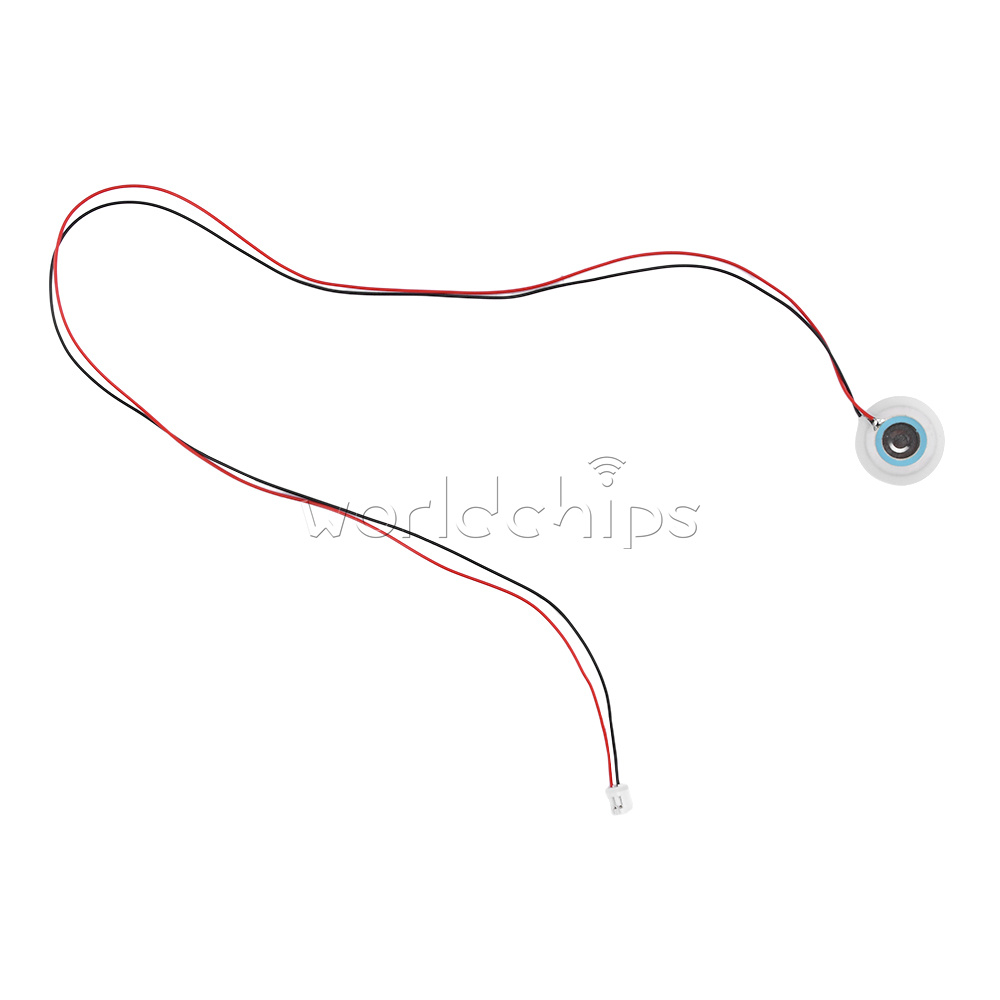

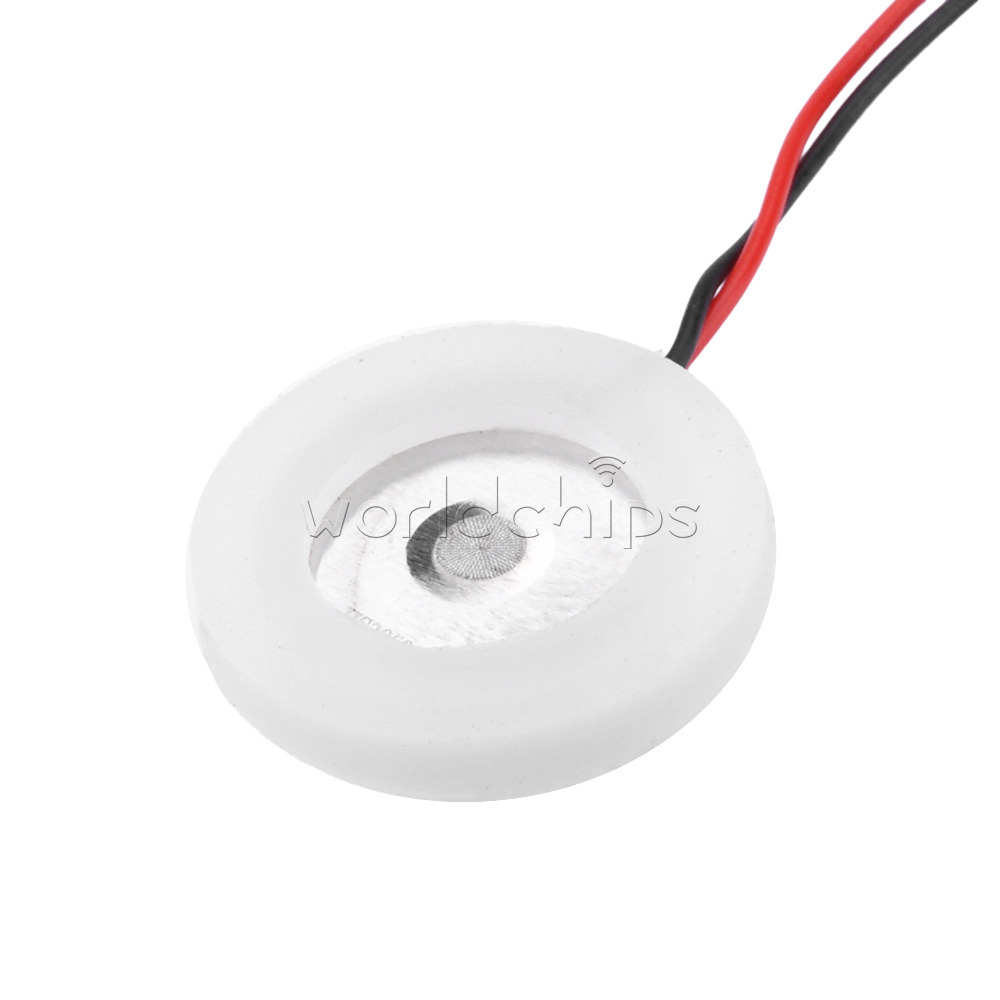

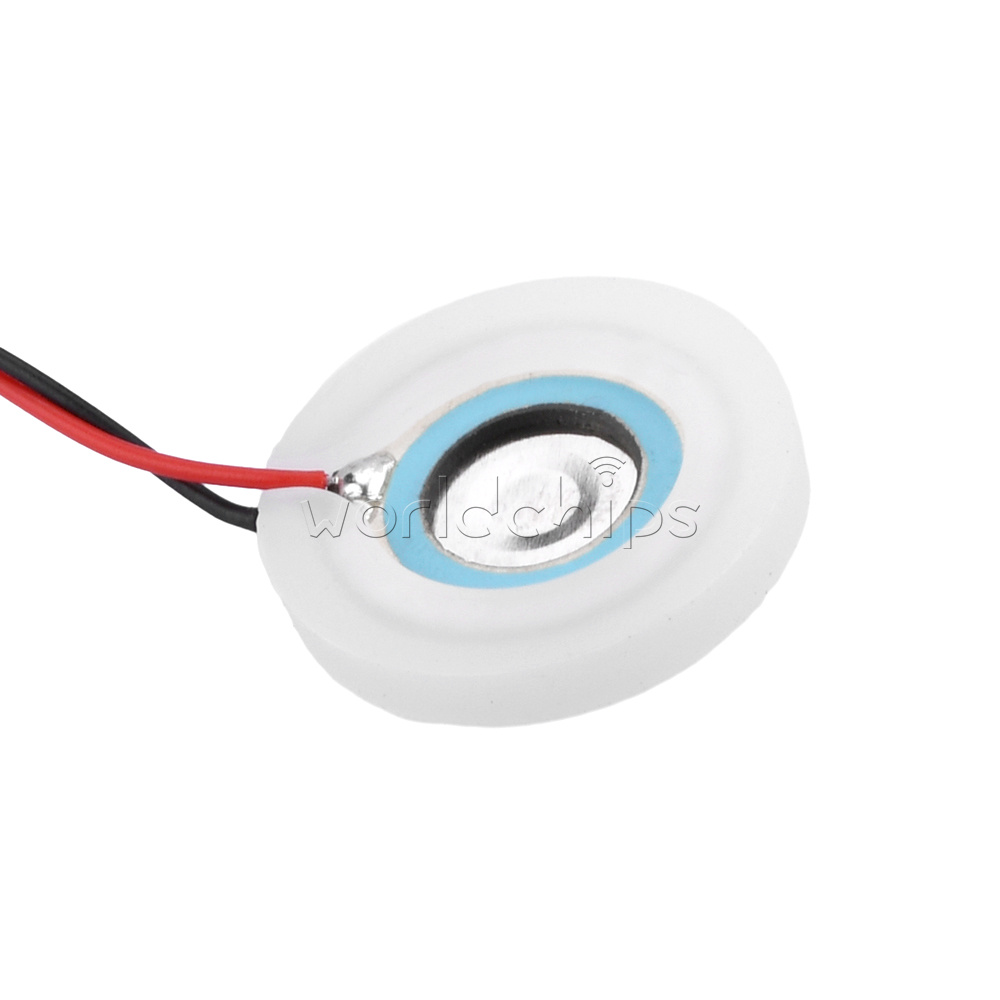

Parameters of atomizing tablets:
Name:Six spray atomizing tablets
Driving voltage:5V
Resonant frequency:108-110KHZ±5
Rated power:2W
Number of holes:1100
Hole diameter: 4-5UM
Outer diameter of the silicone sleeve: 20MM
Thickness of rubber ring:3MM
Diameter of steel plate:16 MM
Wire Length:40CM
Wire terminal: PH2.0
Name:Six spray atomization driver board
Material:1.2MM FR-4
Power plug: TYPE-C interface
Rated voltage: DC5V (power supply)
Rated current: 300MA (minimum 2A)
Power:2.5-3W
Atomization frequency:108KHZ±2KHZ
Module: 65*30MM
Bracket: 25*38MM
Cotton stick: 8*100MM
Parameters of atomizing tablets:
Name:Six spray atomizing tablets
Driving voltage:5V
Resonant frequency:108-110KHZ±5
Rated power:2W
Number of holes:1100
Hole diameter: 4-5UM
Outer diameter of the silicone sleeve: 20MM
Thickness of rubber ring:3MM
Diameter of steel plate:16 MM
Wire Length:40CM
Wire terminal: PH2.0

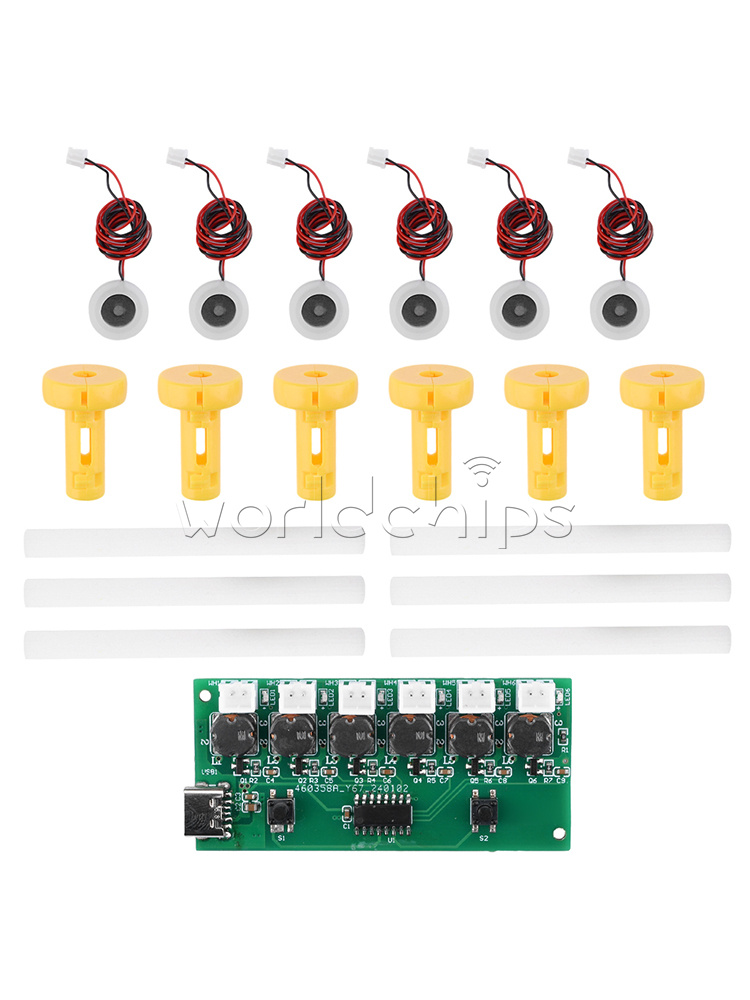

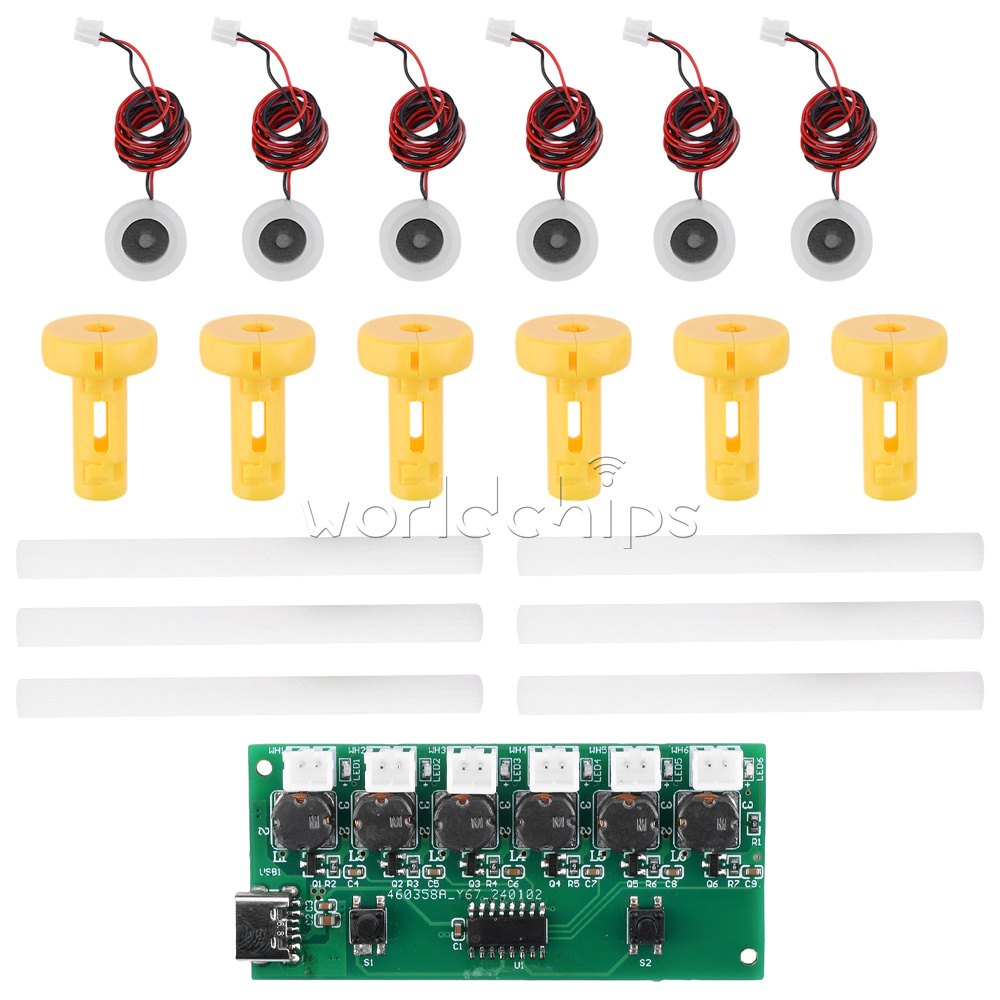

List
1 x Module
6 x Cotton swabs (optional)
6 x Holder (optional)
6 x atomizing pads (optional)
1 x Module
6 x Cotton swabs (optional)
6 x Holder (optional)
6 x atomizing pads (optional)
-
