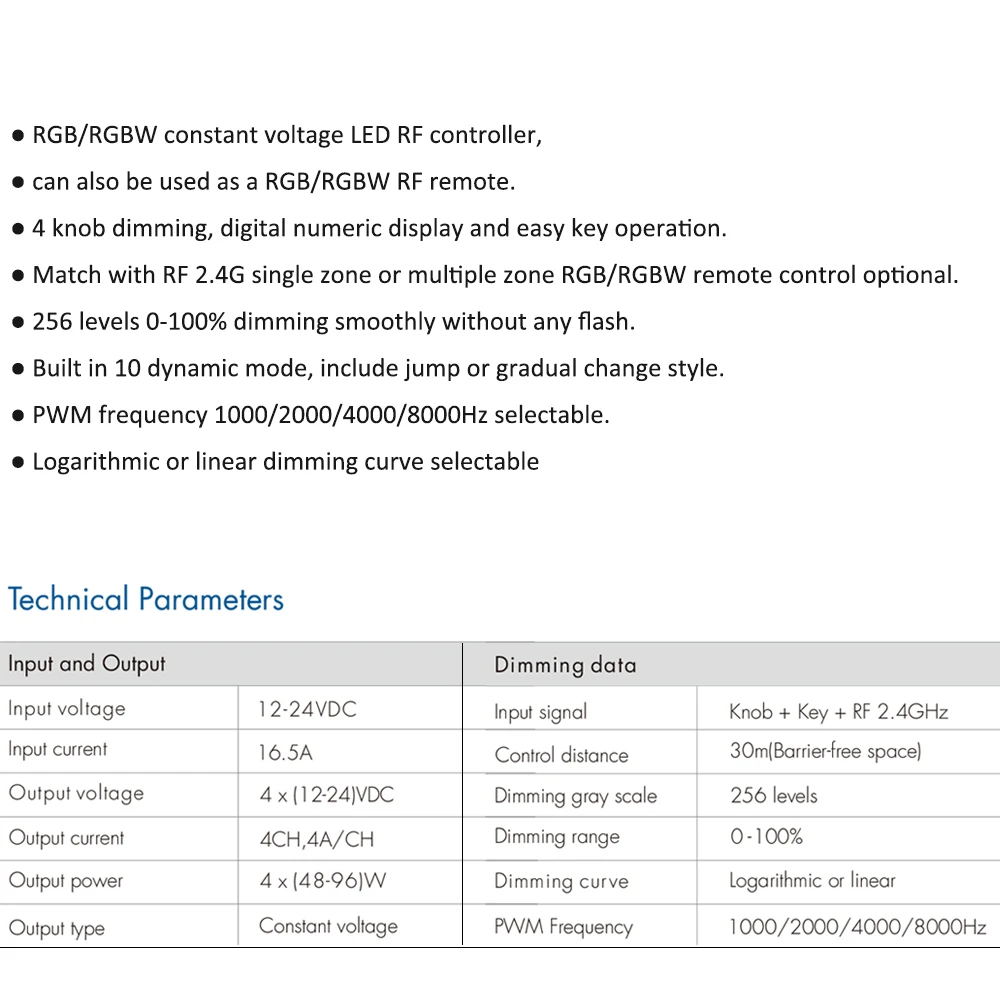

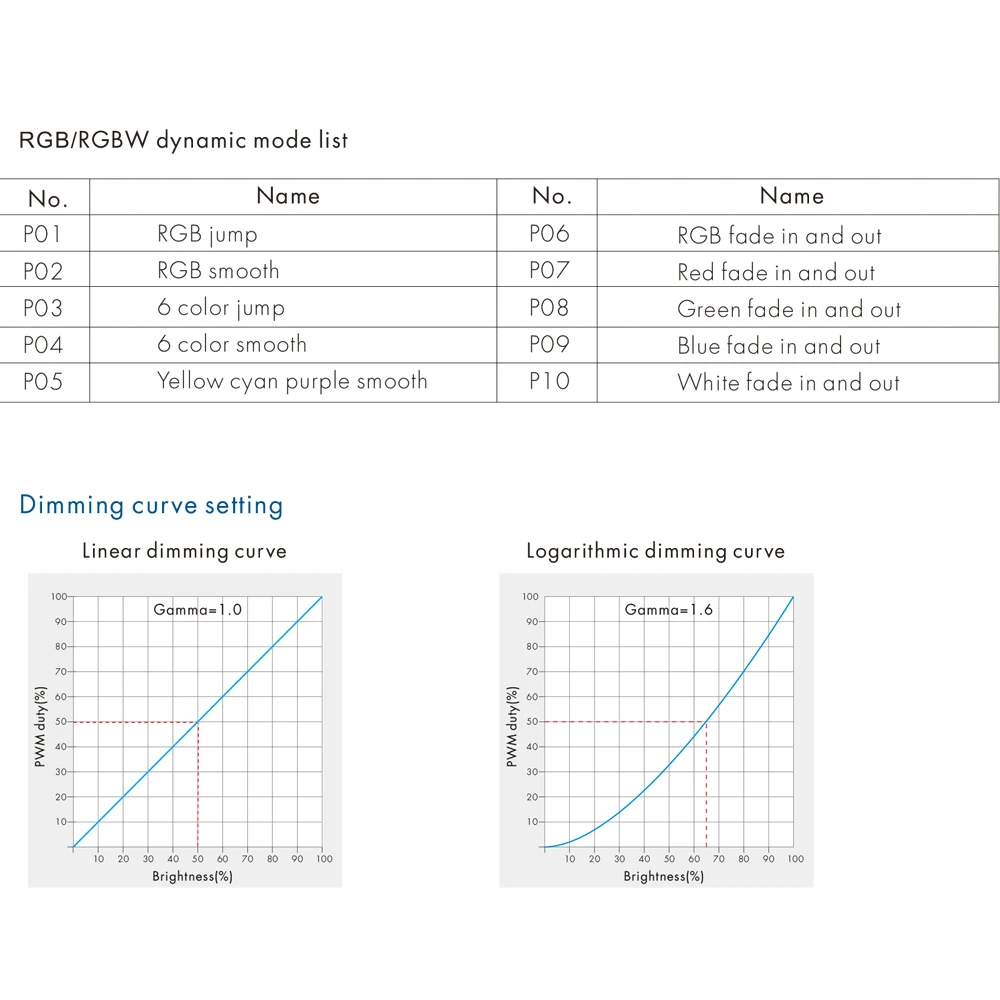

4 Channels /Wireless remote control/Four PWM frequency/Linear or logarithmic dimming/Numeric display



V4-K: 4 Knob RGB/RGBW LED RF Controller

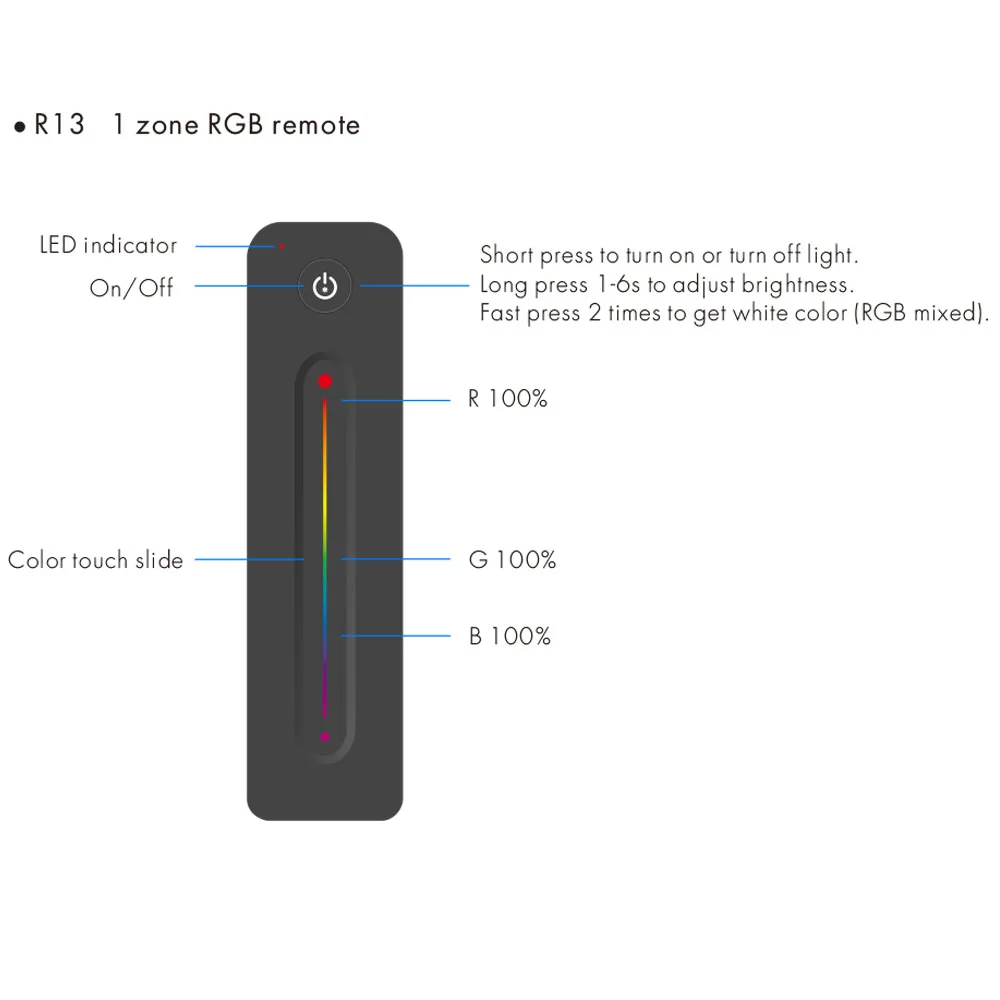

R13: 1zone RGB Remote

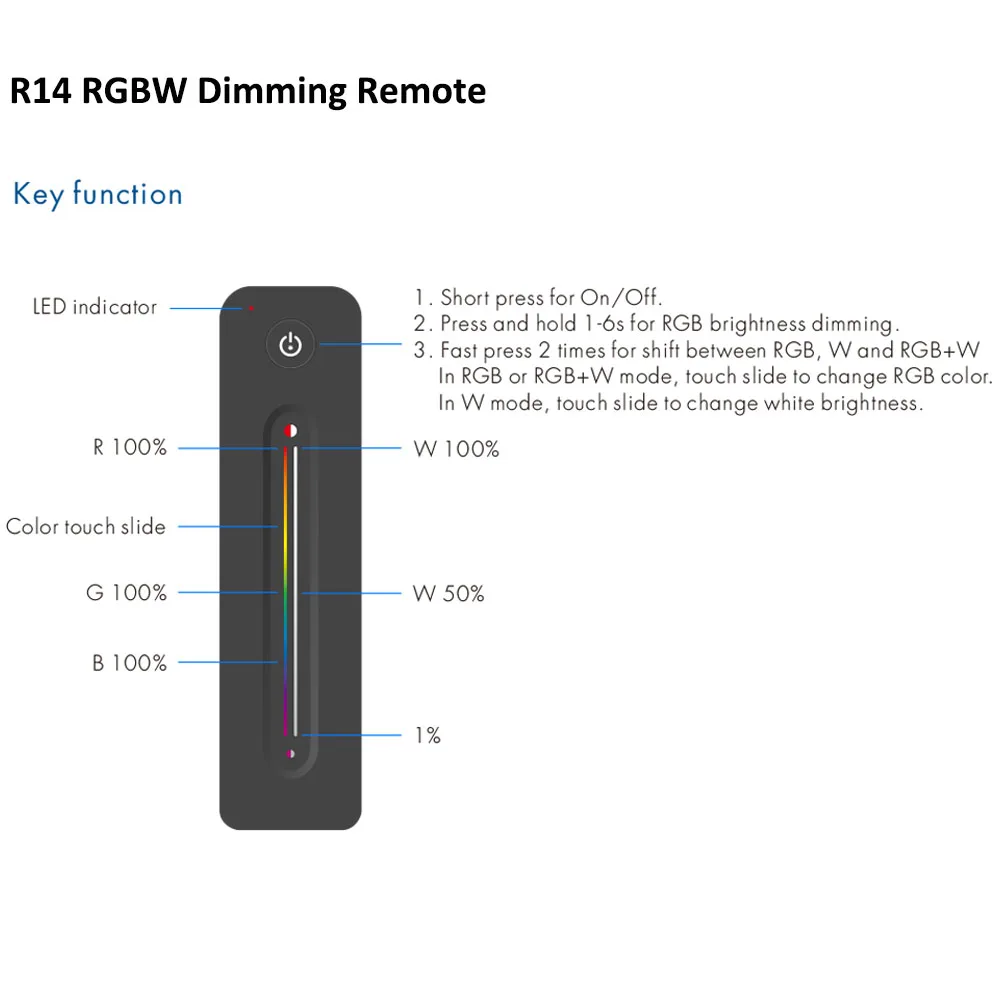

R14: 1zone RGBW Remote

RT4: 1zone RGB/RGBW remote

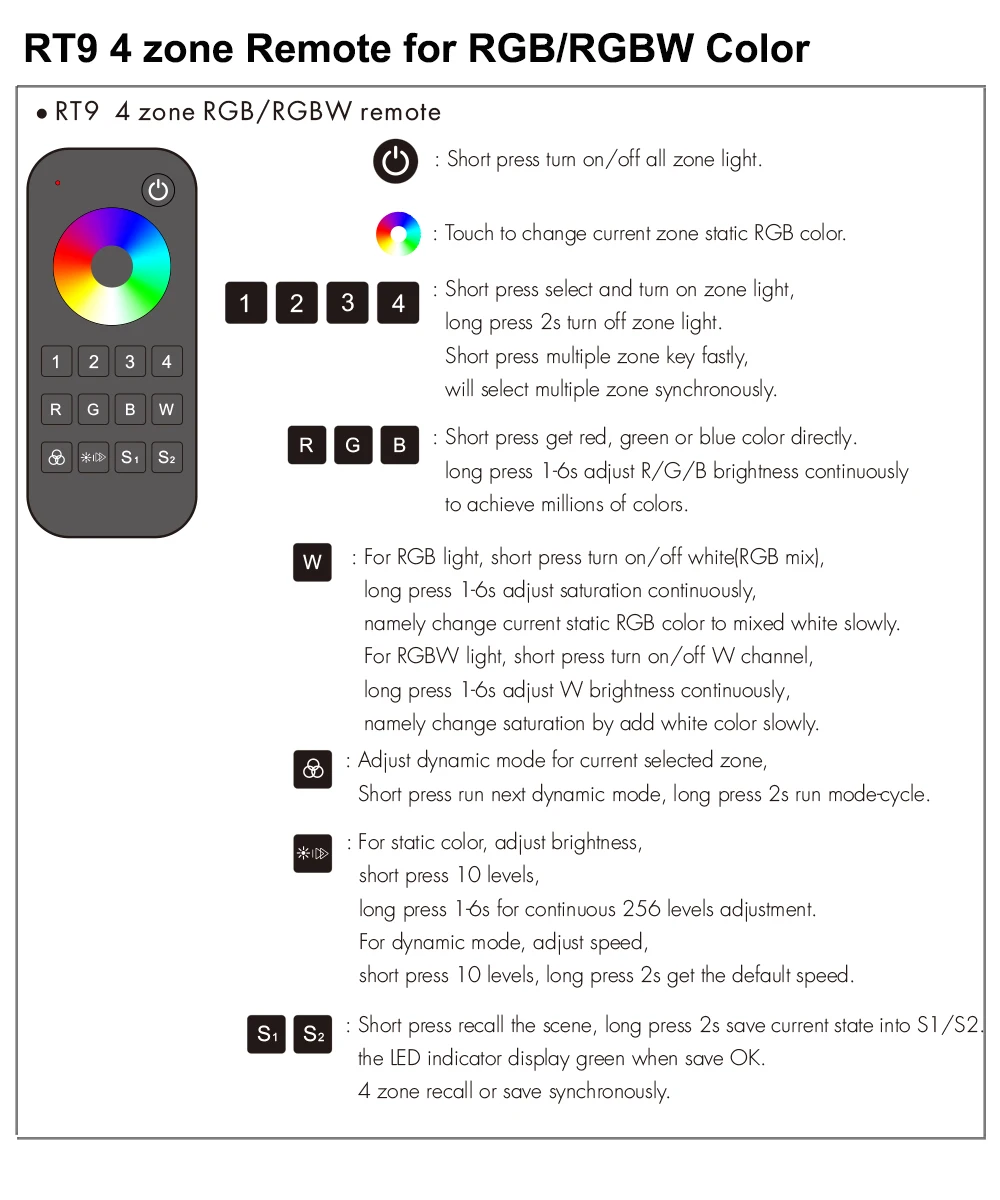

RT9: 4zone RGB/RGBW remote

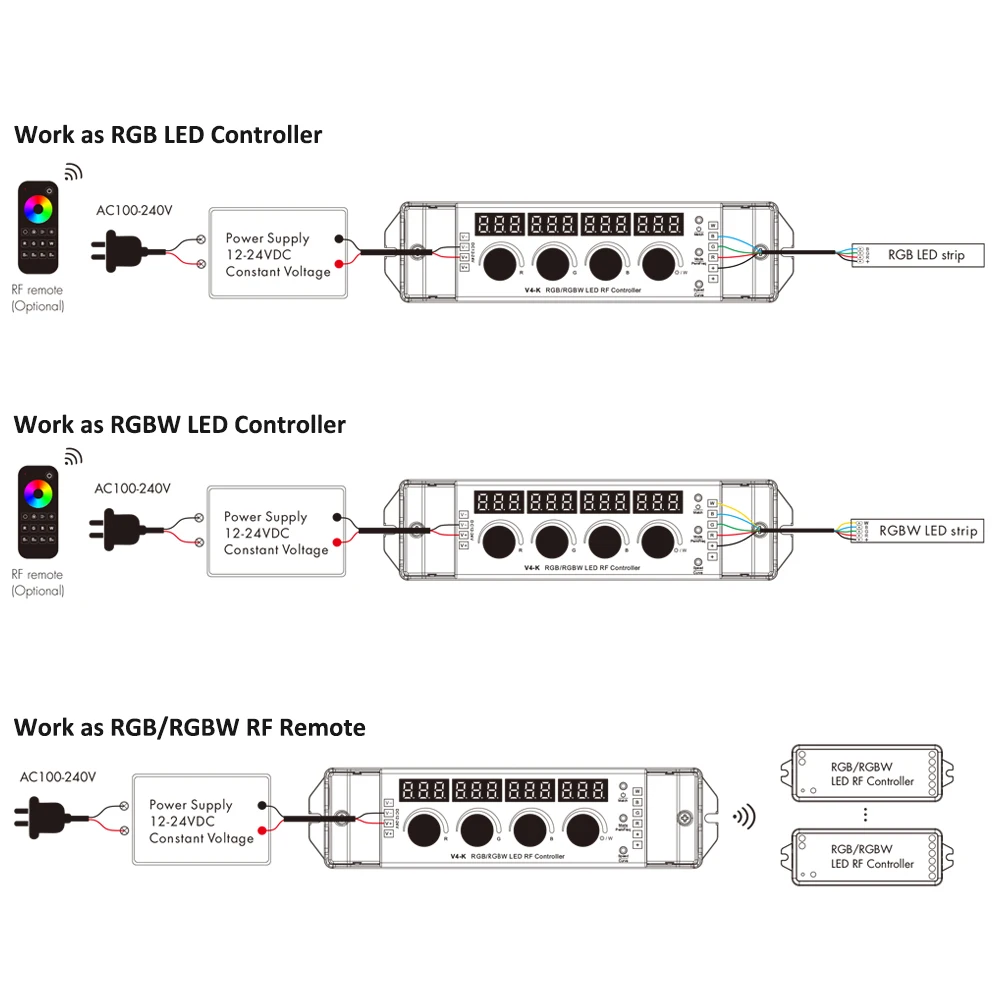

4 Knob Controller Work as RGB/RGBW RF remote

This 4 knob controller work as RGB/RGBW RF remote can match with one or multiple RGB/RGBW LED RF controller.
End user can choose the suitable match/delete ways. Two options are offered for selection:



Use the controller’s Match key,

Match:
Short press match key of receiver,immediately press on/off key on the knob controller.The LED indicator fast flash a few times means match is successful.



Delete:

Press and hold match key of the receiver for 5s to delete all match,The LED indicator fast flash a few times means all matched RF remotes were deleted.



Use Power Restart

Match:
Switch off the power of the receiver, then switch on power, repeat again.Immediately short press on/off key 3 times on the knob controller.The light blinks 3 times means match is successful.



Delete:
Switch off the power of the receiver, then switch on power, repeat again.Immediately short press on/off key 5 times on the knob controller.The light blinks 5 times means all matched remotes were deleted.
