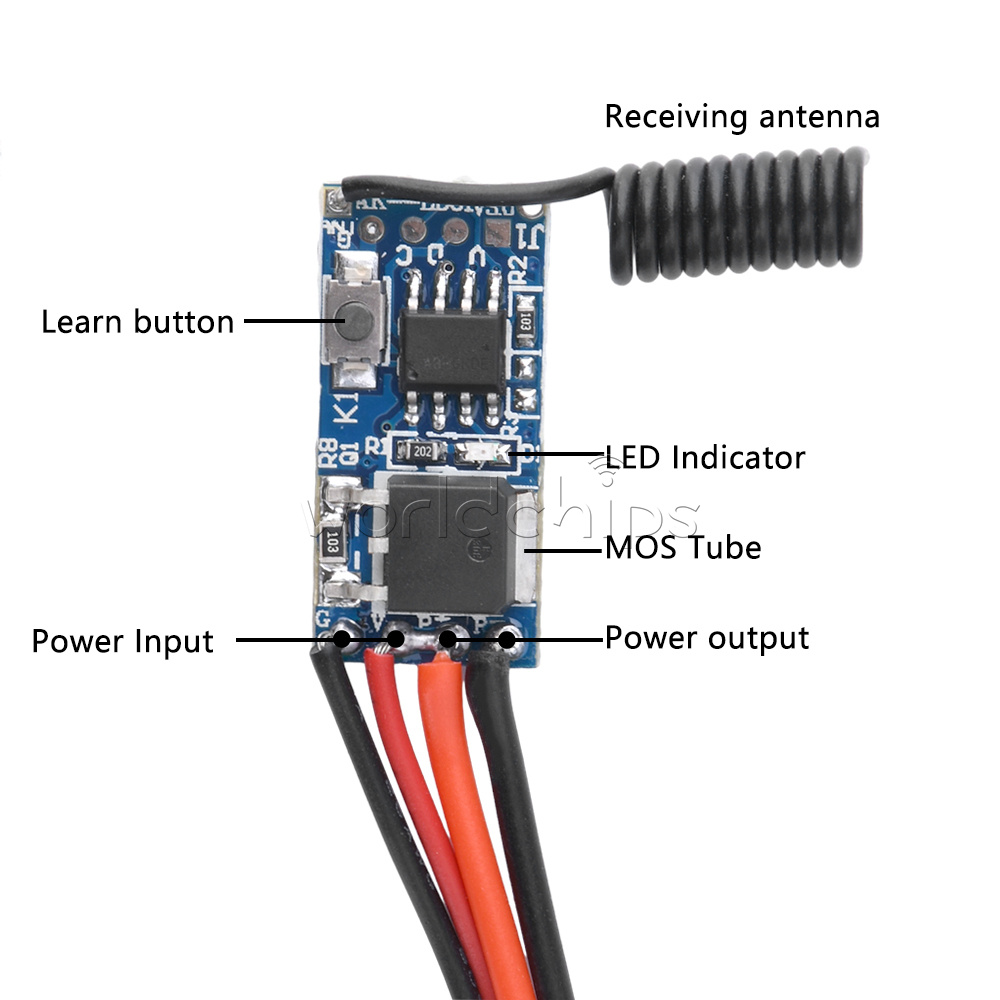

Overview

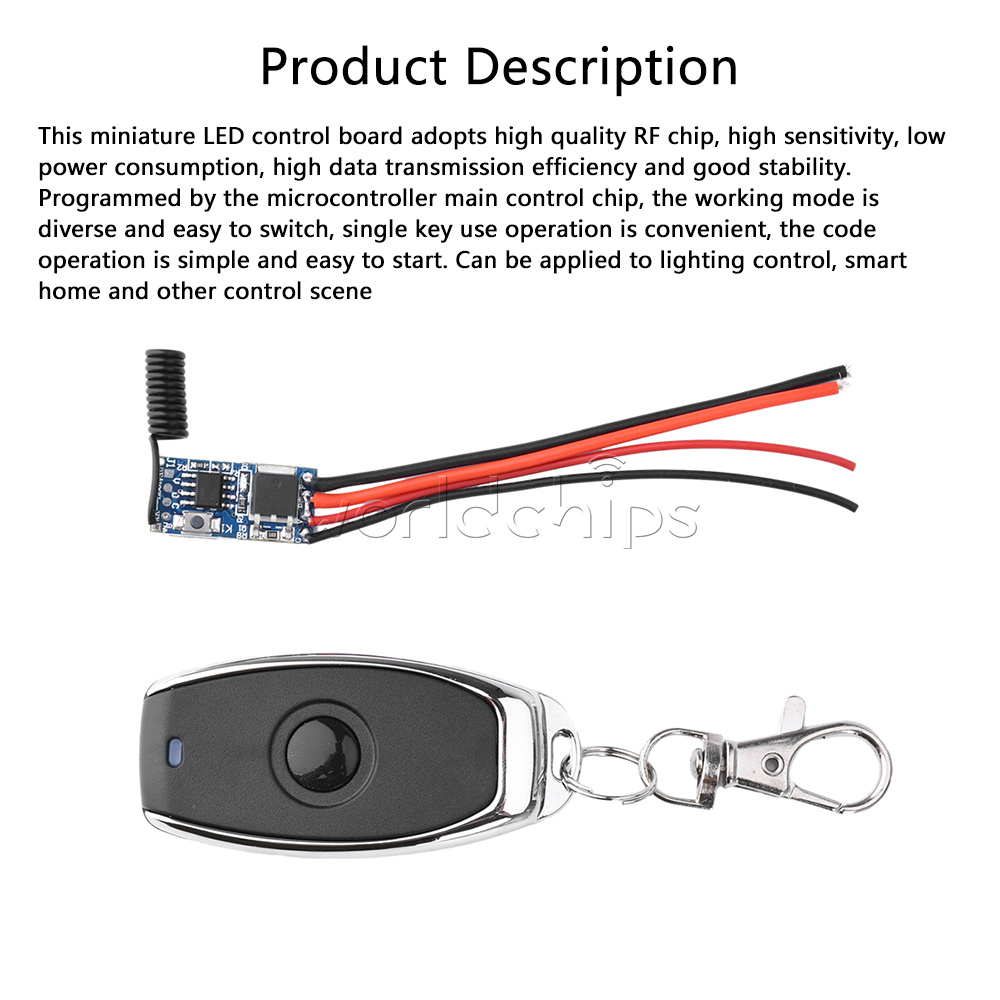

This miniature LED control board adopts high quality RF chip, high sensitivity, low power consumption, high data transmission efficiency and good stability. Programmed by the microcontroller main control chip, the working mode is diverse and easy to switch, single-key use operation is convenient, and the operation of the code is simple and easy to get started. It can be applied in lighting control, smart home and other control scenarios.
Features
1. The product is made of high quality PCB and component materials, quality is guaranteed
2.Product appearance design is lightweight, easy to use, wide range of application scenarios

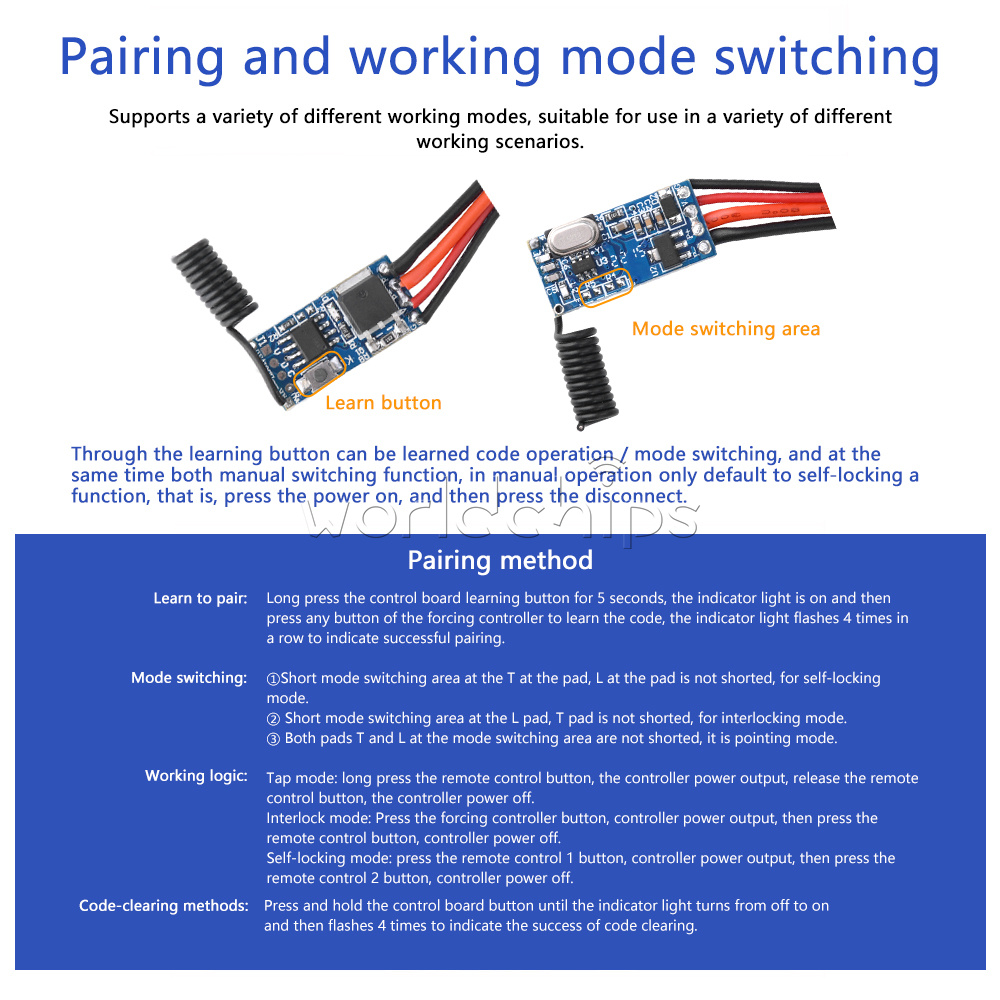

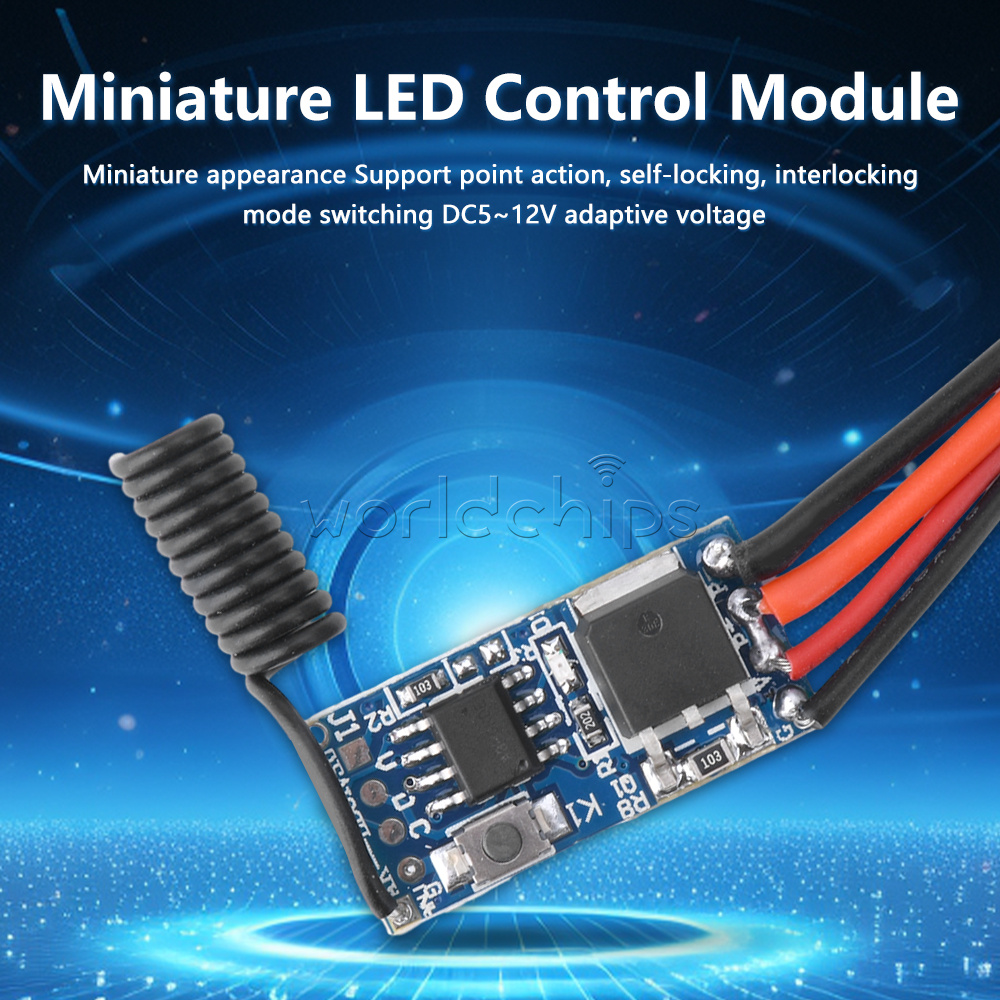

3.DC5-12V adaptive voltage, support pointing, self-locking, interlocking mode switching

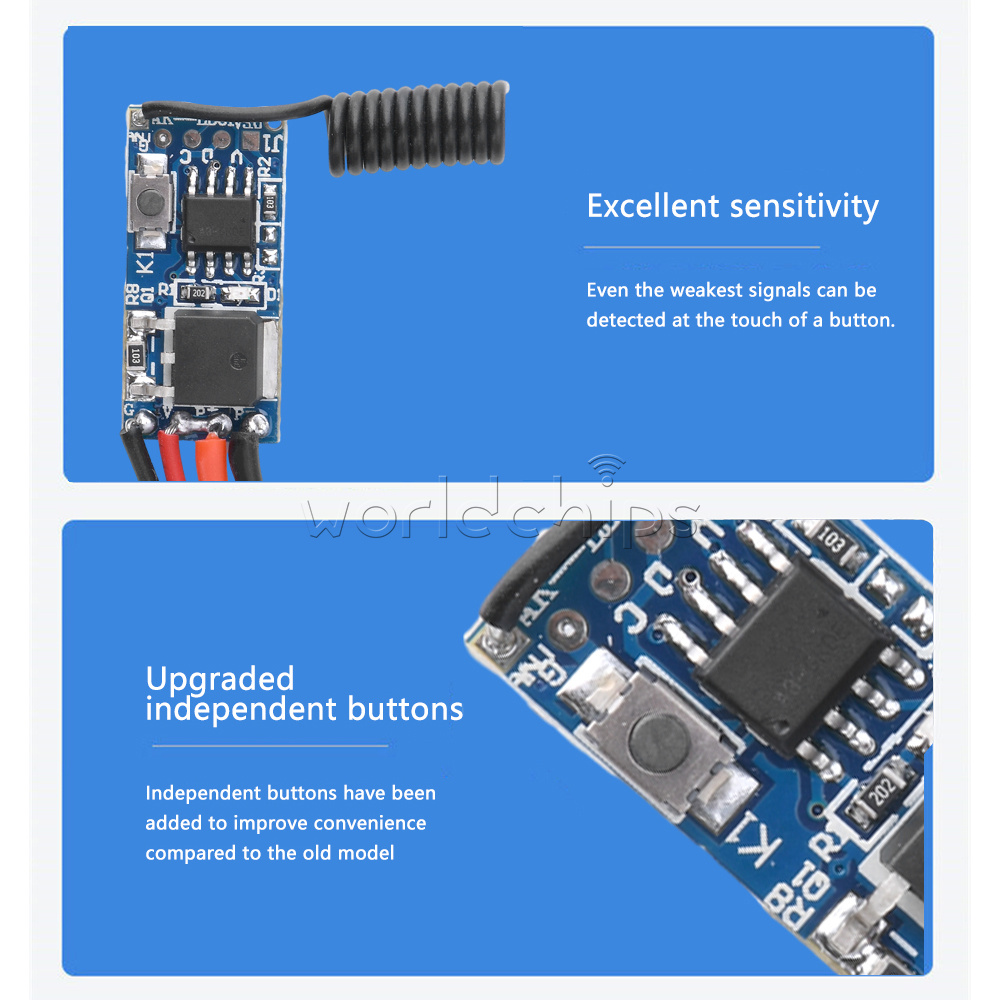

4. Excellent sensitivity, can be used in lighting control, home scenes, access control and security, motor and motor control scenes.

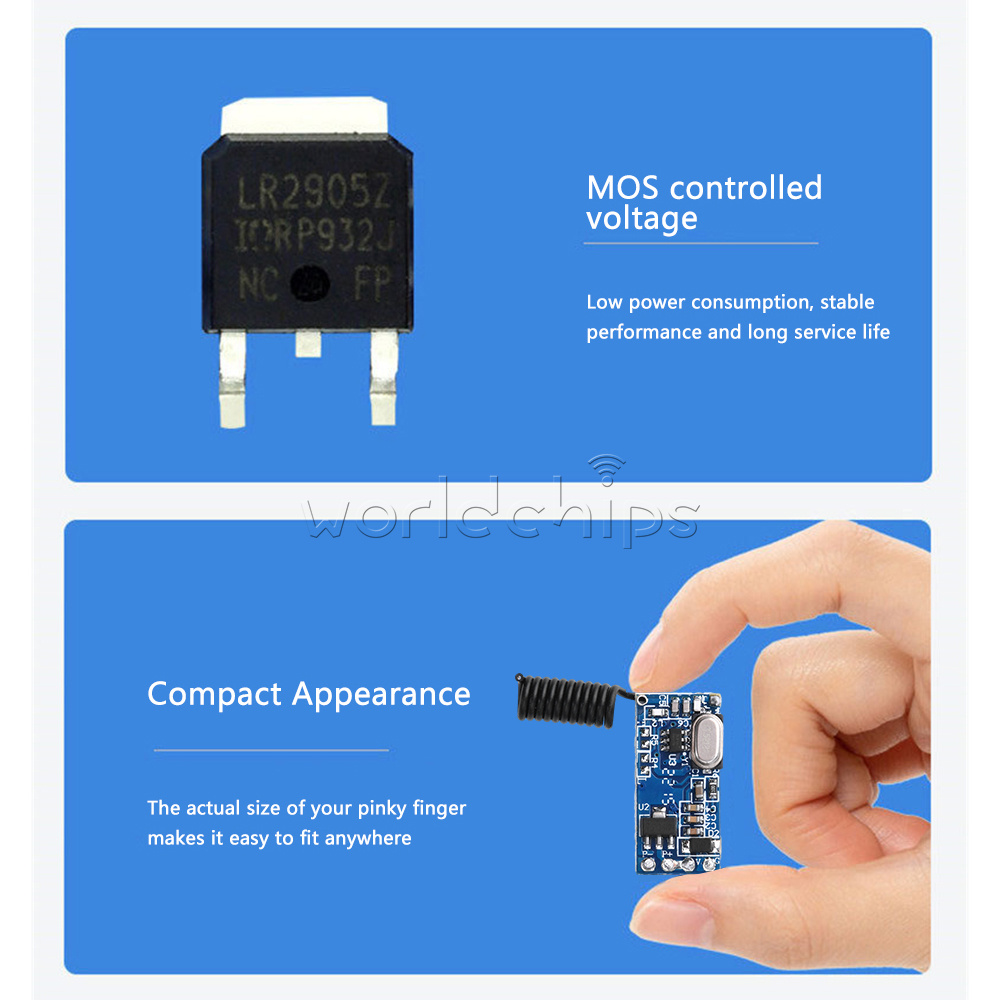

5.MOS control voltage, low power consumption, stable performance and long service life.
1. The product is made of high quality PCB and component materials, quality is guaranteed
2.Product appearance design is lightweight, easy to use, wide range of application scenarios
3.DC5-12V adaptive voltage, support pointing, self-locking, interlocking mode switching
4. Excellent sensitivity, can be used in lighting control, home scenes, access control and security, motor and motor control scenes.
5.MOS control voltage, low power consumption, stable performance and long service life.

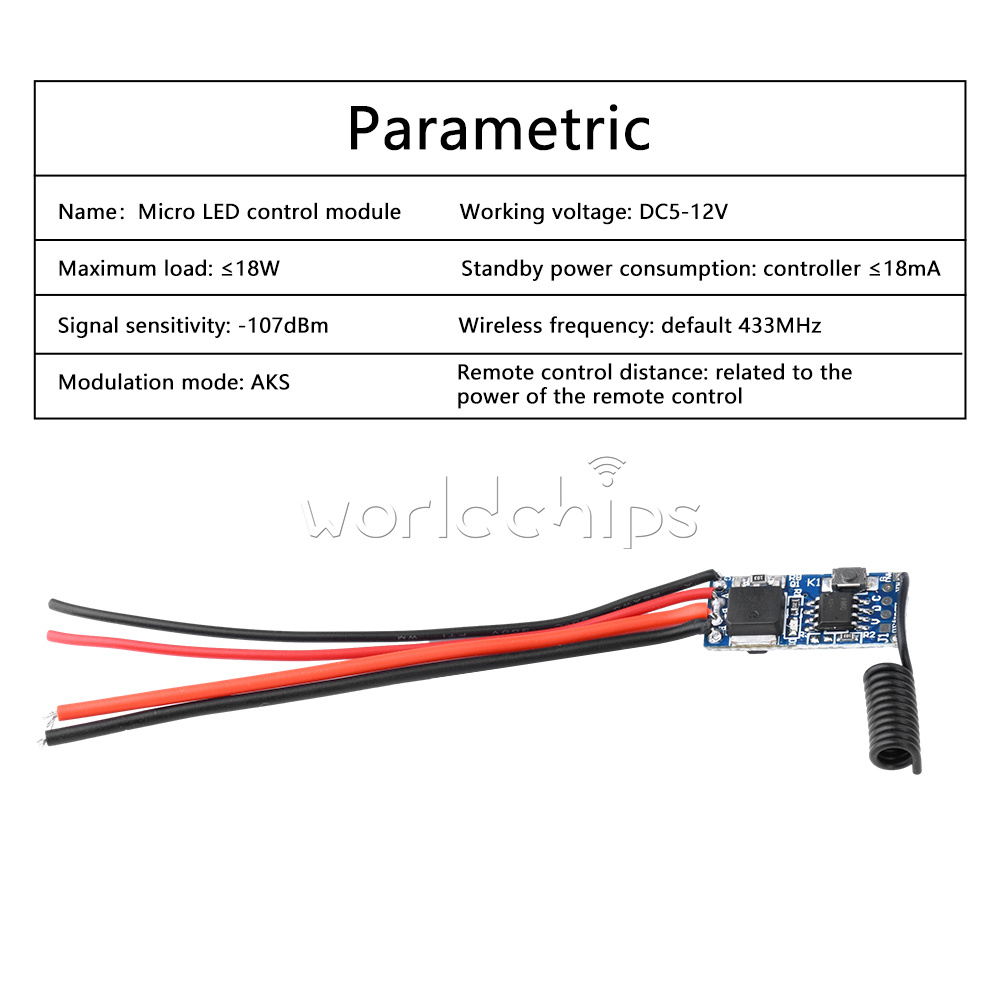

Specification

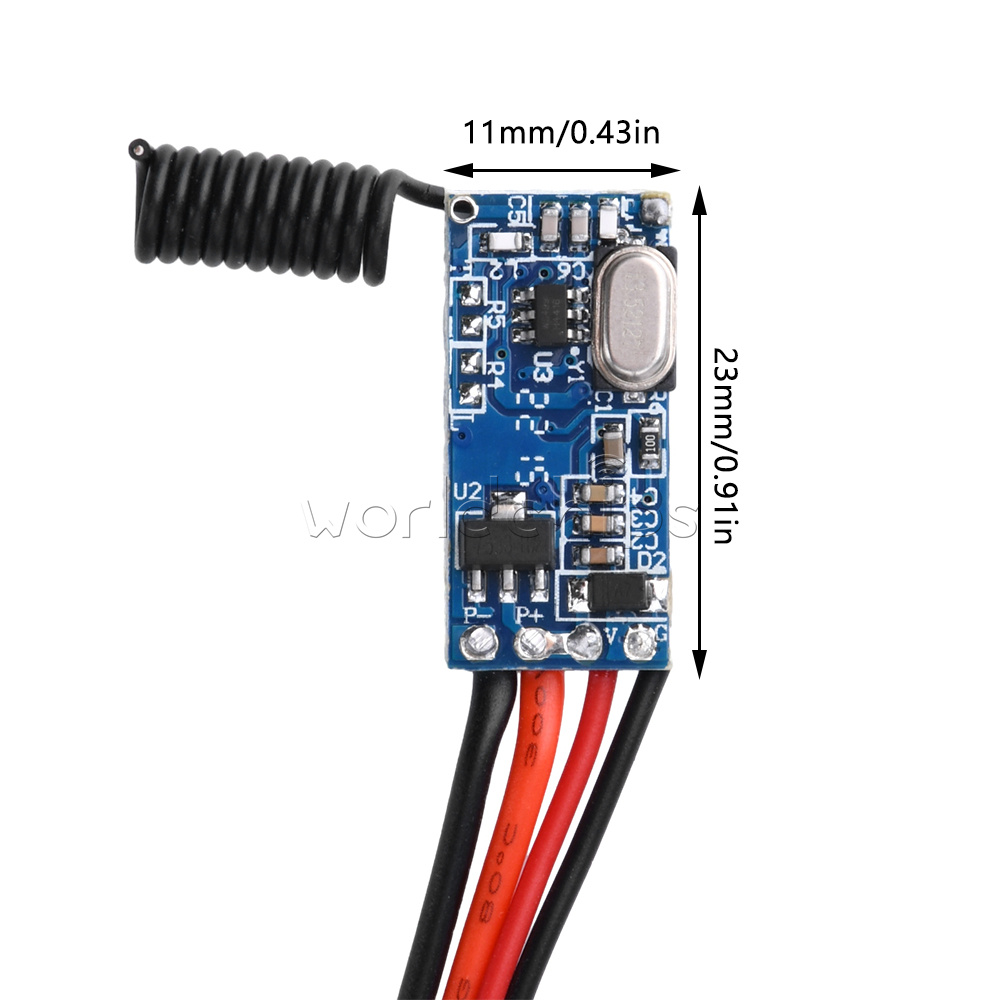

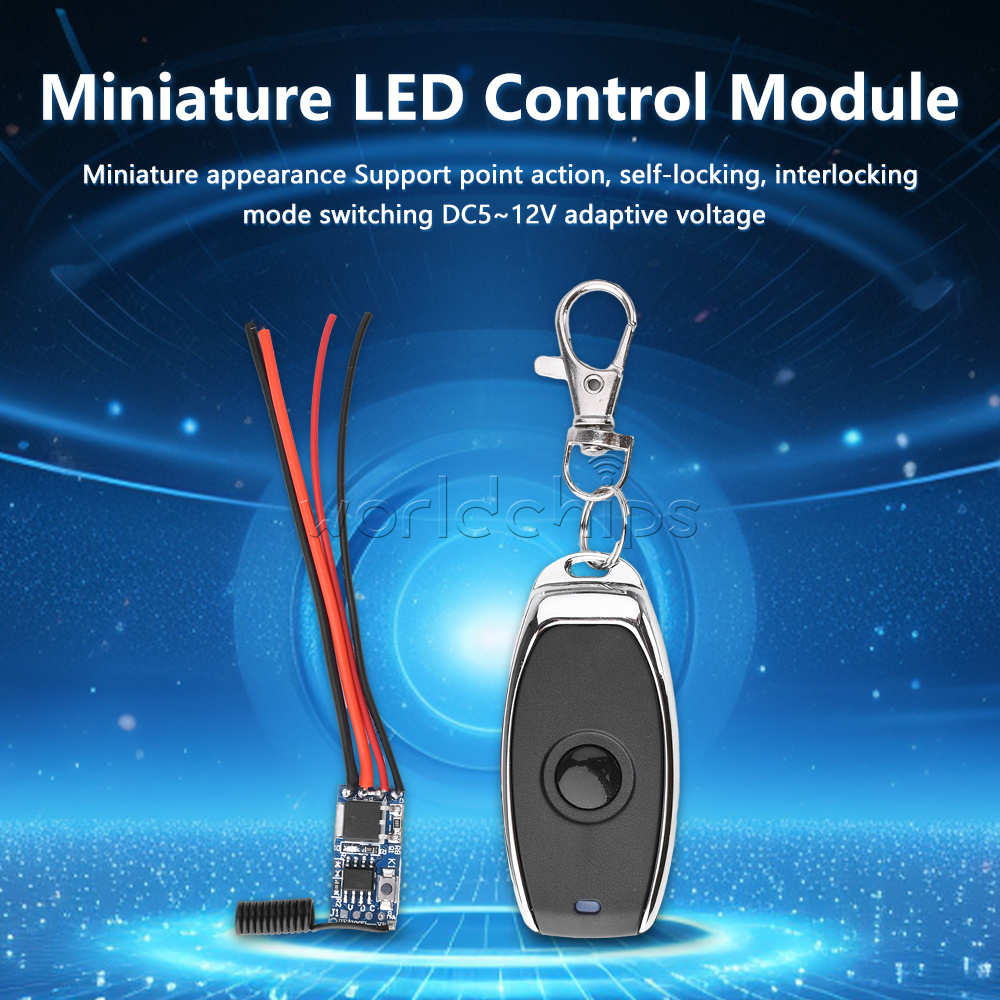

Name: Micro LED control module

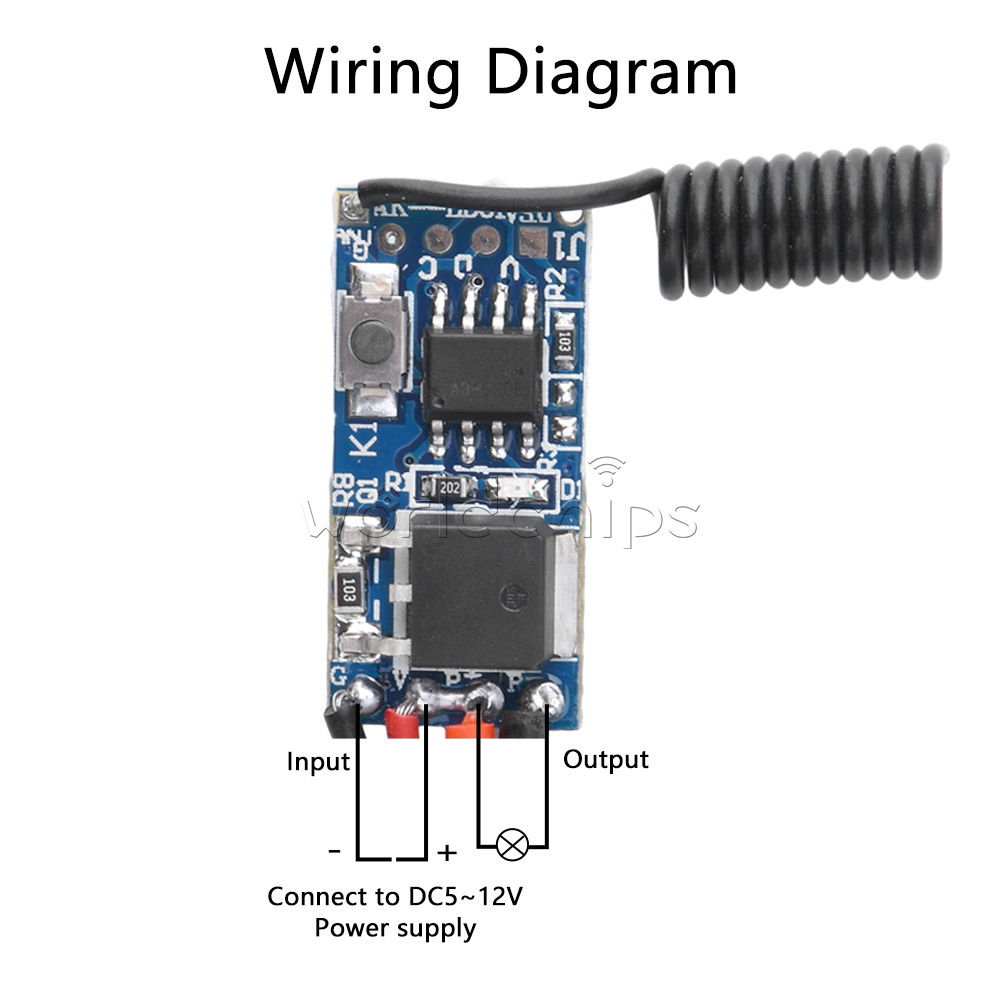

Operating voltage: DC5-12V
Maximum load: ≤ 18W
Standby power consumption: controller ≤ 18mA
Signal sensitivity: -107dBm
Wireless frequency: default 433MHz
Mediation mode: AKS
Remote control distance: related to the power of the remote control
Remote control with battery
Name: Micro LED control module
Operating voltage: DC5-12V
Maximum load: ≤ 18W
Standby power consumption: controller ≤ 18mA
Signal sensitivity: -107dBm
Wireless frequency: default 433MHz
Mediation mode: AKS
Remote control distance: related to the power of the remote control
Remote control with battery
List
1 x Module

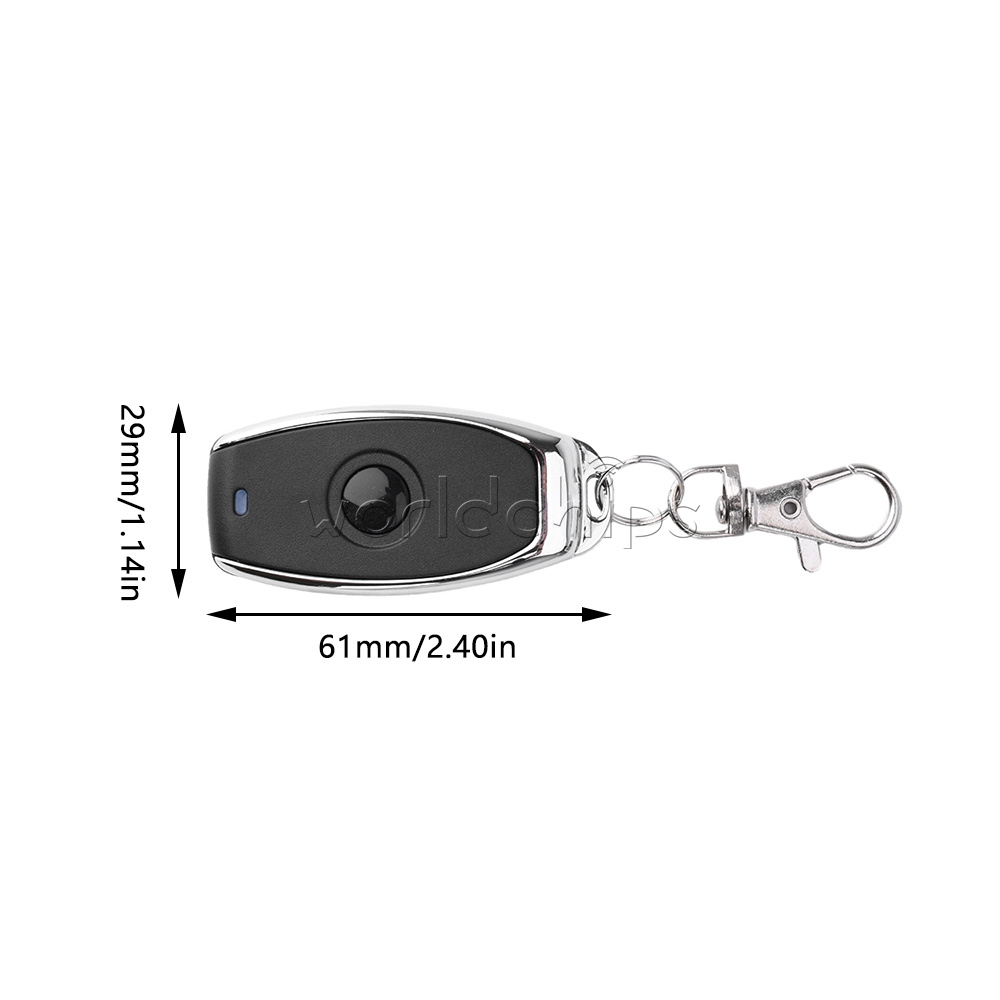

1 x Remote control (optional)
1 x Module
1 x Remote control (optional)
-
