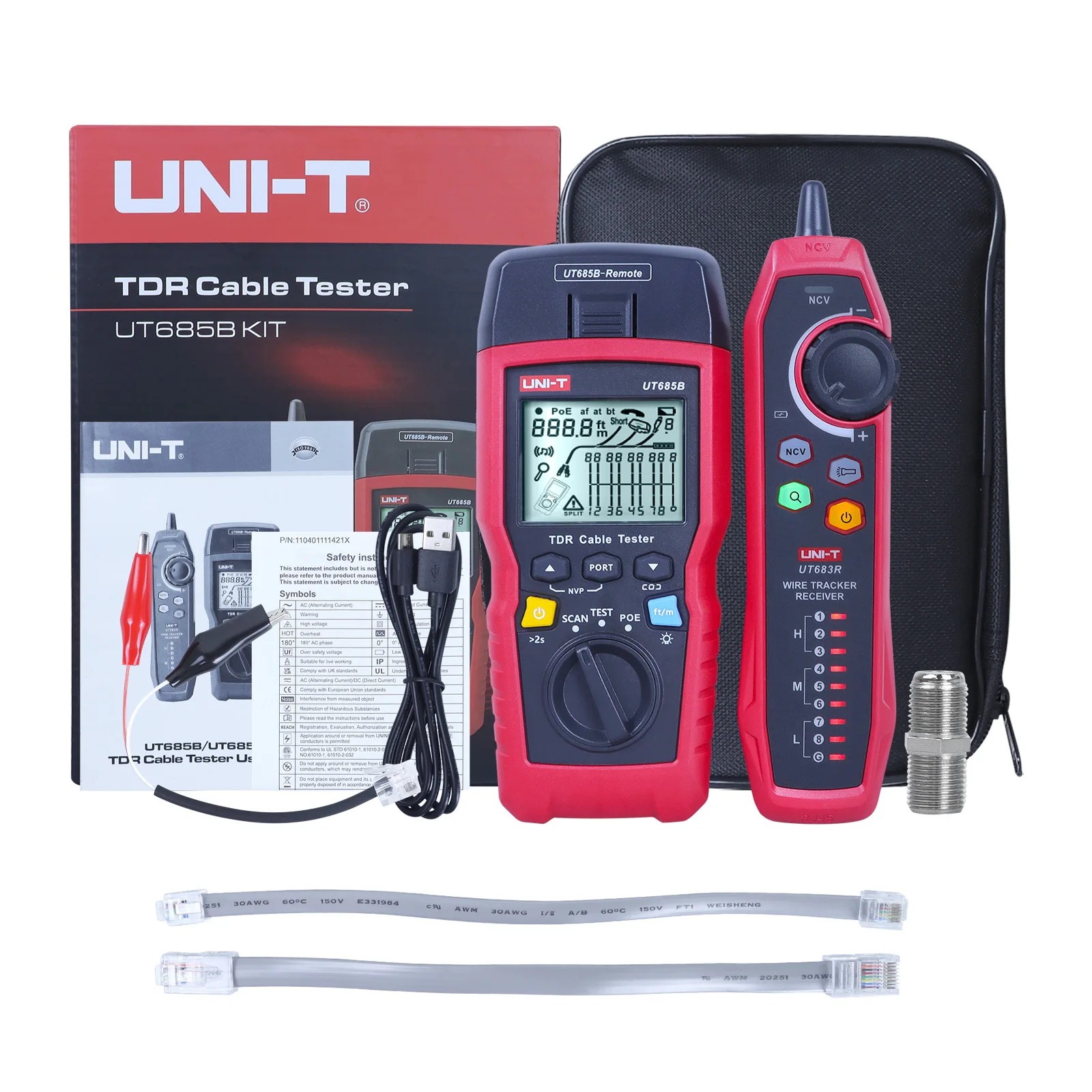

UNI-T UT685B Kit Digital Cable Tester TDR Wire Locator RJ11 RJ45 Adapter Pair Coaxial POE Network Cable Length Sequence Detector

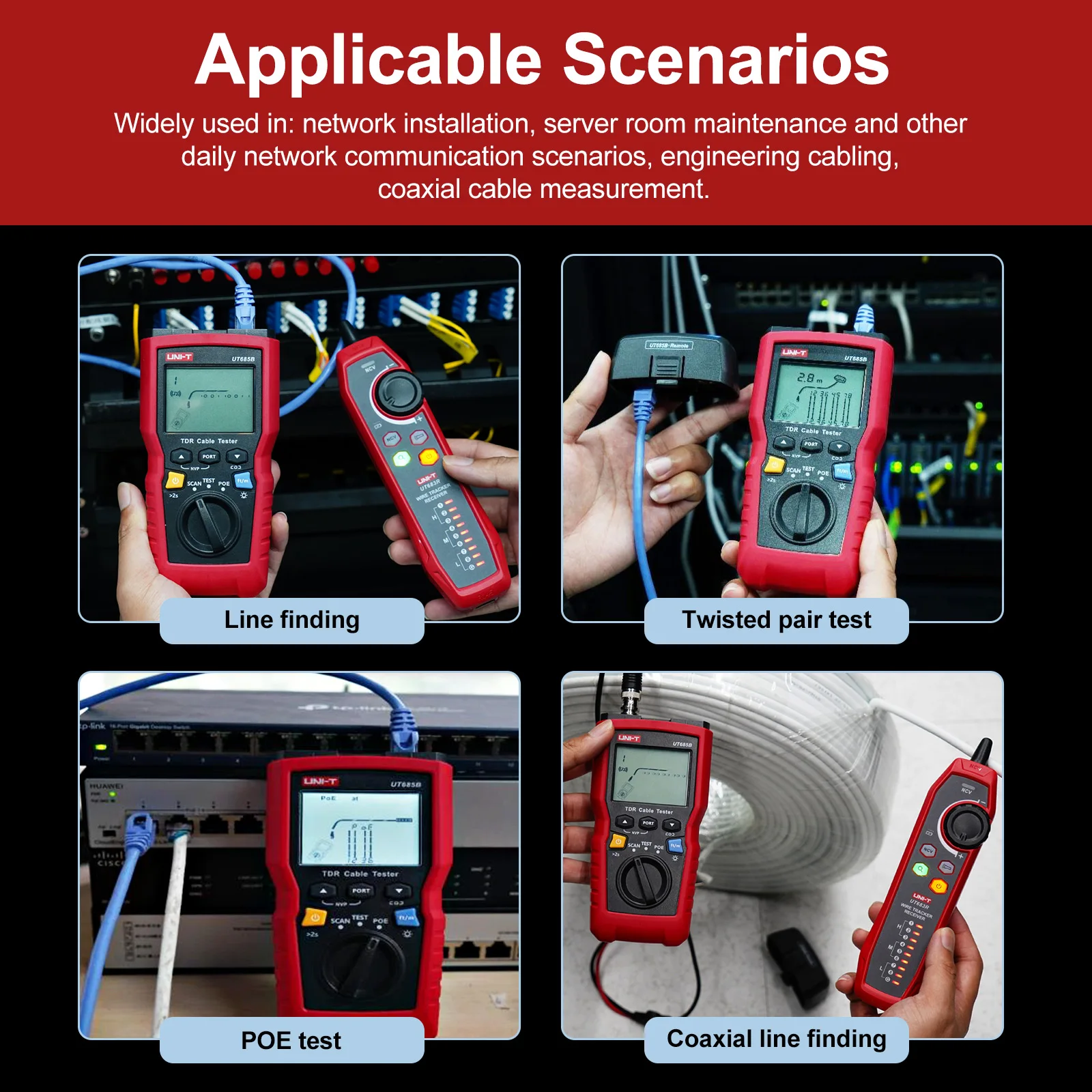

     UT685B KIT can test various types of cables (including twisted pair cable, coaxial cable, and POE network cable): you can find the cable, detect the cable length, and line sequence, and confirm whether it is POE and POE standards. Plus, it integrated RJ11, RJ45, and coax test ports to support virtually any low-voltage cable testing without needing awkward adapters.

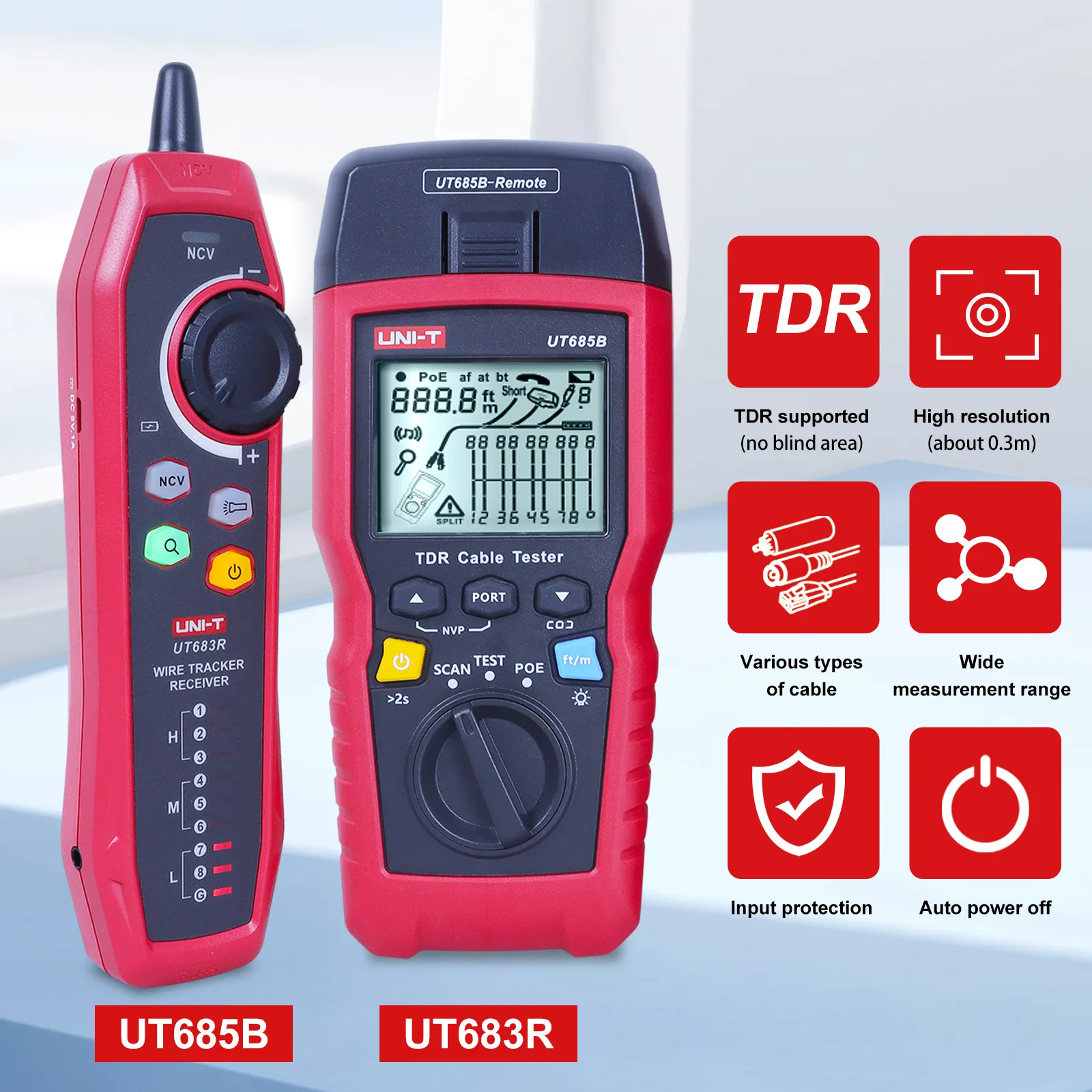

Features of UT685B KIT TDR Cable Tester

1.

2.8 inch backlit LCD display

2.

Graphical interface

3.

Cable length test

4.

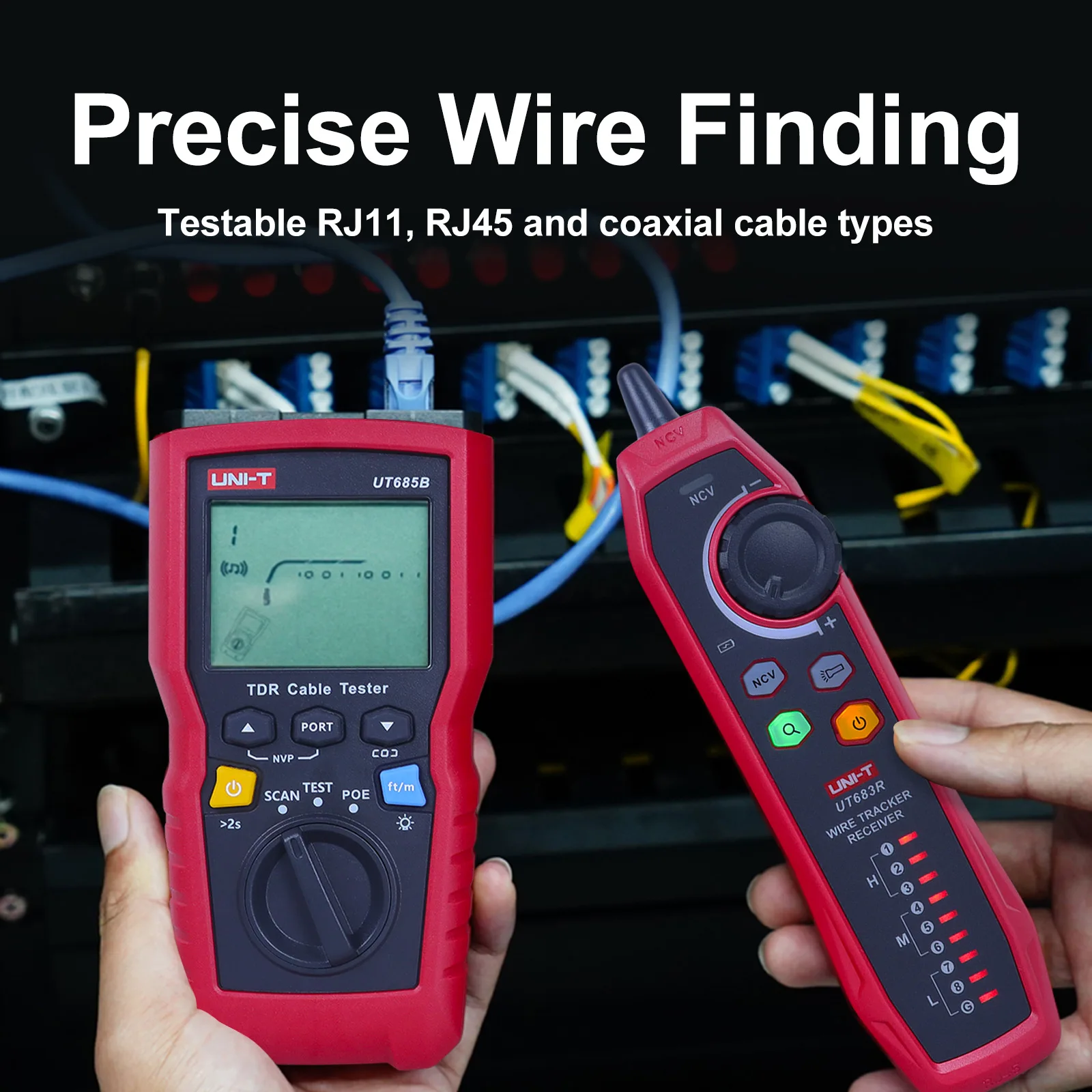

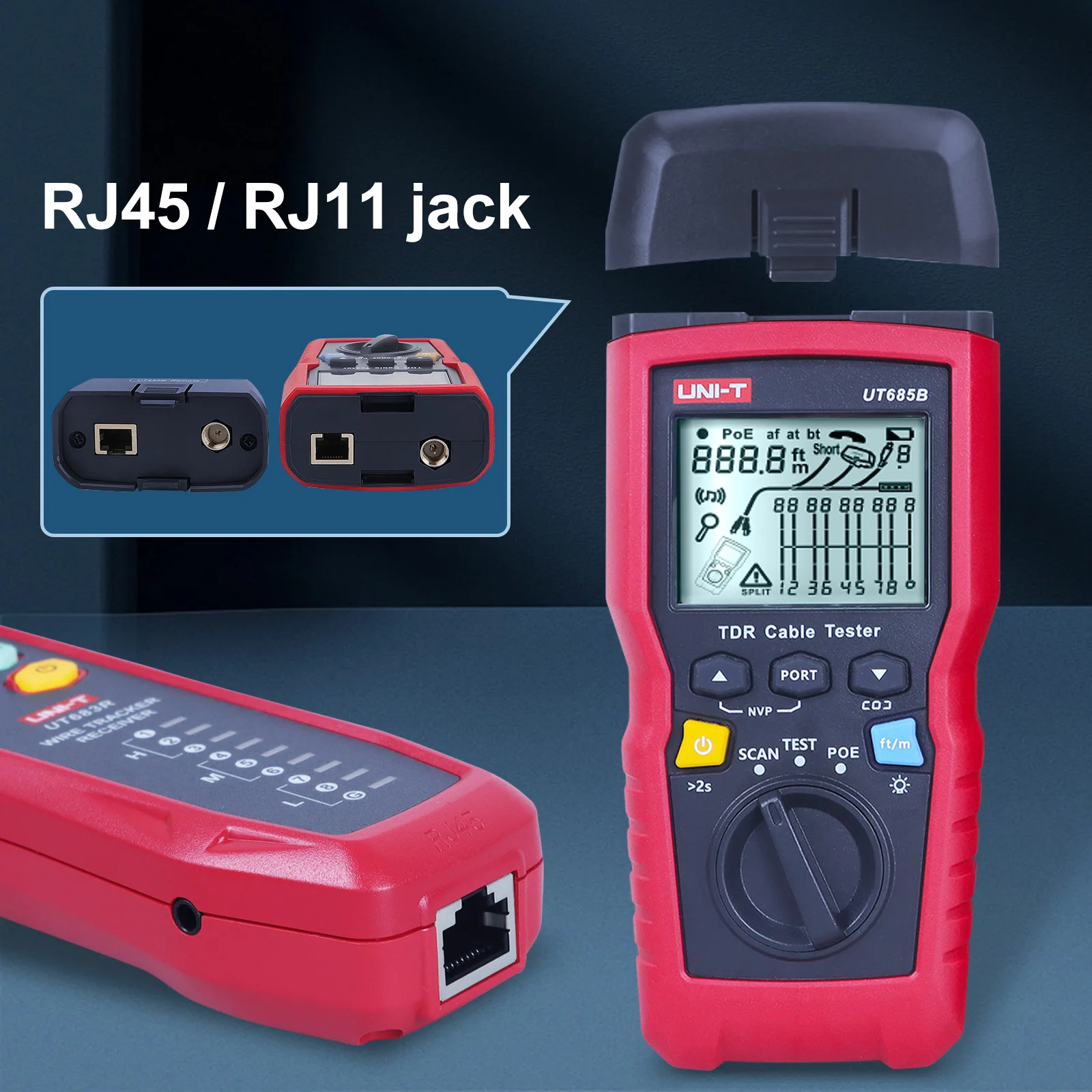

Tests RJ11, RJ45 and coaxial cable types

5.

Identify POE standards

6.

Digital hunt

7.

Range 500m

8.

Resolution 0.33m

9.

70V DC input protection

10.

TDR technology: no blind area testing

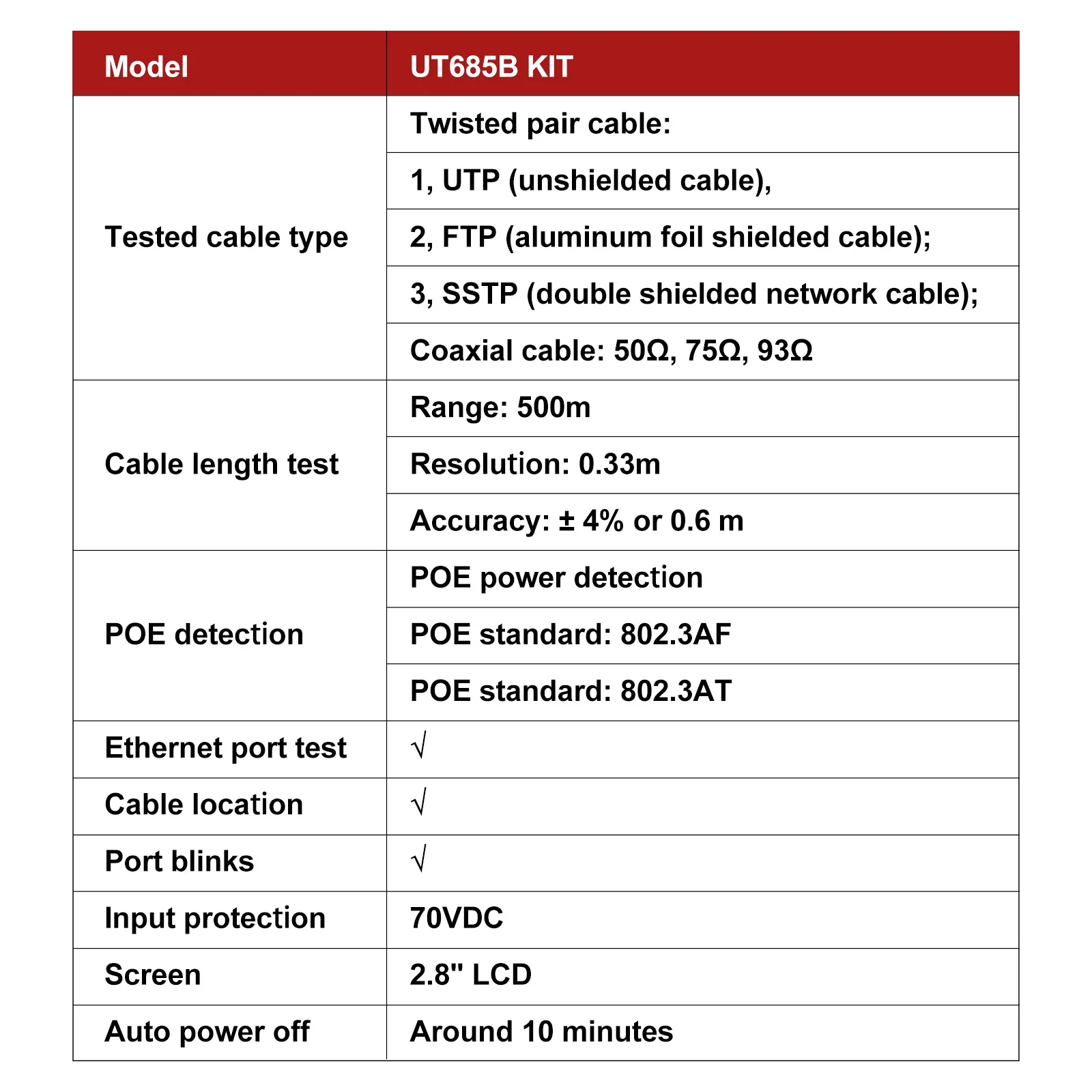

Specifications

UT685B KIT

Tested cable type

Twisted pair cable:1. UTP (unshielded cable),2. FTP (aluminum foil shielded cable);3. SSTP (double shielded network cable);

Coaxial cable: 50Ω, 75Ω, 93Ω

Cable length test

Range: 500 m

Resolution: 0.33 m

Accuracy:  ± 4% or 0.6 m

POE detection

POE power detection

POE standard: 802.3AF

POE standard: 802.3AT

Ethernet port test

√

Cable location

√

Port blinks

√

Input protection

70VDC

Screen

2.8″ LCD

Auto power off

Around 10 minutes
