High quality professional external IP network camera PTZ (Pan-Tilt-Zoom)
Housing 6" / IP66 weatherproof made entirely of metal!
Image sensor 1 / 2.8 "CMOS SONY, (720p)
Resolution 1280x720, 25fps.

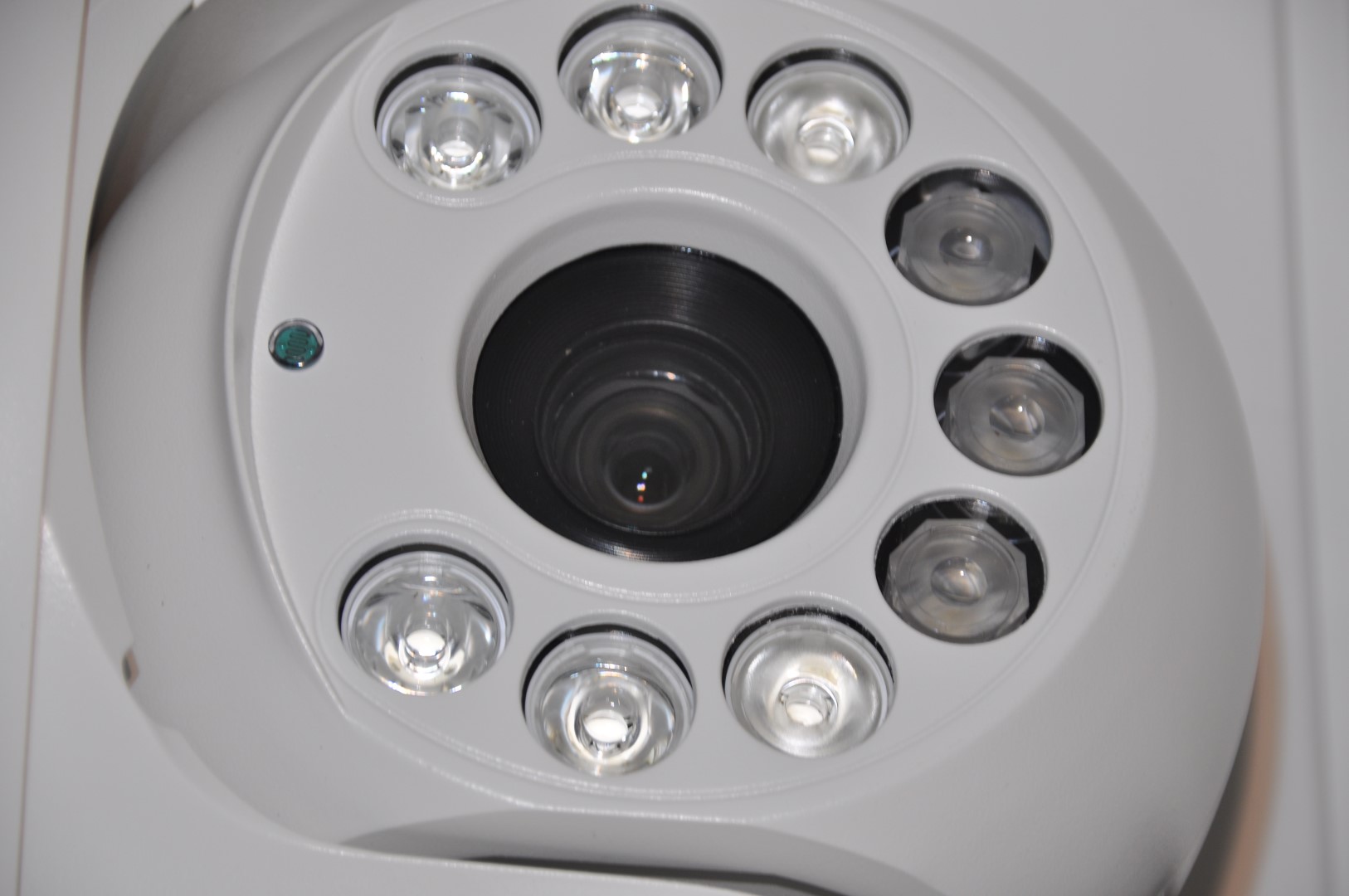

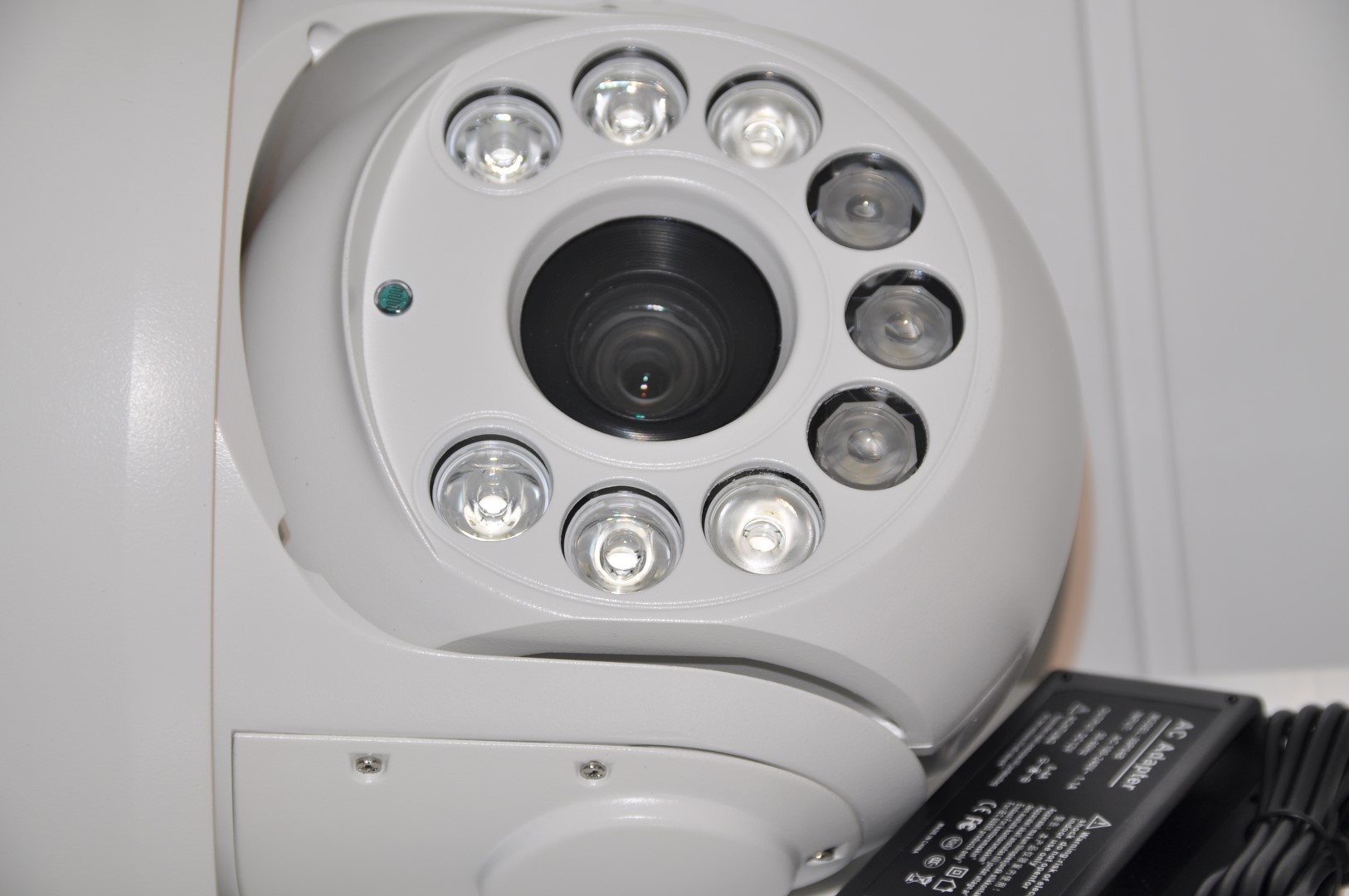

Power LED infrared (IR) + 3 laser diodes provide excellent visibility even in complete darkness up to 150 meters and more.
18x optical zoom
Dual streaming video (for mobile devices, you can set a lower resolution)
Intelligent infrared control
Motion detection with email notification, support for ONVIF
In Germany DPD shipping, no customs fees.
| Model No. | PJHD-PTZN13H |
| signal model | PAL/NTSC |
| image sensor | 1/2.8" SONY CMOS |
| Effective pixels | 1280(H) x 720(V) |
| Horizontal resolution | 720P |
| Minimum illumination | Color: 0.01 Lux, B/W: 0.001 Lux |
| S/N radio | >60dB |
| Backlight compensation | On/off |
| White balance | automobile |
| Electronic shutter | PAL: 1/25～1/100000s NTSC: 1/30～1/100000s |
| Focus length | 5-90mm |
| Optical focus | 18x |
| Focus system | Auto / Manual / Auto Zoom |
| IR distance | 150m+ |
| IR light control | Intelligent control technology |
| IR light angle | Infrared zoom matching technology |
| IR light power | Manual setting |
| IR on | Day/Night/Auto/Timing |
| IR life | 30,000 hours |
| Horizontal range | 360° continuous rotation |
| Vertical range | -10° ~ 90° |
| Preset call speed | Max 200°/S |
| Manual call speed | 0.01° ~ 180°/S |
| Presets | 256 |
| Cruise track | 8 groups, each group for 32 presets |
| Patrol track | 4 groups, each group records 500 actions |
| Video compression | H.264 Main Profile encoding, |
| Audio compression | G.711, G.726 *Optional |
| Primary stream | 1280*720, 25fps |
| Secondary stream | 704*576, 640*480, 352*288, 320*240, 25fps |
| Video bit rate | 32Kbps - 16Mbps continuously adjustable, support CBR / VBR |
| Network protocol | TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP |
| OSD menu | English, Chinese |
| ONVIF support | Support (2.0 version) |
| Cooling structure | Dustproof structure outside the circle |
| Protection level | IP66 |
| Interfaces | POWER / Network (LAN) |
| Power supply | DC12V |
| power | 35W |
| Work temperature | -35 +65℃ |
| Weight | 5.2 kg |

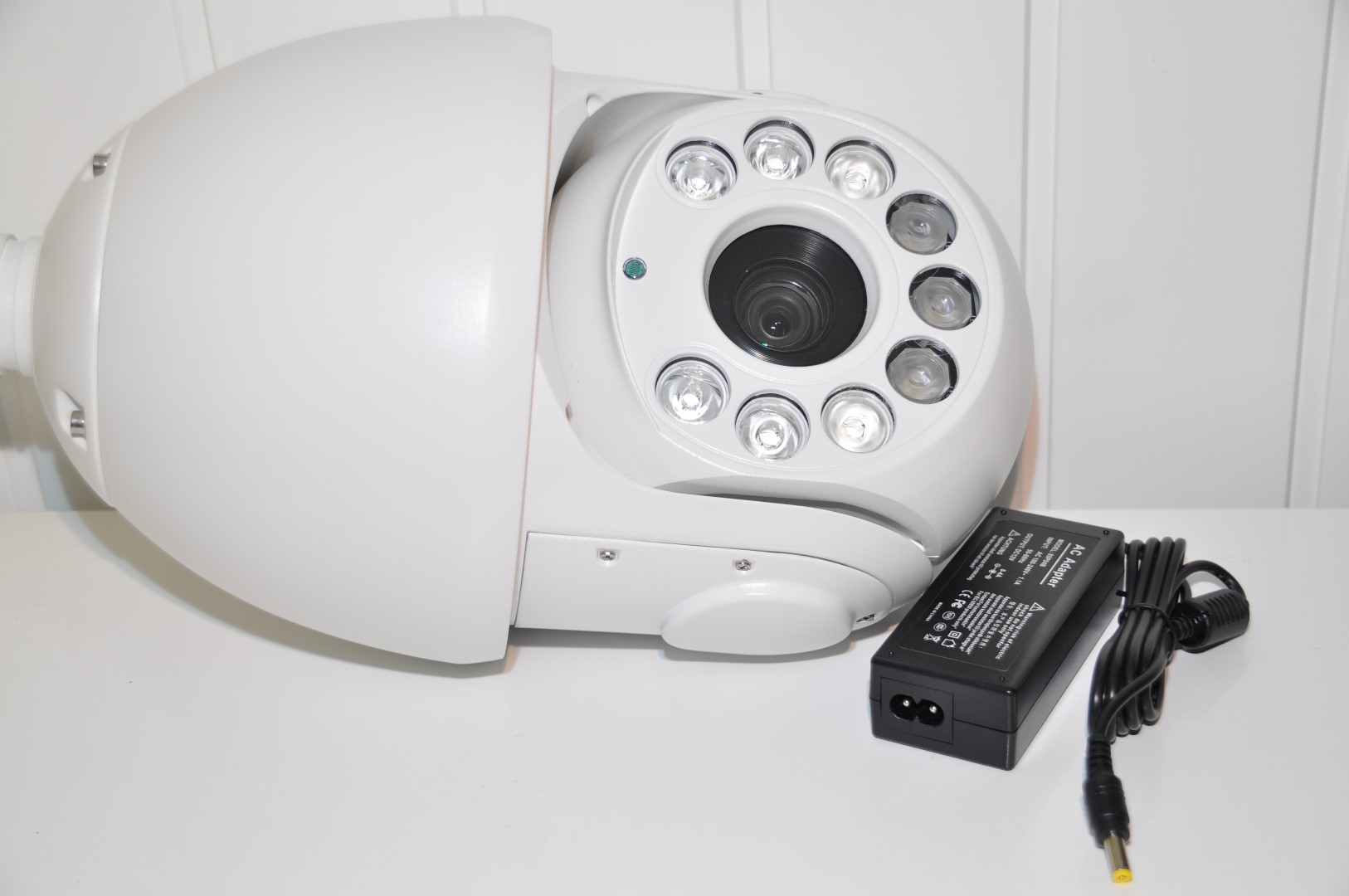

| Contents | camera PJHD-PTZN13H, Power supply, wall mount, manual in English |
| guarantee | 12 months |
Application/Appliance:
Model/Model:
State/Condition:
Function / function:
Scope of delivery/scope of supply:
Color:
SKU:
- Application: -
- Model: PJHD-PTZN13H
- Condition: NEW
- Function: -
- scope of delivery:: 1 piece
- SKU: 760022400500
- Color: white
