►The product automatically recognizes and detects the current in both charging and discharging directions. When charging, the color of the current is green; when discharging, the color of the current  is blue.


►Suitable for a variety of batteries: ternary lithium batteries, lead-acid batteries, lithium phosphate batteries, etc., as long as the battery is within the voltage measuring range.

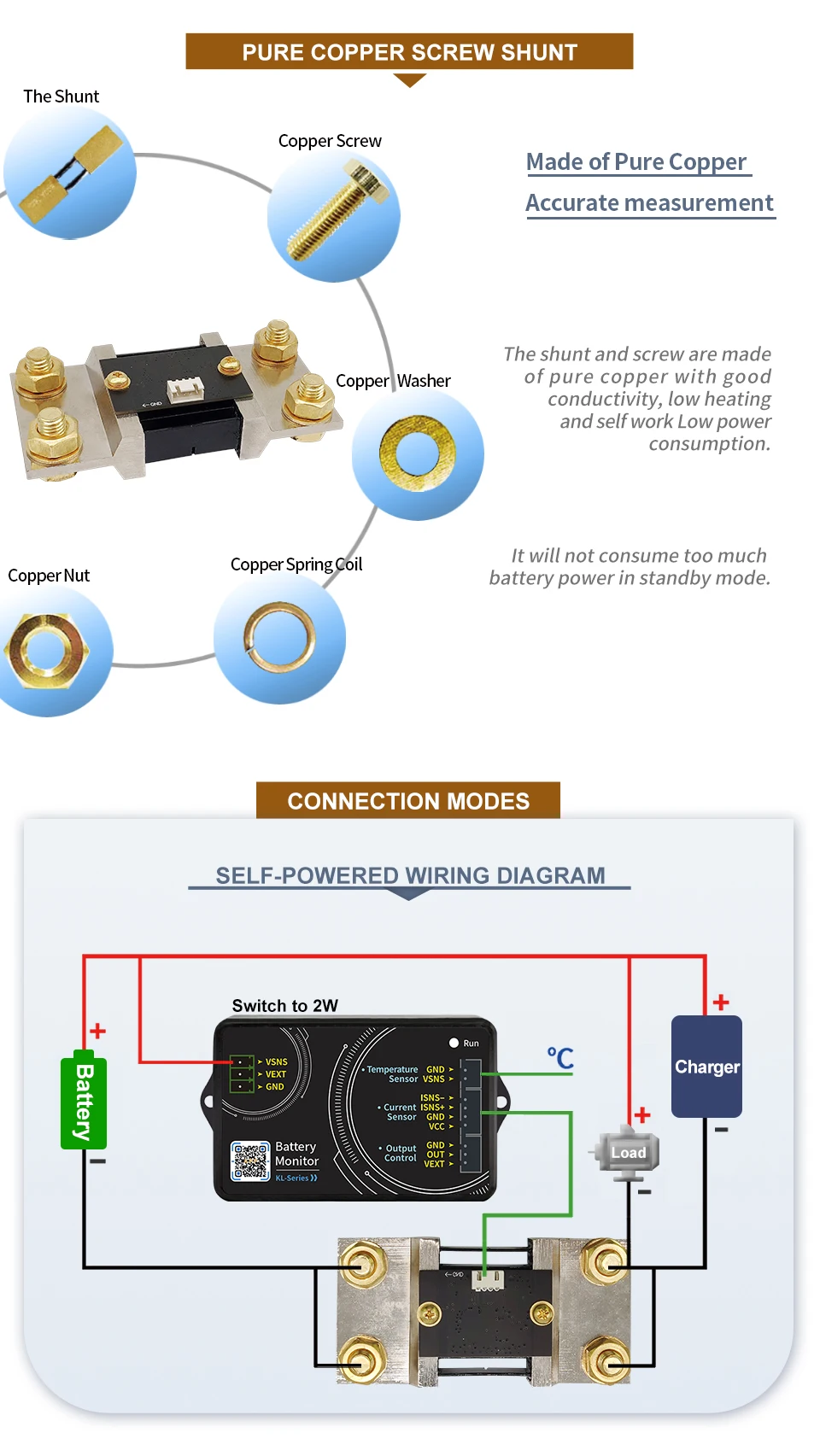

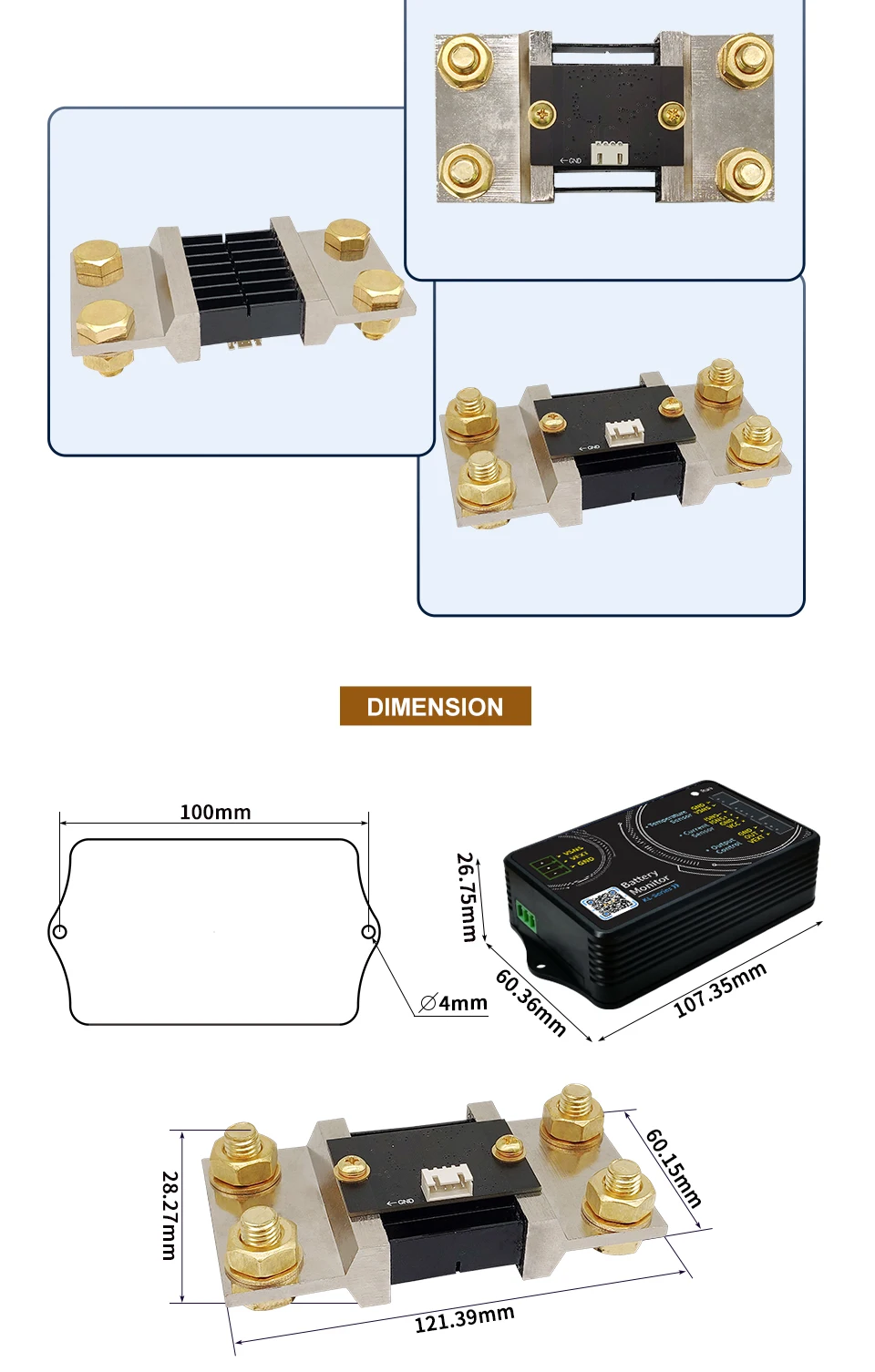

►The shunt and screws are made of pure copper material, which has good electrical conductivity, low heat generation, and low power consumption. In the standby state, it will not consume too much battery power.


►Support Bluetooth connection mobile phone APP control, after downloading and installing the APP, through the built-in Bluetooth connection, and all functions can be set through the mobile phone APP.


►The product can be set with over-voltage, under-voltage, over-current, over-power, and external over-temperature protection. When the value is out of the protection value range, the output state of the instrument is turned off (need to be used with a relay) to prevent damage to the electrical equipment. The protection recovery time and delay time can be set, which is suitable for various occasions.


►The product has added a self-calibration function, and the current and capacity values can still remain accurate after long-time work.


►Amp-hour, watt-hour, and time data can be cleared during the measurement process without affecting the next measurement. The voltage and current values can also be fine-tuned to ensure accurate capacity.


►The product can be upgraded through the online firmware of the mobile phone, which increases the guarantee for the operation of the product.


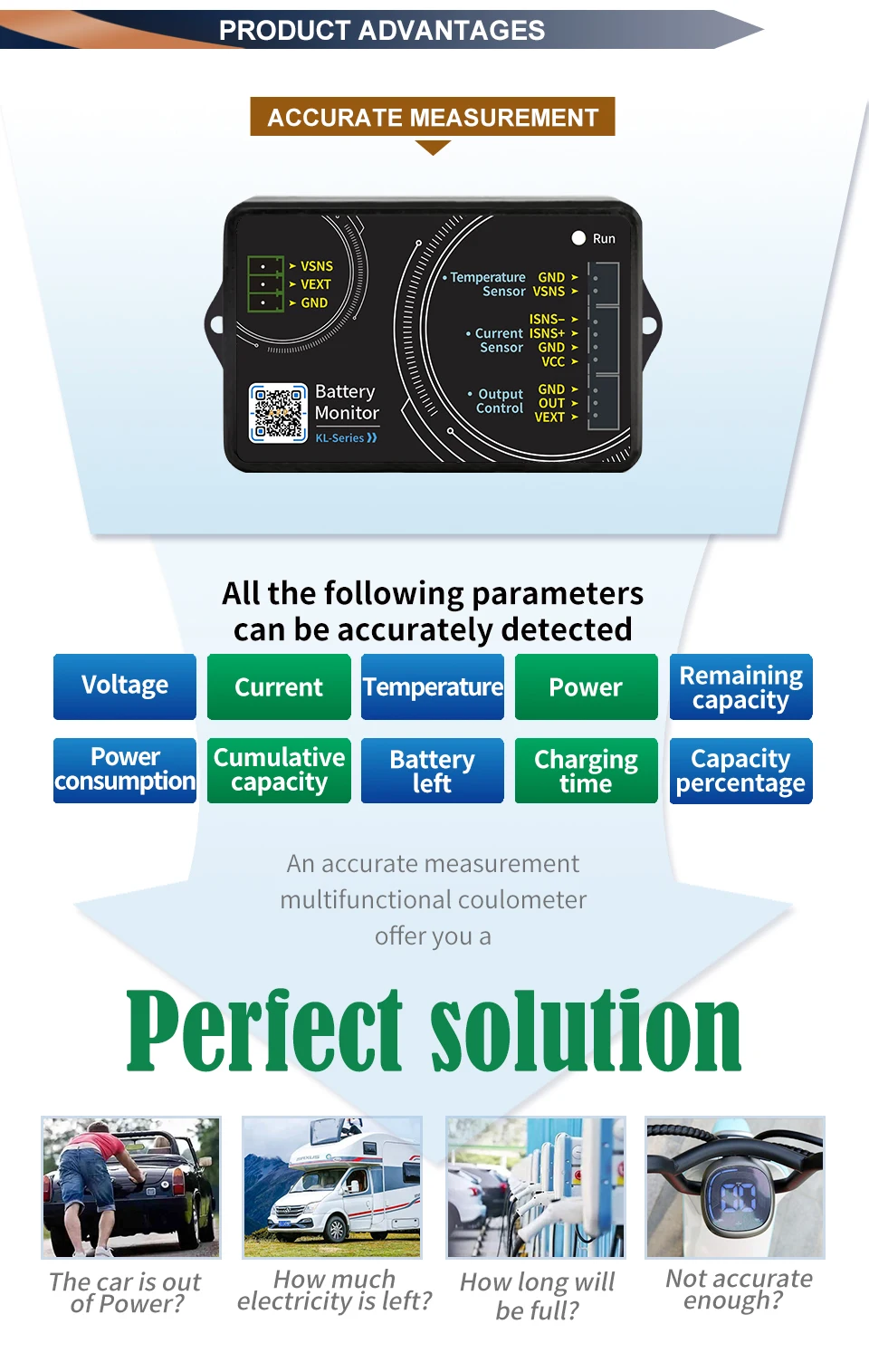

►The product can accurately measure parameters such as voltage, current, battery capacity, power, power consumption, ambient temperature, battery life, charging time, and battery cumulative capacity.



model

KL105F

KL110F

KL140F

KL160F

KL610F

Sampling method

Shunt

Shunt

Shunt

Shunt

Shunt

Voltage measurement range (external power supply)

0-120V

0-120V

0-120V

0-120V

0-600V

Voltage measurement range (self-powered)

10-80V

10-80V

10-80V

10-80V

10-80V

Voltage resolution

0.01V

0.01V

0.01V

0.01V

0.01A

Current measurement range

0~50A

0~100A

0~400A

0~600A

0~100A

Current resolution

0.01A

0.01A

0.1A

0.1A

0.01A

Relay

optional

Temperature measurement range

-20-120℃

Capacity display range

0%~100%

Power measurement range

0~72KW

Power resolution

0.01W

Amp-hour measurement range

0~9999.99AH

Capacity resolution

0.001AH

Watt-hour measurement range

0~9999.99kWH

Watt hour resolution

0.001WH

Bluetooth communication distance

10m

Voltage accuracy

±2%+3 characters

Current accuracy

±5%+10 characters

Sampling rate

1time /second

Measuring board power consumption

About 0.4W

Over power protection

0-99999.99W

Negative overcurrent protection

0~50A/100A/400A/600A

Forward overcurrent protection

0~50A/100A/400A/600A

Overvoltage protection

0~120V/600V

Undervoltage protection

0~120V/600V

External over temperature protection

0-120℃



The interface cool

function is powerful

to use mobile app,

can operate remotely,

support data recording

and export, convenient

and quick.

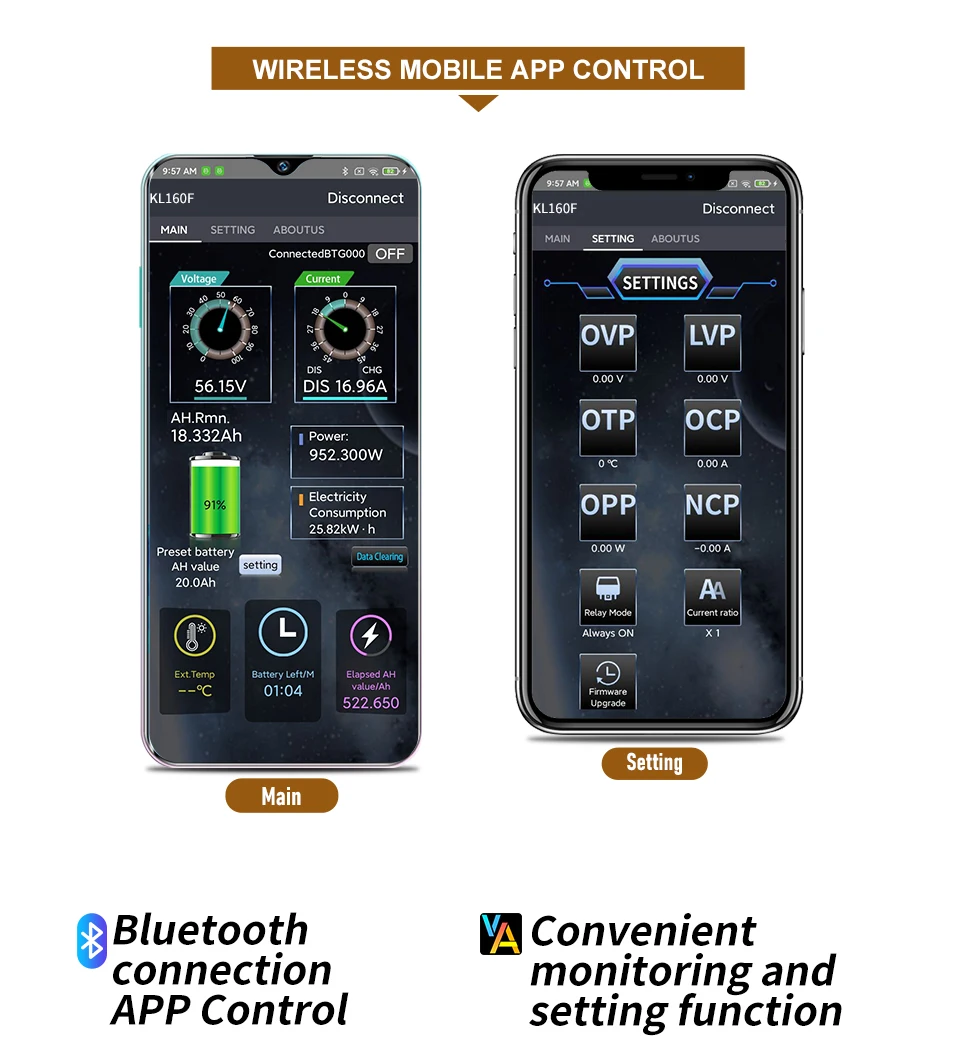

Mobile app supports

curve display, real-time

curve and history curve

of voltage and current,

and historical data

export.


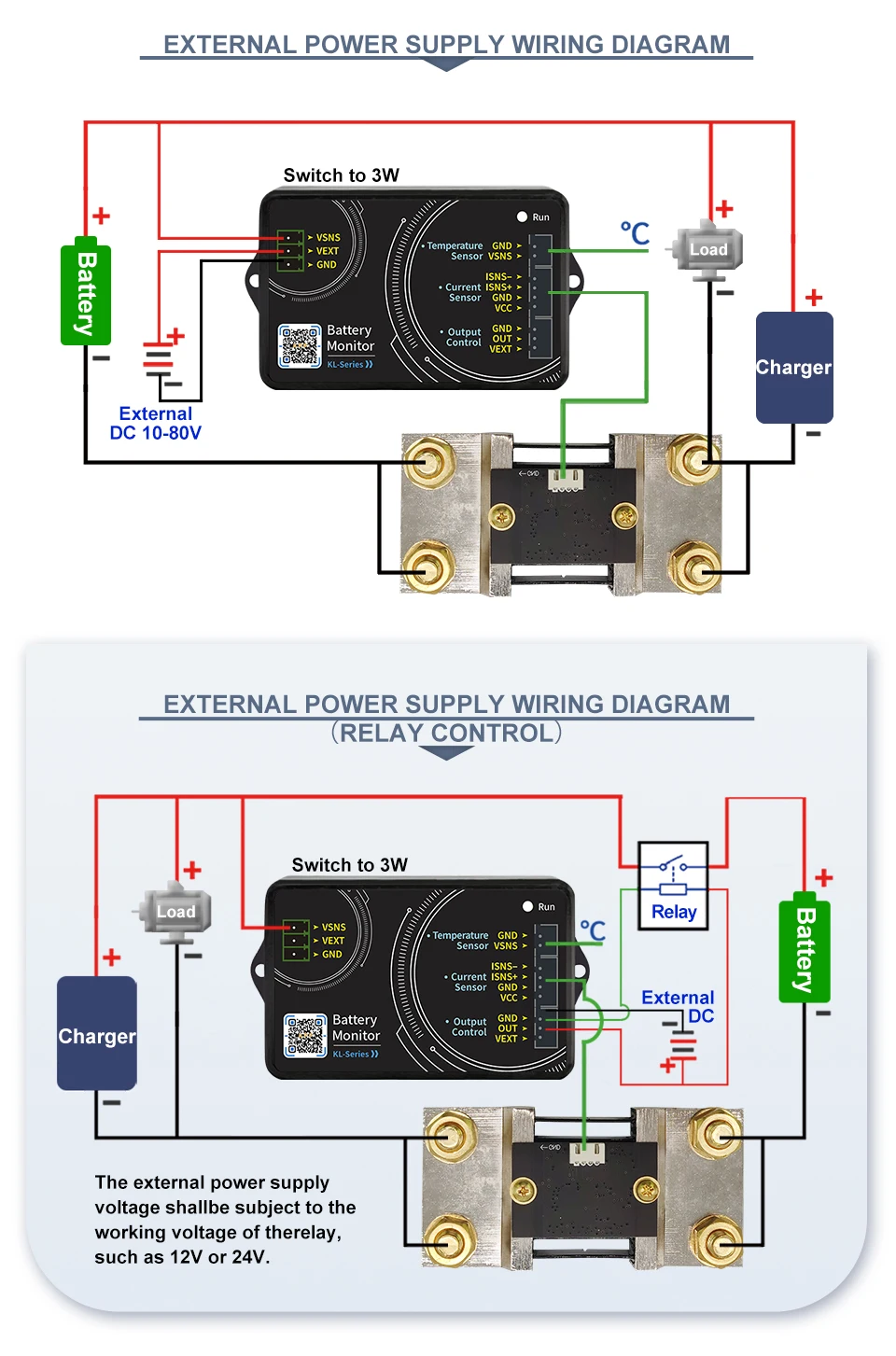

►Over voltage, under voltage, over current, over power and external

over temperature protection can be set,When the value is not in the

range of protection value,the output state of the meter is turned off

(cooperation is required) The relay is used to prevent the electrical

equipment from being damaged.


►The protection recovery time and delay time can be set, which is

suitable for various occasions.

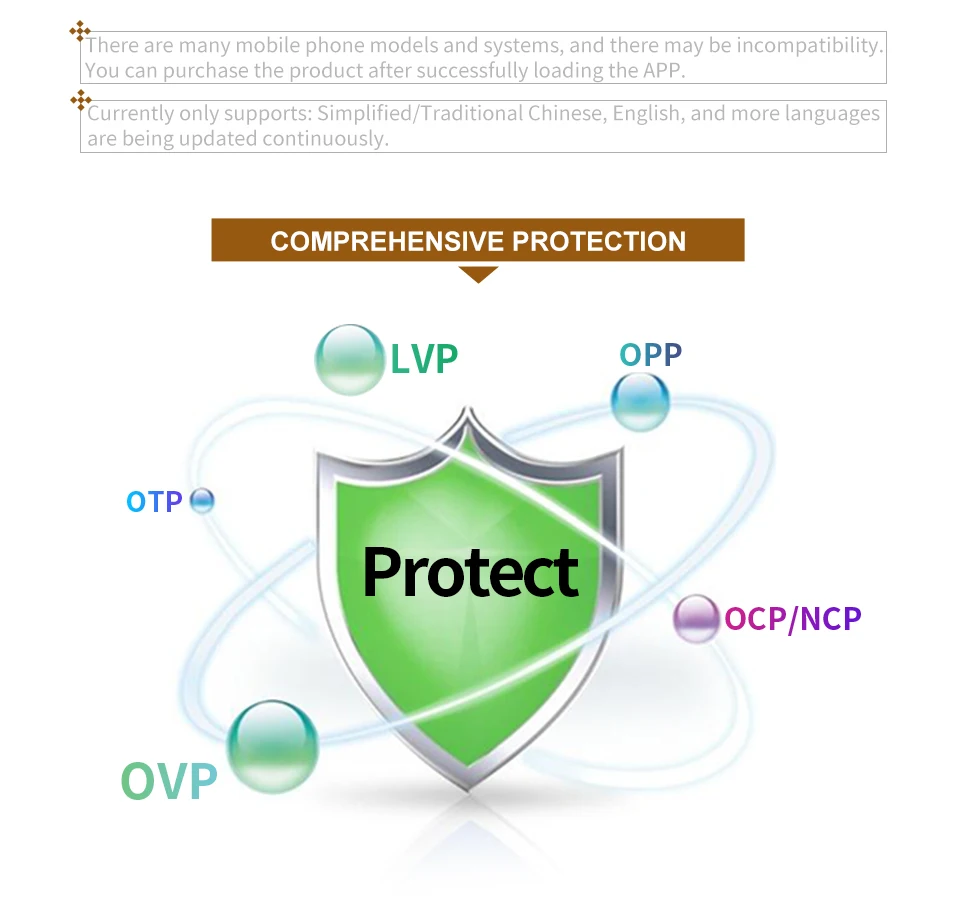

OVP

Over Voltage Protection

OTP

Over Temperature Protection

LVP

Low Voltage Protection

OPP

Over Power Protection

OCP

Over Current Protection

NCP

Negative Over Current Protection

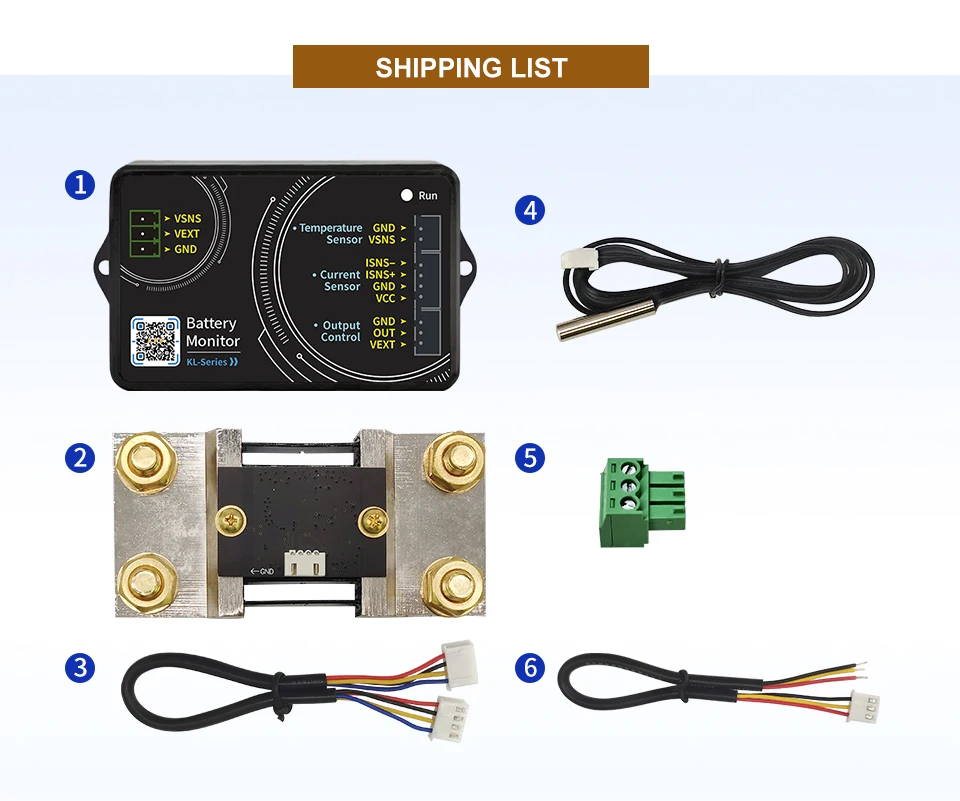

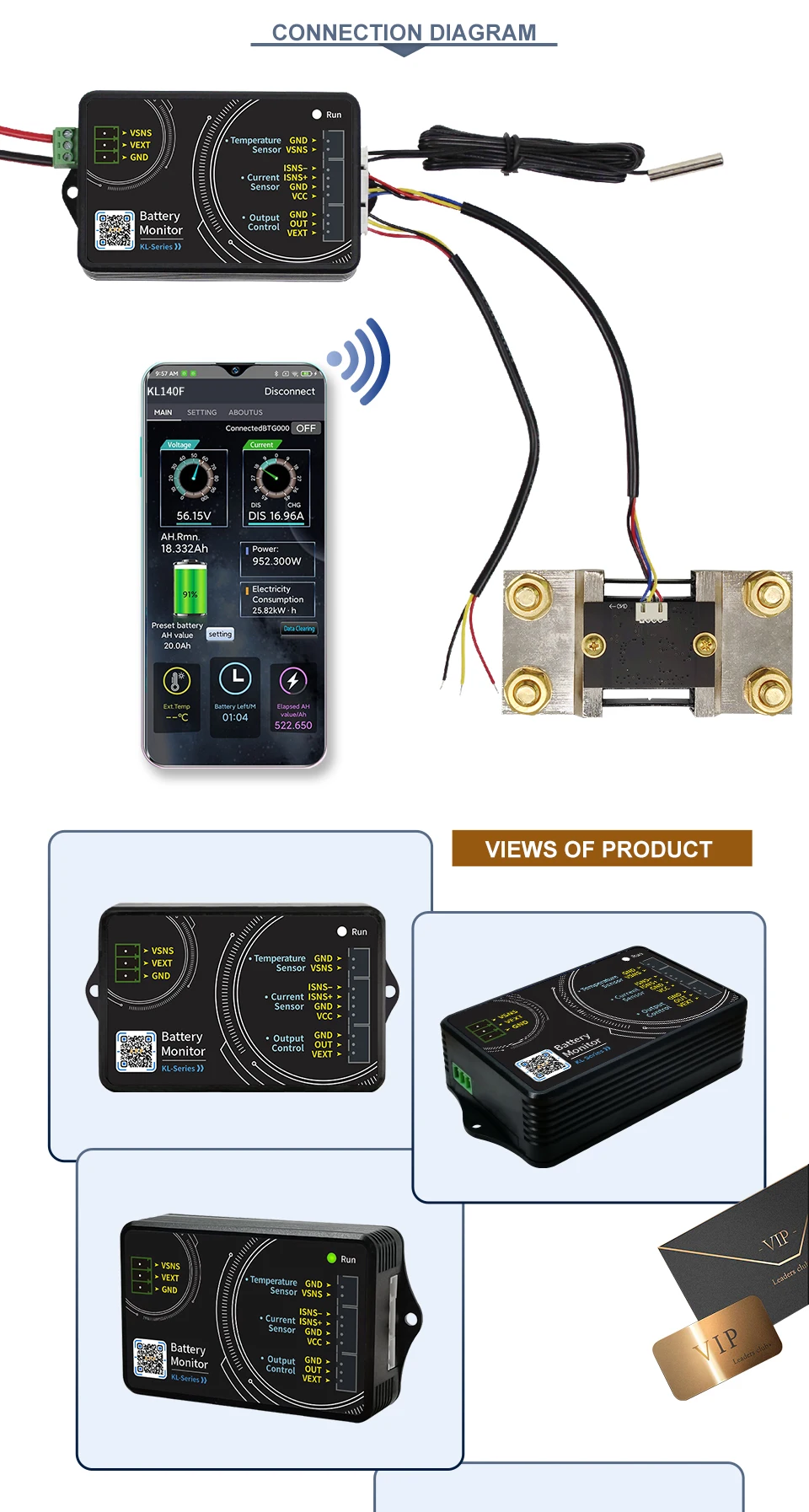

1>  Battery Monitor*1

4>   Temperature Sensor*1

2> Sampler*1

5>   Terminal* 1

3>  4P Connection Cable*1

6>   3P Connection Cable*1
