The 100% billet, 6061 aluminum tank has 3/8" NPT threads in the inlet, outlet and drain areas, including two black nylon fittings, making installation effortless.Unlike other cans that require filtration systems to be replaced, this can is 100% washable.For the largest installation options, the top installation Settings allow you to install from multiple angles.For ease of maintenance, the drain plug can be removed to return to the oil sump
Universal Baffled Aluminum 2-Port Oil Catch Can Tank Compact Air-Oil Separator
Applicable Models:
Universal
Specifications:

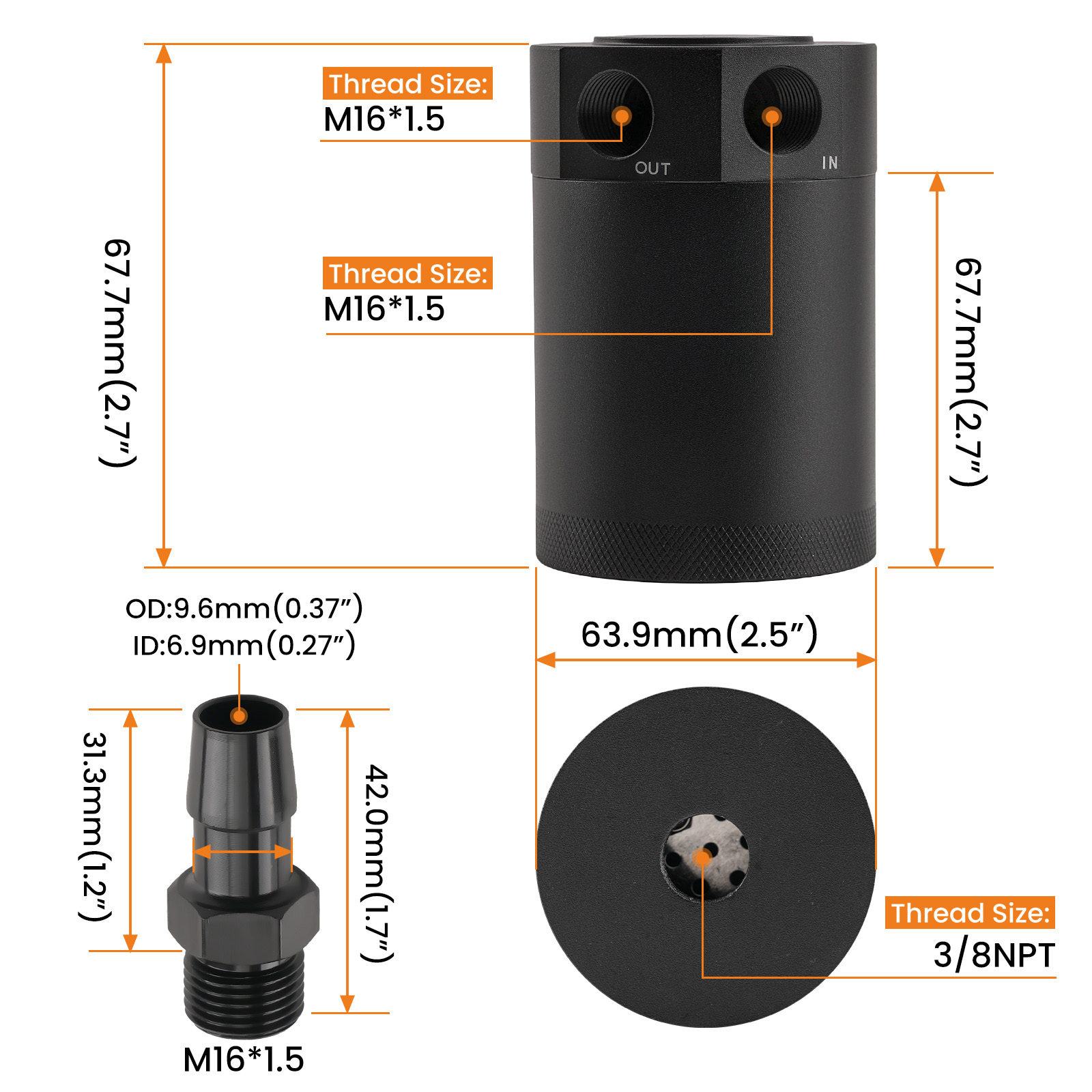

Oil Tank Inlet Size & Outlet Size: M16 x 1.5
Threaded Connector Size: ID: 6.9mm, OD: 9.6mm
Thread Size: 3/8NPT
Oil Capacity: 2fl oz
Color: Black
Material: Aluminium Alloy
Condition: 100% Brand New
Warranty: 2 Years
Features:
-Separates oil particles from PCV/CCV air using 50 micron bronze filter.
-100% billet 6061 aluminum sealed can.
-Safe for pressurized applications.
-Defends intercooler, intake system, and essential components from oil blow-by.
-Helps maintain proper octane levels to reduce potential detonation.
-Features one inlet and one outlet.
-Filter and can are both fully serviceable.
-Internal air diverter turbulates air longer to improve oil separation.

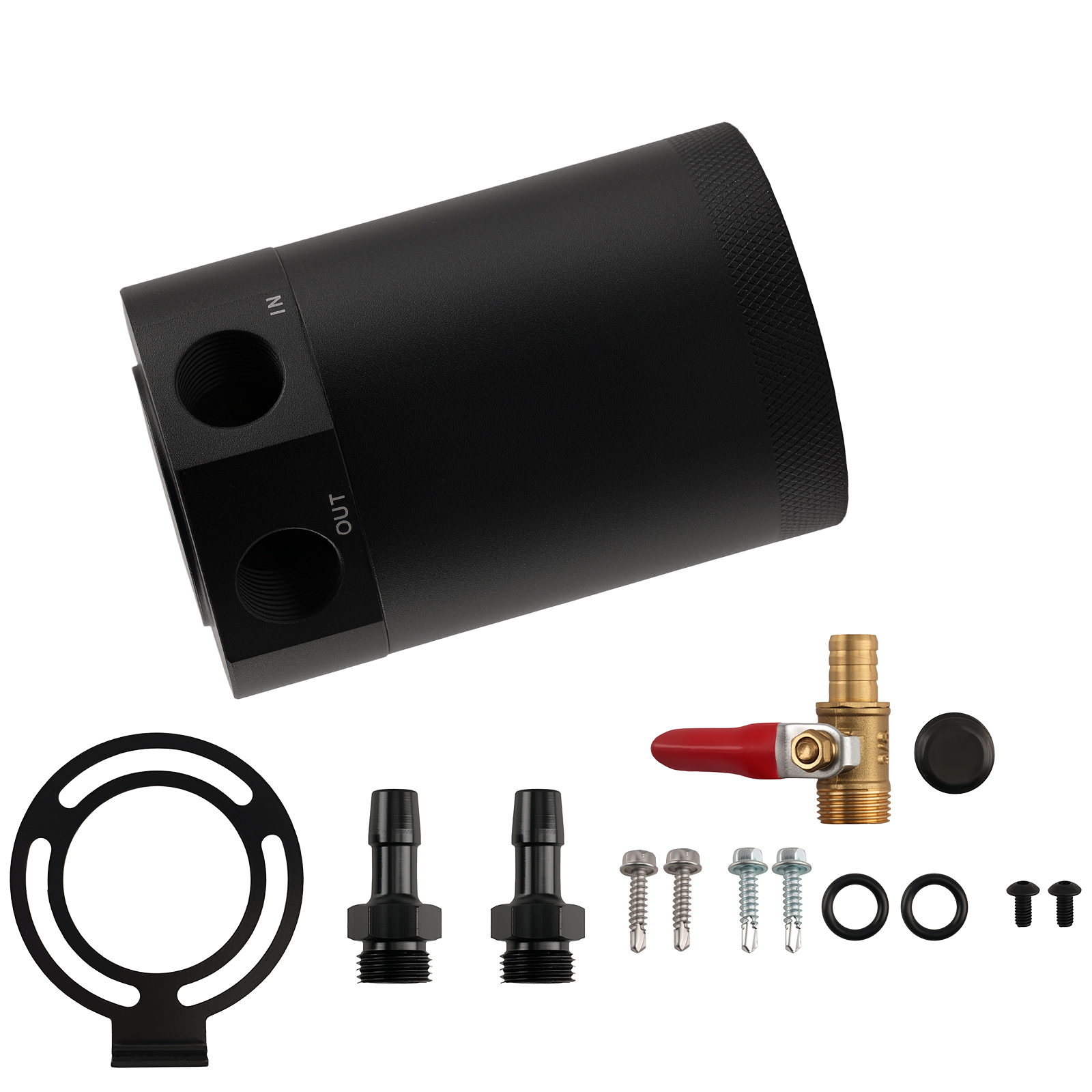

-Includes 2 plastic barbed 1/2 inch hose fittings.
-Universal mounting bracket for different configurations.
Notice:
-Manual measuring, please allow 1 ~ 3 mm error,thank you.
-Professional Installation is Highly Recommended (No Instruction Included)
-If there any questions, please feel free to contact us.
