KOLSOL ELM327 USB OBD2 Scanner V1.5 ELM327 Diagnostic Tool with Switch
Highlights:
1.The modified version of the ELM327 converts the HS-CAN and the MS-CAN.
2.Support FORD models open hidden function.
3.It supports all OBD-II protocols.
4.In addition to adding functionality to Ford, the device can also be used as a regular OBD2 / EOBD diagnostic on a vehicle.
5.Supported System: Windows10 Professional Version, Windows XP, Windows 7
Functions:
1.Read/erase fault codes from all modules, including OBD2/EOBD
2.Access modules on both HS-CAN and MS-CAN mode
3.Read vehicle configuration
4.Actuator tests
5.Live Data
6.Injector coding
7.Software update
8.Service program
9.Force D-P-F regeneration
10.Prog.ramming
11.Coding
12.Adaptation
Vehicle Coverage:（If you are not sure whether it supports your vehicle, please contact us）
America | For Chrysler, For Dodge, For Jeep, For Ford, For Chevrolet, For Cadillac, For Lincoln, For Buick, For Hummer, etc. |
Asia | For Honda, For Nissan, For Lexus, For Toyota, For Mazda, For Mitsubishi, For Hyundai, For Kia, For Isuzu, For Suzuki, For Land Rover, For Daewoo, For Chery, For BYD F3/F0, For Infiniti, For Subaru, etc. |
Europe | For Audi, For BMW, For Citroen, For Fiat, For Mercedes, For Opel, For Peugeot, For R.enault, For SEAT, For Skoda, For V.olvo, For Vo-lks.wagen, For Jaguar, For Lamborghini, For Maserati, For Bentley, For Rolls Royce, For Porsche, For Opel, For Lancia, For Mclaren , For Ferrari, etc. |
Other mainstream models that comply with the international standard obd2 agreement.
Supported Software: When download and install software, please turn off antivirus software .
ELM-config
For-scan
FOC-CCUS
FF-2
Supported protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init,10.4Kbaud)
4. ISO14230-4 KWP (5 baud init,10.4 Kbaud)
5. ISO14230-4 KWP (fast init,10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID,500 Kbaud)
7. ISO15765-4 CAN (29bit ID,500 Kbaud)
8. ISO15765-4 CAN (11bit ID,250 Kbaud)
9. ISO15765-4 CAN (29bit ID,250 Kbaud)
ScanMaster-ELM Software Install:
You should follow the steps shown in the pictures below:
Step1: Open the ScanMaster-ELMv2.1 folder in the Computer-DVD/CD-RW Drive.
Step2: Double-click the ScanMaster-ELM_2.1.104.771 icon to start it.
Step3: You will see the following picture and click [Next].
Step4: Select the [I accept the agreement] option and click [Next] button.
Step5: Select the target location for the installation software.
Step6: Successful installation,there would be a shortcut on the desktop.
Step7: Open the software, set the complete user information.
Step8: Double-click the KeyGen-scanmaster-2.1 icon to get the registration keys.
Step9: Enter the installation code and click[Generate Key] button. Then enter the registration keys to complete the registration.
Driver Installation:
Step1:Open the DVD/CD-ROM Drive and Double-click the CH341SER icon.
Step2: Click the [Install] option.
Step3: Successful installation.
ScanMaster-ELM Usage:
Open the ScanMaster-ELM software,choose the language you need.
Notice: Software port settings and device manager detected ports, both must be consistent
Click the [Connect] button in the lower left corner to connect the device.
The software is running ,computer detected interface version V1.5
Read Trouble Codes
Read Live Data Grip

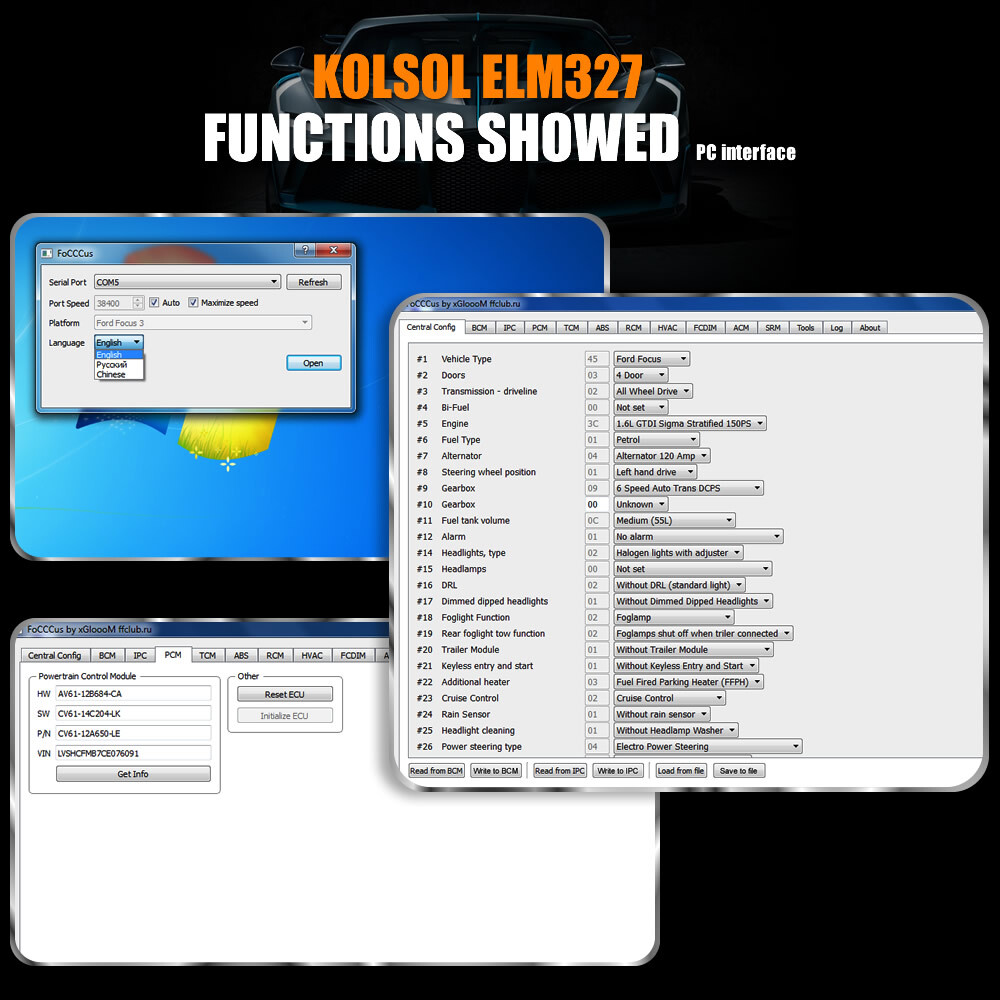

FoCCCus Software Usage:
Open the FoCCCus folder and you will see the FoCCCus icon.
Software port settings and device manager detected ports, both must be consistent.
Select the language and click the [Open] button.
These are what you’ll see when the software is running:
Package includes:
1PC x KOLSOL ELM327 USB OBD2 Scanner V1.5
