PRODUCT DESCRIPTION

Please Note:

If you need to return the item for some reasons, please contact us via eBay message at the first time,we will try our best to help you and arrange the return for you,please do not return the item without permission,thank you!!

GODIAG GT100 Auto Tool OBDII Break Out Box E-C-U Connector

New Version Communication Detection Tool: GODIAG GT100 E-C-U Bench connector is the latest testing platform for OBD2 protocol communication detection and E-C-U maintenance/ diagnosis/ programming /coding.
Flexible Conversion: The OBD2 can bus breakout box device can convert the onboard OBD2 interface into 16 pins for signal detection and substitution conversion. It can be connected to single or multiple modules of the vehicle.
When you replace the battery, E-C-U Connection Kit can also power the car, lose the car control module data, automatically lock the data, reset the key controller and the fault indicator light is on.
Wide Compatibility: GT100 E-C-U Connection Kit has strong compatibility, including an OBD2 scanning tool, connect multiple E-C-U control modules, OBD2 card reader, car tester, and other equipment connections, it can be connected with any car diagnostic tool.

GODIAG GT100 Auto Tool OBDII Connector

Highlights of GODIAG GT100:

1. GODIAG GT100 is a latest testing platform for OBDII protocol communication detection and E-C-U maintenance, diagnosis, programming & coding.
2. It can convert the car OBD2 interface into 6 pin for signal detection and electrical level conversion.
3. Able to connect the single modules or multiple modules of the vehicle.
4. Connect with any diagnostic tool to tell whether the car communication is good or not.

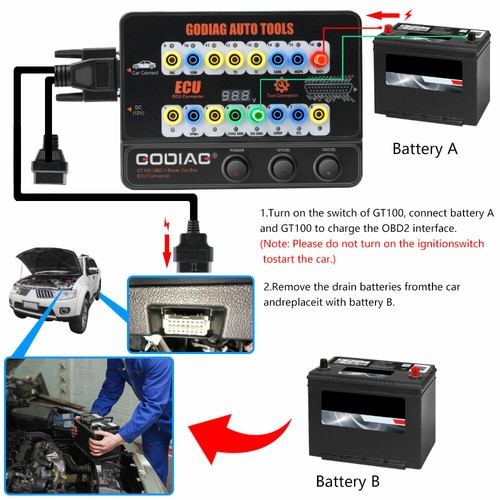

5. Supply power to the car when you change the battery to avoid the vehicle control module data being lost, automatically locked, key remote control fails or the fault light turns on.
6. One Year Warranty.
7. Work together with Xhorse VVDI2, Autel devices, Launch, Foxwell etc.
8. BMW CAS4 Test Platform function will be coming soon, and also will develop the connection cable for Benz and for Chrysler, please wait.
9. GODIAG is our brand, we can provide good price and technical support for distributors worldwide.

Notice: Please choose in Version according to the voltage of your local place.

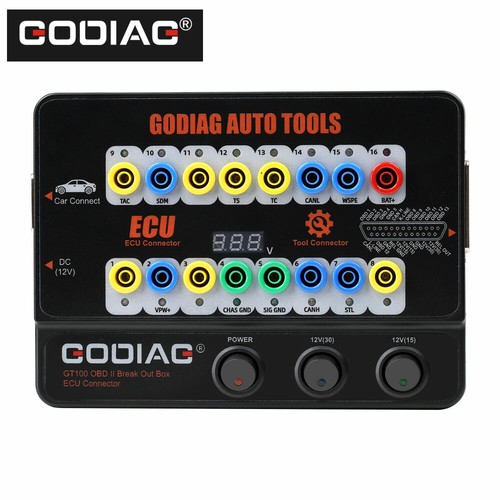

GODIAG GT100 Connection Diagram:

Indicator Meaning:

1. Manufacturer custom
2. SJE1850 wire
3. Manufacturer custom
4. Power grounding
5. Signal grounding
6. SAEJ2284《CAN》high
7. ISO9141-2&iso, DIS4230-4K wire
8. Manufacturer custom

9. Manufacturer custom
10. SJE1850 wire《bus->
11. Manufacturer custom
12. Manufacturer custom
13. Manufacturer custom
14. SAEJ2284《CAN》low
15. ISO9141-2 & ISO/DIS 4230-4L wire
16. Car battery positive

Godiag GT100 Parameter

Item	Specification
Diagnostic port	OBDII
Working voltage	DC 9V-24V
Work and power	0.5-0.6W
Adapter power	Input AC100v-240v, Output DC12V 1A
Operating temperature range	-20 to 70 °C ( -4 to 158 °F )
Storage temperature range	-40 to 85 °C ( -40 to 185 °F )
Dimension	L: 23cm, W:18cm, H:7cm

Package includes:

1pc x Host
1pc xOBD 2-in-1 extension cable
1pc xColored jumper cable
1pc xPower supply 12V
1pc xResistance 120 ohm
6pcs xBanana plug
24pcs xWire accessories, Dupont 2.54mm connector female pins
