CCJH is a professional sliding door hardware manufacturer with warehouse in US.
(HARDWARE ONLY, DOOR IS NOT INCLUDE)

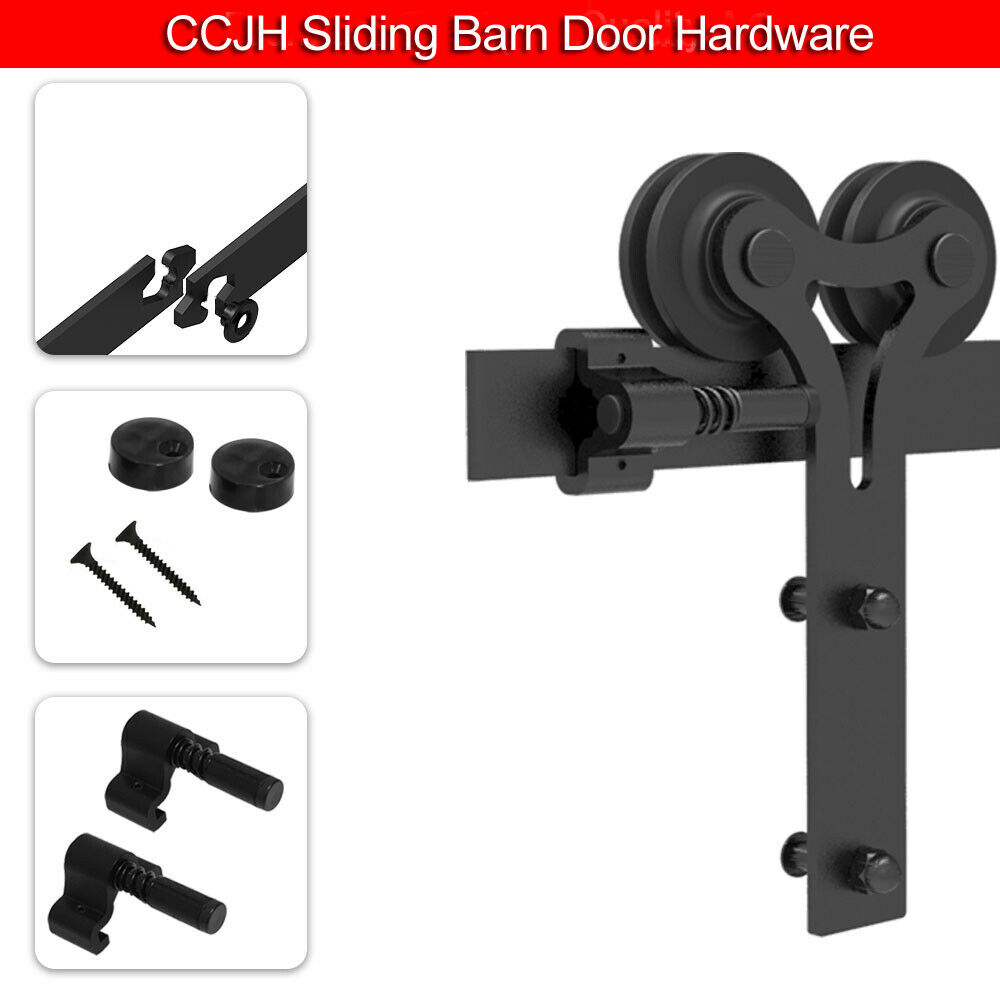

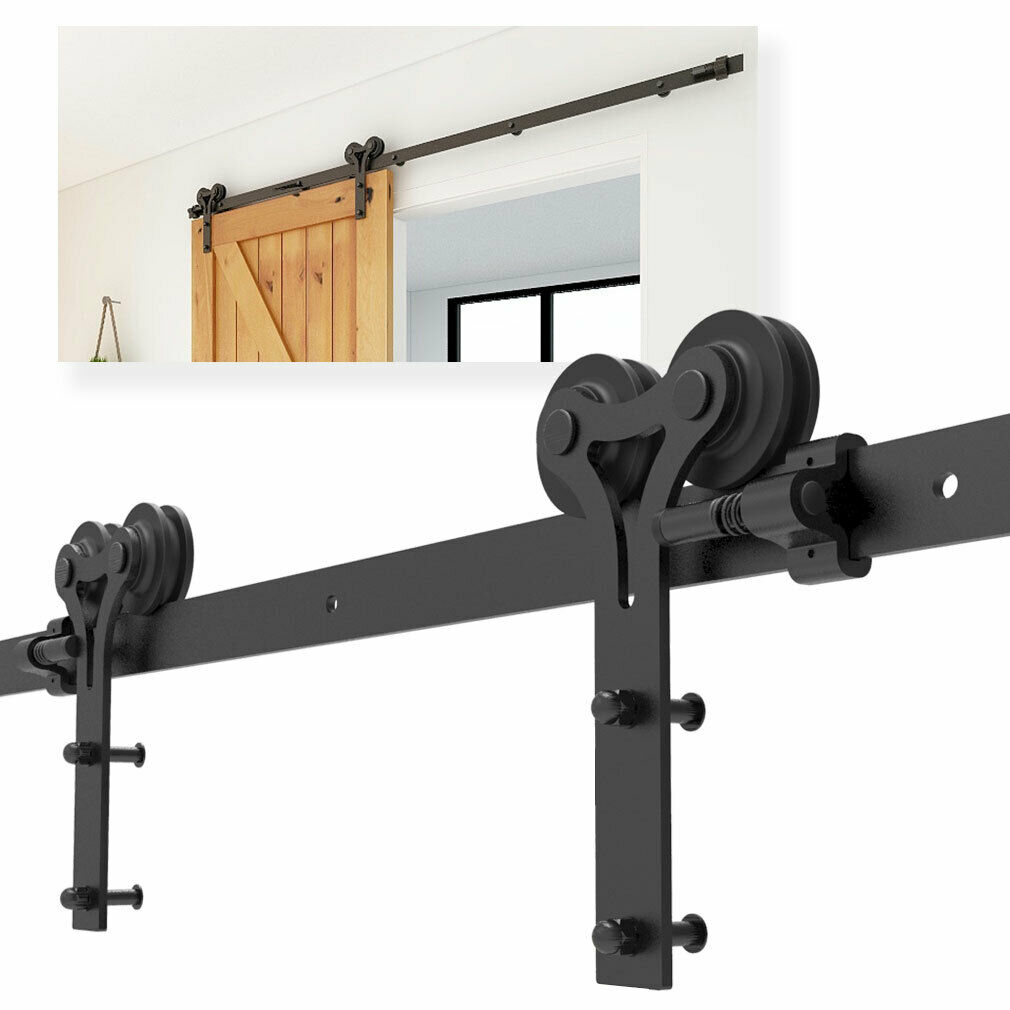

High quality steel barn door hardware kit;

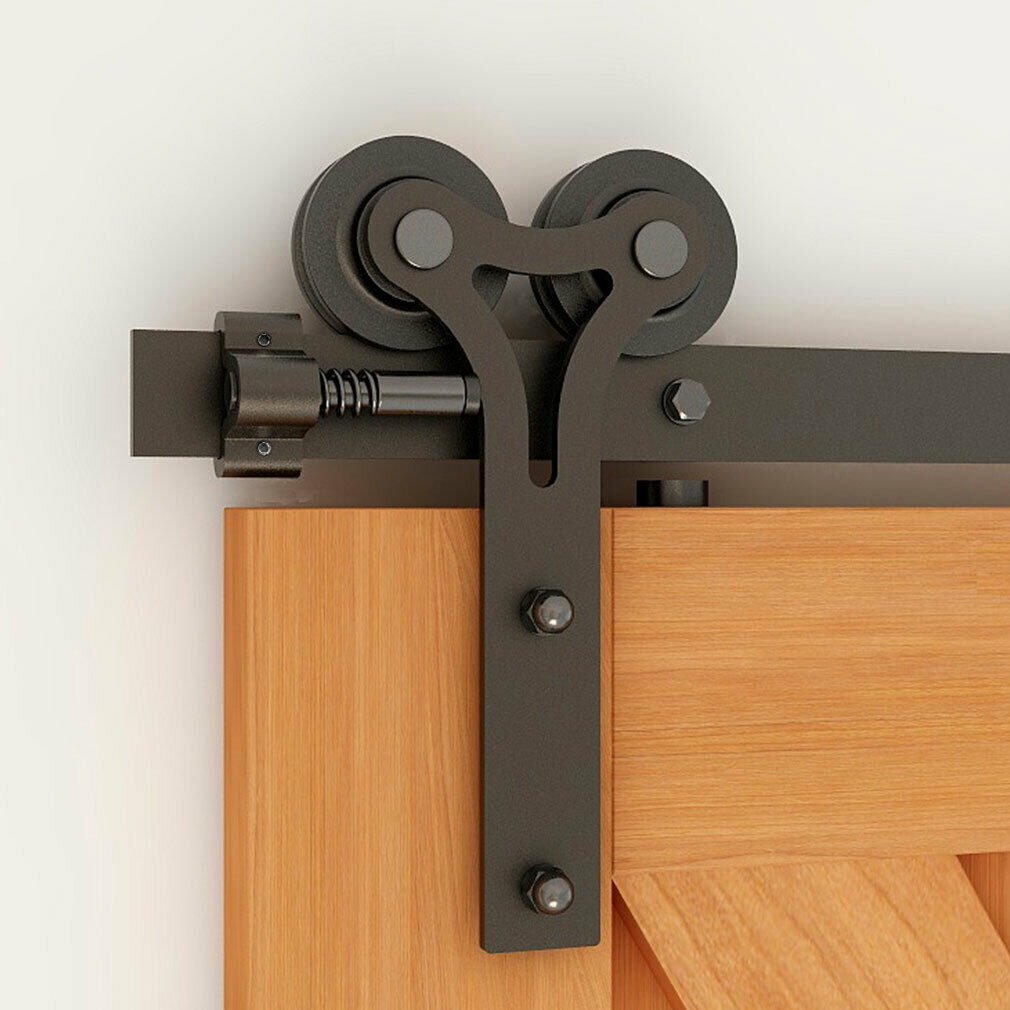

Heavy duty roller bearing;
High strength industrial grade track;
Water Resistant and Rust Proof for long lasting use;
Step by Step instructions are easy to understand;

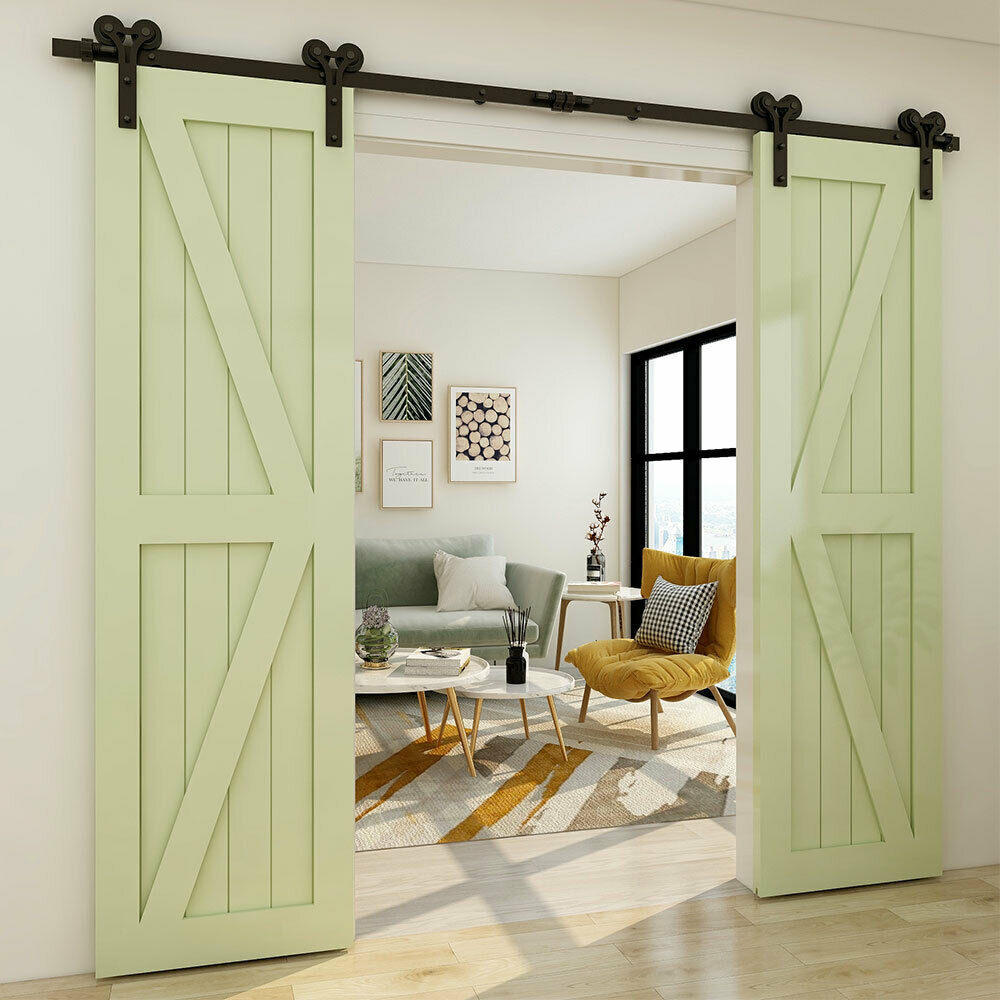

Perfect for an exposed sliding door in the bedroom, study room, living room or kitchen.
ITEM DESCRIPTION
1.Item: 5-15FT Sliding Barn Door Hardware for Single/Double /Bypass Door
2.Material: High Quality Carbon Steel ;Surface: Frosted Black Pre-Drilled Track
3. Max Door weight capacity: 220 lbs
4. Door Thickness: From 1.2" To 2" (30mm- 50mm)
5. Min distance between the door and ceiling 5"/12.7cm
6. Diameter of the roller: 5.9 in/15cm

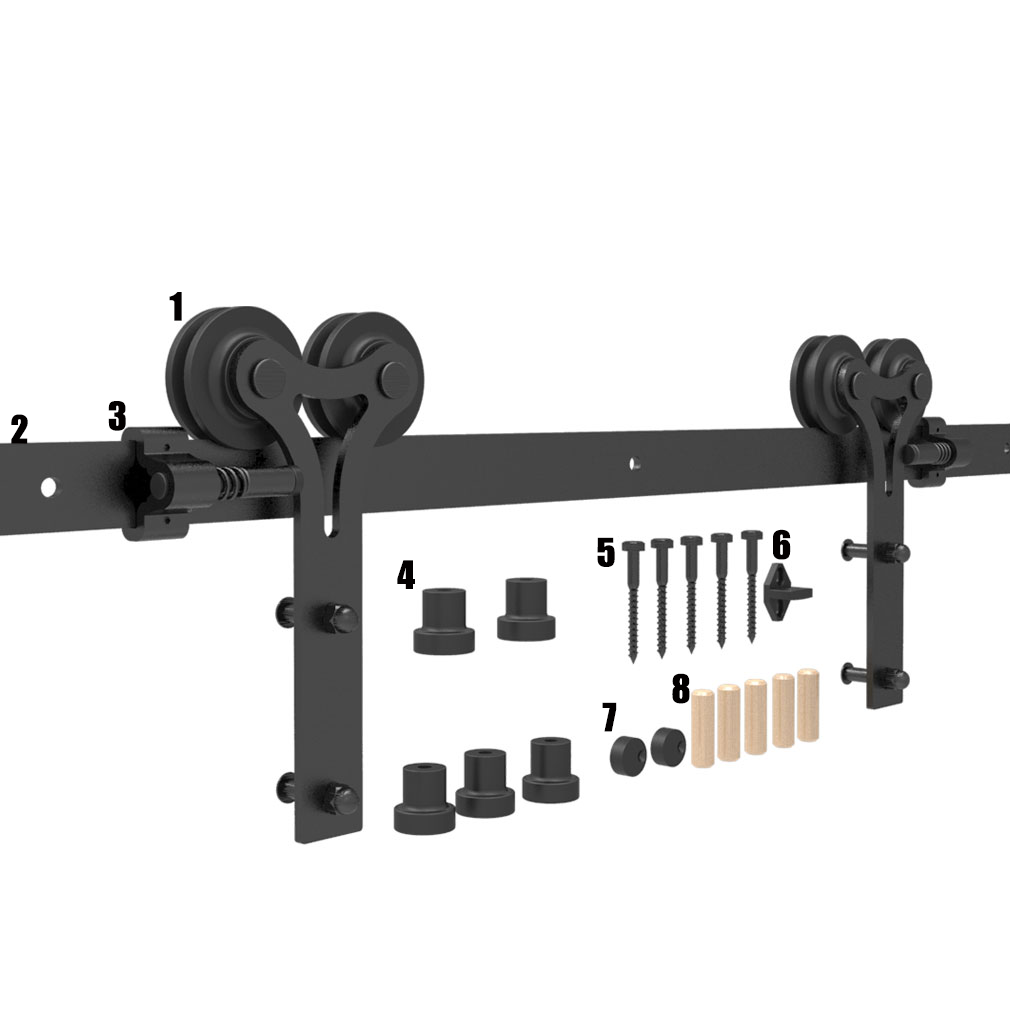

PACKAGE INCLUDE
For Single Door: For Double Door:
Rollers： 2 PC (1 Pair)； 4PC(2 Pairs)
Splice tracks Splice tracks
Anti-jump Disk* 2PC; 4PC
Floor Guide*1PC; 2PC
Door Stop:*2 PCS; 4PC
Wall Hangers; Wood plug;
Roller Screws;
How to choose track size
▶ Single Door Min Track Size= 2 × Single Door panel Width
Example: For a 3FT door, recommend you choose a 6FT track at least.
▶ Double Door Min Track Size= 4 × Single Door panel Width
Example: For a 3FT door, recommend you choose a 12FT track at least.
For Bypass Two Doors:
Rollers* 4 PC (2 Pair);
Double Splice tracks- Carbon Steel;
Anti-jump Disk* 4PC;
Floor Guide*2PC;
Door Stop:*4 PCS (2 Pair)';
Wall Hangers; Wood plug,;
Roller Screws;
Bypass 2 Doors:
▶ 2 doors just slide on the opening space and cannot be put away to the near wall.
Track size= 2 × Single Door panel Width
▶ 2 doors overlapped onto each other can be slid to the one side wall,
Track Size= 3 × Single Door panel Width
▶ 2 doors can be slid on the either sides wall,
Track size= 4 × Single Door panel Width
Tip: if you order 6FT Bypass Track kit, you will receive 2*6ft Tracks.
