8mp High resolution SONY IMX179 MJPEG No distortion HD document capture UVC Mini Usb Camera Module for Android, Linux, Windows

Features:

1) 8mp High resolution , Max resolution 3264X2448

2) Advanced Sony (1/3.2'' ) IMX179 image sensor

3) High quality 75 degree no distortion lens

4) Support OS: Win XP\Win7\Win8\Android\Linux , support raspberry pi\Mac

5) Compression : MJPEG&YUY2


Specifications:


Model Number
ELP-USB8MP02G-L75
Sensor Type
Sony IMX179

Lens Size
1/3.2 inch
Pixel Size
1.4um
Image Area
6.18mm x 5.85mm
Max Resolution
3264(H) X 2448(V) 8Megapixel
Compression Format
MJPEG / YUV2（YUYV）
Maximum Image Transfer Rate :
3264X2448 MJPEG 15fps YUY2 2fps
2592X1944 MJPEG 15fps YUY2 3fps
2048X1536 MJPEG 20fps YUY2 3fps
1600X1200 MJPEG 20fps YUY2 10fps
1280X960 MJPEG 20fps YUY2 10fps
1024X768 MJPEG 30fps YUY2 10fps
800X600 MJPEG 30fps YUY2 30fps
640X480 MJPEG 30fps YUY2 30fps
S/N Ratio :
34dB
Dynamic Range :
72.5dB
Sensitivity
0.65V/lux-sec@550nm
Minimal illumination :
0.5Lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class（UVC）
OTG protocol
USB2.0 OTG
AEC
Support
AEB
Support
AGC
Support
Button Camera
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens
no distortion lens (2.1/2.8/3.6/6/8/12/16mm lens/fisheye lens optional)
LED board control interface
Support 2P-1.25mm socket
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Operating Voltage
DC5V
Working current
150mA~240mA
Working temperature
-10～70℃
Storage temperature
-20～85℃
Board size
38X38mm（compatible 32X32mm）
Operating system request
WinXP/Vista/Win7/Win8/Win10
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC




Applications

Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote site monitoring, environmental monitoring, etc.


used for all kinds of machine as below:

machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope, Medical auxiliary equipment, etc.




Product Display :

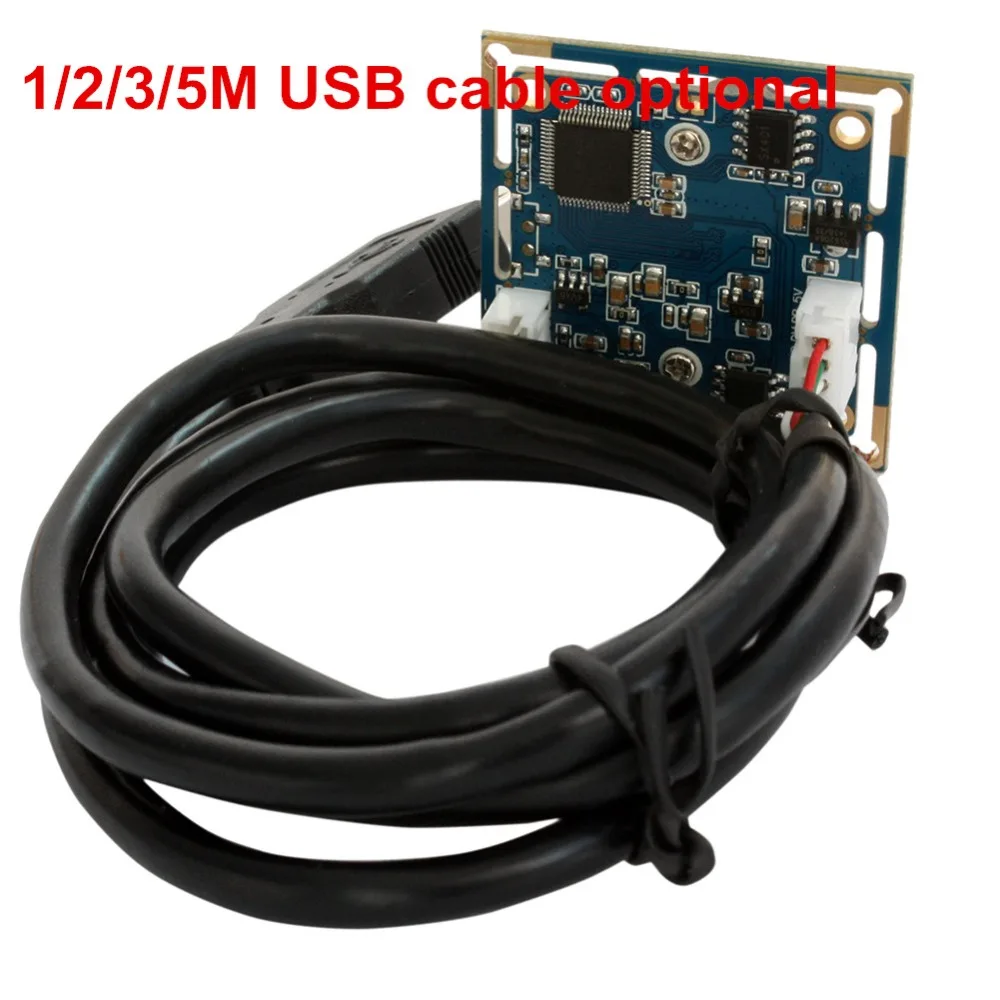

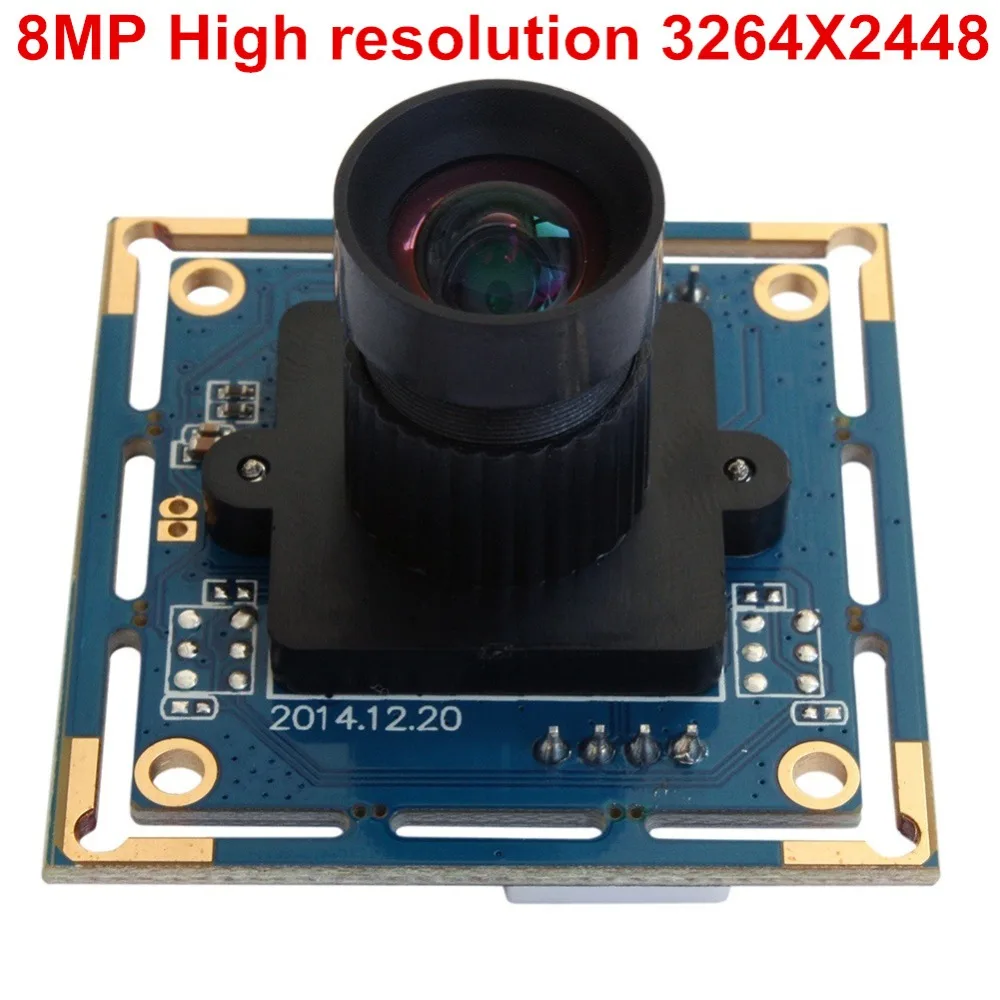

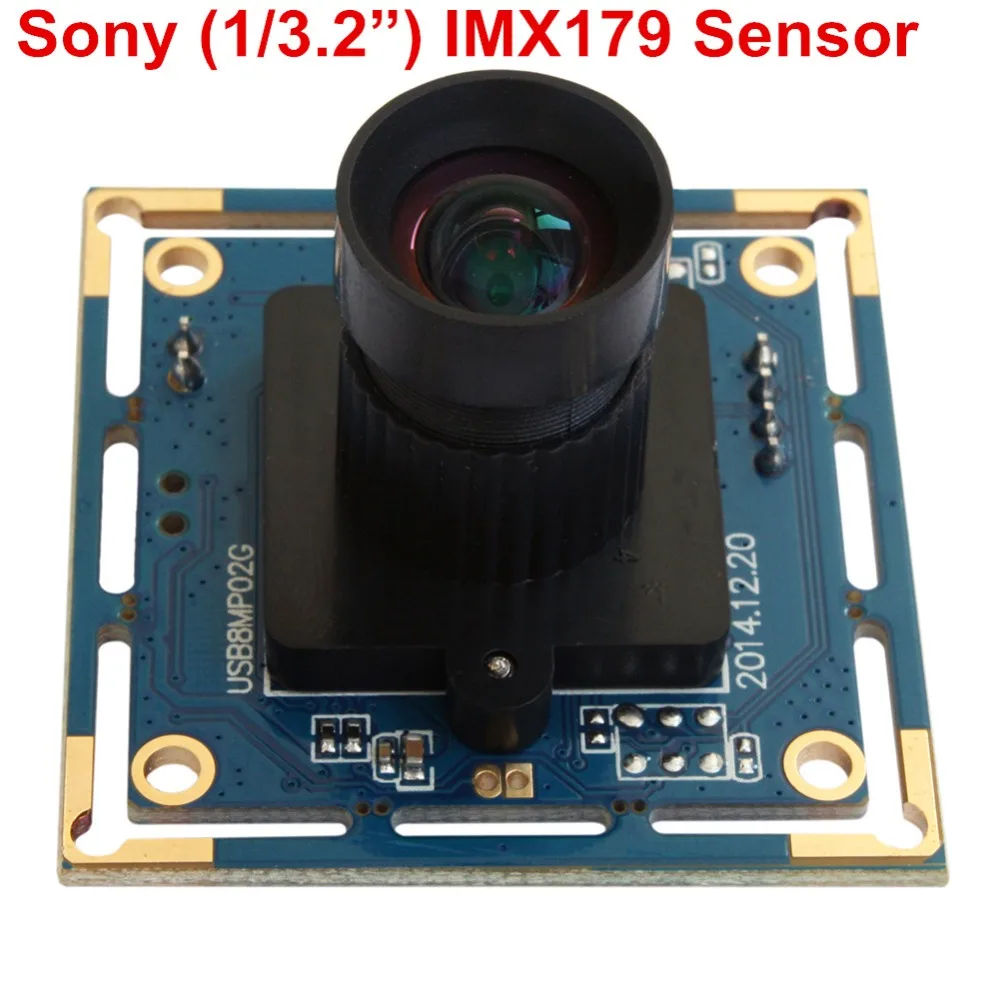

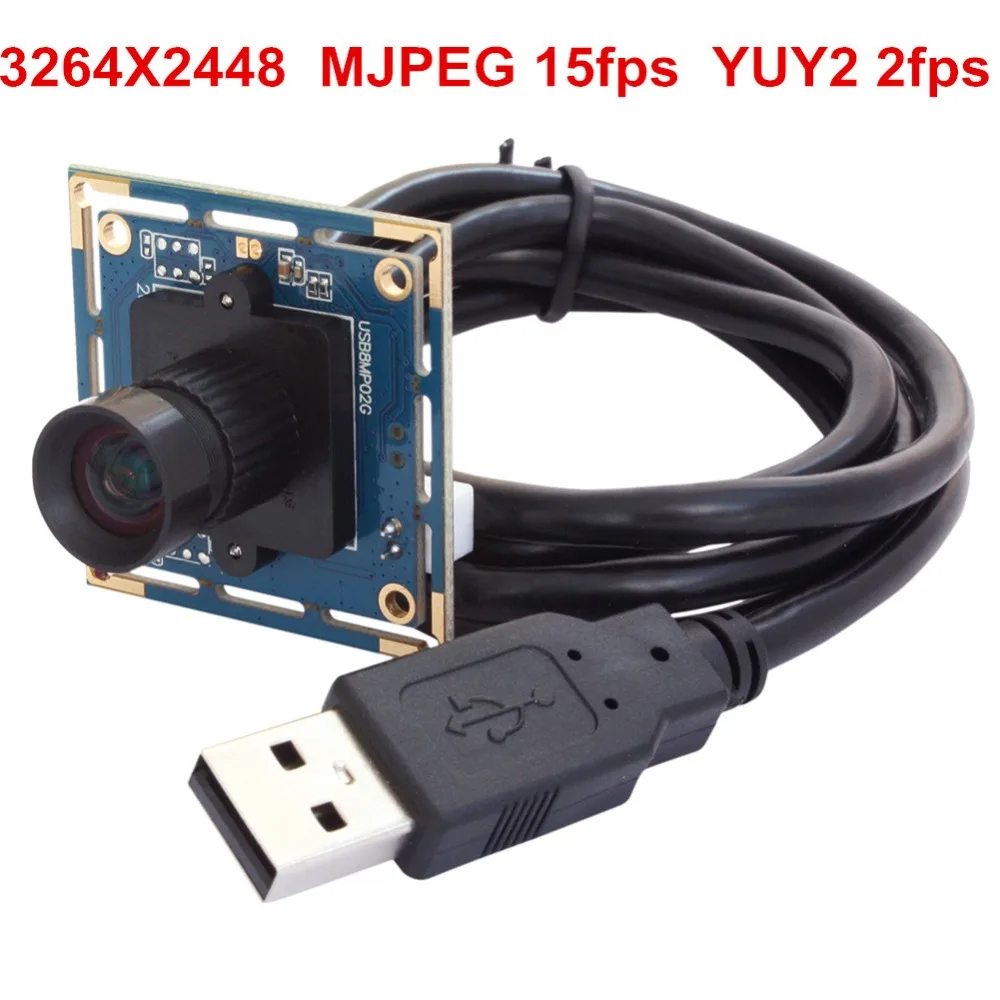

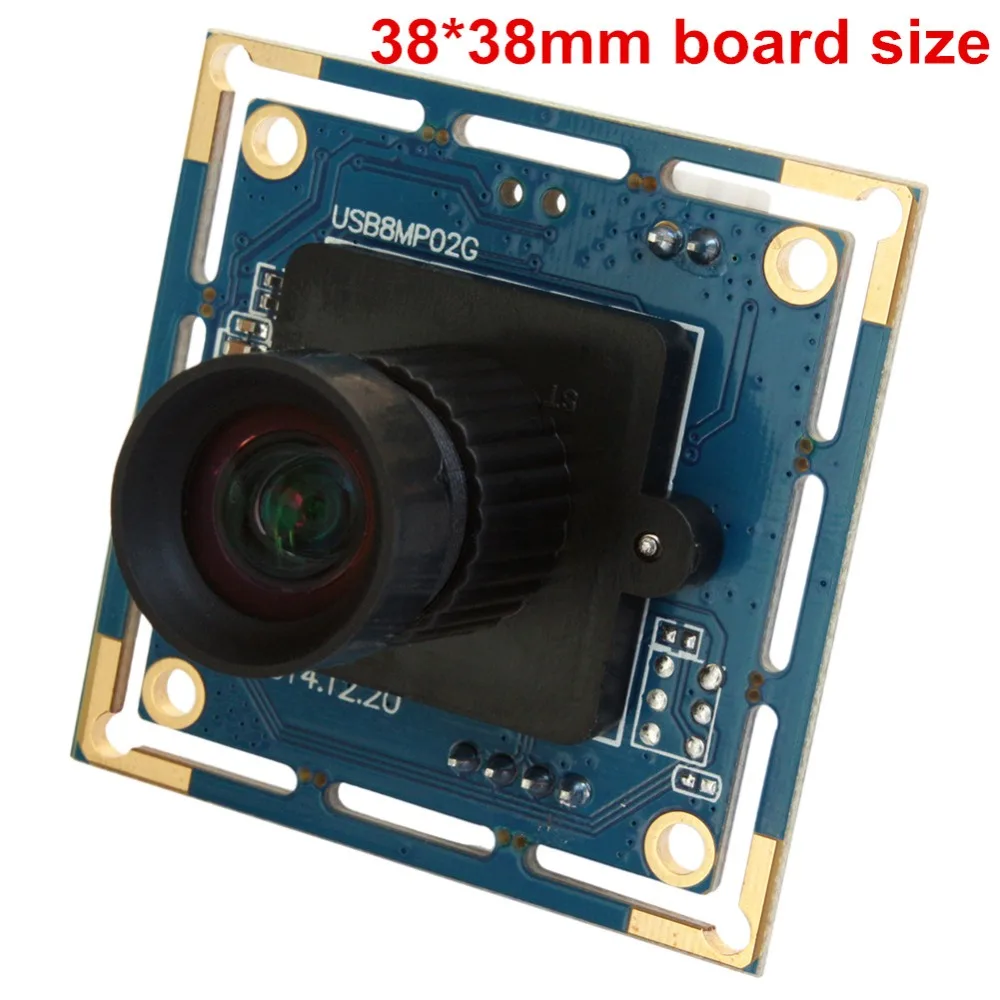

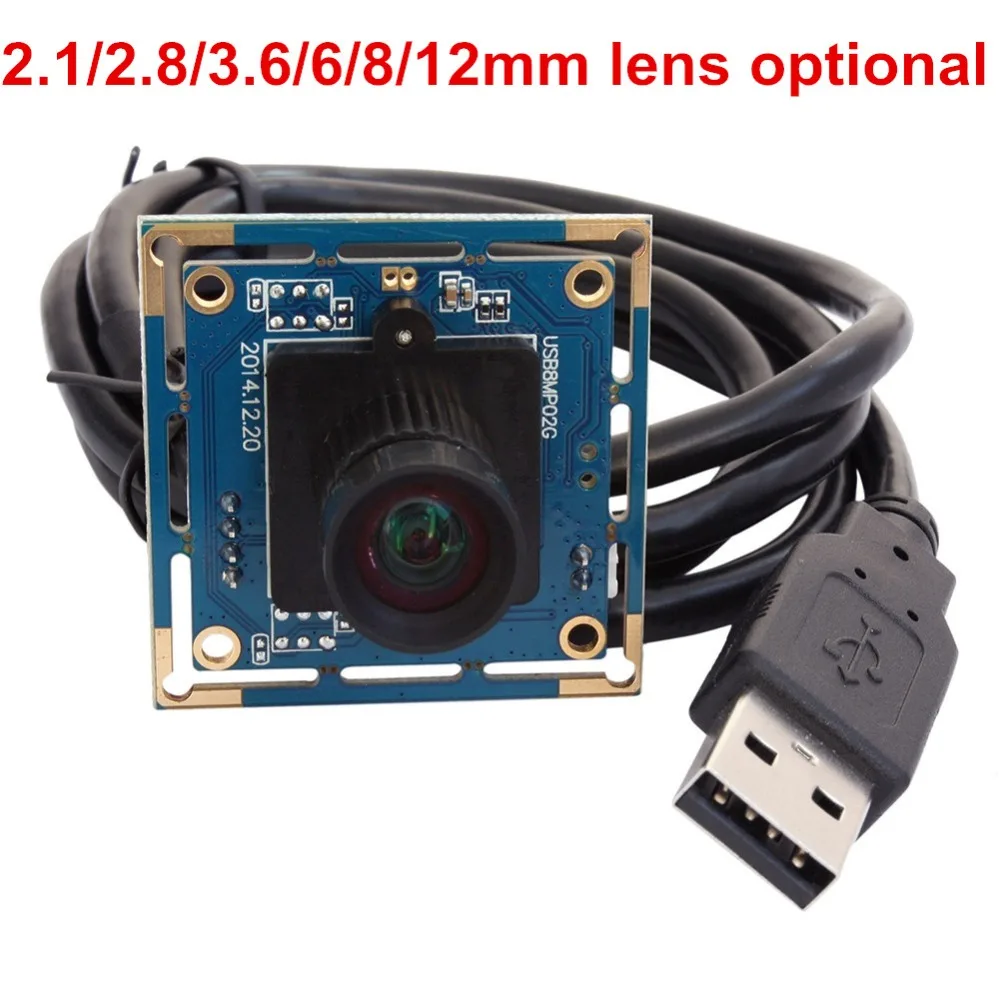

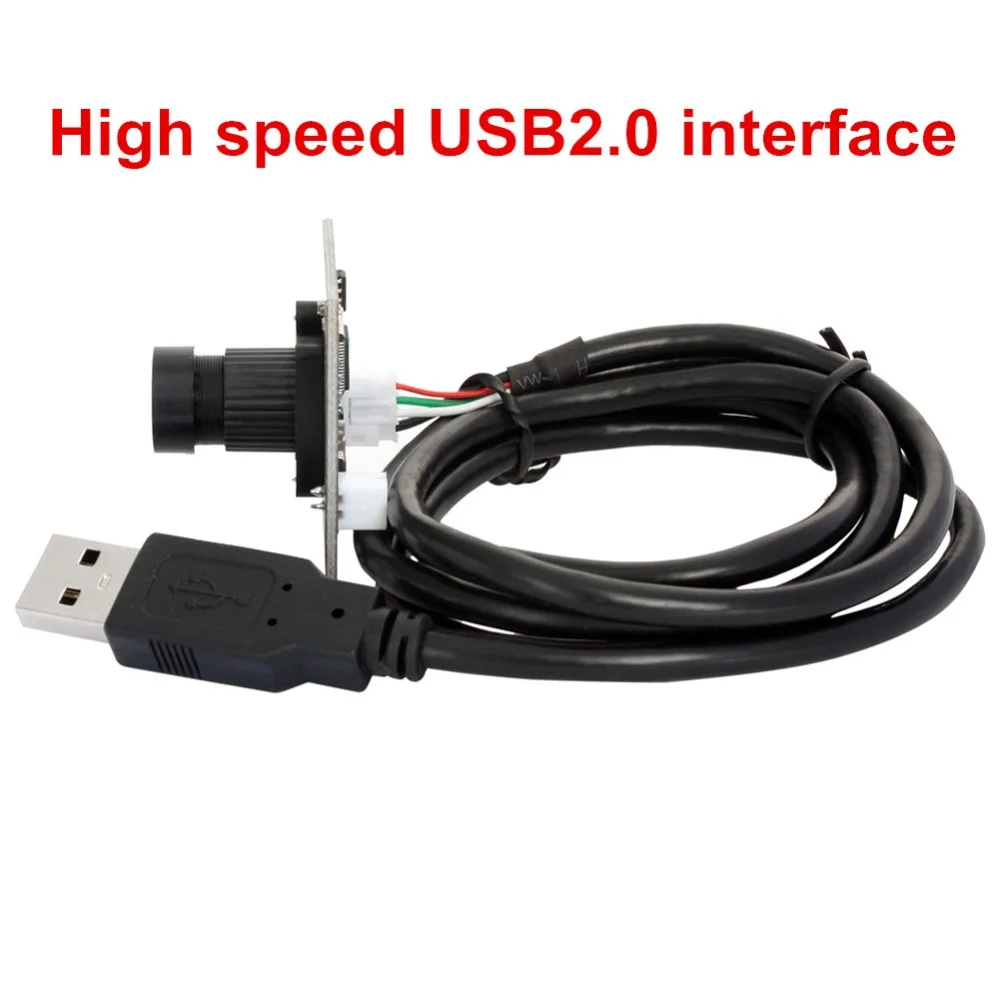

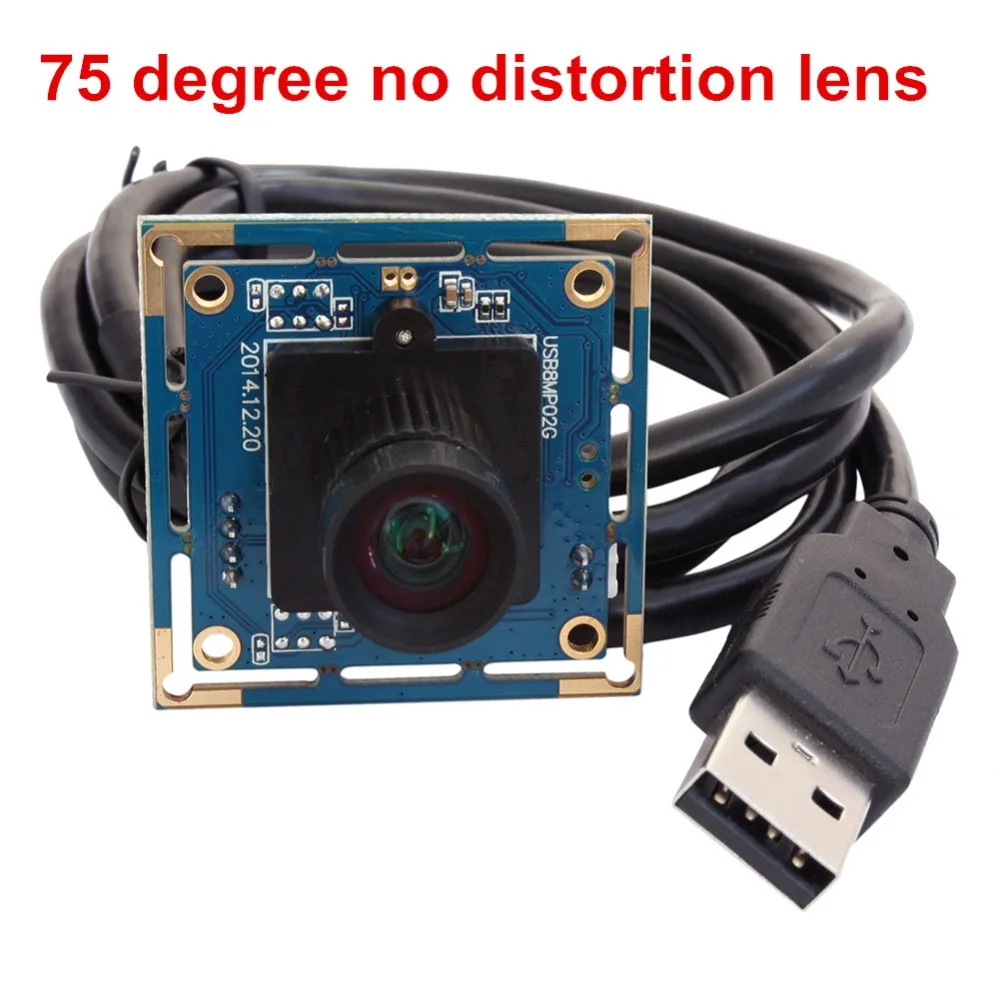

10 sensor11 resolution12 size13 lens optional14 lens angle15 usb16 usb cable17 format

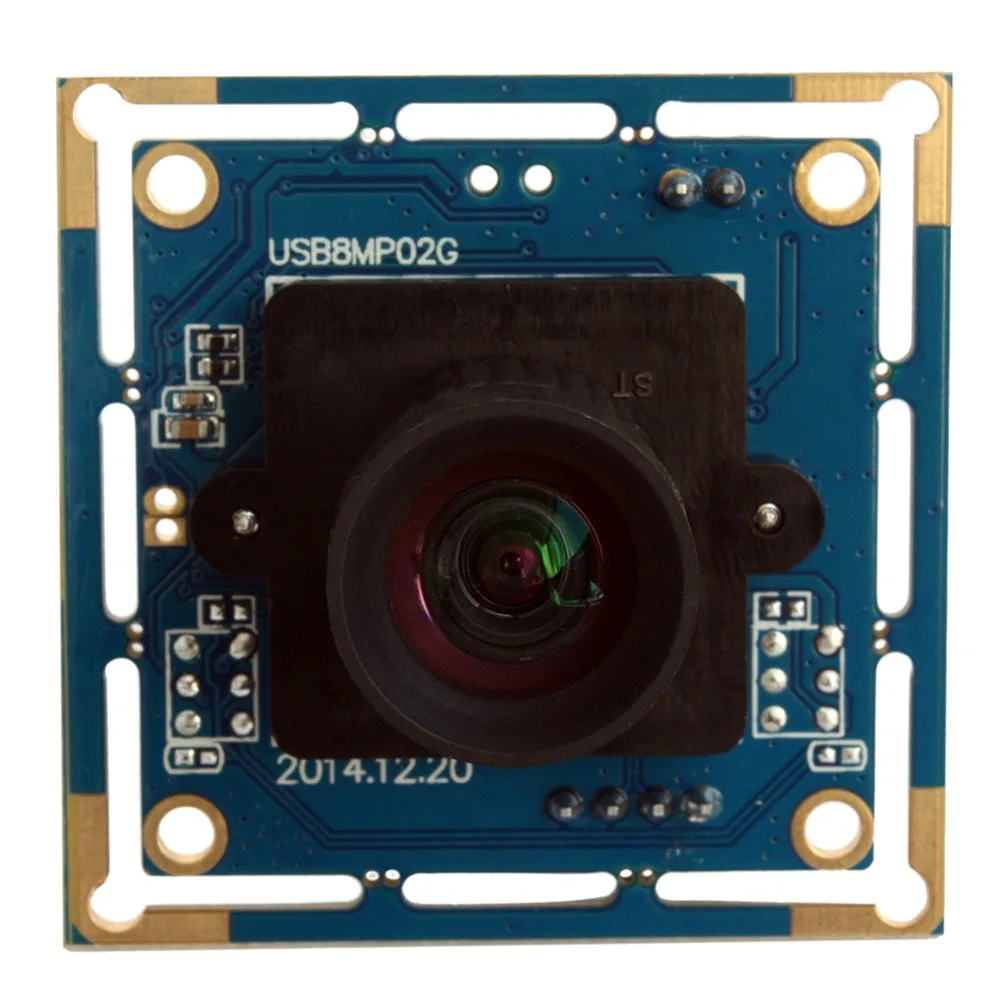

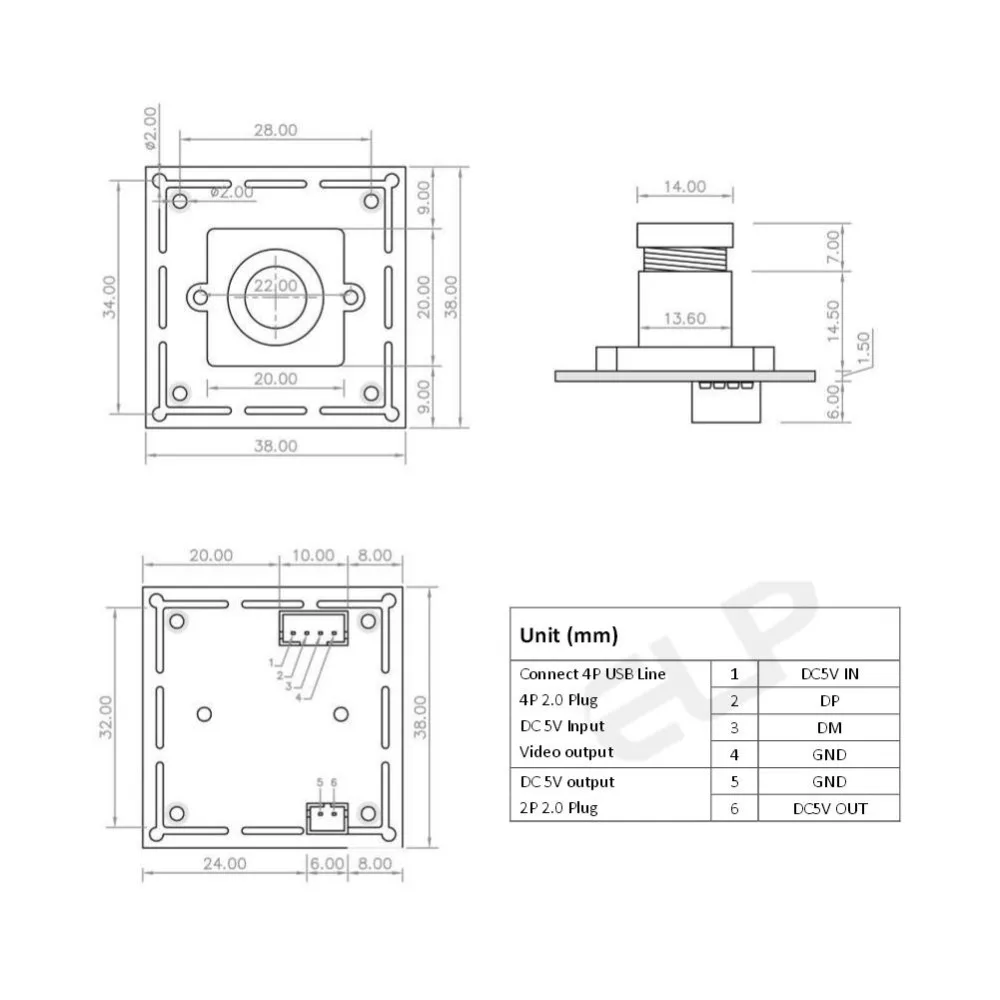

18size-l75

Effect Picture: effect-8MP-in (1)effect-8MP-out

Applications pictures:

8mp5mp aptina
