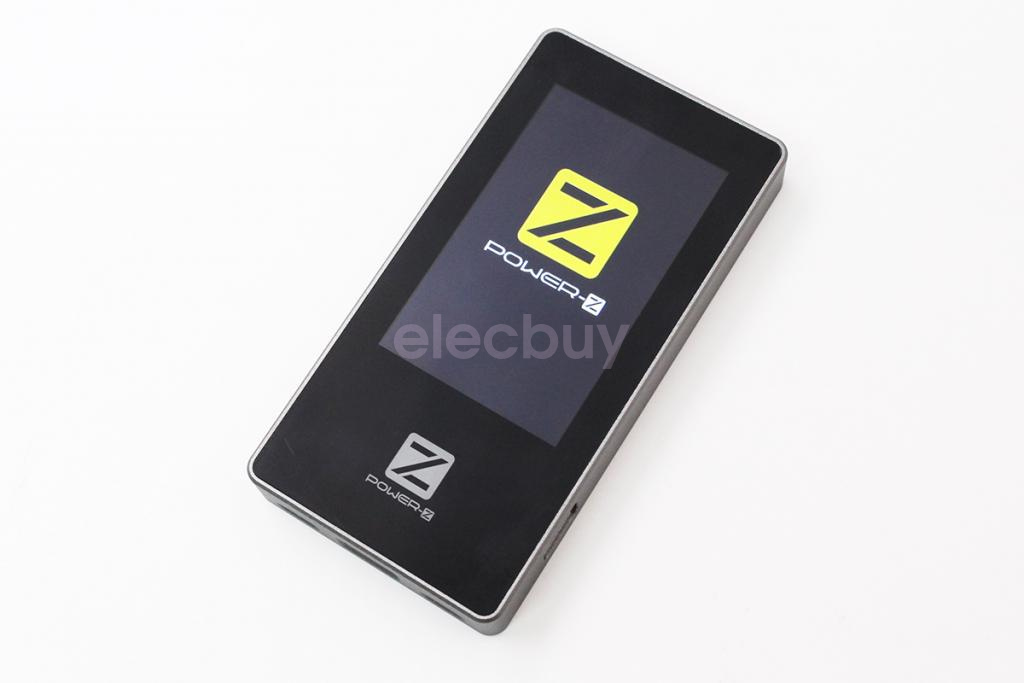

ChargerLAB POWER-Z MF001The front is a pure black design style, with acrylic panel on the outer layer, which looks very low and stable, while white.The logo of POWER-Z, a brand of color radium carving, is particularly eye-catching against the background color.

The fuselage size of the product is about 112 mm (long) x 57 mm (wide) x 14 mm (thick). The front side is equipped with a large LCD screen with a length of 64.5 mm and a width of 39 mm. The large screen display can show more and more complete test information to users, and bring users visual enjoyment beyond the reach of common test tools.

 ChargerLAB POWER-Z MF001The main part of the shell is made of a whole piece of aluminum alloy material and is made by an integrated forming process. It is full of materials and has a heavy feel. It gives people a very strong, pigmented and pigmented feeling, no matter how it looks or feels.

Besides,The four corners of POWER-Z MF001 shell are designed for fillet transition, and the chamfering process is also used for the edge position, which makes the whole product melt into a round atmosphere with both rigidity and flexibility in a hard appearance; and the surface of the shell is treated with anodic oxidation and grinding, which makes the feel of the whole product very delicate, and also plays a role of skid resistance and scratch resistance.

 On the top of POWER-Z MF001 is a switch, a buzzer and a microUSB interface, which can be used to charge devices or to connect computers for firmware updates.

 At the bottom are two Lightning interfaces and USB-A interfaces. The Lightning interface is mainly used to test MFi cables and USB-A interfaces, which can be used to connect loads with other test functions.

The charging status indicator, three function selection keys and USB-C input interface are distributed in turn on the side.

 The other side is the USB-C output interface.

Lightning wire testing interface. The interfaceIt can display the authentication serial number type, authentication chip type, switch chip, score and other information of Lightning header.

At present, this testing function can support the testing of Lightning head of Apple, Lightning head of platform system, Lightning head of shanzhai, and Lightning head of C100, C48, C52, C68, E75, etc. The testing range is very wide and the precision is very high.

 Voltage and current detection interface, can test voltage and current, and display the corresponding curve.

 Transformer test interface, which currently supports QC2.0 protocol and USB PD protocol testing.

​ ChargerLAB POWER-Z MF001 is smaller than the size of the iPhone 7, comparable to the cigarette box, and very portable.

 When the product leaves the factory, a protective film is affixed on the front part, which can be torn off according to the demand when it is used.
